Product Details | RIGID CONNECTING LINK
3040-00-961-1330 An item of various cross-sectional shapes which may be of solid or hollow construction. It is specifically designed for attachment to a lever(s) and/or control(s) to actuate various remote mechanisms. It is one of the following: (1) A one-piece item with or without eyes and/or holes in each end which may have bushings or bearings pressed in the eyes; (2) A one-piece item with both ends processed for terminations, excluding threaded end(s); (3) A two-piece construction type item consisting of a body with both ends processed for terminations and a single end attachment; or (4) A three-piece construction type item consisting of a body and two end attachments. Excludes internal combustion engine type piston connecting rods; DRAG LINK, STEERING; LINK, ANCHOR, BRAKE SHOE; TIE ROD, STEERING; and TURNBUCKLE. For cylindrical shaped externally threaded items without end attachments, see ROD, THREADED END and STUD (as modified).
Part Alternates: 114C10154, 114C1015-4, 3040-00-961-1330, 00-961-1330, 3040009611330, 009611330
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1962 | 00-961-1330 | 21988 ( CONNECTING LINK, RIGID ) |

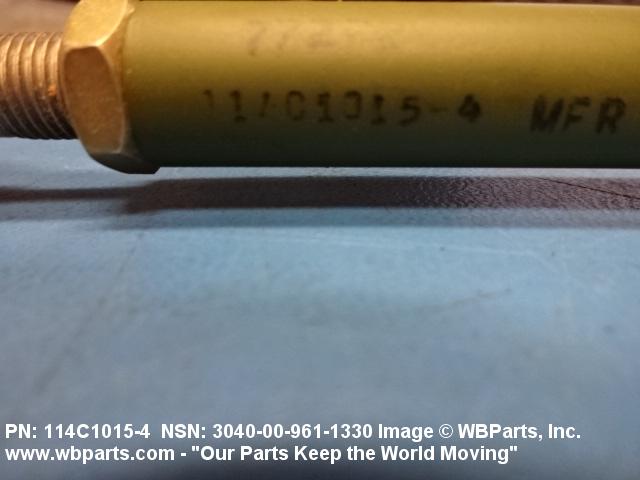

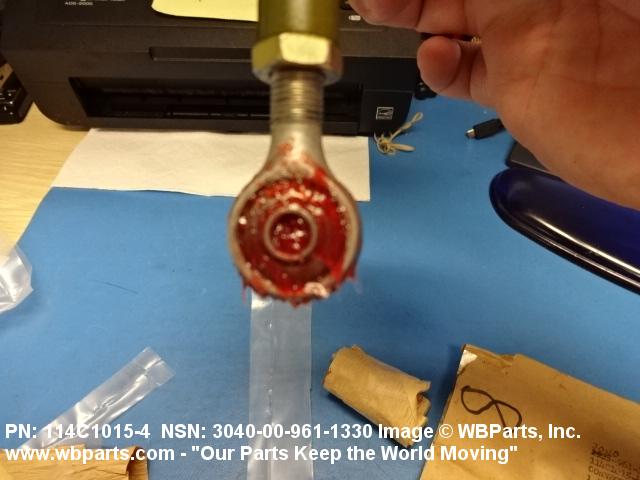

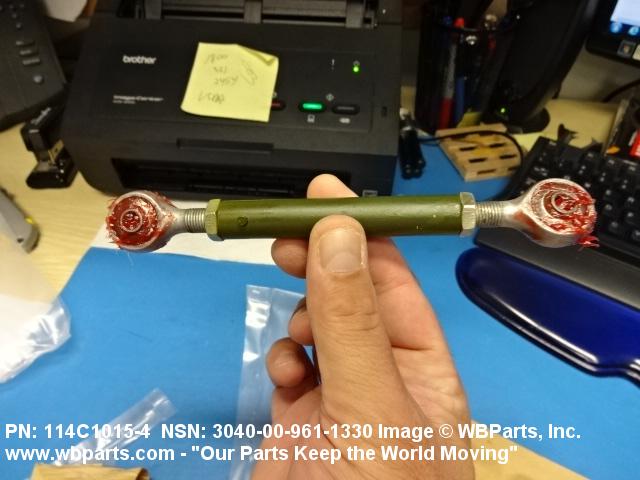

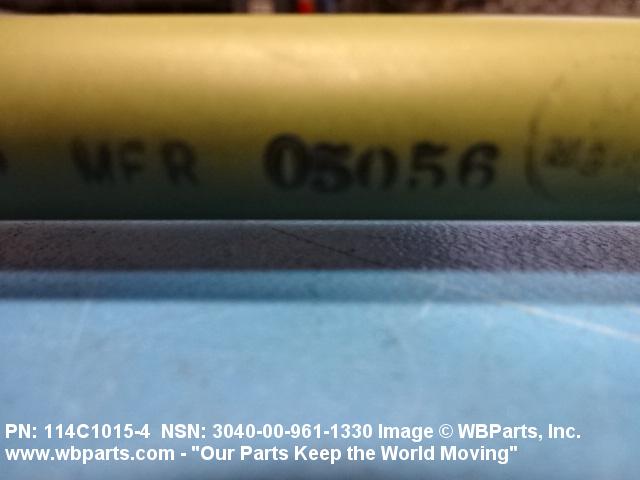

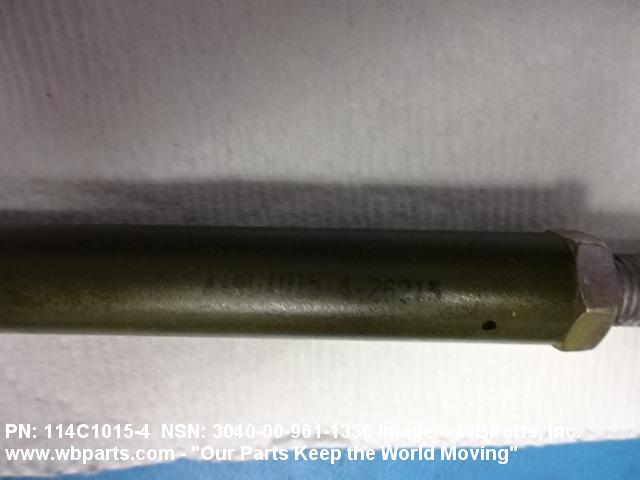

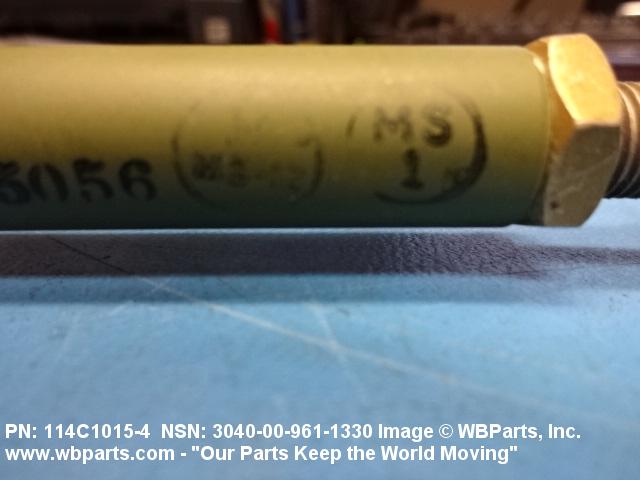

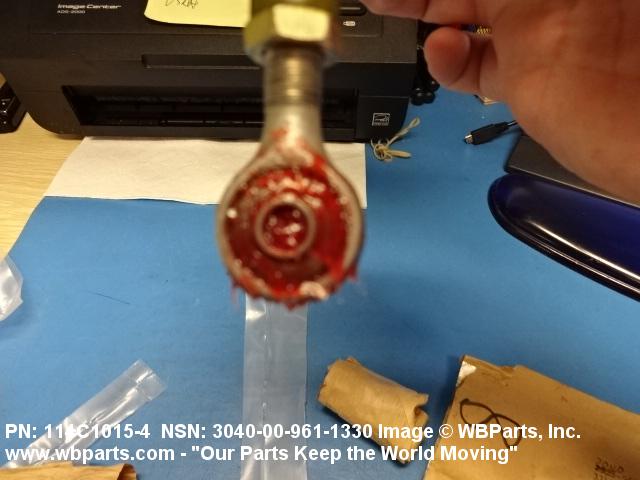

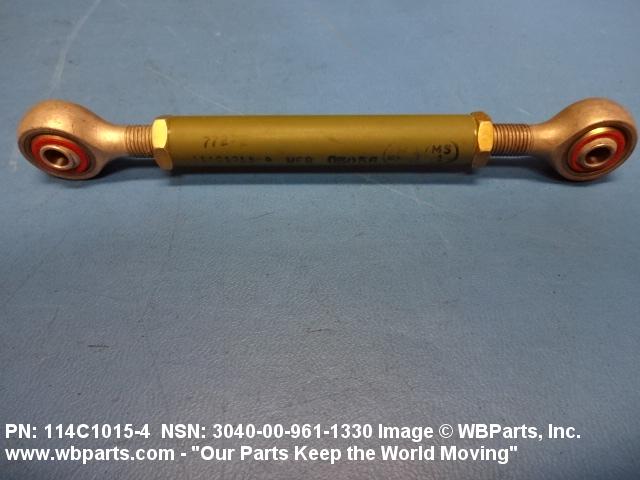

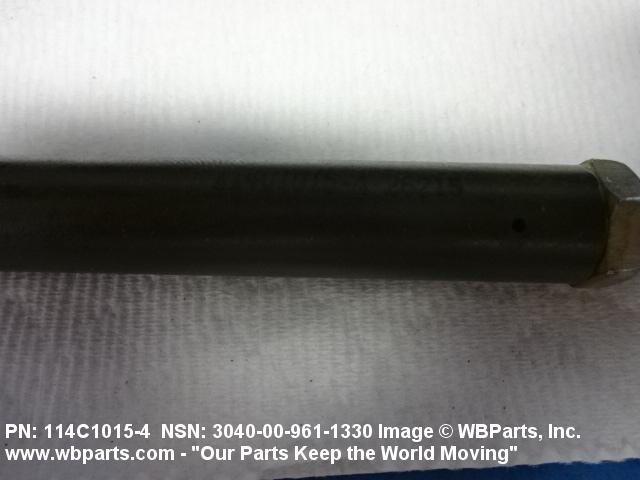

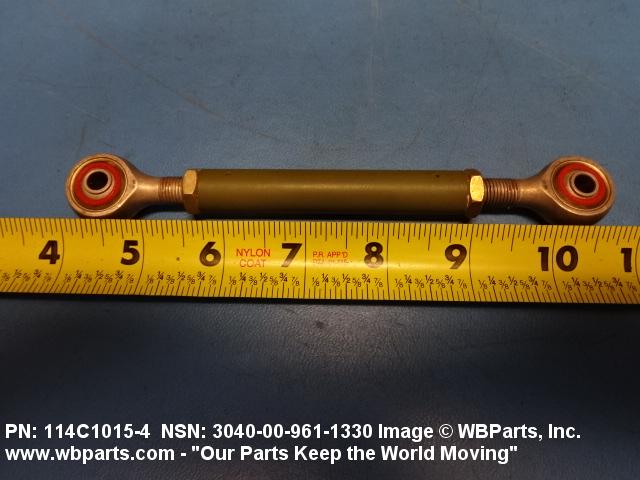

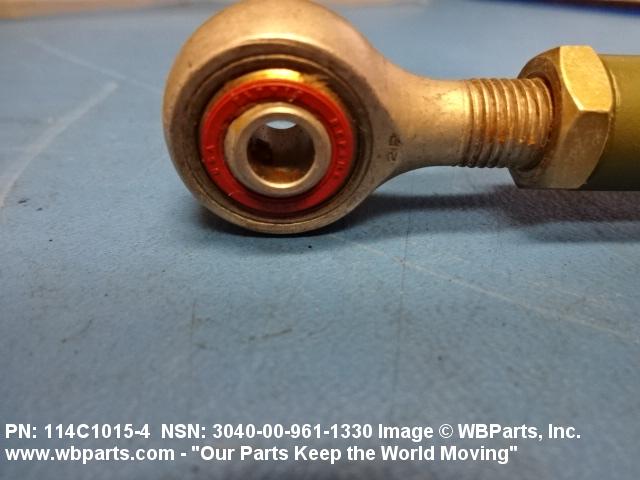

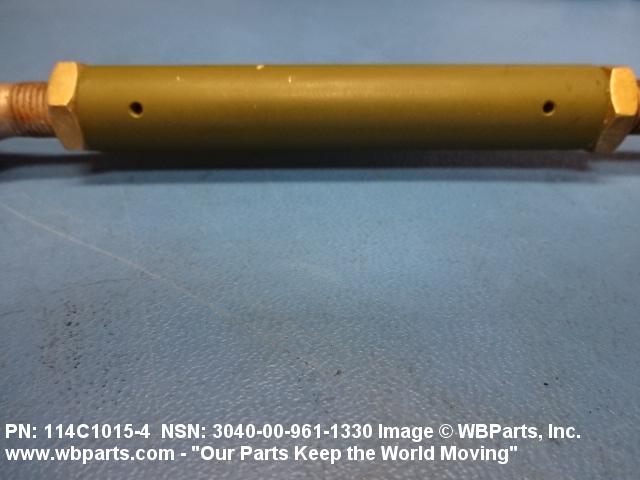

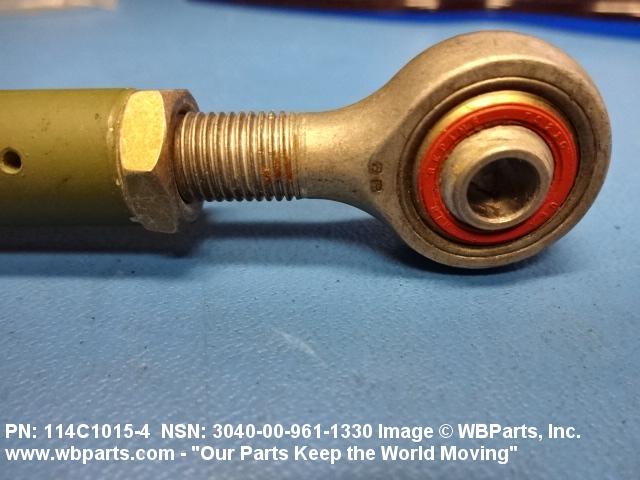

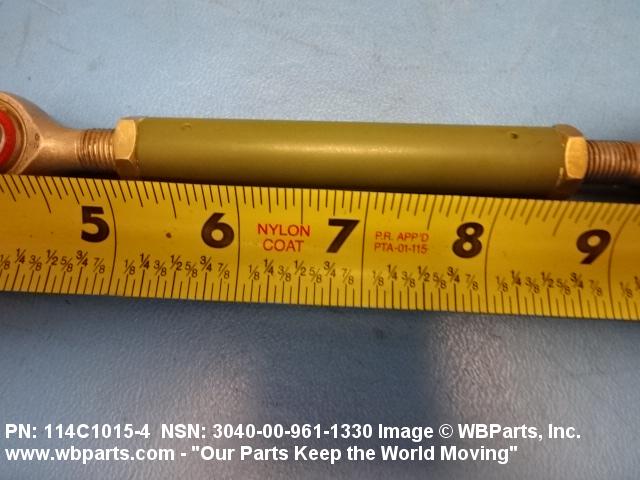

Drawings & Photos | NSN 3040-00-961-1330
Demand History | NSN 3040-00-961-1330
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 3040-00-961-1330
3040-00-961-1467, 3040-00-961-1468, 3040-00-961-2071, 3040-00-961-2545, 3040-00-961-2555
Technical Data | NSN 3040-00-961-1330
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-T-6736, TY1, COND N MIL SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CADMIUM ALLOY |
| BODY CONSTRUCTION | TUBULAR |
| LINK STYLE | A44 SOLID SHANK |
| OVERALL LENGTH | 6.878 INCHES MINIMUM AND 6.898 INCHES MAXIMUM |
| BODY DIAMETER | 0.562 INCHES NOMINAL |
| END ATTACHMENT HOLE DIAMETER | 0.2495 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM FIRST END |
| END ATTACHMENT LENGTH | 2.334 INCHES MINIMUM AND 2.354 INCHES MAXIMUM FIRST END |
| END ATTACHMENT WIDTH | 0.588 INCHES MINIMUM AND 0.593 INCHES MAXIMUM FIRST END |
| SPECIAL FEATURES | EFFECTIVE LENGTH: 5.950 INCHES; LINK THREADING LENGTH AND SIZE: RIGHT HAND, 0.840 INCHES, 3/8-24 UNF; END ATTACHMENT INFO: MATERIAL STEEL, SURFACE TREATMENT CADMIUM PLATED, LOCKNUT, DIAMETER 0.928 TO 0.848 INCH |
| MANUFACTURERS CODE | 77272 |
| DESIGN CONTROL REFERENCE | 114C1015-4 |
Restrictions/Controls & Freight Information | NSN 3040-00-961-1330
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095630 | LAP/CONNECTING LINKS/RINGS STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-00-961-1330
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
