Product Details | PAWL
3040-00-379-5784 A catching device of various shapes and cross sections, which permits motion in only one direction. Designed to engage the teeth or notches of a sector, quadrant, ratchet wheel, or the like. Item is so pivoted that the angle of approach to the interdental engagement causes it to rest more firmly as the reverse load is increased. Item may be spring actuated to cause engagement. Excludes CAM (as modified).
Part Alternates: 243843PC1, 3040-00-379-5784, 00-379-5784, 3040003795784, 003795784
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-379-5784 | 22101 ( PAWL ) |
Drawings & Photos | NSN 3040-00-379-5784
Cross Reference | NSN 3040-00-379-5784
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 243843PC1 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 3040-00-379-5784
3040-00-379-5857, 3040-00-379-5867, 3040-00-379-5884, 3040-00-379-5885, 3040-00-379-6012
Technical Data | NSN 3040-00-379-5784
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

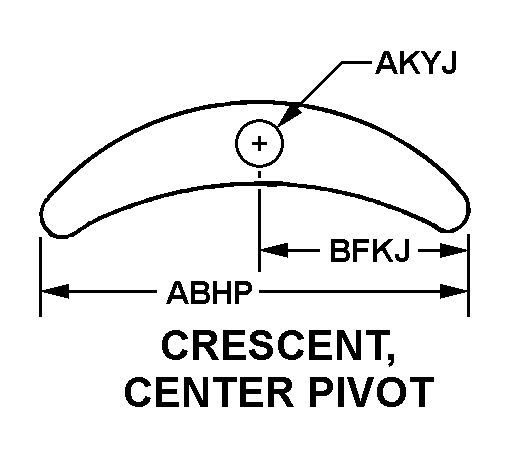

| STYLE DESIGNATOR | A6 CRESCENT, CENTER PIVOT |
| OVERALL LENGTH | 1.681 INCHES NOMINAL |
| PIVOT PIN HOLE DIAMETER | 0.282 INCHES NOMINAL |
| LENGTH FROM PIVOT PINHOLE CENTERLINE TO POINT OF ENGAGEMENT | 1.400 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.310 INCHES NOMINAL |
| SPECIAL FEATURES | CASEHARDENED;DEPTH FROM PIVOT PINHOLE CENTERLINE TO POINT OF ENGAGEMENT:0.281 IN.NOM;SURFACE FINISH:COPPER PLATED |
