Product Details | STRAIGHT SHAFT
3040-00-496-1593 A straight shaft having two or more of the following conditions: a specified surface finish designation in the range of 1 to 125 microinches (o.o25 to 3.2 micrometers), arithmetical average (aa), machined peripheral flat(s), circular groove (s), keyway(s), splines, threads, or holes. It is not designed for use in aligning by fitting into corresponding holes of another item. It may be drilled for lubricating holes. For items having an integral gear(s) or worm(s), see GEARSHAFT (as modified). For items designed to support rotating members see AXLE(1), STRAIGHT. For items not having the above conditions see PIN, STRAIGHT, HEADLESS. For items having machined ends which constitute steps see SHAFT(1), SHOULDERED; AXLE(1), SHOULDERED; and BOLT, FLUID PASSAGE.20310050000101500003040000000
Part Alternates: F1988, 1988, 3040-00-496-1593, 00-496-1593, 3040004961593, 004961593
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-496-1593 | 22109 ( SHAFT, STRAIGHT ) |
Drawings & Photos | NSN 3040-00-496-1593
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 3040-00-496-1593
3040-00-496-1604, 3040-00-496-2068, 3040-00-496-2925, 3040-00-496-2929, 3040-00-496-7711
Technical Data | NSN 3040-00-496-1593
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| FIRST END STYLE | 8 SPLINED |
| FIRST END DIAMETER | 1.0000 INCHES NOMINAL |
| FIRST END SPLINE LENGTH | 1.500 INCHES NOMINAL |
| FIRST END SPLINE MINOR DIAMETER | 0.9230 INCHES NOMINAL |
| FIRST END SPLINE MAJOR DIAMETER | 1.0000 INCHES NOMINAL |
| FIRST END SPLINE QUANTITY | 20 |
| END SIMILARITY | NOT IDENTICAL |

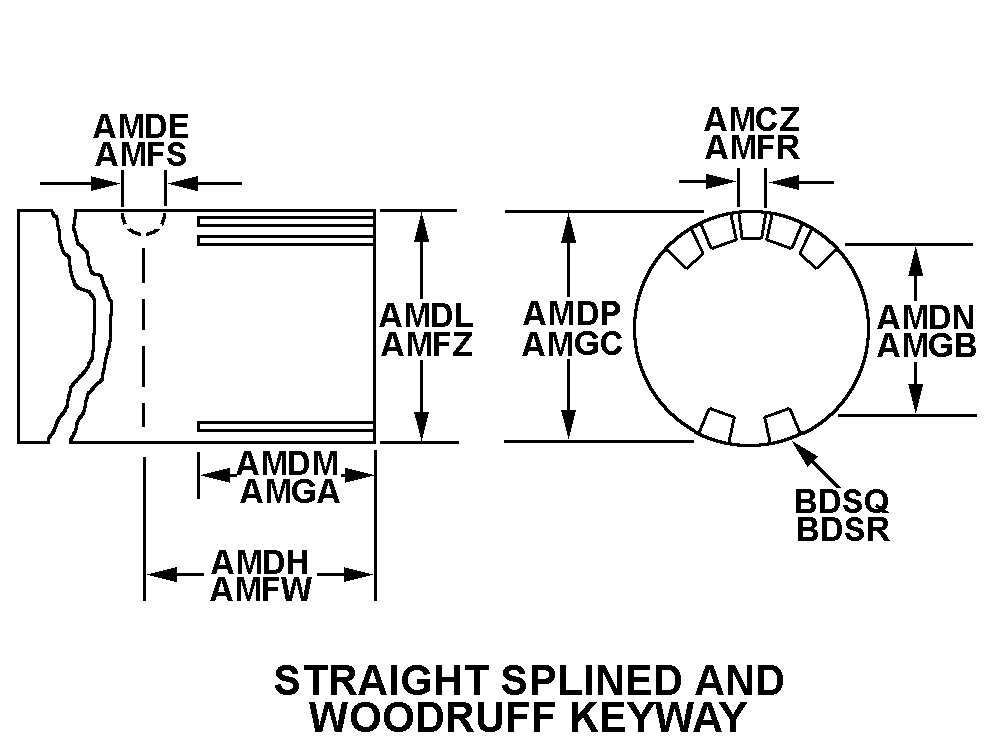

| SECOND END STYLE | 57 STRAIGHT SPLINED AND WOODRUFF KEYWAY |
| SECOND END KEYWAY WIDTH | 0.1875 INCHES NOMINAL |
| SECOND END EXTERNAL KEYWAY LENGTH | 0.875 INCHES NOMINAL |
| SECOND END DISTANCE FROM KEYWAY CENTER TO END | 0.500 INCHES NOMINAL |
| SECOND END DIAMETER | 1.0000 INCHES NOMINAL |
| SECOND END SPLINE MAJOR DIAMETER | 1.0000 INCHES NOMINAL |
| SECOND END SPLINE QUANTITY | 20 |
| OVERALL LENGTH | 12.500 INCHES NOMINAL |
| MANUFACTURERS CODE | 73460 |
| DESIGN CONTROL REFERENCE | 1988 |
