NSN 3040-00-679-9622 8756583, 8756584 , 00-679-9622
Product Details | SHOULDERED SHAFT
3040-00-679-9622 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Part Alternates: 8756583, 8756584 , 3040-00-679-9622, 00-679-9622, 2520006799622 , 3040006799622, 006799622
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1963 | 00-679-9622 | 22914 ( SHAFT, SHOULDERED ) |

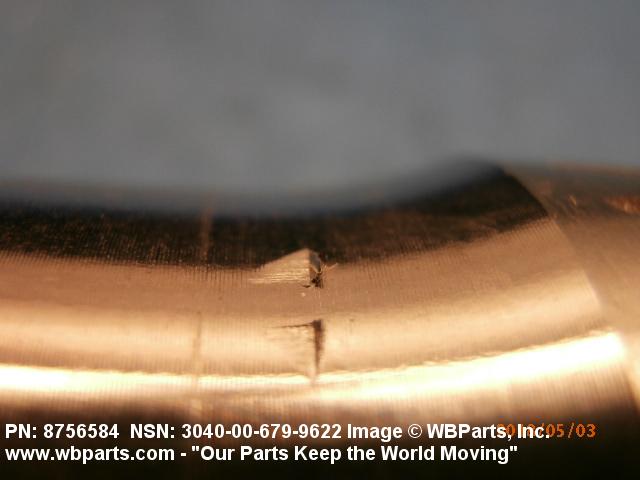

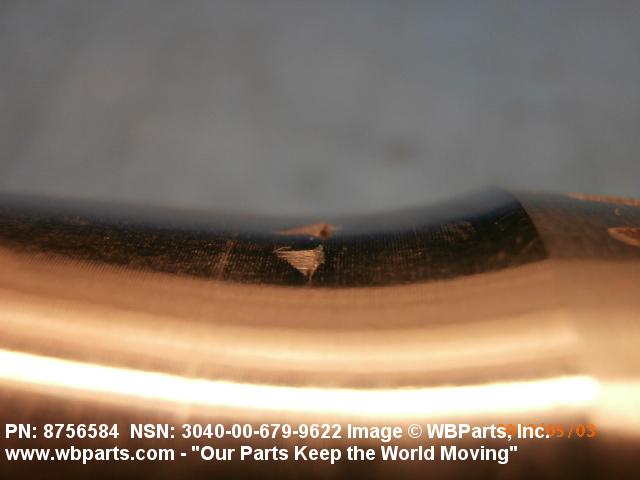

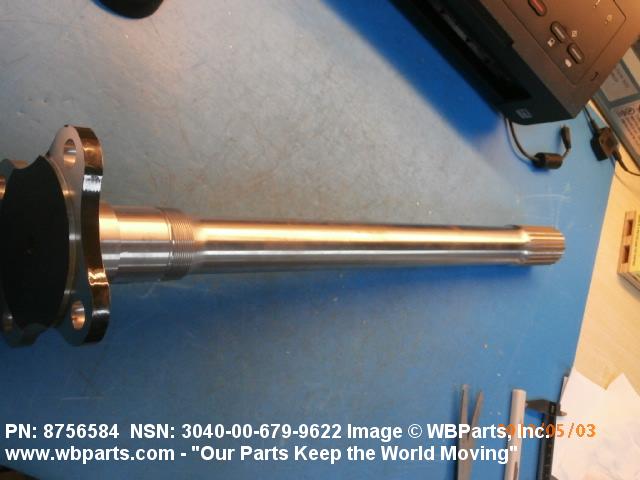

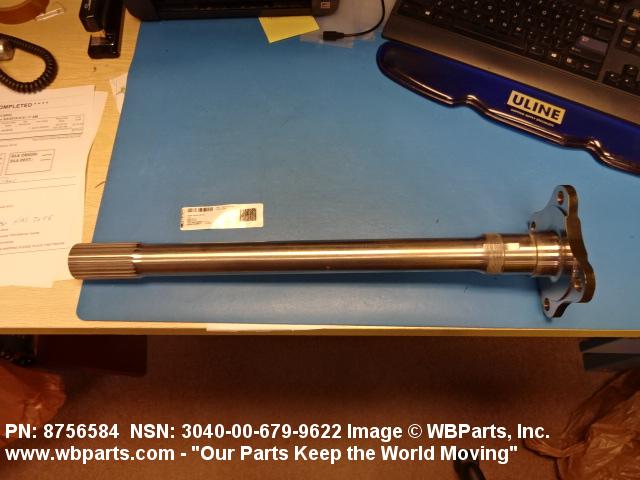

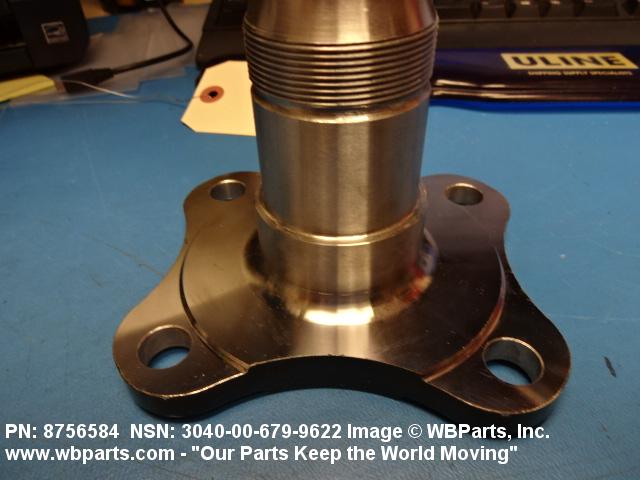

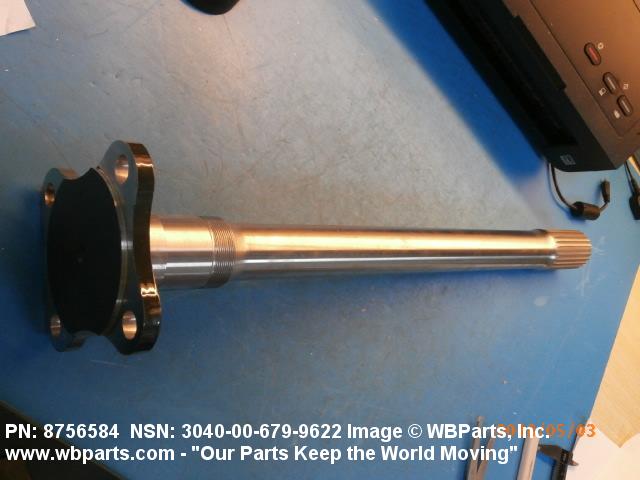

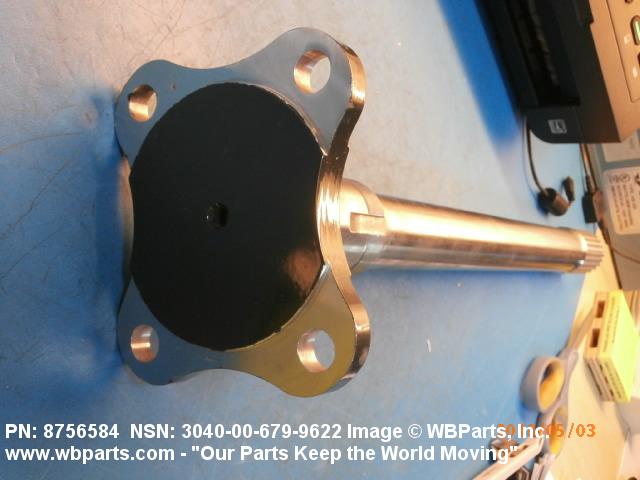

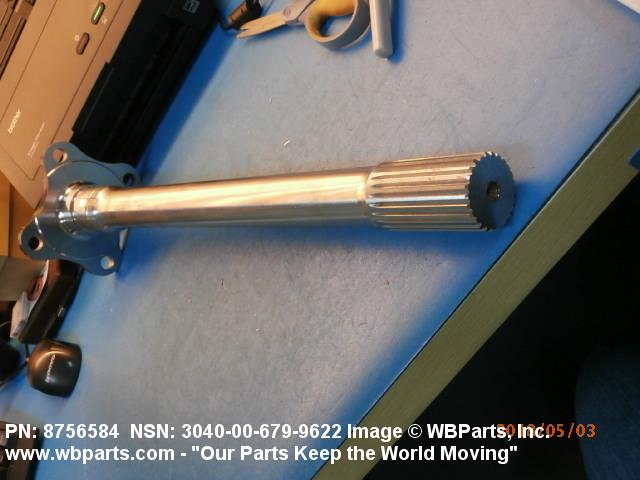

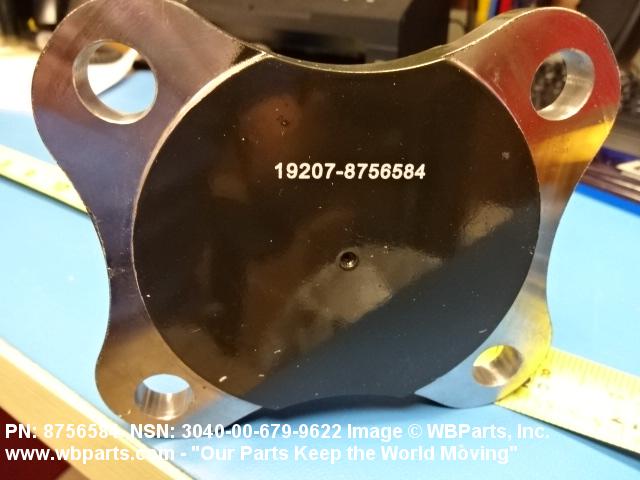

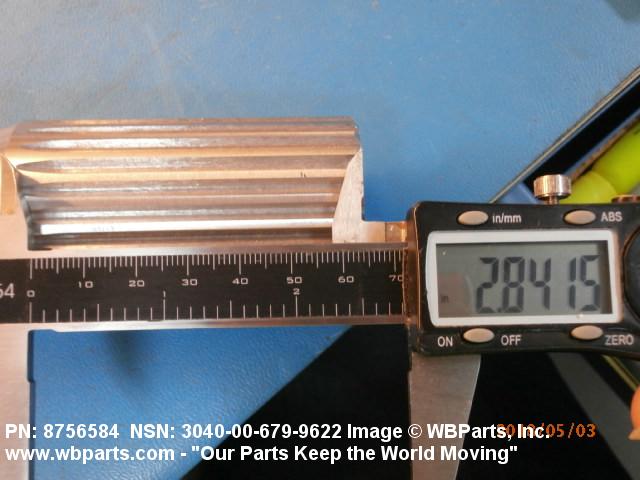

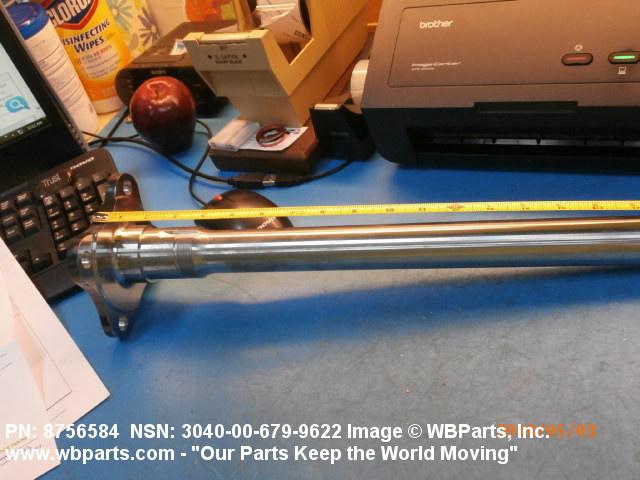

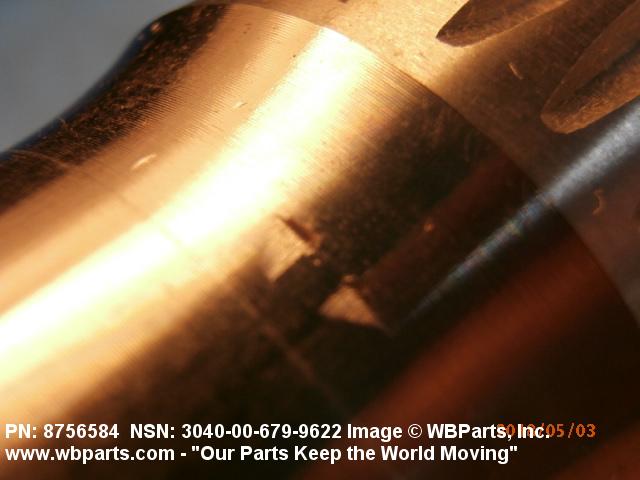

Drawings & Photos | NSN 3040-00-679-9622
Demand History | NSN 3040-00-679-9622
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-00-679-9622 | 2025-11-330 | 10 | US |
| 3040-00-679-9622 | 2025-07-198 | 5 | DIBBS |
| 3040-00-679-9622 | 2025-02-49 | 5 | DIBBS |
| 3040-00-679-9622 | 2024-09-247 | 10 | DIBBS |
| 3040-00-679-9622 | 2024-08-235 | 10 | DIBBS |
| 3040-00-679-9622 | 2023-08-215 | 5 | Netherlands |
| 3040-00-679-9622 | 2022-08-220 | 5 | DIBBS |
| 3040-00-679-9622 | 2022-03-67 | 5 | DIBBS |
| 3040-00-679-9622 | 2017-11-311 | 3 | Netherlands |
| 3040-00-679-9622 | 2014-06-174 | 9 | DIBBS |
| 3040-00-679-9622 | 2014-06-161 | 9 | DIBBS |
| 3040-00-679-9622 | 2014-05-122 | 9 | DIBBS |
| 3040-00-679-9622 | 2014-04-103 | 9 | DIBBS |
| 3040-00-679-9622 | 2012-05-150 | 38 | US |
| 3040-00-679-9622 | 2011-09-262 | 38 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-00-679-9622
Technical Data | NSN 3040-00-679-9622
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4140 OR STEEL COMP 4142 OR STEEL COMP 8645 |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-46172 MIL SPEC SINGLE MATERIAL RESPONSE |
| FIRST END STYLE | 1 PLAIN |

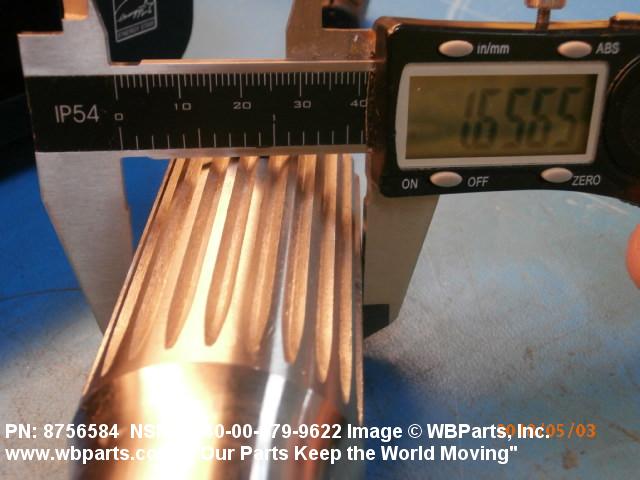

| FIRST END DIAMETER | 1.6800 INCHES NOMINAL |
| END SIMILARITY | NOT IDENTICAL |

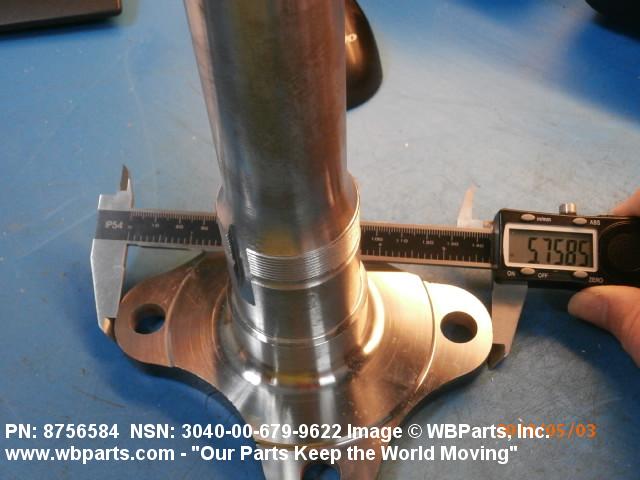

| SECOND END DIAMETER | 5.7500 INCHES NOMINAL |
| LARGEST STEP DIAMETER | 5.750 INCHES NOMINAL |
| OVERALL LENGTH | 20.938 INCHES NOMINAL |
| STEP QUANTITY | 5 |

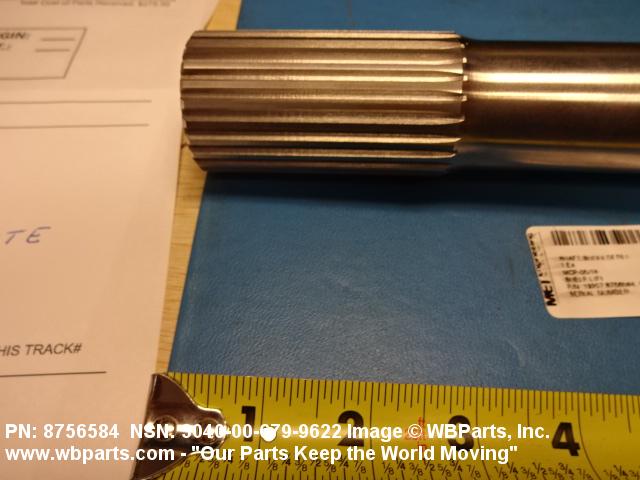

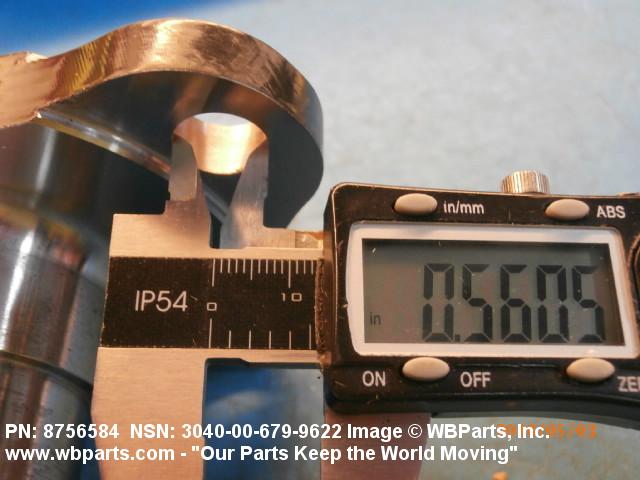

| SPECIAL FEATURES | SECOND END MOUNTING FLANGE WITH 4-0.562 IN. DIA HOLES; 25 EXTERNAL INVOLUTE SPLINES LOCATED 2.921 IN. FROM SECOND END |
| TEST DATA DOCUMENT | 19207-8756584 DRAWING |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 8756584 |
Restrictions/Controls & Freight Information | NSN 3040-00-679-9622
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126900 | POWER TRANS SHAFTING/SHAFTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-00-679-9622
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
