Product Details | SHOULDERED SHAFT
3040-00-751-8392 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Part Alternates: 3662181, 36-6218-1, 3040-00-751-8392, 00-751-8392, 3040007518392, 007518392
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 01 JAN 1962 | 00-751-8392 | 22914 ( SHAFT, SHOULDERED ) |
Drawings & Photos | NSN 3040-00-751-8392
Cross Reference | NSN 3040-00-751-8392
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 36-6218-1 | 82918 | THE BOEING COMPANY DBA BOEING |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 3040-00-751-8392
3040-00-751-8909, 3040-00-752-0952, 3040-00-752-0977, 3040-00-752-0978, 3040-00-752-0982
Technical Data | NSN 3040-00-751-8392
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-268,T4 FED SPEC SINGLE MATERIAL RESPONSE |
| FIRST END STYLE | 1 PLAIN |
| FIRST END DIAMETER | 0.6200 INCHES NOMINAL |
| END SIMILARITY | NOT IDENTICAL |

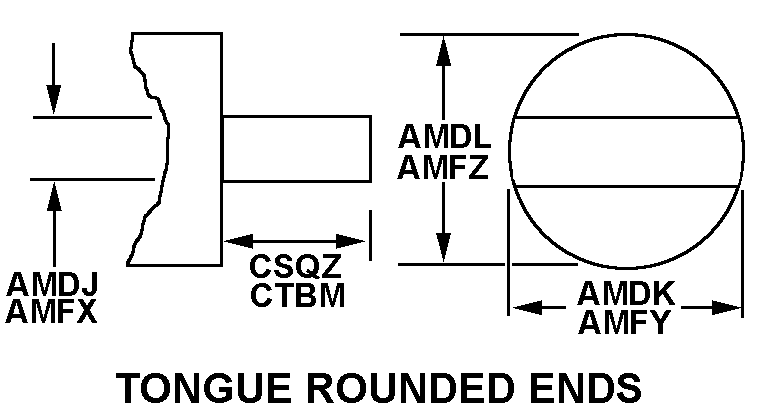

| SECOND END STYLE | 19 TONGUE ROUNDED ENDS |
| SECOND END TONGUE THICKNESS | 0.060 INCHES NOMINAL |
| SECOND END DIAMETER | 0.3600 INCHES NOMINAL |
| SECOND END STEP LENGTH | 0.140 INCHES NOMINAL |
| LARGEST STEP DIAMETER | 0.620 INCHES NOMINAL |
| OVERALL LENGTH | 5.600 INCHES NOMINAL |
| STEP QUANTITY | 5 |
| SPECIAL FEATURES | INTERNAL SERRATION ON SECOND END 0.3594 IN. PD BY 0.3500 IN. MINOR DIA BY 0.4000 IN. MAJOR DIA,23 TEETH;0.096 IN. DIA HOLE ON FIRST END;0.130 IN. LG GROOVE ALONG LG |
| III END ITEM IDENTIFICATION | 1660-00-733-4214 |
| MANUFACTURERS CODE | 82918 |
| DESIGN CONTROL REFERENCE | 36-6218-1 |
Restrictions/Controls & Freight Information | NSN 3040-00-751-8392
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126900 | POWER TRANS SHAFTING/SHAFTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
