NSN 3040-01-150-3938 111B00271, 111-B-0027-1, 01-150-3938
Product Details | BALL JOINT
3040-01-150-3938 An item in which the end of one member is partly spherical and fits into a corresponding spherical cavity in the other member, thus permitting a relative angular movement. Excludes items specifically designed for vehicular steering and torsion application.
Part Alternates: 111B00271, 111-B-0027-1, 3040-01-150-3938, 01-150-3938, 3040011503938, 011503938
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 04 APR 1983 | 01-150-3938 | 16619 ( BALL JOINT ) |

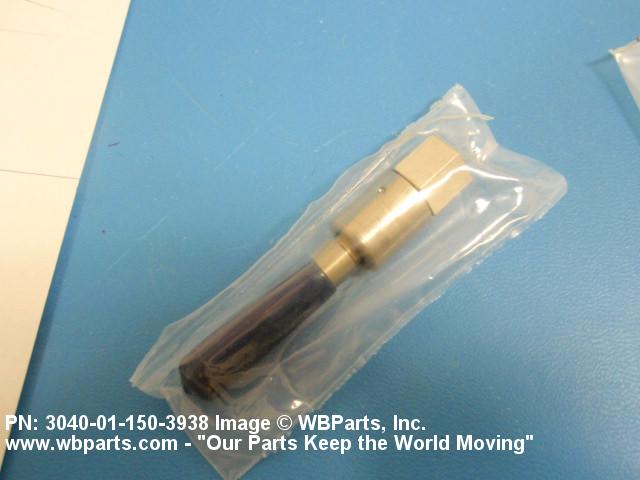

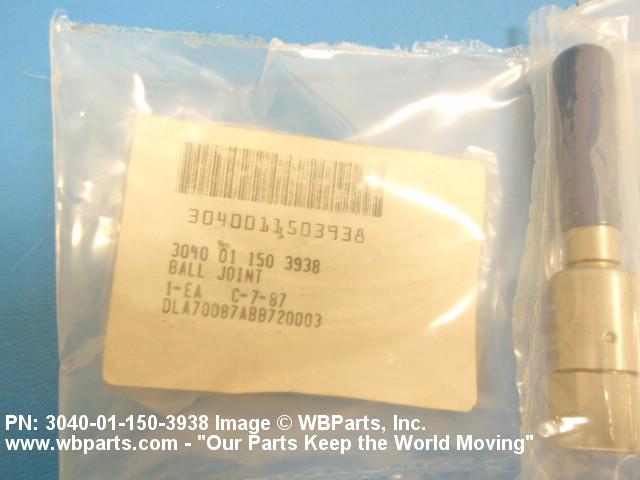

Drawings & Photos | NSN 3040-01-150-3938
Demand History | NSN 3040-01-150-3938
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 111-B-0027-1 | 2025-07-211 | 3 | DIBBS |
| 111-B-0027-1 | 2025-07-196 | 3 | DIBBS |
| 111-B-0027-1 | 2025-02-33 | 2 | DIBBS |
| 111-B-0027-1 | 2024-05-134 | 2 | DIBBS |
| 111-B-0027-1 | 2024-03-88 | 2 | DIBBS |
| 111-B-0027-1 | 2023-08-236 | 2 | DIBBS |
| 111-B-0027-1 | 2022-04-97 | 2 | DIBBS |
| 111-B-0027-1 | 2022-04-96 | 1 | DIBBS |
| 111-B-0027-1 | 2021-08-238 | 1 | DIBBS |
| 111-B-0027-1 | 2021-08-227 | 1 | DIBBS |
| 3040-01-150-3938 | 2012-08-244 | 4 | DIBBS |
| 3040-01-150-3938 | 2010-12-349 | 2 | DIBBS |
| 3040-01-150-3938 | 2010-08-216 | 2 | DIBBS |
| 111B00271 | 2010-01-20 | 5 | Chile |
| 111B00271 | 2010-01-19 | 8 | United States |
| 111B00271 | 2009-01-21 | 1 | United States |
| 3040-01-150-3938 | 2008-07-196 | 7 | DIBBS |
| 3040-01-150-3938 | 2007-08-219 | 7 | DIBBS |
Cross Reference | NSN 3040-01-150-3938
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 111-B-0027-1 | 04638 | TRANSDIGM INC DBA AEROCONTROLEX |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3040-01-150-3938
Related Products | NSN 3040-01-150-3938
Technical Data | NSN 3040-01-150-3938
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | A4 SINGLE, STRAIGHT |
| LENGTH | 3.000 INCHES NOMINAL |
| BALL END CONNECTION THREAD PROVISION | THREADED |
| BALL END THREAD LOCATION | INTERNAL |
| BALL END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1/4-28 UNF |
| BALL END THREAD DIRECTION | RIGHT |
| SPECIAL FEATURES | ADJUSTABLE;SPRING-NOT INCL.;BALL END THD LGTH 0.375 IN.;MATL-STEEL FED STD66,COMP 303 |
Restrictions/Controls & Freight Information | NSN 3040-01-150-3938
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-01-150-3938
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
