Product Details | BELL CRANK

3040-01-200-3585 An item in the form of two arms at an angle, having its fulcrum at the apex of the angle, and used to provide a means of changing the direction or varying the intensity of a pushing or pulling force. See also ARM (as modified); and LEVER (as modified).20411900057Specialized Test and Handling Equipment, Nuclear Ordnance11950030Miscellaneous Nuclear Ordnance16800049Miscellaneous Aircraft Accessories and Components30400042Miscellaneous Power Transmission Equipment

Part Alternates: 9531M57P01, 3040-01-200-3585, 01-200-3585, 3040012003585, 012003585

Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
30	03 FEB 1985	01-200-3585	22321 ( BELL CRANK )

Drawings & Photos | NSN 3040-01-200-3585

Part Number	Request Date	QTY	Origin
9531M57P01	2021-01-19	52	DIBBS
9531M57P01	2020-04-120	31	DIBBS
9531M57P01	2019-09-248	31	DIBBS
3040-01-200-3585	2011-09-258	55	DIBBS
3040-01-200-3585	2010-11-316	46	DIBBS
3040-01-200-3585	2010-09-259	47	DIBBS
3040-01-200-3585	2007-05-150	77	DIBBS
3040-01-200-3585	2006-03-68	71	DIBBS

Cross Reference | NSN 3040-01-200-3585

Part Number	Cage Code	Manufacturer
9531M57P01	01155	OBER INDUSTRIES INC
9531M57P01	03350	GENERAL ELECTRIC COMPANY DBA GE STRUCTURED SERVICES DIV
9531M57P01	07482	GENERAL ELECTRIC COMPANY DBA GE
9531M57P01	28884	TSS TECHNOLOGIES, INC. DBA TSS MEDICAL
9531M57P01	98912	JET ENGINE TECHNOLOGY CORPORATION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 3040-01-200-3585

Compare

Related Products | NSN 3040-01-200-3585

3040-01-200-3588, 3040-01-200-4221, 3040-01-200-4222, 3040-01-200-4236, 3040-01-200-4321

Technical Data | NSN 3040-01-200-3585

Characteristic	Specifications
MATERIAL	STEEL

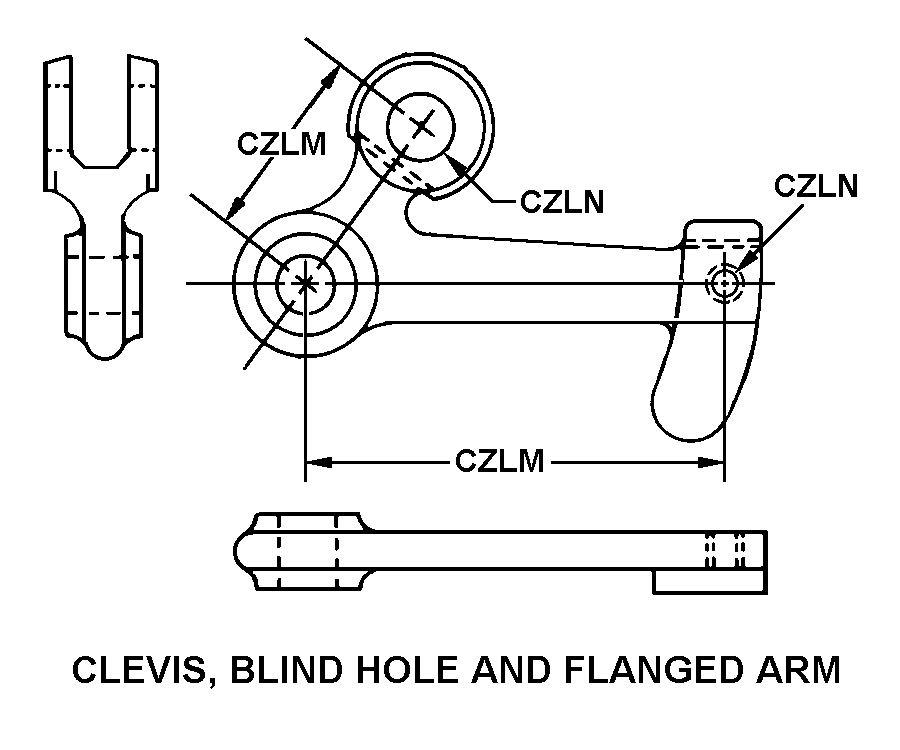

STYLE DESIGNATOR	A33 CLEVIS, BLIND HOLE AND FLANGED ARM
CENTER TO CENTER DISTANCE BETWEEN FULCRUM AND ARM END HOLE/SLOT/BALL	1.233 INCHES NOMINAL 1ST END 1.870 INCHES NOMINAL 2ND END
END HOLE/BALL DIAMETER	0.266 INCHES NOMINAL 1ST END 1.103 INCHES NOMINAL 2ND END
BORE DIAMETER	0.811 INCHES NOMINAL
FSC APPLICATION DATA	ACFT ENG F-110
MANUFACTURERS CODE	07482
DESIGN CONTROL REFERENCE	9531M57P01

Restrictions/Controls & Freight Information | NSN 3040-01-200-3585

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	130400	STARTING/CRANKING SYSTMS I/C ENG
Less than car load rating
Less than truck load rating	M	85.0
Water commodity Code	593	unknown
Originating Activity Code	SX	Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
