NSN 3040-01-242-3015 128B114001, 128B11400-1, 01-242-3015
Product Details | MANUAL CONTROL LEVER
3040-01-242-3015 A rigid item of various shapes and cross-sections, specifically designed to manually actuate and/or regulate a variety of mechanisms. It usually has an integral handgrip, knob, or the like, or provisions for the mounting of the same. It may have accommodations for locking and/or positioning. The point of fulcrum may be an integral shaft perpendicular to the axis or a through hole to provide a definite means of securing, and usually has additional accommodation(s) for attachment of CONNECTING LINK, RIGID; WIRE ROPE ASSEMBLY, SINGLE LEG; and CLEVIS, ROD END; etc.. Excludes ARM (as modified); LEVER, REMOTE CONTROL; and BELL CRANK.20511150037Nuclear Warheads and Warhead Sections11250026Nuclear Demolition Charges11900057Specialized Test and Handling Equipment, Nuclear Ordnance30400042Miscellaneous Power Transmission Equipment53400020Hardware, Commercial
Part Alternates: 128B114001, 128B11400-1, 3040-01-242-3015, 01-242-3015, 3040012423015, 012423015
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 09 OCT 1986 | 01-242-3015 | 61447 ( LEVER, MANUAL CONTROL ) |

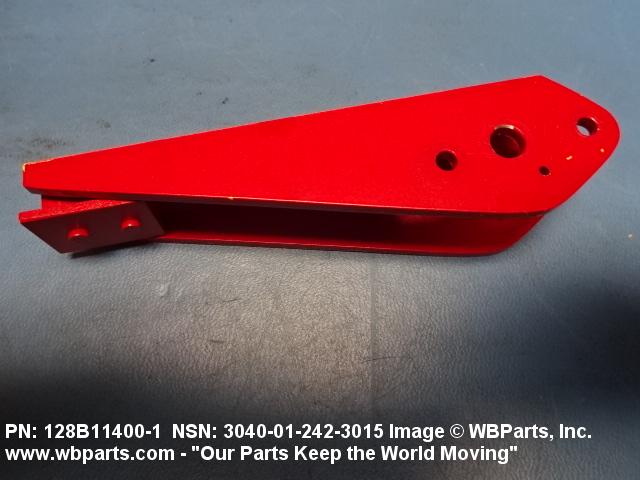

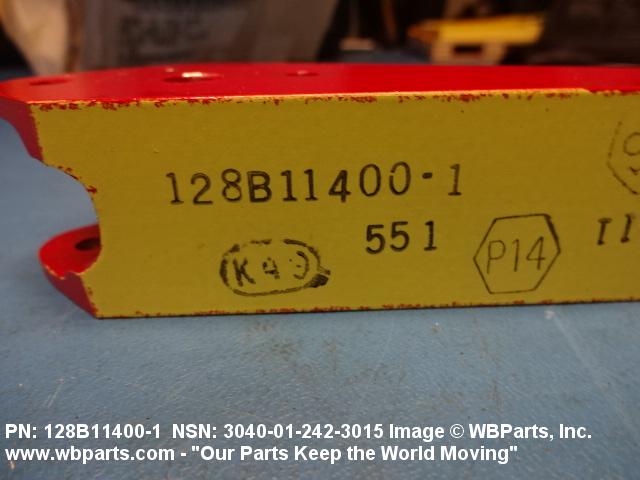

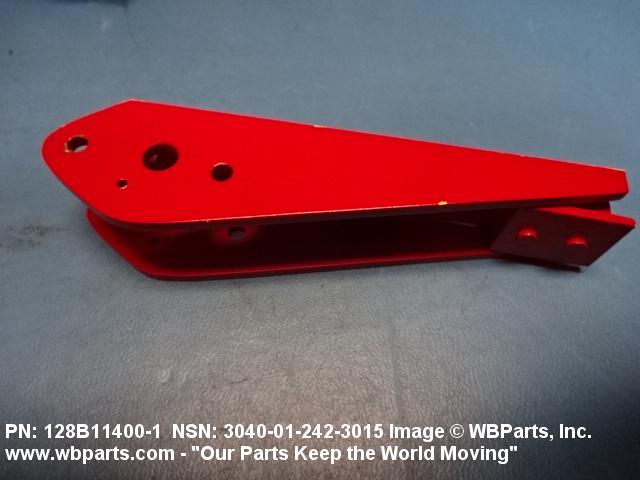

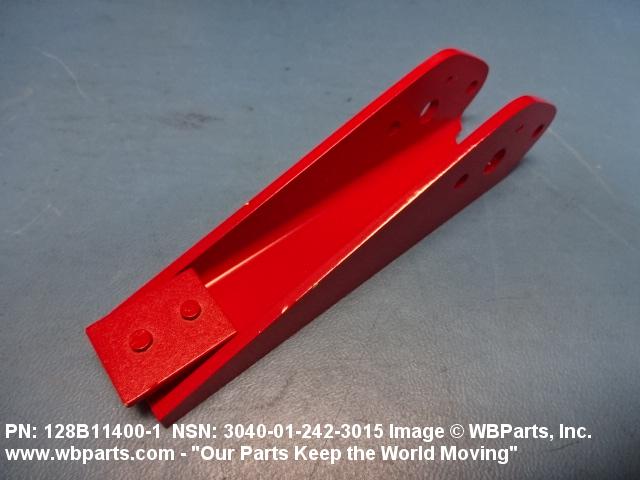

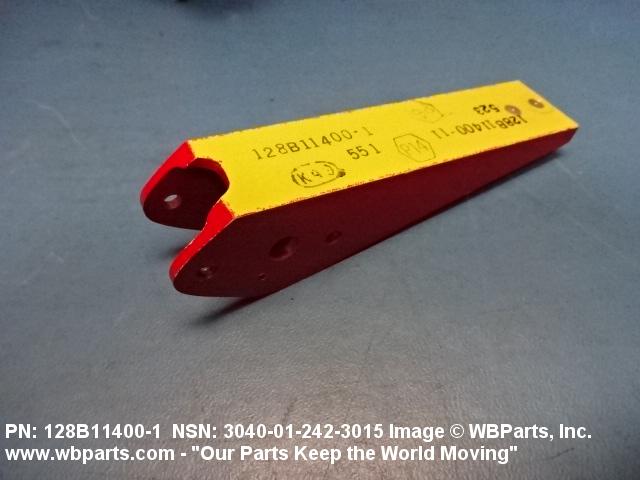

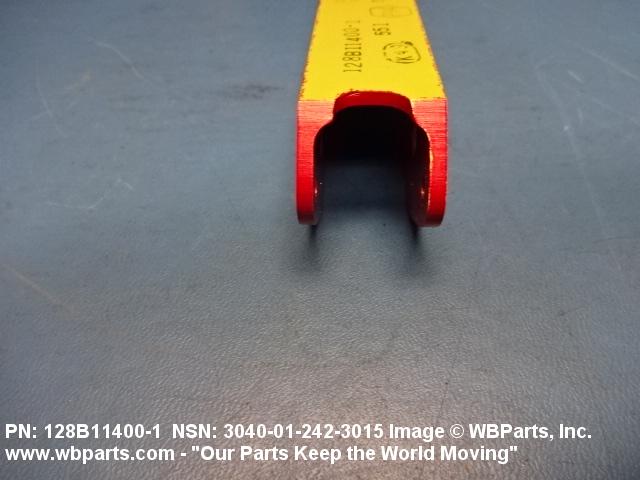

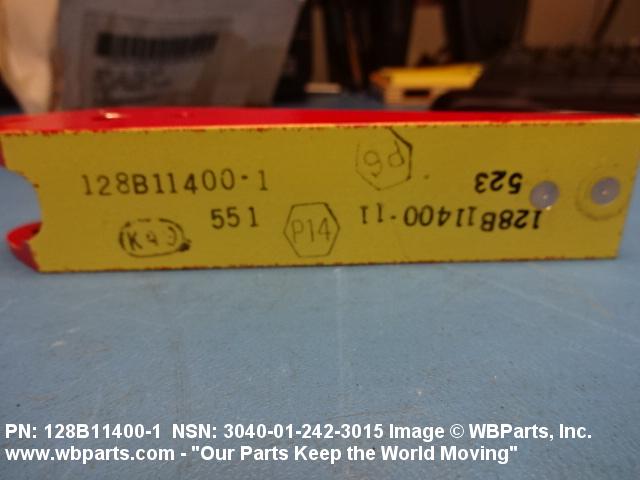

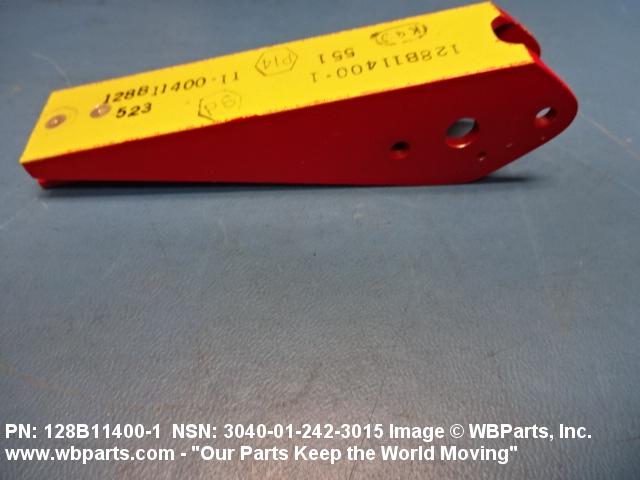

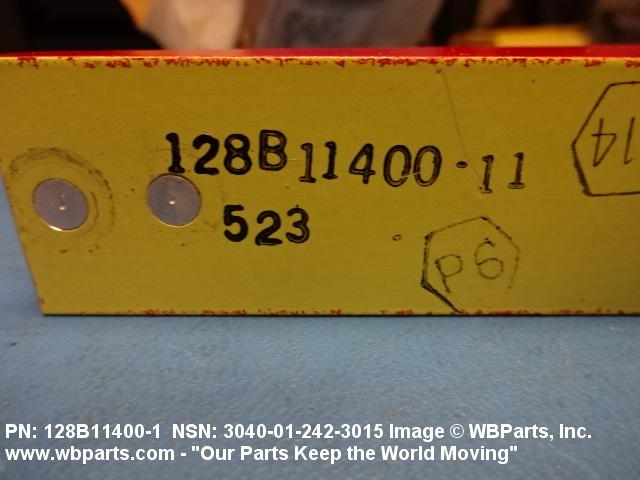

Drawings & Photos | NSN 3040-01-242-3015
Demand History | NSN 3040-01-242-3015
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3040-01-242-3015 | 2016-10-295 | 1 | United States |
| 3040-01-242-3015 | 2016-07-213 | 4 | DIBBS |
| 3040-01-242-3015 | 2010-08-215 | 7 | DIBBS |
| 3040-01-242-3015 | 2009-10-302 | 5 | DIBBS |
| 3040-01-242-3015 | 2006-03-69 | 4 | DIBBS |
| 3040-01-242-3015 | 2006-02-35 | 2 | DIBBS |
Cross Reference | NSN 3040-01-242-3015
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 128B11400-1 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-242-3015
Technical Data | NSN 3040-01-242-3015
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | ALUMINUM ALLOY,QQ-A-200/2,ALLOY 2014-T6511,GLOSS CELLULOSE,MIL-F-18264,INSIGNIA RED,FINISH ON ALL SURFACES EXCEPT BOTTOM OUTSIDE SURFACE; 1.125 IN. W; 0.562 IN. DIST FROM C TO END ALONG W; 0.125 IN. THK; FURN W/ PLATE,BLOCK AND BUMPER |
| MANUFACTURERS CODE | 26512 |
| DESIGN CONTROL REFERENCE | 128B11400-1 |
Restrictions/Controls & Freight Information | NSN 3040-01-242-3015
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3040-01-242-3015
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
