NSN 5340-01-311-2830 10029072, 01-311-2830, 013112830

Product Details | MANUAL CONTROL LEVER


5340-01-311-2830 A rigid item of various shapes and cross-sections, specifically designed to manually actuate and/or regulate a variety of mechanisms. It usually has an integral handgrip, knob, or the like, or provisions for the mounting of the same. It may have accommodations for locking and/or positioning. The point of fulcrum may be an integral shaft perpendicular to the axis or a through hole to provide a definite means of securing, and usually has additional accommodation(s) for attachment of CONNECTING LINK, RIGID; WIRE ROPE ASSEMBLY, SINGLE LEG; and CLEVIS, ROD END; etc.. Excludes ARM (as modified); LEVER, REMOTE CONTROL; and BELL CRANK.20511150037Nuclear Warheads and Warhead Sections11250026Nuclear Demolition Charges11900057Specialized Test and Handling Equipment, Nuclear Ordnance30400042Miscellaneous Power Transmission Equipment53400020Hardware, Commercial

Part Alternates: 10029072, 5340-01-311-2830, 01-311-2830, 5340013112830, 013112830

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG) NSN Assign. NIIN
53 22 NOV 1989 01-311-2830

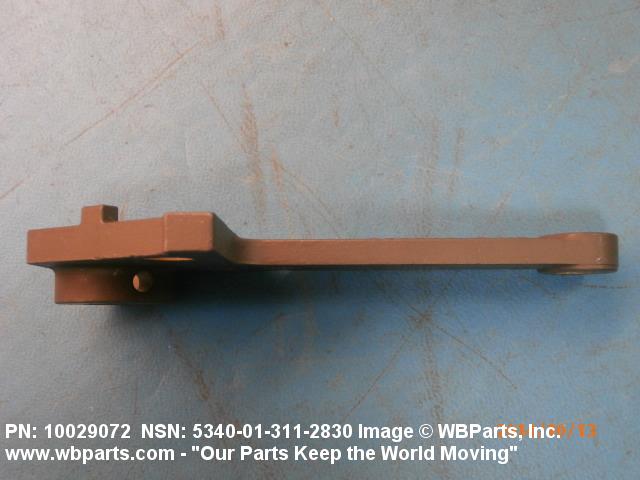

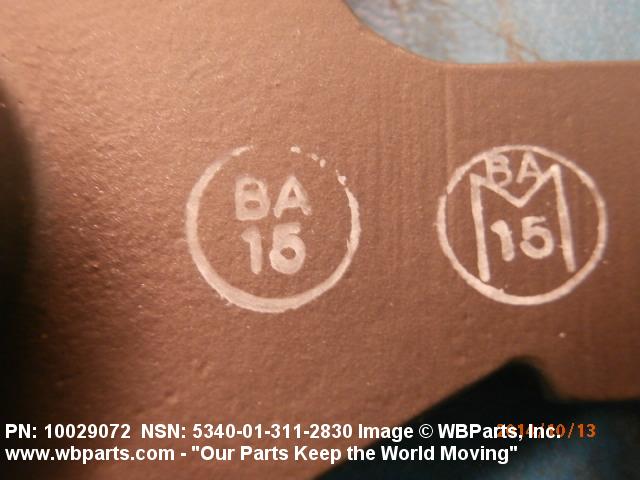

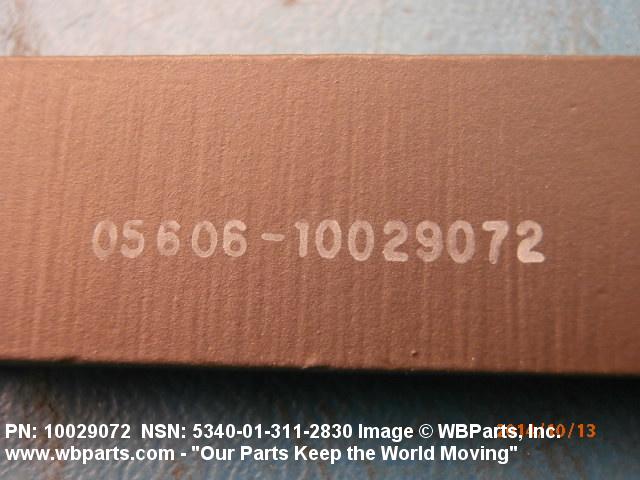

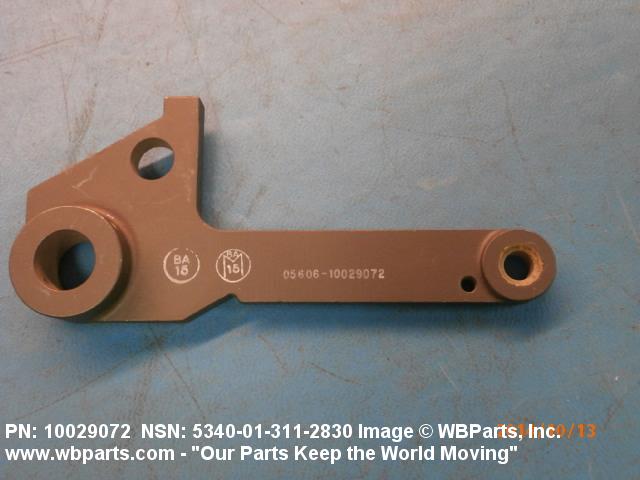

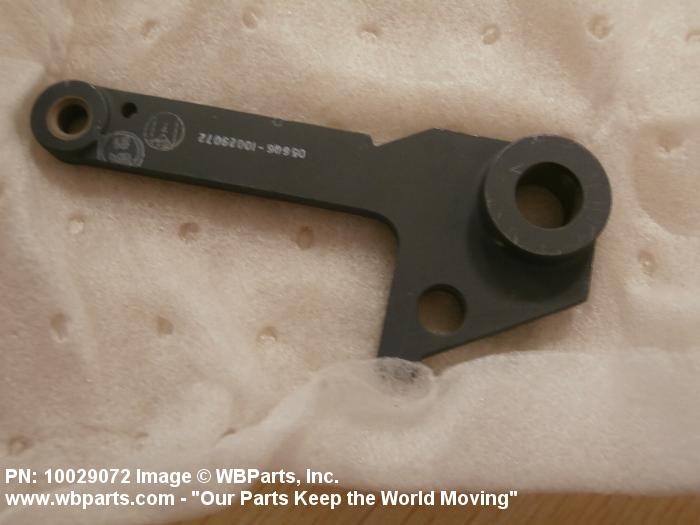

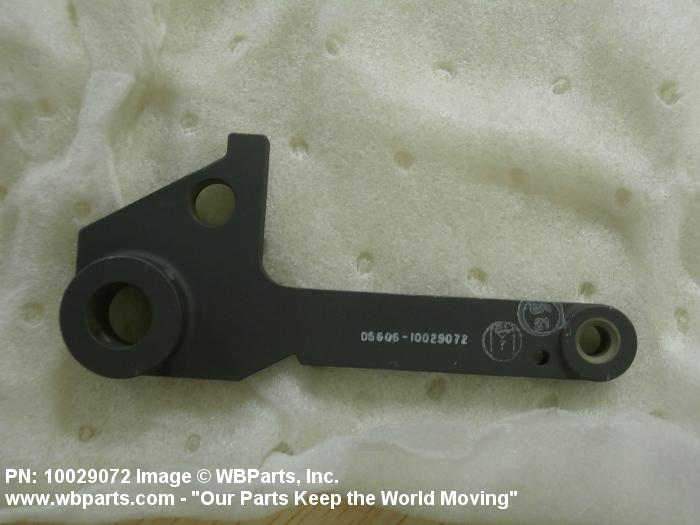

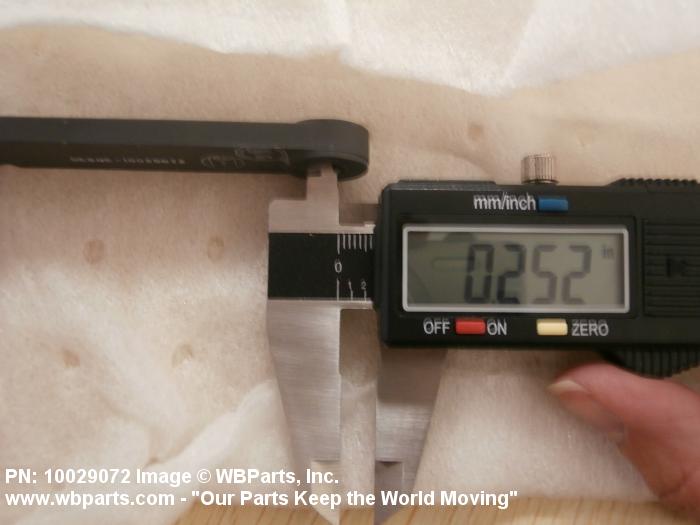

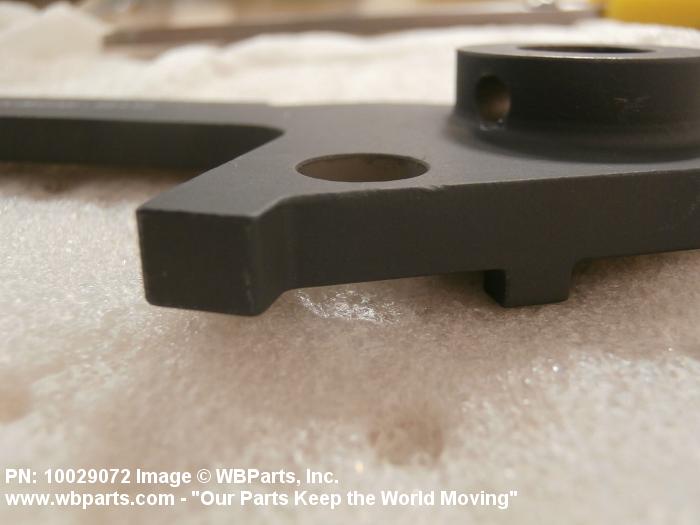

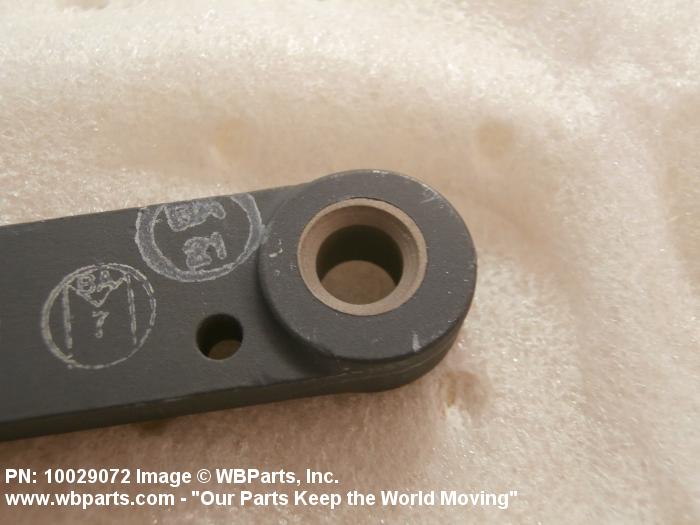

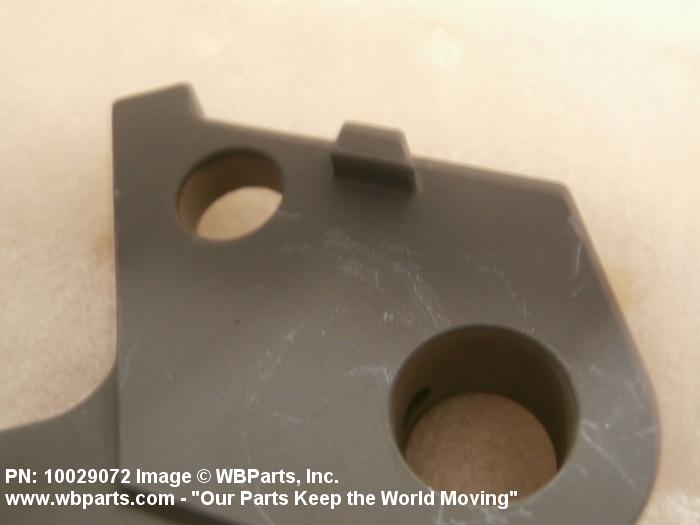

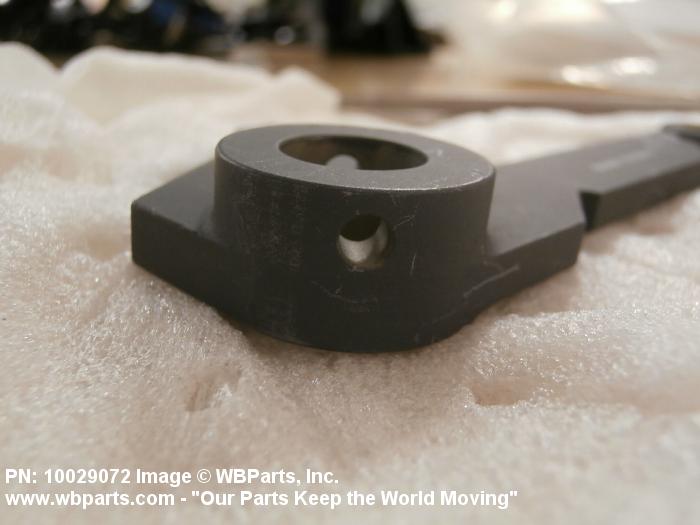

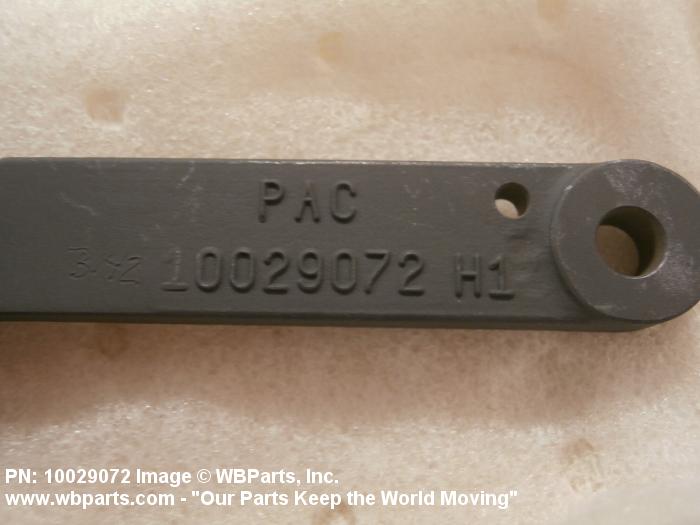

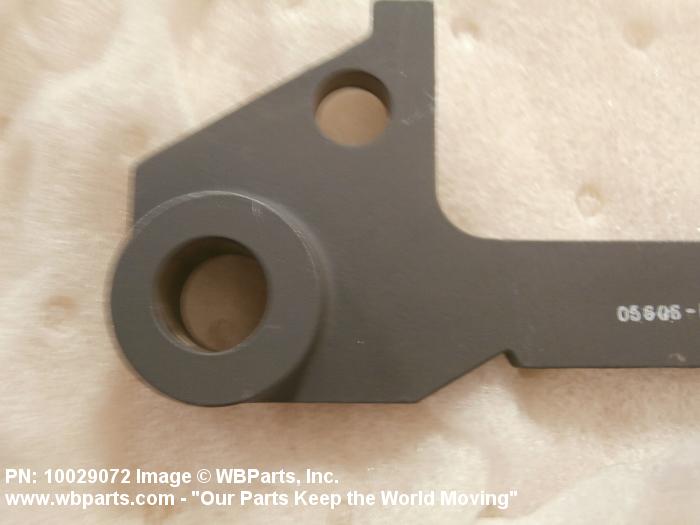

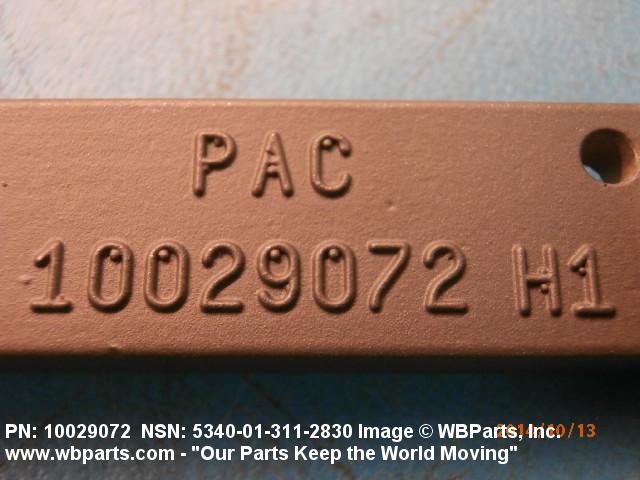

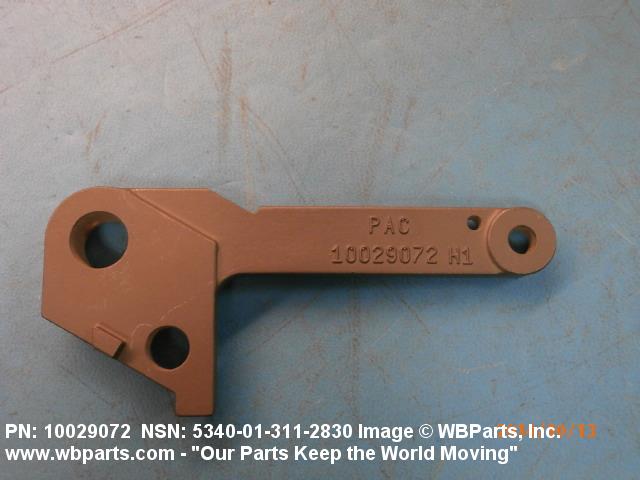

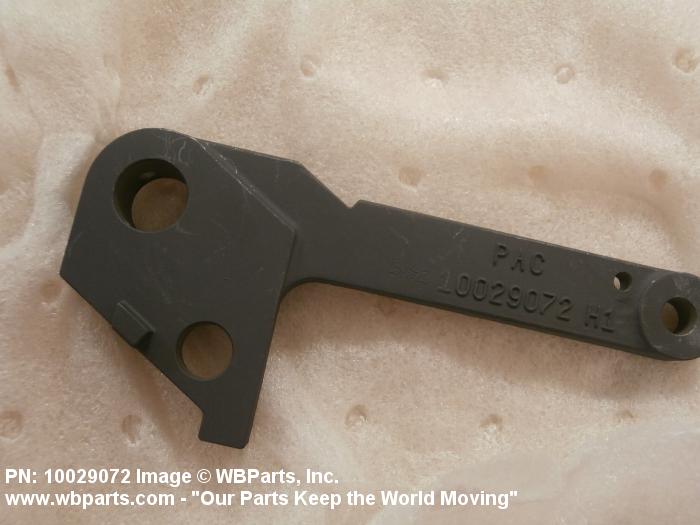

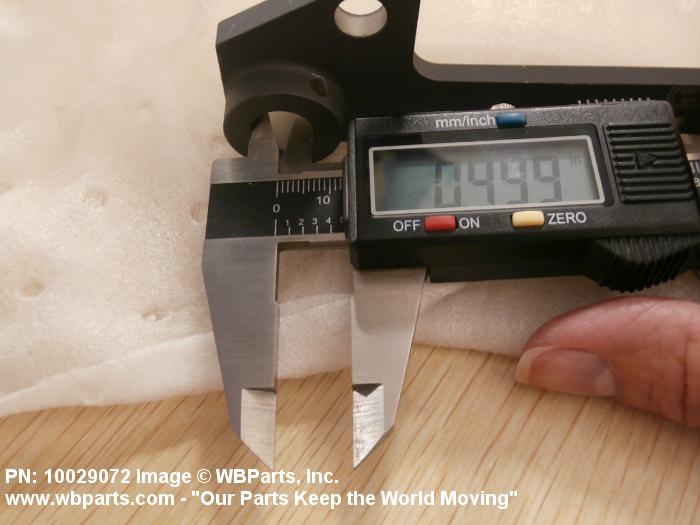

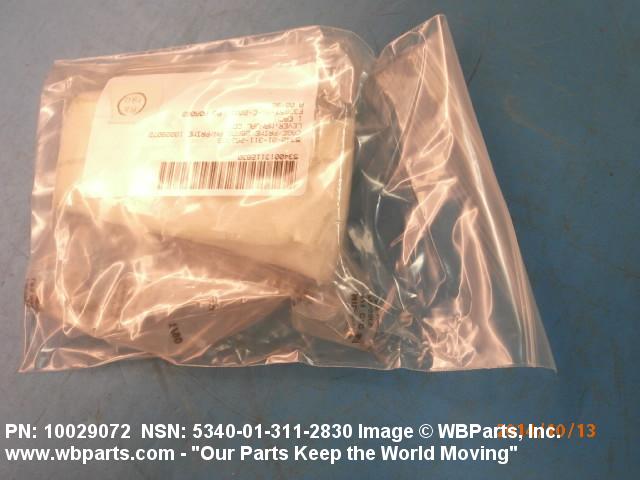

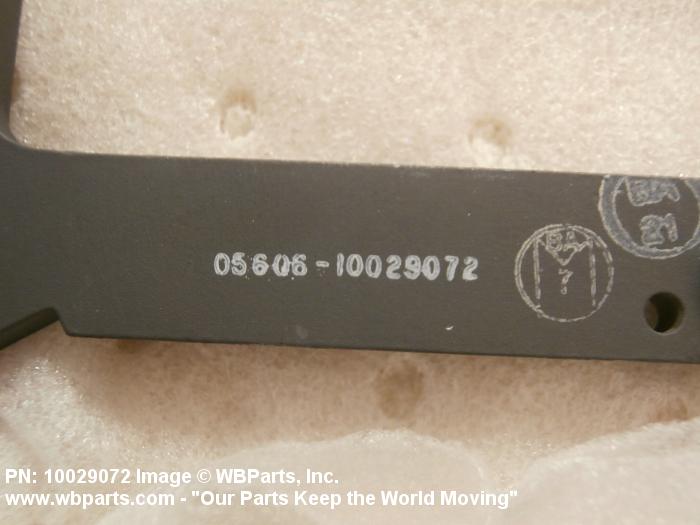

Drawings & Photos | NSN 5340-01-311-2830



Demand History | NSN 5340-01-311-2830


Part Number Request Date QTY Origin
5340-01-311-2830 2018-10-16 2 DIBBS
5340-01-311-2830 2016-06-16 1 DIBBS
5340-01-311-2830 2015-09-14 3 United States
10029072 2015-09-11 4 United States
5340-01-311-2830 2014-10-01 4 United States
5340-01-311-2830 2014-09-30 8 United States

Cross Reference | NSN 5340-01-311-2830


Part Number Cage Code Manufacturer
10029072 05606 GENERAL DYNAMICS-OTS, INC. DBA GD-OTS (WILLISTON)

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 5340-01-311-2830


Technical Data | NSN 5340-01-311-2830


Characteristic Specifications
END ITEM IDENTIFICATION F-15
SPECIAL FEATURES CRES STEEL AMS 5347 W/FINAL PROTECTIVE FINISH,PASSIVATING 5.4.1 OF MIL-STD-171,CASTING NOTES STATE THAT CASTINGS & TEST BRASS SHALL BE DBL SOLN HT TREATED AND AGED OR HOMOGENIZED W/SOLN HT TREATED AND AGED IAW MIL-H-6875,AGING TEMP TO PRODUCE TENSILE STRENGTH 150 KPSI MIN,YEILD STRENGTH @ 0.2% OFFSET 130 KPSI MIN,ELONGATION IN 4D 10 PERCENT MIN. HARDNESS 33-38 ROCKWELL 'C'
MANUFACTURERS CODE 05606
DESIGN CONTROL REFERENCE 10029072

Restrictions/Controls & Freight Information | NSN 5340-01-311-2830


Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 095190 HARDWARE, NOI SUB 9
Less than car load rating Q 70
Less than truck load rating Q 70.0
Water commodity Code 713 unknown
Originating Activity Code TG Warner-Robins Air Logistics Center
Robins AFB, GA 31098-5609
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling Z No special handling required.
Special Handling Code Z unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5340-01-311-2830


Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation CodeGGTG:GUNNERY EQUIPMENT
Price ValidationP The current standard price is the initial negotiated provisioned price.
  • This is the price paid by DoD for the item as the result of price negotiation of the Provisioned Item Order (PIO) or other initial negotiated price.
  • ZOP or Standard Price challenges are permissible but should be supported with adequate justification.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
