Product Details | SHOULDERED SHAFT
3040-01-308-4458 A shaft having two or more different diameters (greater than 0.031 inches (0.79 millimeter)) along its length. It must have one or more of the following conditions: a specified surface finish designation in the range 1 to 125 microinches (0.025 to 3.2 micrometers) arithmetical average (AA), machined peripheral flat(s), circular groove(s), keyway(s), splines, threads, or holes. The ends and/or shoulders may be machined to accommodate bearings, couplings, and the like. It is not designed for use in aligning by fitting into corresponding holes of another item. For items used to support rotating members see AXLE(1), SHOULDERED. For items not having any of the above conditions see PIN, SHOULDER, HEADLESS. Excludes SHAFT(1), STRAIGHT; and AXLE(1), STRAIGHT.
Part Alternates: 2351W128, 3040-01-308-4458, 01-308-4458, 3040013084458, 013084458
Mechanical Power Transmission Equipment | Miscellaneous Power Transmission Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | 29 SEP 1989 | 01-308-4458 | 22914 ( SHAFT, SHOULDERED ) |
Drawings & Photos | NSN 3040-01-308-4458
Cross Reference | NSN 3040-01-308-4458
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2351W128 | U1605 | HONEYWELL AEROSPACE UK DIV AEROSPACE -YEOVIL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3040-01-308-4458
Technical Data | NSN 3040-01-308-4458
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5643 ASSN STD SINGLE MATERIAL RESPONSE |
| FIRST END STYLE | 12 EXTERNAL THREADED |
| FIRST END DIAMETER | 0.1380 INCHES NOMINAL |
| FIRST END EXTERNAL THREAD LENGTH | 0.3000 INCHES NOMINAL |
| END SIMILARITY | NOT IDENTICAL |

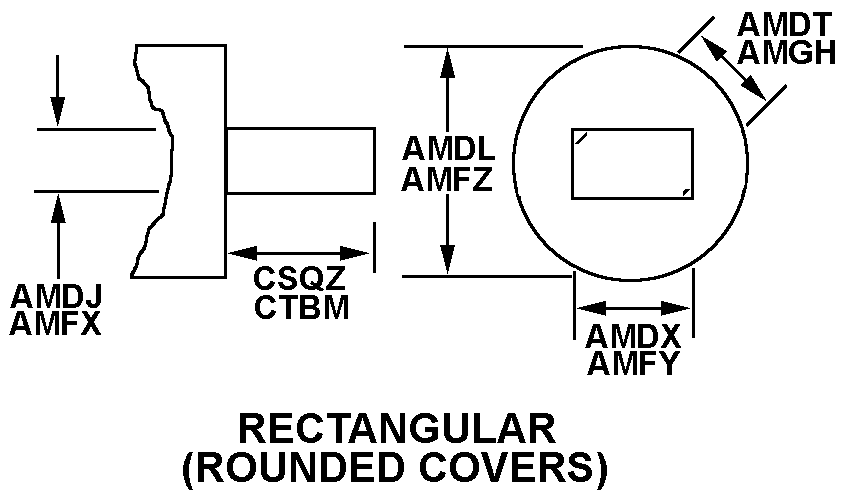

| SECOND END STYLE | 16 RECTANGULAR |
| SECOND END TONGUE THICKNESS | 0.0355 INCHES NOMINAL |
| SECOND END TONGUE WIDTH | 0.5000 INCHES NOMINAL |
| SECOND END DIAMETER | 0.5000 INCHES NOMINAL |
| SECOND END DISTANCE ACROSS CORNERS | 0.5000 INCHES NOMINAL |
| SECOND END STEP LENGTH | 0.1000 INCHES NOMINAL |
| LARGEST STEP DIAMETER | 0.5000 INCHES NOMINAL |
| OVERALL LENGTH | 2.200 INCHES NOMINAL |
| STEP QUANTITY | 7 |
| III END ITEM IDENTIFICATION | QXYGEN SYSTEM INST. |
| MANUFACTURERS CODE | U1605 |
| DESIGN CONTROL REFERENCE | 2351W128 |
