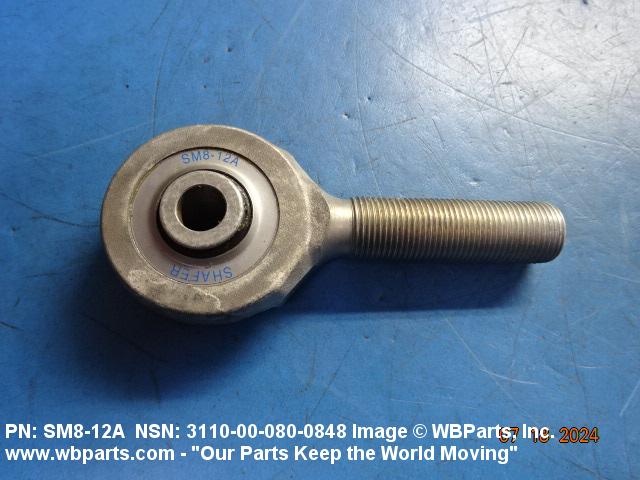

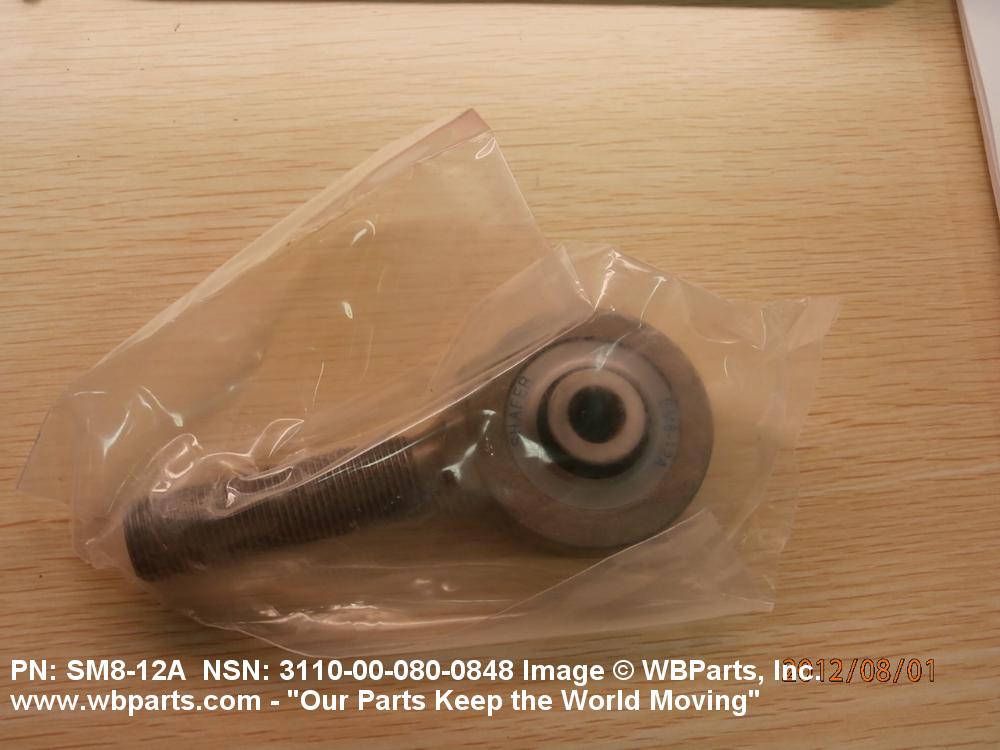

3110-00-080-0848 - ROD END ROLLER BEARING, MR8AG, SM812A, SM8-12A

Product Details | ROD END ROLLER BEARING

3110-00-080-0848 A special single or multiple-row roller bearing, rigid or self-aligning, and constructed with either inside threaded, plain hollow, maile threaded, or solid shank.

Part Alternates: MR8AG, SM812A, SM8-12A, SM812A21, SM8-12A-21, 3110-00-080-0848, 00-080-0848, 3110000800848, 000800848

Bearings | Bearings, Antifriction, Unmounted

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	01 JAN 1963	00-080-0848	00050 ( BEARING, ROLLER, ROD END )

Drawings & Photos | NSN 3110-00-080-0848

Part Number	Request Date	QTY	Origin
MR8AG	2024-03-19	4	China
SM8-12A-21	2024-03-04	64	DIBBS
SM8-12A-21	2024-02-25	64	DIBBS
SM8-12A-21	2023-11-06	171	DIBBS
SM8-12A-21	2023-10-12	18	DIBBS
3110-00-080-0848	2023-08-29	5	China
SM8-12A-21	2023-08-27	153	DIBBS
SM8-12A-21	2023-07-16	21	DIBBS
SM8-12A-21	2023-04-24	118	DIBBS
SM8-12A-21	2023-04-16	118	DIBBS
SM8-12A-21	2023-03-09	44	DIBBS
SM8-12A-21	2023-03-06	44	DIBBS
SM8-12A-21	2023-02-26	44	DIBBS
SM8-12A-21	2022-10-23	26	DIBBS
SM8-12A-21	2022-09-19	25	DIBBS
SM8-12A-21	2022-07-07	51	DIBBS
SM812A21	2021-07-03	4	UM
SM812A21	2021-07-03	4	UM
3110-00-080-0848	2020-12-10	1	DIBBS-RFPs
SM8-12A-21	2020-10-15	129	DIBBS
SM8-12A-21	2020-03-09	22	DIBBS
SM8-12A-21	2020-03-01	22	DIBBS
SM8-12A-21	2019-12-03	58	DIBBS
3110-00-080-0848	2018-12-03	12	US
3110-00-080-0848	2018-11-07	36	DIBBS
3110-00-080-0848	2018-07-04	66	DIBBS
3110-00-080-0848	2018-03-16	43	DIBBS
3110-00-080-0848	2018-03-14	18	DIBBS
3110-00-080-0848	2014-06-24	62	DIBBS
3110-00-080-0848	2014-06-16	62	DIBBS
3110-00-080-0848	2013-02-08	225	DIBBS
3110-00-080-0848	2012-12-19	82	DIBBS
3110-00-080-0848	2012-07-26	0	United States
3110-00-080-0848	2012-07-26	0	United States
3110-00-080-0848	2012-07-26	60	United States
3110-00-080-0848	2012-07-12	141	CA
3110-00-080-0848	2012-07-08	141	DIBBS
3110-00-080-0848	2012-04-03	60	DIBBS
SM8-12A-21	2012-03-29	65
3110-00-080-0848	2012-02-24	49	DIBBS
3110-00-080-0848	2012-02-24	67	DIBBS
3110-00-080-0848	2011-12-09	49	DIBBS
3110-00-080-0848	2011-12-08	49	DIBBS
3110-00-080-0848	2011-04-20	67	US
3110-00-080-0848	2011-04-13	67	DIBBS
3110-00-080-0848	2010-12-09	100	DIBBS
3110-00-080-0848	2010-09-23	40	DIBBS
3110-00-080-0848	2010-05-05	76	DIBBS
MR8AG	2010-03-03	3	Ireland

Cross Reference | NSN 3110-00-080-0848

Part Number	Cage Code	Manufacturer
MR8AG	77896	REXNORD INDUSTRIES, LLC DIV BEARING OPERATION
SM8-12A	77896	REXNORD INDUSTRIES, LLC DIV BEARING OPERATION
SM8-12A-21	77896	REXNORD INDUSTRIES, LLC DIV BEARING OPERATION

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 3110-00-080-0848

Compare

Related Products | NSN 3110-00-080-0848

3110-00-080-1063, 3110-00-080-1064, 3110-00-080-1105, 3110-00-080-1933, 3110-00-080-3501

Technical Data | NSN 3110-00-080-0848

Characteristic	Specifications
MATERIAL	STEEL COMP E52100 INNER RING STEEL COMP 4620 ROD END BODY STEEL COMP E52100 ROLLER RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR SEAL STEEL COMP 430 SHIELD STEEL SNAP RING
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE INNER RING MIL-S-7493 MIL SPEC SINGLE MATERIAL RESPONSE ROD END BODY MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE ROLLER QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE SHIELD
SURFACE TREATMENT	CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE ALL EXTERNAL/EXPOSED METAL SURFACES
STYLE DESIGNATOR	468 SINGLE ROW, CONCAVE ROLLERS
SELF-ALIGNMENT ANGLE	10.00 DEGREES NOMINAL
OVERALL LENGTH	5.1650 INCHES NOMINAL
BORE DIAMETER	0.5000 INCHES NOMINAL
OVERALL OUTSIDE DIAMETER	2.2700 INCHES NOMINAL
OUTER RING WIDTH	0.7200 INCHES NOMINAL
INNER RING WIDTH	1.0620 INCHES NOMINAL
LENGTH FROM BORE CENTER TO SHANK END	4.0300 INCHES NOMINAL

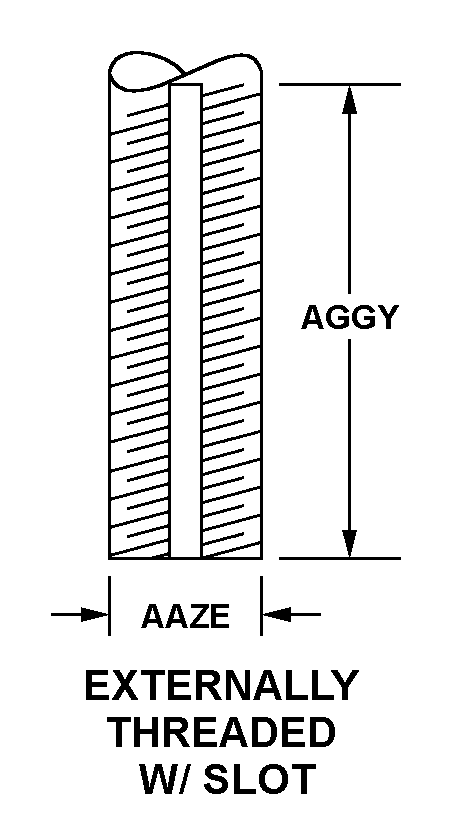

SHANK STYLE	667 EXTERNALLY THREADED W/SLOT
SHANK DIAMETER	0.8750 INCHES NOMINAL
SHANK THREAD LENGTH	2.3100 INCHES NOMINAL
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD SIZE	0.875 INCHES
THREAD QUANTITY PER INCH	14
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
LUBRICATION MATERIAL	GREASE
LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION	MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE
SHIELD QUANTITY	2
SEAL QUANTITY	2
BEARING SEAL TYPE	CONTACT
ALIGNMENT TYPE	SELF-ALIGNING
SELF-ALIGNMENT LOCATION	INTERNAL
SPECIAL FEATURES	WITH GREASE FITTING

Restrictions/Controls & Freight Information | NSN 3110-00-080-0848

Restictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	114820	BEARINGS/BUSHINGS NOI BALL/ROLLER
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	742	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable
