Product Details | ROD END ROLLER BEARING
3110-00-293-9028 A special single or multiple-row roller bearing, rigid or self-aligning, and constructed with either inside threaded, plain hollow, maile threaded, or solid shank.
Part Alternates: SM36A, SM3-6A, ST3, 3110-00-293-9028, 00-293-9028, 3110002939028, 002939028
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-293-9028 | 00050 ( BEARING, ROLLER, ROD END ) |

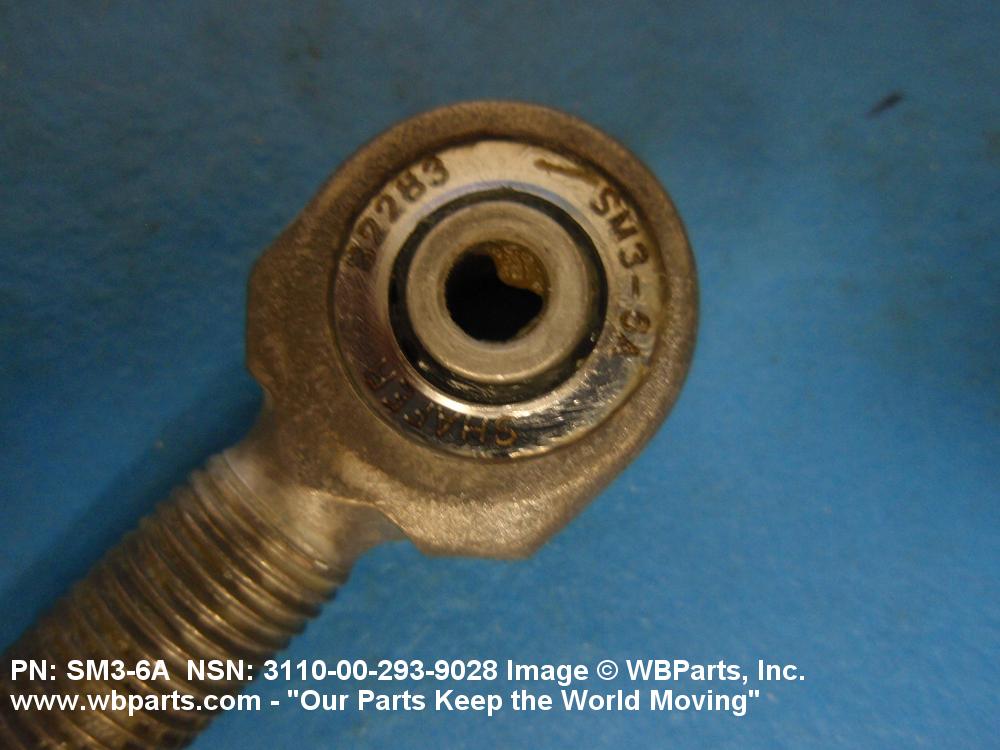

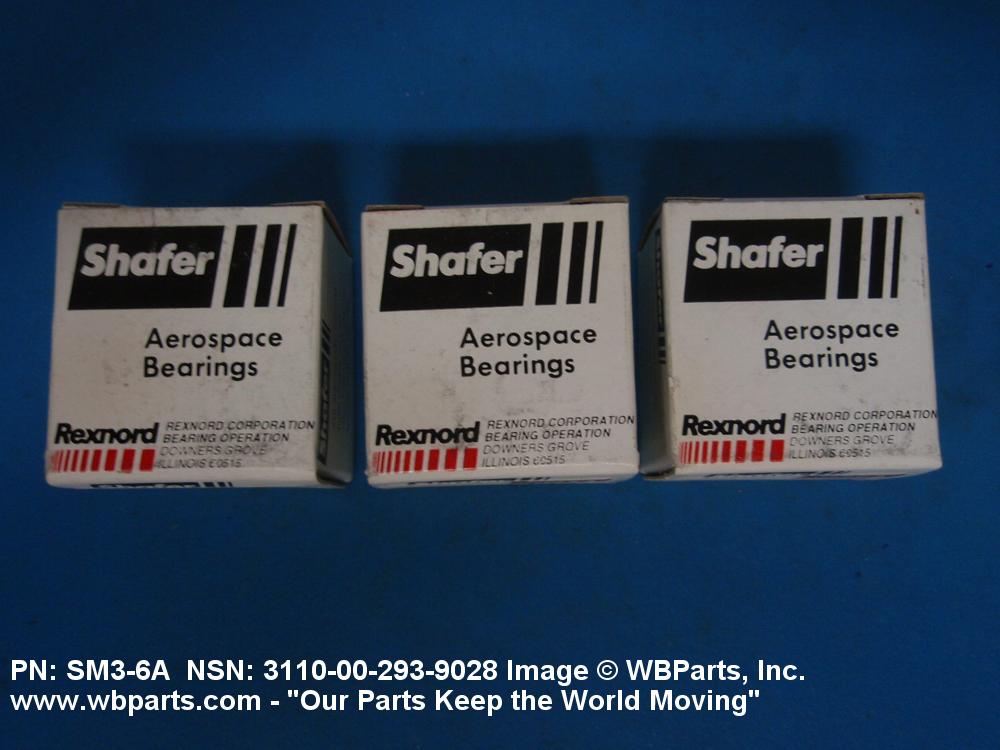

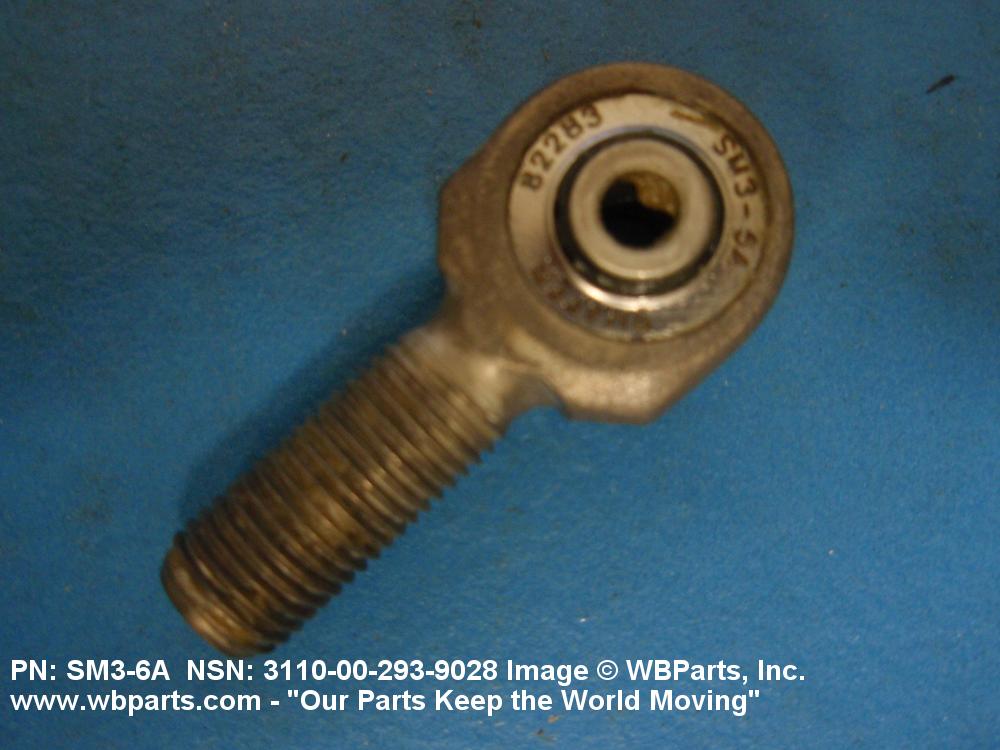

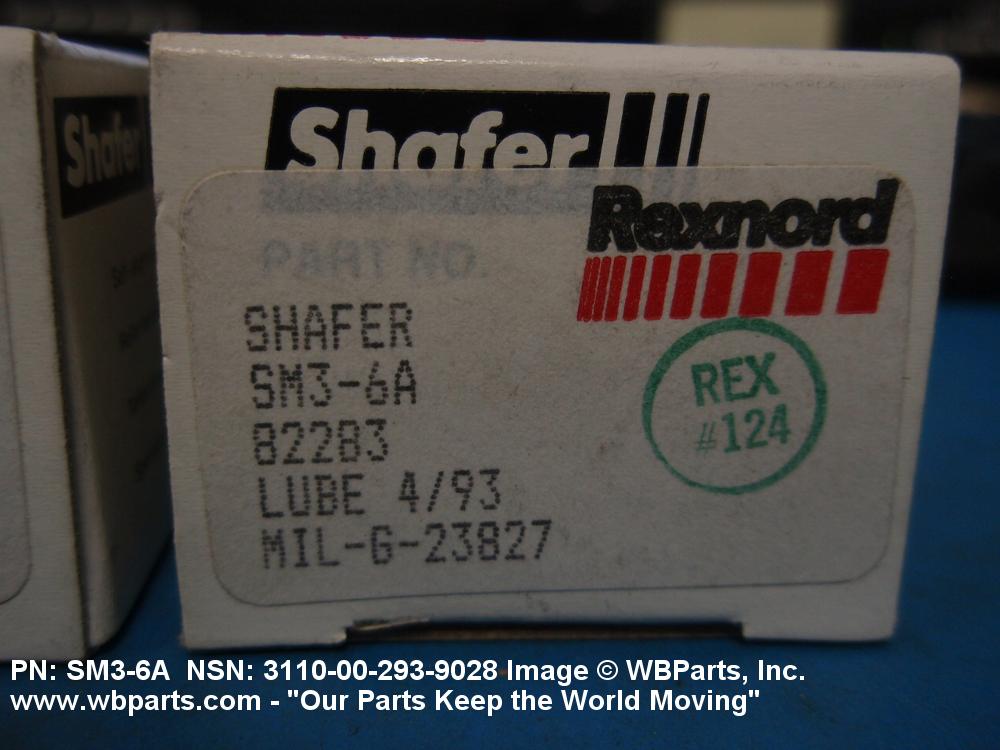

Drawings & Photos | NSN 3110-00-293-9028
Demand History | NSN 3110-00-293-9028
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-293-9028 | 2023-08-14 | 6 | US |
| ST3 | 2023-08-10 | 6 | US |
| SM3-6A | 2021-02-04 | 17 | DIBBS |
| SM3-6A | 2021-01-27 | 17 | DIBBS |
| 3110-00-293-9028 | 2015-12-13 | 24 | DIBBS |
| 3110-00-293-9028 | 2014-07-09 | 18 | DIBBS |
| 3110-00-293-9028 | 2014-05-21 | 6 | United States |
| 3110-00-293-9028 | 2013-07-25 | 23 | DIBBS |
| 3110-00-293-9028 | 2012-04-04 | 7 | DIBBS |
| 3110-00-293-9028 | 2012-03-16 | 4 | DIBBS |
| 3110-00-293-9028 | 2011-01-21 | 3 | DIBBS |
| 3110-00-293-9028 | 2010-12-02 | 3 | United States |
| SM36A | 2010-04-10 | 4 | United States |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 3110-00-293-9028
Related Products | NSN 3110-00-293-9028
3110-00-293-9030, 3110-00-293-9031, 3110-00-293-9032, 3110-00-293-9033, 3110-00-293-9035
Technical Data | NSN 3110-00-293-9028
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 INNER RING STEEL COMP E52100 ROLLER RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR SEAL STEEL SNAP RING |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE INNER RING MIL S 7420 MIL SPEC SINGLE MATERIAL RESPONSE ROLLER |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE ALL EXTERNAL/EXPOSED METAL SURFACES |
| STYLE DESIGNATOR | 468 SINGLE ROW, CONCAVE ROLLERS |
| SELF-ALIGNMENT ANGLE | 10.00 DEGREES NOMINAL |
| OVERALL LENGTH | 1.7800 INCHES NOMINAL |
| BORE DIAMETER | 0.1900 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 0.8000 INCHES NOMINAL |
| OUTER RING WIDTH | 0.3500 INCHES NOMINAL |
| INNER RING WIDTH | 0.4370 INCHES NOMINAL |
| LENGTH FROM BORE CENTER TO SHANK END | 1.3800 INCHES NOMINAL |
| SHANK STYLE | 651 EXTERNALLY THREADED |
| SHANK DIAMETER | 0.3750 INCHES NOMINAL |
| SHANK THREAD LENGTH | 0.7500 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| SHIELD QUANTITY | 2 |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| SPECIAL FEATURES | WITH GREASE FITTING |
Restrictions/Controls & Freight Information | NSN 3110-00-293-9028
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-293-9028
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
