NSN 3110-00-117-0101 1MS5020, 231, 232
Product Details | THRUST BALL BEARING
3110-00-117-0101 An antifriction bearing having a ball rolling element, designed to resist axial thrust, or to support an axial load. Excludes BEARING, BALL, PIVOT.
Part Alternates: 1MS5020, 231, 232, D10, E10, OBEY, 3110-00-117-0101, 00-117-0101, 3110001170101, 001170101
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1961 | 00-117-0101 | 00019 ( BEARING, BALL, THRUST ) |
Drawings & Photos | NSN 3110-00-117-0101
Demand History | NSN 3110-00-117-0101
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 231 | 2025-05-149 | 41 | DIBBS |
| 232 | 2025-05-149 | 41 | DIBBS |
| E10 | 2025-05-149 | 41 | DIBBS |
| 231 | 2025-05-141 | 41 | DIBBS |
| 232 | 2025-05-141 | 41 | DIBBS |
| E10 | 2025-05-141 | 41 | DIBBS |
| 232 | 2022-08-243 | 24 | Saudi Arabia |
| 232 | 2022-08-243 | 40 | Saudi Arabia |
| 232 | 2022-08-243 | 24 | Saudi Arabia |
| 232 | 2022-08-243 | 5 | Saudi Arabia |
| 232 | 2022-08-243 | 10 | Saudi Arabia |
| 232 | 2022-08-243 | 36 | Saudi Arabia |
| 232 | 2022-08-243 | 92 | Saudi Arabia |
| 3110-00-117-0101 | 2018-06-162 | 70 | DIBBS |
Cross Reference | NSN 3110-00-117-0101
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1MS5020 | 76894 | CELTRAC CORP |
| 1MS5020 | 93343 | WHITE FARM EQUIPMENT CO SUB OF TIC INVESTMENT CORP |
| 231 | 43116 | NEBEL MACHINE TOOL CORP |
| 232 | 43116 | NEBEL MACHINE TOOL CORP |
| D10 | 05469 | APPLIED INDUSTRIAL TECHNOLOGIES INC |
| E10 | 00658 | ABC ACQUISITION COMPANY DBA AETNA BEARING COMPANY |
| OBEY | 60380 | TIMKEN AEROSPACE, INC DBA TORRINGTON PRODUCT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-117-0101
Related Products | NSN 3110-00-117-0101
Technical Data | NSN 3110-00-117-0101
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

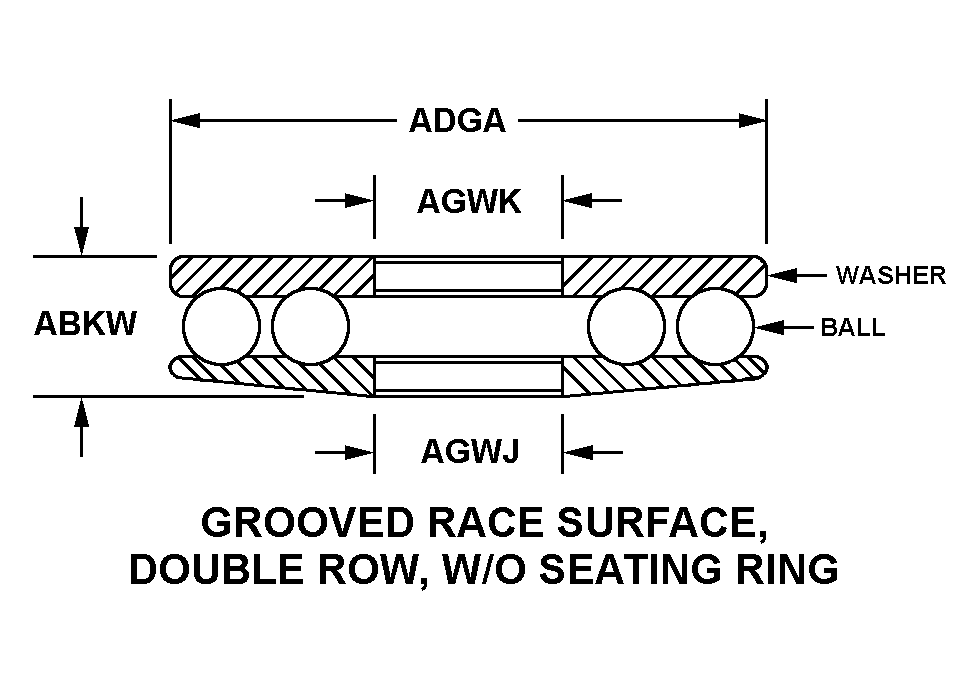

| STYLE DESIGNATOR | 188 GROOVED RACE SURFACE, DOUBLE ROW, W/O SEATING RING |
| OVERALL HEIGHT | 0.6250 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.9687 INCHES NOMINAL |
| BORE SMALLEST DIAMETER | 1.0625 INCHES NOMINAL |
| LARGEST BORE DIAMETER | 1.0625 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| SURFACE FINISH | GROUND |
| ALIGNMENT TYPE | RIGID |
| THRUST DIRECTIONAL CAPABILITY DESIGNATION | SINGLE |
Restrictions/Controls & Freight Information | NSN 3110-00-117-0101
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-117-0101
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
