NSN 3110-00-157-3740 19144, 4907, 49071
Product Details | THRUST BALL BEARING
3110-00-157-3740 An antifriction bearing having a ball rolling element, designed to resist axial thrust, or to support an axial load. Excludes BEARING, BALL, PIVOT.
Part Alternates: 19144, 4907, 49071, 4907-1, 495BBEARING, 50011, 50-011, 3110-00-157-3740, 00-157-3740, 3110001573740, 001573740
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-157-3740 | 00019 ( BEARING, BALL, THRUST ) |
Drawings & Photos | NSN 3110-00-157-3740
Demand History | NSN 3110-00-157-3740
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 50011 | 2014-06-170 | 5 | United States |
| 50011 | 2012-09-256 | 1 | DE |
| 50011 | 2011-10-294 | 1 | MX |
Cross Reference | NSN 3110-00-157-3740
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-00-157-3740
Technical Data | NSN 3110-00-157-3740
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

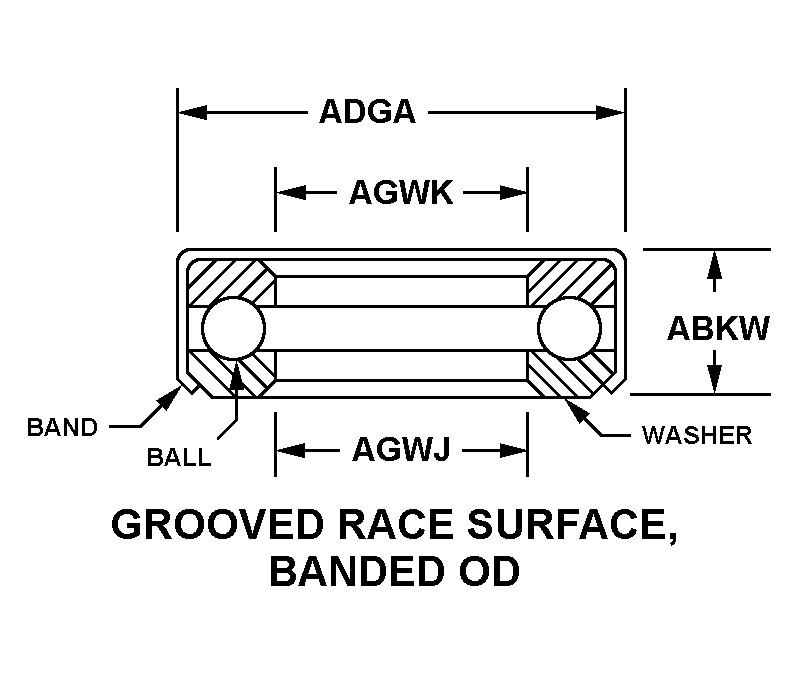

| STYLE DESIGNATOR | 158 GROOVED RACE SURFACE, BANDED OD |
| OVERALL HEIGHT | 0.2900 INCHES MINIMUM AND 0.3000 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 0.7230 INCHES MINIMUM AND 0.7330 INCHES MAXIMUM |
| BORE SMALLEST DIAMETER | 0.3800 INCHES MINIMUM AND 0.3850 INCHES MAXIMUM |
| LARGEST BORE DIAMETER | ANY ACCEPTABLE |
| SURFACE FINISH | UNGROUND |
| ALIGNMENT TYPE | RIGID |
| THRUST DIRECTIONAL CAPABILITY DESIGNATION | SINGLE |
Restrictions/Controls & Freight Information | NSN 3110-00-157-3740
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-157-3740
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
