NSN 3110-00-179-7550 10892367, 00-179-7550, 001797550
Product Details | BEARING ADAPTER SLEEVE
3110-00-179-7550 An adapter sleeve used to mount and locate an antifriction bearing on a straight shaft permitting wide tolerances of shaft diameter and making it unnecessary to heat the bearing or use a press for mounting.
Part Alternates: 10892367, 3110-00-179-7550, 00-179-7550, 3110001797550, 001797550
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 19 MAY 1969 | 00-179-7550 | 00025 ( ADAPTER SLEEVE, BEARING ) |

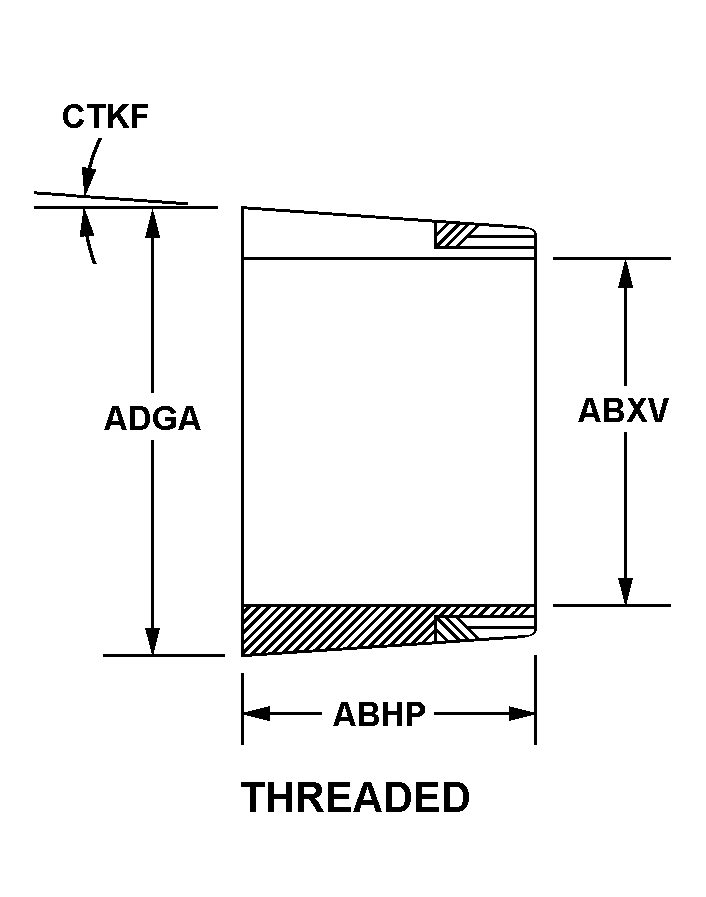

Drawings & Photos | NSN 3110-00-179-7550
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-179-7550
Related Products | NSN 3110-00-179-7550
Technical Data | NSN 3110-00-179-7550
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP MT1010 AND STEEL COMP MT1015 AND STEEL COMP MT1020 AND STEEL COMP MT1020 AND STEEL COMP MTX1015 AND STEEL COMP MTX1020 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-T-830,COMP MT1010 MIL SPEC 1ST MATERIAL RESPONSE AND QQ-T-830,COMP MT1015 MIL SPEC 2ND MATERIAL RESPONSE AND QQ-T-830,COMP 1020 MIL SPEC 3RD MATERIAL RESPONSE AND QQ-T-830,COMP MTX1015 MIL SPEC 4TH MATERIAL RESPONSE AND QQ-T-830,COMP MTX1020 MIL SPEC 5TH MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 1 THREADED |
| TAPER | 1.1200 PER FOOT IN INCHES NOMINAL |
| OVERALL LENGTH | 4.6875 INCHES NOMINAL |
| BORE DIAMETER | 4.9170 INCHES MINIMUM AND 4.9190 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 5.8540 INCHES MINIMUM AND 5.8570 INCHES MAXIMUM |
| SPECIAL FEATURES | 0.031 IN. BY 45 DEG BEV 0N THREADED END OD AND 0.187 IN. BY 45 DEG BEVEL ON BORE CORNER LARGE END ALSO 5.500-12 UN-2A THREAD 0.6875 IN. LG SMALL END ALSO RELIEF GROOVE 0.125 IN. WIDE FOLLOWING THD ALSO BORE AND OD 63 MICROINCH FINISH AA AND ALL OTHER SURFACES 125 MICROINCH FINISH AA ALSO 0.156 IN. BY 0.625 IN. DEYWAY IN THREADED END |
Restrictions/Controls & Freight Information | NSN 3110-00-179-7550
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-179-7550
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
