NSN 3110-00-183-9859 AN948RE4H6, RE4H6, RE4H6ANG25
Product Details | ROD END BALL BEARING
3110-00-183-9859 A special single or multiple-row ball bearing, rigid or self-aligning, and constructed with either a solid or hollow shank, internally or externally threaded.
Part Alternates: AN948RE4H6, RE4H6, RE4H6ANG25, RE4H6FS160, REP4H6FS464, 19610725, 19-61072-5, 19610755, 19-61075-5, 3110-00-183-9859, 00-183-9859, 3110001839859, 001839859
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-183-9859 | 00049 ( BEARING, BALL, ROD END ) |

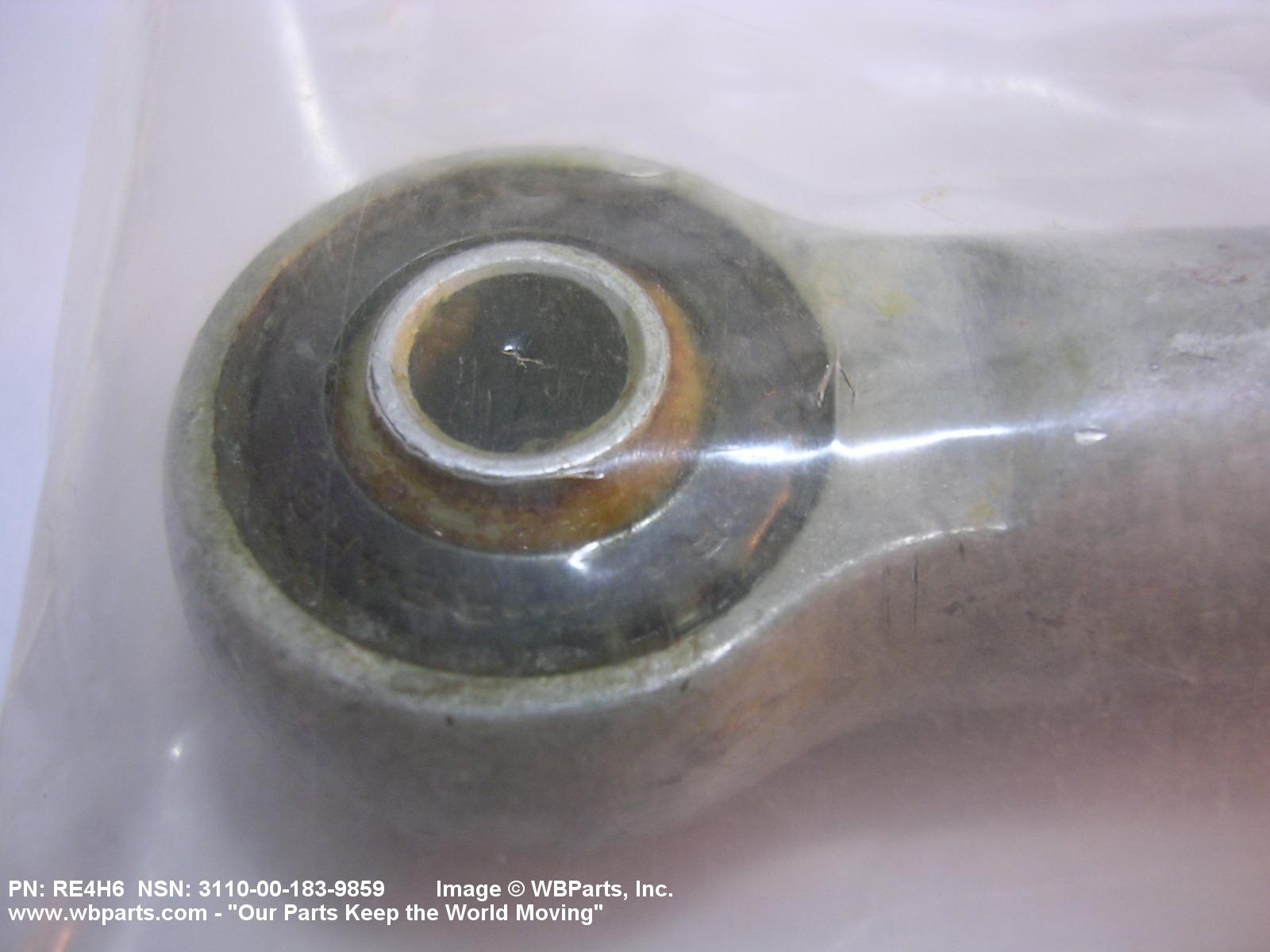

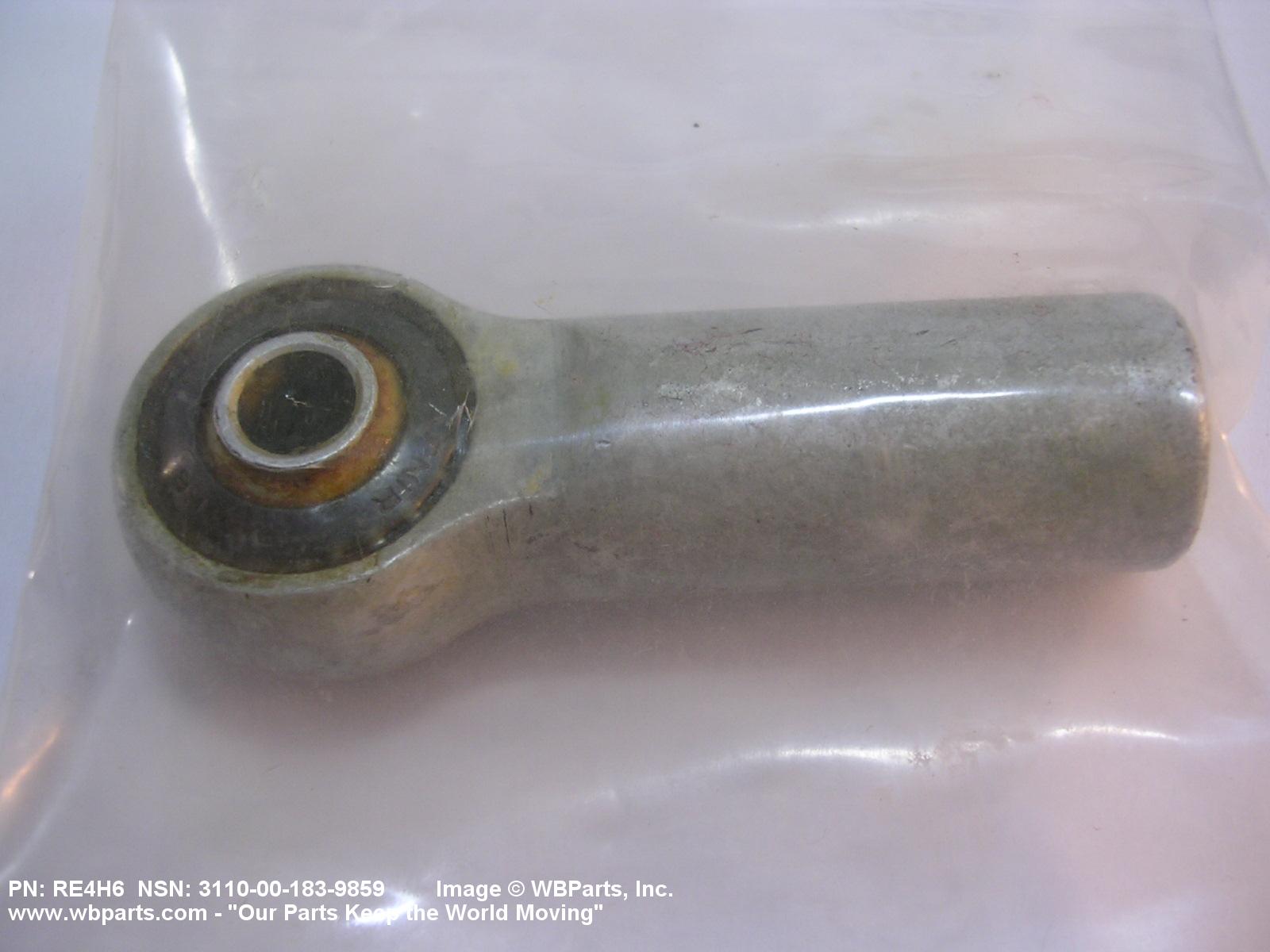

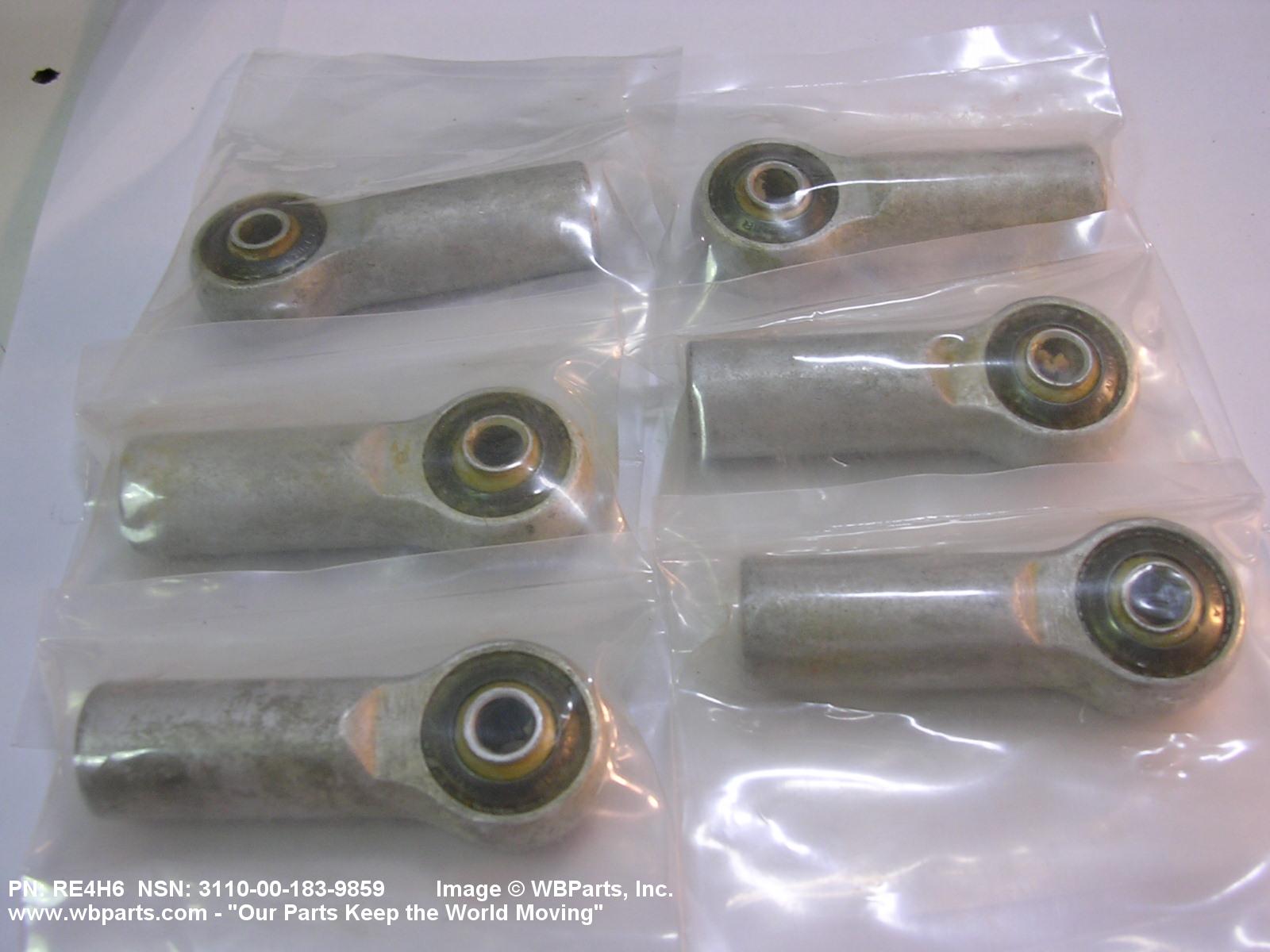

Drawings & Photos | NSN 3110-00-183-9859
Demand History | NSN 3110-00-183-9859
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-183-9859 | 2023-10-275 | 1 | US |
| 3110-00-183-9859 | 2020-10-304 | 1 | DIBBS-RFPs |
| 19-61075-5 | 2020-10-295 | 76 | DIBBS |
| 19-61075-5 | 2020-10-282 | 76 | DIBBS |
| 19-61075-5 | 2020-08-236 | 3 | DIBBS |
| 19-61075-5 | 2020-08-219 | 9 | DIBBS |
| 19-61075-5 | 2020-07-211 | 9 | DIBBS |
| 19-61075-5 | 2020-06-175 | 61 | DIBBS |
| 19-61075-5 | 2020-01-13 | 61 | DIBBS |
| 3110-00-183-9859 | 2018-03-78 | 48 | DIBBS |
| 3110-00-183-9859 | 2017-03-88 | 27 | DIBBS |
| 3110-00-183-9859 | 2017-02-43 | 27 | DIBBS |
| 3110-00-183-9859 | 2016-07-197 | 52 | DIBBS |
| 3110-00-183-9859 | 2016-02-43 | 36 | DIBBS |
| 3110-00-183-9859 | 2011-06-172 | 4 | United States |
| RE4H6 | 2007-12-347 | 6 | New Zealand |
| 3110-00-183-9859 | 2007-02-46 | 245 | DIBBS |
Cross Reference | NSN 3110-00-183-9859
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 19-61072-5 | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| 19-61075-5 | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| 19-61075-5 | 76301 | BOEING COMPANY, THE DBA BOEING |
| AN948RE4H6 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| RE4H6 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| RE4H6ANG25 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| RE4H6FS160 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| REP4H6FS464 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-183-9859
Related Products | NSN 3110-00-183-9859
Technical Data | NSN 3110-00-183-9859
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BALL STEEL INNER RING STEEL OUTER RING STEEL SHAFT STEEL CORROSION RESISTING SHIELD |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES CADMIUM SHIELD |
| STYLE DESIGNATOR | 466 DOUBLE ROW, STAGGERED, BALL |
| SELF-ALIGNMENT ANGLE | 10.00 DEGREES NOMINAL |
| OVERALL LENGTH | 2.3440 INCHES NOMINAL |
| BORE DIAMETER | 0.2500 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 0.9380 INCHES NOMINAL |
| OUTER RING WIDTH | 0.4480 INCHES NOMINAL |
| INNER RING WIDTH | 0.5930 INCHES NOMINAL |
| LENGTH FROM BORE CENTER TO SHANK END | 1.8750 INCHES NOMINAL |
| SHANK STYLE | 659 HOLLOW |
| SHANK DIAMETER | 0.6250 INCHES NOMINAL |
| SHANK BORE DIAMETER | 0.3860 INCHES NOMINAL |
| SHANK BORE DEPTH | 1.2190 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| SHIELD QUANTITY | 2 |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN948RE4H6 |
Restrictions/Controls & Freight Information | NSN 3110-00-183-9859
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-183-9859
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
