NSN 3110-00-232-3177 MS211519, MS21151-9, AS21151
Product Details | ROD END BALL BEARING
3110-00-232-3177 A special single or multiple-row ball bearing, rigid or self-aligning, and constructed with either a solid or hollow shank, internally or externally threaded.
Part Alternates: MS211519, MS21151-9, AS21151, REP4ML6, REP4ML68F, REP4ML6-8F, REP4ML6FS464, 3110-00-232-3177, 00-232-3177, 3110002323177, 002323177
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 10 SEP 1972 | 00-232-3177 | 00049 ( BEARING, BALL, ROD END ) |

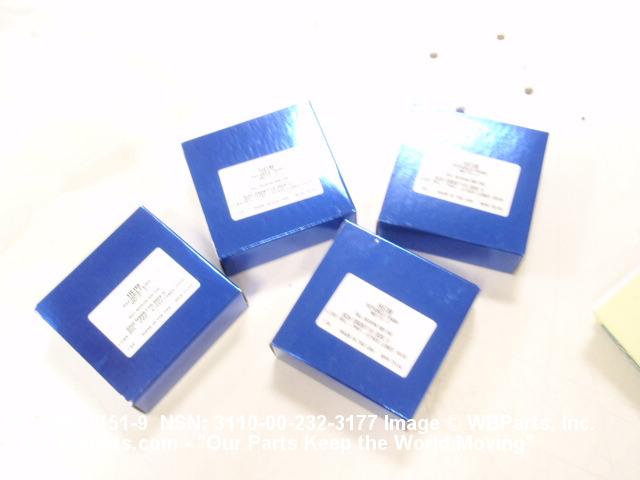

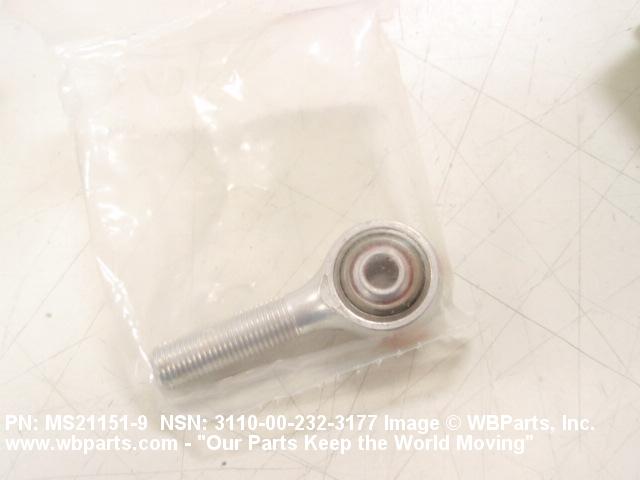

Drawings & Photos | NSN 3110-00-232-3177
Demand History | NSN 3110-00-232-3177
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-232-3177 | 2025-09-260 | 32 | DIBBS |
| 3110-00-232-3177 | 2024-10-303 | 6 | United States |
| 3110-00-232-3177 | 2024-08-227 | 32 | DIBBS |
| MS211519 | 2023-04-102 | 39 | South Africa |
| 3110-00-232-3177 | 2020-05-136 | 115 | DIBBS |
| 3110-00-232-3177 | 2020-05-128 | 115 | DIBBS |
| MS211519 | 2019-10-302 | 3 | United States |
| 3110-00-232-3177 | 2019-10-297 | 26 | US |
| 3110-00-232-3177 | 2019-10-284 | 26 | US |
| 3110-00-232-3177 | 2019-04-106 | 181 | DIBBS |
| 3110-00-232-3177 | 2016-11-326 | 173 | DIBBS |
| 3110-00-232-3177 | 2015-09-258 | 137 | DIBBS |
| 3110-00-232-3177 | 2015-07-212 | 2 | US |
| 3110-00-232-3177 | 2015-07-204 | 51 | DE |
| MS211519 | 2015-07-197 | 1 | IR |
| MS211519 | 2015-07-197 | 50 | IR |
| 3110-00-232-3177 | 2015-07-197 | 1 | IR |
| 3110-00-232-3177 | 2015-07-186 | 79 | DIBBS |
| 3110-00-232-3177 | 2011-10-289 | 4 | US |
| MS211519 | 2010-10-293 | 4 | United States |
| REP4ML6 | 2010-10-293 | 4 | United States |
| REP4ML6FS464 | 2010-10-293 | 4 | United States |
| 3110-00-232-3177 | 2010-10-279 | 10 | US |
| 3110-00-232-3177 | 2008-09-273 | 45 | DIBBS |
| MS211519 | 2008-09-261 | 2 | Canada |
| 3110-00-232-3177 | 2008-08-242 | 2 | Canada |
| MS211519 | 2008-02-46 | 880 | US |
| MS211519 | 2007-10-284 | 43 | US |
| 3110-00-232-3177 | 2007-03-74 | 36 | DIBBS |
| 3110-00-232-3177 | 2007-01-26 | 21 | DIBBS |
| REP4ML6FS464 | 2006-03-68 | 10 | US |
Cross Reference | NSN 3110-00-232-3177
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3110002323177 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| AS21151 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21151-9 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21151-9 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| REP4ML6 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| REP4ML6-8F | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| REP4ML6FS464 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-232-3177
Related Products | NSN 3110-00-232-3177
Technical Data | NSN 3110-00-232-3177
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP 4130 OUTER RING STEEL COMP 4130 ROD END BODY PLASTIC POLYTETRAFLUOROETHYLENE SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE BALL MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE INNER RING MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE OUTER RING MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE ROD END BODY AMS3652 ASSN STD SINGLE MATERIAL RESPONSE OR AMS3666 ASSN STD SINGLE MATERIAL RESPONSE SEAL |
| SURFACE TREATMENT | CADMIUM OUTER RING CADMIUM ROD END BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OUTER RING QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE ROD END BODY |
| STYLE DESIGNATOR | 466 DOUBLE ROW, STAGGERED, BALL |
| SELF-ALIGNMENT ANGLE | 10.00 DEGREES NOMINAL |
| OVERALL LENGTH | 2.3290 INCHES MINIMUM AND 2.3590 INCHES MAXIMUM |
| BORE DIAMETER | 0.2497 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 0.9280 INCHES MINIMUM AND 0.9480 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.4280 INCHES MINIMUM AND 0.4480 INCHES MAXIMUM |
| INNER RING WIDTH | 0.5880 INCHES MINIMUM AND 0.5930 INCHES MAXIMUM |
| LENGTH FROM BORE CENTER TO SHANK END | 1.8650 INCHES MINIMUM AND 1.8850 INCHES MAXIMUM |
| SHANK STYLE | 651 EXTERNALLY THREADED |
| SHANK DIAMETER | 0.3750 INCHES NOMINAL |
| SHANK THREAD LENGTH | 1.0940 INCHES MINIMUM AND 1.1560 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | LEFT-HAND |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21151-9 |
Restrictions/Controls & Freight Information | NSN 3110-00-232-3177
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-232-3177
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
