NSN 3110-00-232-3428 MS2115110, MS21151-10, AS21151
Product Details | ROD END BALL BEARING

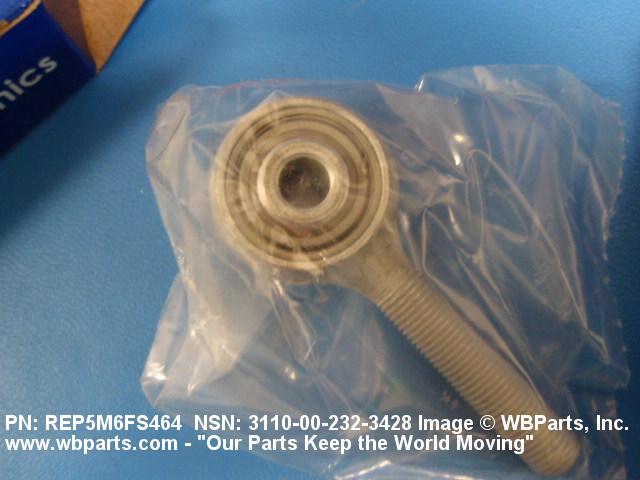

3110-00-232-3428 A special single or multiple-row ball bearing, rigid or self-aligning, and constructed with either a solid or hollow shank, internally or externally threaded.
Part Alternates: MS2115110, MS21151-10, AS21151, REP5M610F, REP5M6-10F, REP5M6FS464, 944.61.13.220, 9446113220, 3110-00-232-3428, 00-232-3428, 3110002323428, 002323428
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 10 SEP 1972 | 00-232-3428 | 00049 ( BEARING, BALL, ROD END ) |
Drawings & Photos | NSN 3110-00-232-3428
Demand History | NSN 3110-00-232-3428
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-00-232-3428 | 2024-07-183 | 14 | DIBBS |
| 3110-00-232-3428 | 2024-06-168 | 14 | DIBBS |
| 3110-00-232-3428 | 2024-01-15 | 75 | DIBBS |
| 3110-00-232-3428 | 2023-09-263 | 29 | DIBBS |
| MS2115110 | 2022-10-286 | 4 | United States |
| MS2115110 | 2021-04-104 | 12 | United States |
| 3110-00-232-3428 | 2018-08-218 | 1 | DIBBS-RFPs |
| MS2115110 | 2018-06-159 | 40 | United States |
| 3110-00-232-3428 | 2016-06-175 | 832 | DIBBS |
| MS2115110 | 2015-07-187 | 230 | US |
| 3110-00-232-3428 | 2013-09-248 | 487 | DIBBS |
| 3110-00-232-3428 | 2013-08-241 | 1 | DIBBS-RFPs |
| 3110-00-232-3428 | 2013-05-121 | 5 | us |
| MS2115110 | 2011-10-292 | 95 | US |
| 3110-00-232-3428 | 2010-09-272 | 460 | DIBBS |
| MS2115110 | 2009-11-306 | 400 | United States |
| MS2115110 | 2009-07-196 | 10 | United States |
| MS2115110 | 2009-06-170 | 1 | Brazil |
| 3110-00-232-3428 | 2009-05-150 | 377 | DIBBS |
| 3110-00-232-3428 | 2009-05-134 | 46 | DIBBS |
| 3110-00-232-3428 | 2009-05-128 | 36 | United States |
| REP5M6FS464 | 2009-05-127 | 330 | US |
| 3110-00-232-3428 | 2009-03-84 | 20 | US |
| 3110-00-232-3428 | 2008-12-340 | 184 | DIBBS |
| 3110-00-232-3428 | 2008-11-324 | 60 | DIBBS |
| MS2115110 | 2008-11-318 | 450 | US |
| MS2115110 | 2008-11-318 | 450 | US |
| 3110-00-232-3428 | 2008-09-262 | 123 | DIBBS |
| MS2115110 | 2007-08-240 | 1010 | US |
Cross Reference | NSN 3110-00-232-3428
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 944.61.13.220 | S4080 | PILATUS AIRCRAFT LTD |
| AS21151 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21151-10 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21151-10 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| REP5M6-10F | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| REP5M6FS464 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| REP5M6FS464 | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-232-3428
Related Products | NSN 3110-00-232-3428
Technical Data | NSN 3110-00-232-3428
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP 4130 OUTER RING STEEL COMP 4130 ROD END BODY PLASTIC POLYTETRAFLUOROETHYLENE SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE BALL MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE INNER RING MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE OUTER RING MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE ROD END BODY AMS 3652 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 3666 ASSN STD SINGLE MATERIAL RESPONSE SEAL |
| SURFACE TREATMENT | CADMIUM OUTER RING CADMIUM ROD END BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OUTER RING QQ-P-416,TY 1,CL 2 FED SPEC SINGLE TREATMENT RESPONSE ROD END BODY |
| STYLE DESIGNATOR | 466 DOUBLE ROW, STAGGERED, BALL |
| SELF-ALIGNMENT ANGLE | 10.00 DEGREES NOMINAL |
| OVERALL LENGTH | 3.0480 INCHES MINIMUM AND 3.0780 INCHES MAXIMUM |
| BORE DIAMETER | 0.3122 INCHES MINIMUM AND 0.3125 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 1.2400 INCHES MINIMUM AND 1.2600 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.6460 INCHES MINIMUM AND 0.6660 INCHES MAXIMUM |
| INNER RING WIDTH | 0.8650 INCHES MINIMUM AND 0.8700 INCHES MAXIMUM |
| LENGTH FROM BORE CENTER TO SHANK END | 2.4280 INCHES MINIMUM AND 2.4480 INCHES MAXIMUM |
| SHANK STYLE | 651 EXTERNALLY THREADED |
| SHANK DIAMETER | 0.3750 INCHES NOMINAL |
| SHANK THREAD LENGTH | 1.5320 INCHES MINIMUM AND 1.5940 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-81322 MIL SPEC SINGLE MATERIAL RESPONSE |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
