NSN 3110-00-416-9421 4000185, 4023319, 4035598
Product Details | CYLINDRICAL ROLLER BEARING
3110-00-416-9421 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Part Alternates: 4000185, 4023319, 4035598, 4053498, 3110-00-416-9421, 00-416-9421, 3110004169421, 004169421
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 MAY 1974 | 00-416-9421 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
Drawings & Photos | NSN 3110-00-416-9421
Cross Reference | NSN 3110-00-416-9421
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4000185 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| 4000185 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 4023319 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| 4023319 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 4035598 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 4053498 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-416-9421
Related Products | NSN 3110-00-416-9421
Technical Data | NSN 3110-00-416-9421
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL INNER RING STEEL OUTER RING STEEL COMP 4340 RETAINER STEEL ROLLER |
| MATERIAL DOCUMENT AND CLASSIFICATION | PWA-725,97497 MFR REF 1ST MATERIAL RESPONSE INNER RING PWA-725,97497 MFR REF 2ND MATERIAL RESPONSE OUTER RING PWA-725,97497 MFR REF 3RD MATERIAL RESPONSE ROLLER |

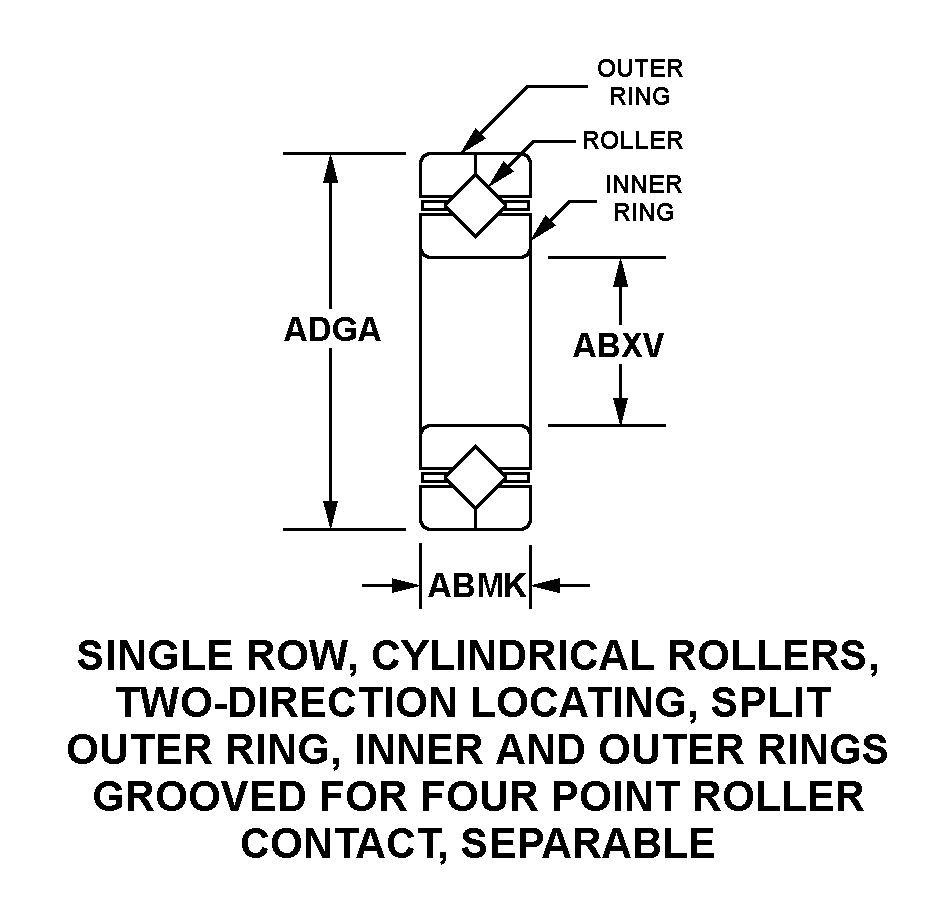

| STYLE DESIGNATOR | 286 SINGLE ROW, CYLINDRICAL ROLLERS, TWO-DIRECTION LOCATING, SPLIT OUTER RING, INNER AND OUTER RINGS GROOVED FOR FOUR POINT ROLLER CONTACT, SEPARABLE |
| OVERALL WIDTH | 1.3730 INCHES MINIMUM AND 1.3780 INCHES MAXIMUM |
| BORE DIAMETER | 6.4957 INCHES MINIMUM AND 6.4961 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 8.8578 INCHES MINIMUM AND 8.8583 INCHES MAXIMUM |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.5 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOCATING FEATURE | NONLOCATING |
| INTERNAL CLEARANCE | 0.0053 INCHES MINIMUM RADIAL AND 0.0063 INCHES MAXIMUM RADIAL |
| SPECIAL FEATURES | SILVER PLATE CAGE ROLLER POCKETS AND LAND RIDING SURF PER AMS 2412 0.001-0.002 THK,BAKE AT 475-500F |
| III PRECIOUS MATERIAL | SILVER |
Restrictions/Controls & Freight Information | NSN 3110-00-416-9421
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
