NSN 3110-00-893-6785 MS211521G, MS21152-1G, ABR3H101
Product Details | ROD END BALL BEARING
3110-00-893-6785 A special single or multiple-row ball bearing, rigid or self-aligning, and constructed with either a solid or hollow shank, internally or externally threaded.
Part Alternates: MS211521G, MS21152-1G, ABR3H101, ABR3H-101, AS21152, BACB10A455, BACB10AE8A, REP3H51, REP3H5-1, REP3H510100BG00075K0000J, REP3H5-101-00BG00-0-75K0000J, REP3H5FS210, REP3H5FS436, 3110-00-893-6785, 00-893-6785, 3110008936785, 008936785
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1962 | 00-893-6785 | 00049 ( BEARING, BALL, ROD END ) |

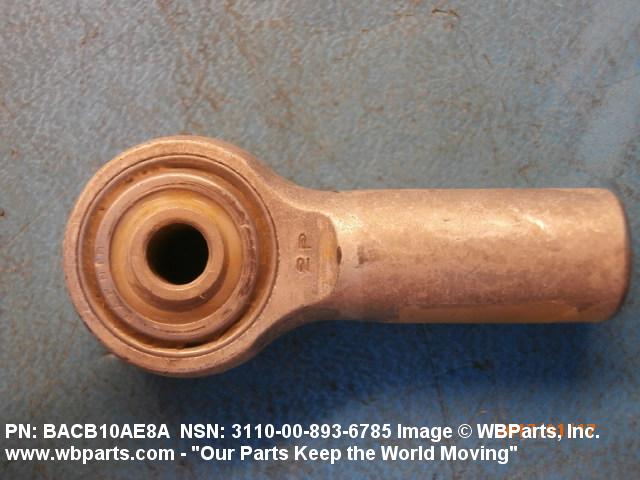

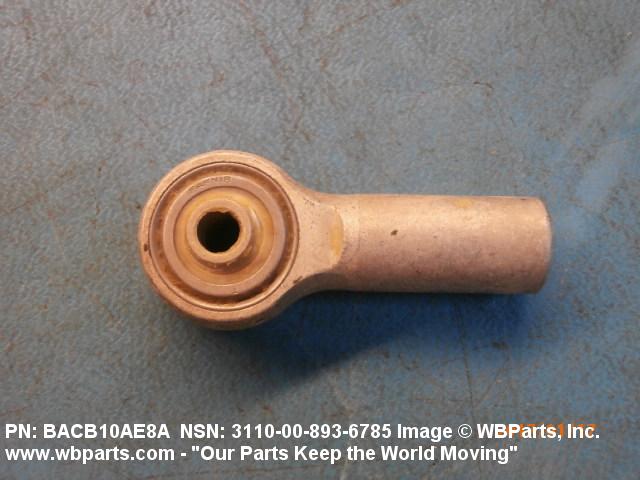

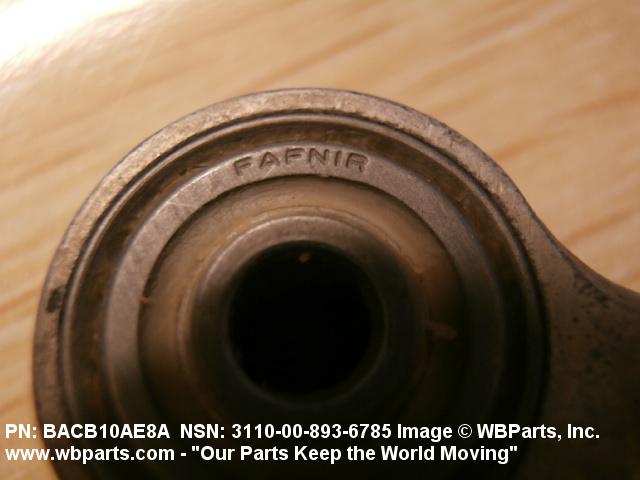

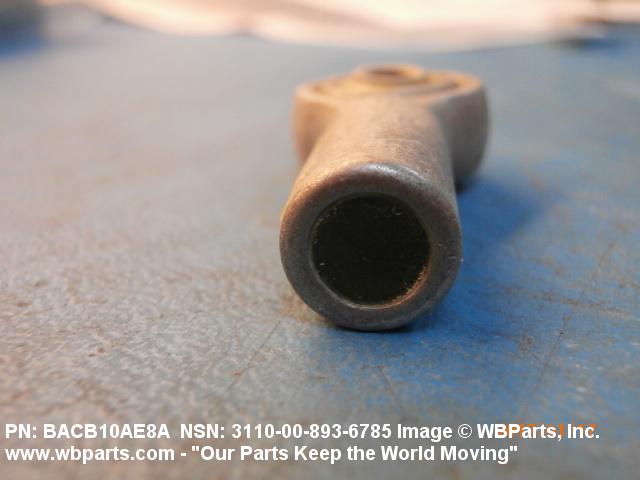

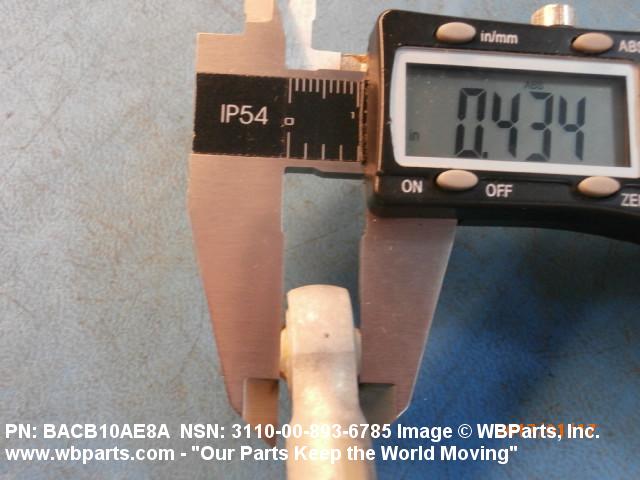

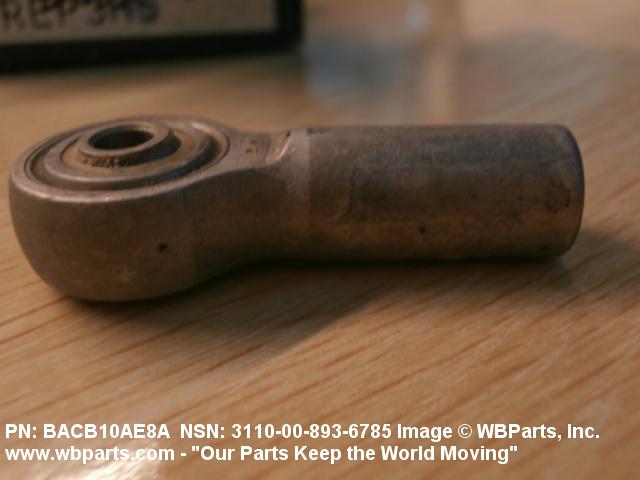

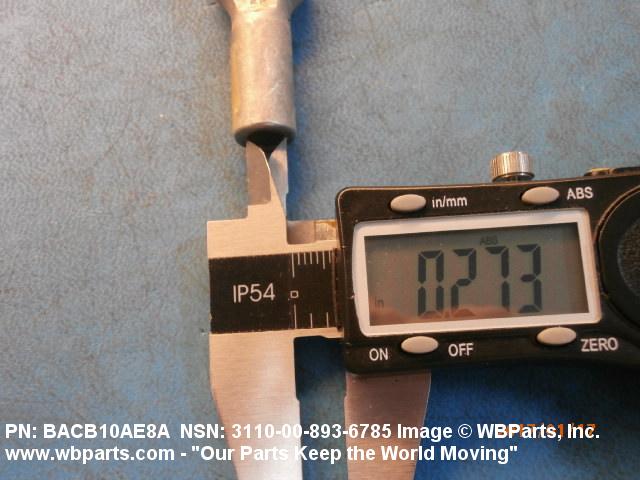

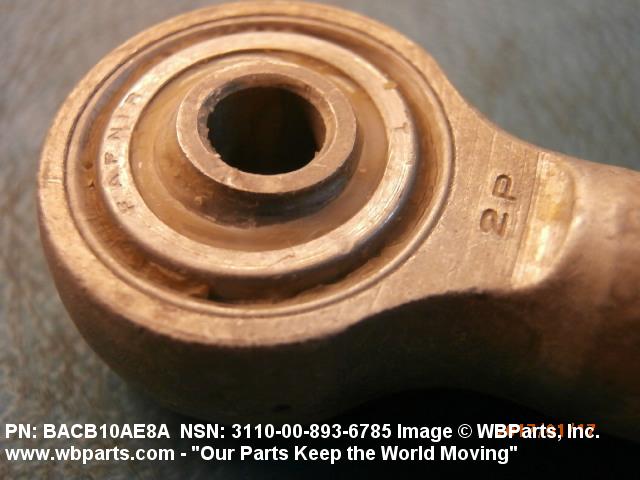

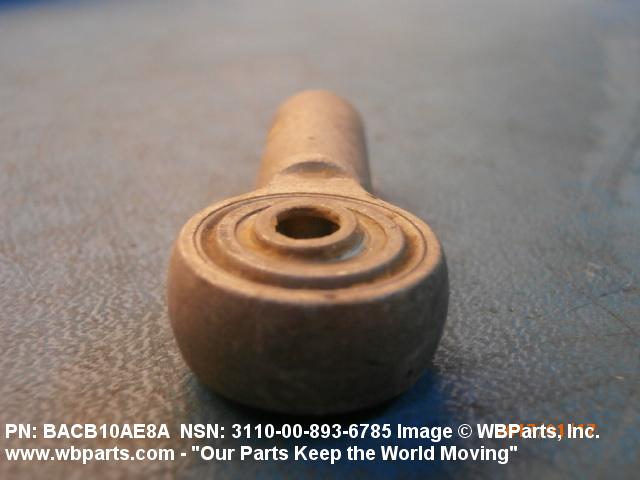

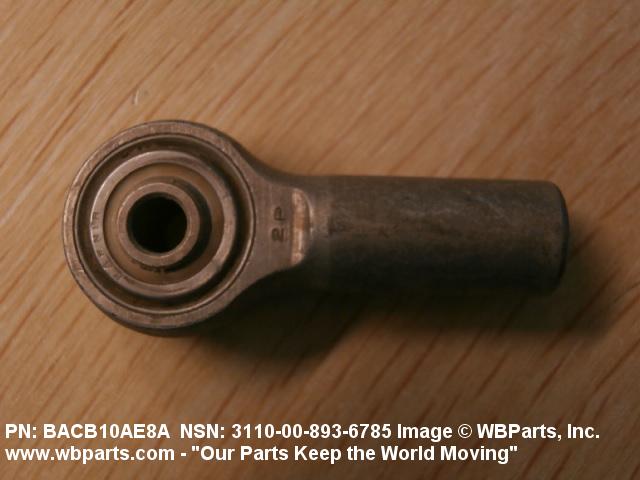

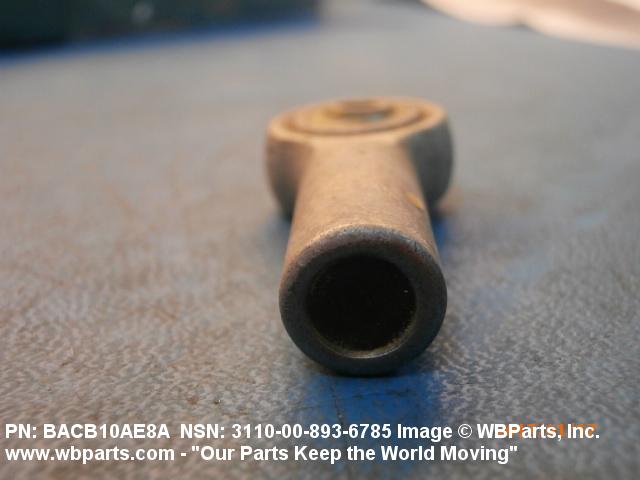

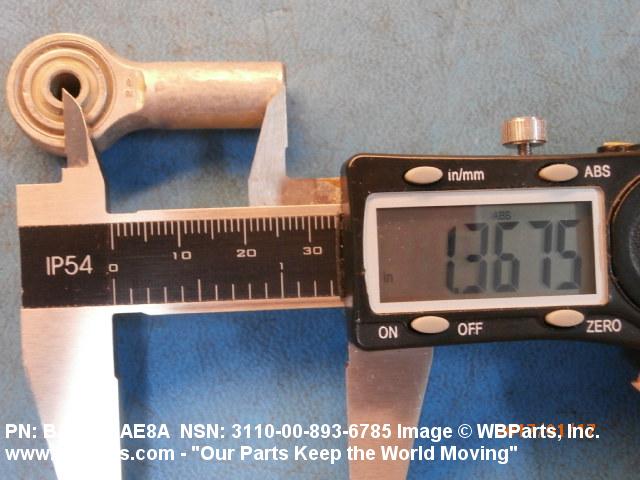

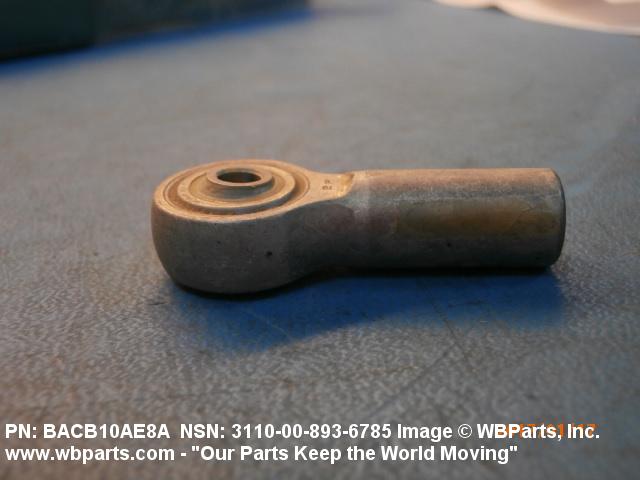

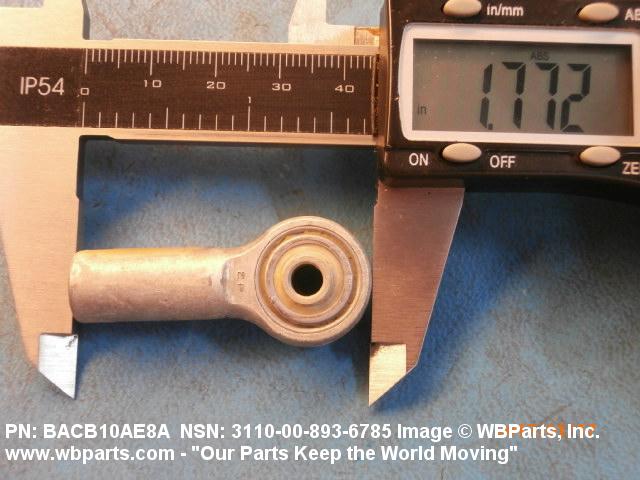

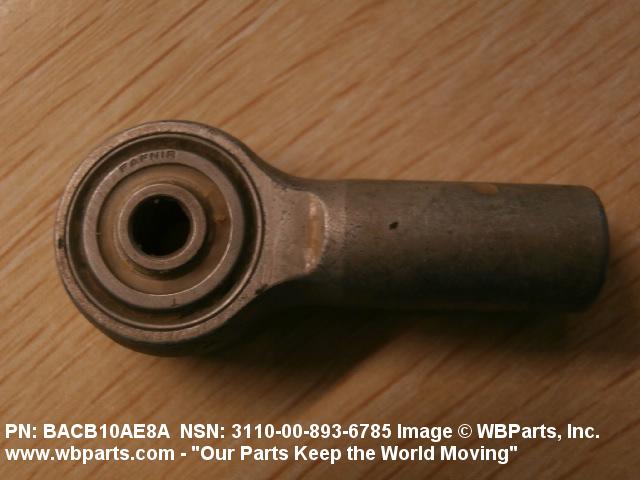

Drawings & Photos | NSN 3110-00-893-6785
Demand History | NSN 3110-00-893-6785
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACB10A455 | 2018-03-85 | 4 | United States |
| 3110-00-893-6785 | 2016-12-363 | 9 | United States |
| BACB10A455 | 2015-04-110 | 7 | United States |
| 3110-00-893-6785 | 2015-03-85 | 21 | US |
| 3110-00-893-6785 | 2014-08-222 | 15 | DIBBS |
| 3110-00-893-6785 | 2011-01-31 | 39 | DIBBS |
| 3110-00-893-6785 | 2011-01-07 | 55 | DIBBS |
| 3110-00-893-6785 | 2010-12-344 | 40 | DIBBS |
| 3110-00-893-6785 | 2010-10-302 | 23 | DIBBS |
| 3110-00-893-6785 | 2010-10-280 | 2 | DIBBS |
| 3110-00-893-6785 | 2010-07-210 | 13 | DIBBS |
| 3110-00-893-6785 | 2010-03-74 | 10 | DIBBS |
Cross Reference | NSN 3110-00-893-6785
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ABR3H-101 | 50294 | NEW HAMPSHIRE BALL BEARINGS, INC. DBA NHBB |
| AS21152 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| BACB10A455 | 82918 | THE BOEING COMPANY DBA BOEING |
| BACB10AE8A | 81205 | THE BOEING COMPANY DBA BOEING |
| MS21152-1G | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| REP3H5-1 | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| REP3H5-101-00BG00-0-75K0000J | 38443 | SKF USA INC DBA SKF AEROENGINE NORTH AMERICA |
| REP3H5FS210 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| REP3H5FS436 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-893-6785
Related Products | NSN 3110-00-893-6785
Technical Data | NSN 3110-00-893-6785
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BALL STEEL INNER RING STEEL OUTER RING RUBBER SYNTHETIC SEAL STEEL SHAFT |
| SURFACE TREATMENT | CADMIUM ALL EXTERNAL/EXPOSED METAL SURFACES |
| STYLE DESIGNATOR | 466 DOUBLE ROW, STAGGERED, BALL |
| SELF-ALIGNMENT ANGLE | 10.00 DEGREES NOMINAL |
| OVERALL LENGTH | 1.7660 INCHES NOMINAL |

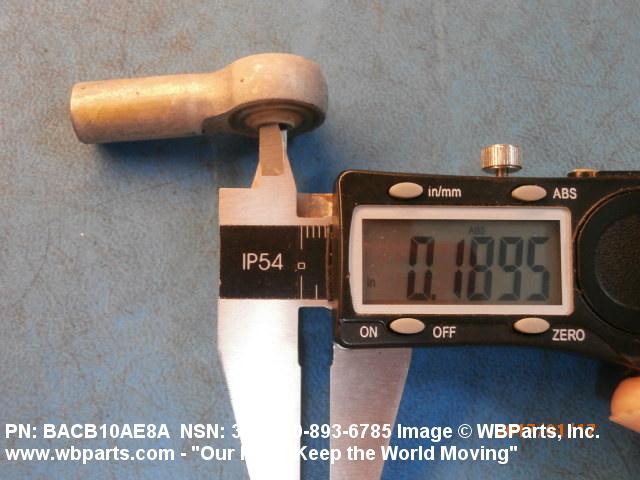

| BORE DIAMETER | 0.1900 INCHES NOMINAL |

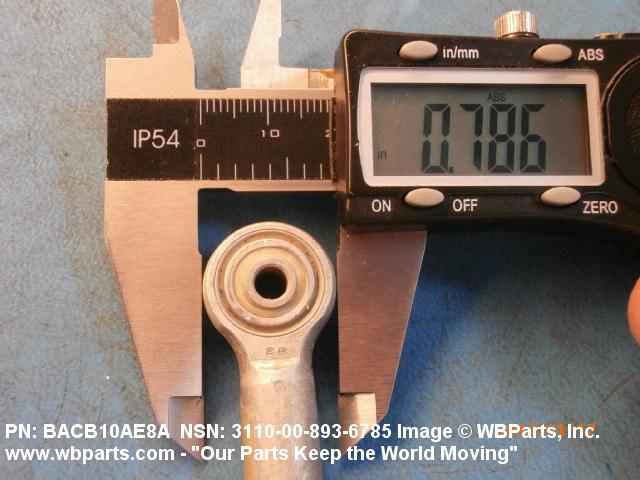

| OVERALL OUTSIDE DIAMETER | 0.7810 INCHES NOMINAL |

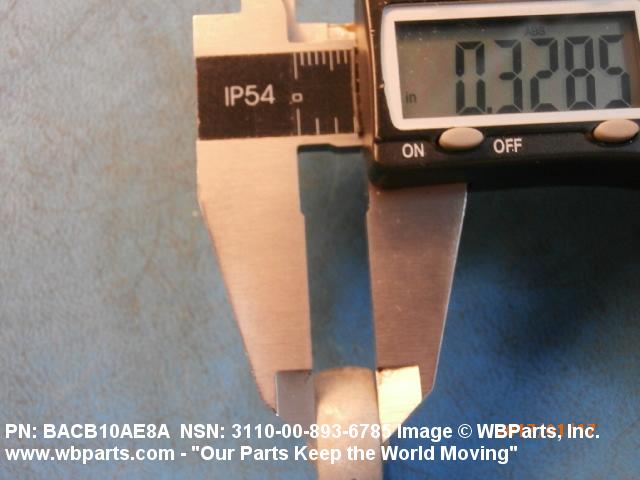

| OUTER RING WIDTH | 0.3280 INCHES NOMINAL |

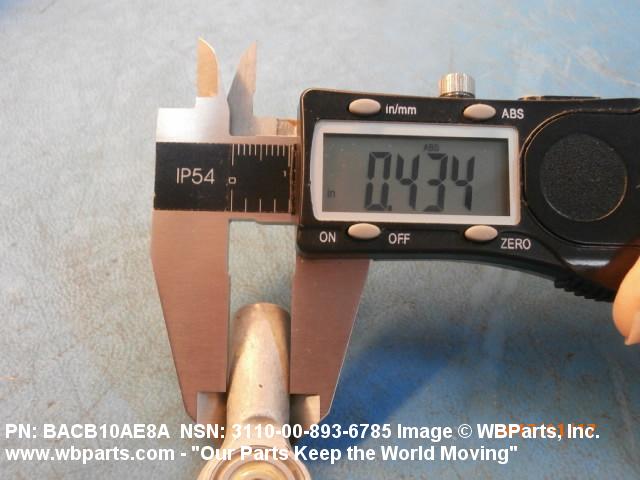

| INNER RING WIDTH | 0.4370 INCHES NOMINAL |
| LENGTH FROM BORE CENTER TO SHANK END | 1.3750 INCHES NOMINAL |
| SHANK STYLE | 659 HOLLOW |
| SHANK DIAMETER | 0.4300 INCHES NOMINAL |
| SHANK BORE DIAMETER | 0.2720 INCHES NOMINAL |

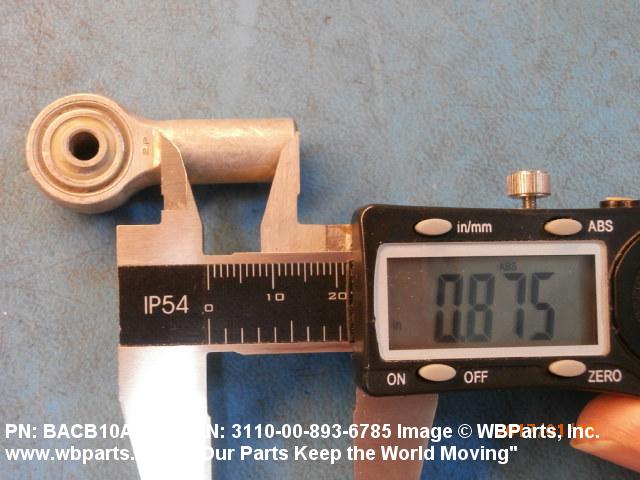

| SHANK BORE DEPTH | 0.8750 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
Restrictions/Controls & Freight Information | NSN 3110-00-893-6785
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-893-6785
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
