NSN 3110-00-915-3278 MS211519G, MS21151-9G, AN946RE4ML6
Product Details | ROD END BALL BEARING
3110-00-915-3278 A special single or multiple-row ball bearing, rigid or self-aligning, and constructed with either a solid or hollow shank, internally or externally threaded.
Part Alternates: MS211519G, MS21151-9G, AN946RE4ML6, AS6039, REP4ML6, REP4ML68G, REP4ML6-8G, REP4ML6FS210, 3110-00-915-3278, 00-915-3278, 3110009153278, 009153278
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 08 JUL 1966 | 00-915-3278 | 00049 ( BEARING, BALL, ROD END ) |

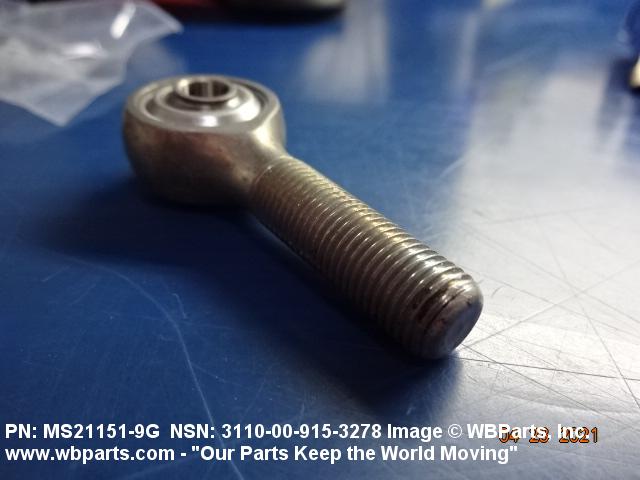

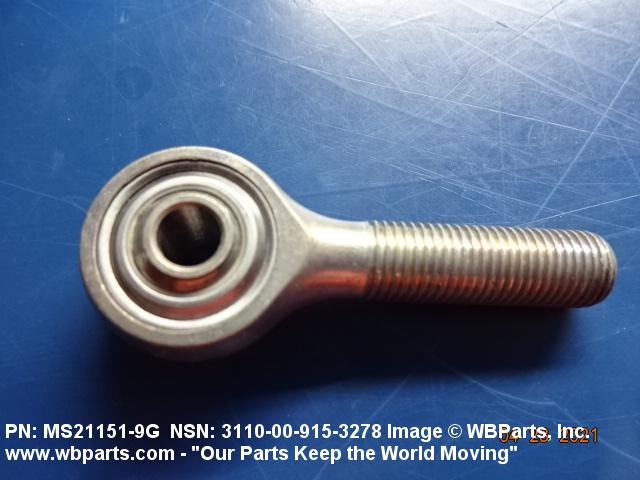

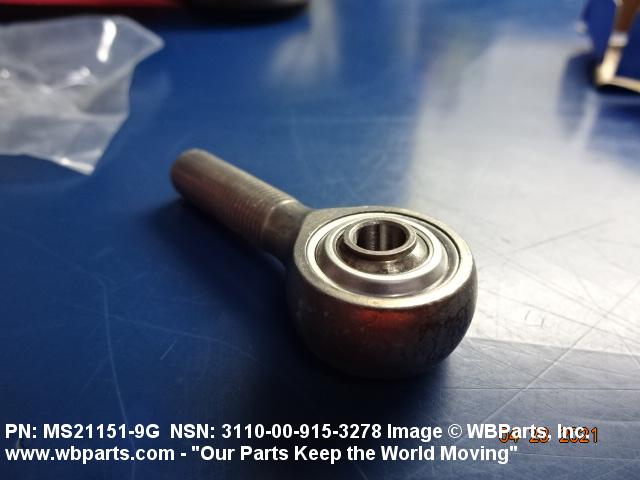

Drawings & Photos | NSN 3110-00-915-3278
Demand History | NSN 3110-00-915-3278
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS211519G | 2021-03-81 | 2 | United States |
| 3110-00-915-3278 | 2015-03-61 | 60 | DIBBS |
| REP4ML6 | 2010-10-293 | 4 | United States |
| REP4ML6FS210 | 2009-03-68 | 1 | United Kingdom |
| REP4ML6FS210 | 2009-03-68 | 5 | United Kingdom |
| 3110-00-915-3278 | 2008-02-39 | 10 | United States |
| AN946RE4ML6 | 2007-09-261 | 1 | LK |
Cross Reference | NSN 3110-00-915-3278
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN946RE4ML6 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS6039 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS21151-9G | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| REP4ML6 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
| REP4ML6 | F0563 | SCHAEFFLER FRANCE |
| REP4ML6-8G | 73134 | ROLLER BEARING COMPANY OF AMERICA, INC. |
| REP4ML6FS210 | 21335 | TIMKEN COMPANY, THE DIV TIMKEN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3110-00-915-3278
Related Products | NSN 3110-00-915-3278
Technical Data | NSN 3110-00-915-3278
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RING STEEL COMP 301 RETAINER STEEL COMP 4130 OR STEEL COMP 8620 ROD END BODY PLASTIC POLYTETRAFLUOROETHYLENE SEAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI ASSN STD SINGLE MATERIAL RESPONSE OR MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE BALL AISI ASSN STD SINGLE MATERIAL RESPONSE OR MIL-S-7420 MIL SPEC SINGLE MATERIAL RESPONSE INNER RING AISI ASSN STD SINGLE MATERIAL RESPONSE RETAINER AISI ASSN STD 1ST MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 1ST MATERIAL RESPONSE OR AISI ASSN STD 2ND MATERIAL RESPONSE OR MIL-S-8690 MIL SPEC 2ND MATERIAL RESPONSE ROD END BODY AMS 3625 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 3666 ASSN STD SINGLE MATERIAL RESPONSE SEAL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 1,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 466 DOUBLE ROW, STAGGERED, BALL |
| SELF-ALIGNMENT ANGLE | 10.00 DEGREES NOMINAL |
| OVERALL LENGTH | 2.3440 INCHES NOMINAL |

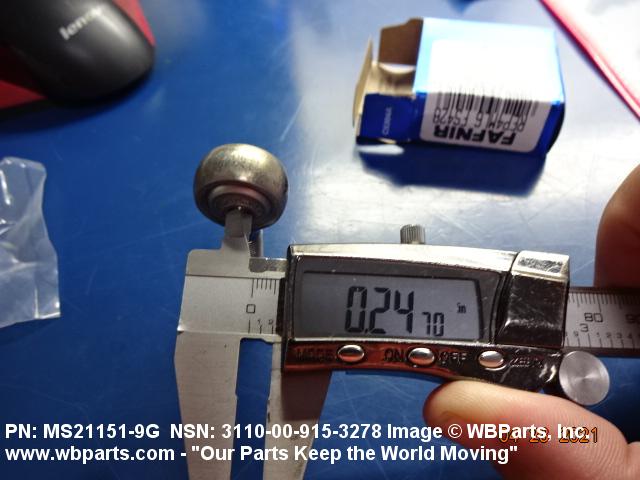

| BORE DIAMETER | 0.2500 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | ANY ACCEPTABLE |

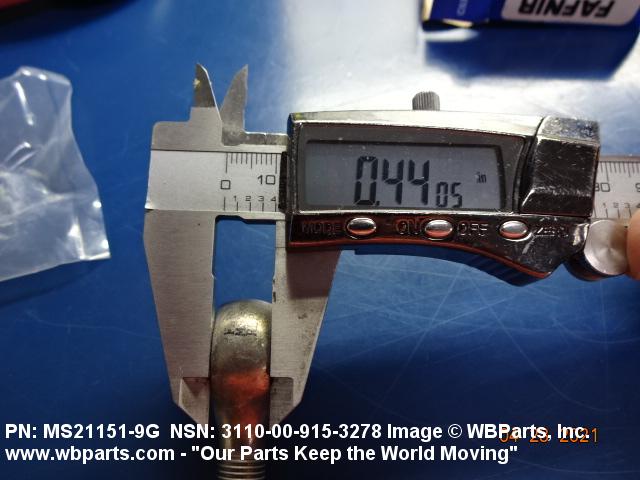

| OUTER RING WIDTH | 0.4380 INCHES NOMINAL |

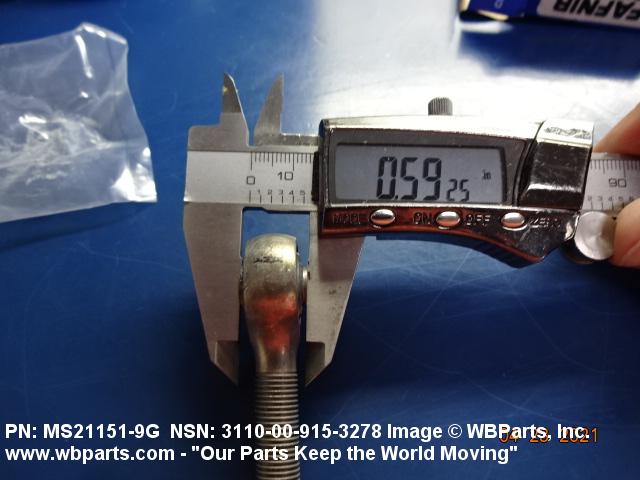

| INNER RING WIDTH | 0.5930 INCHES NOMINAL |
| LENGTH FROM BORE CENTER TO SHANK END | 1.8750 INCHES NOMINAL |
| SHANK STYLE | 651 EXTERNALLY THREADED |
| SHANK DIAMETER | 0.3750 INCHES NOMINAL |
| SHANK THREAD LENGTH | 1.1250 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | LEFT-HAND |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-G-23827 MIL SPEC SINGLE MATERIAL RESPONSE |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR ROD END BALL BEARING |
| RETAINER FABRICATION METHOD | PRESSED |
| SEAL QUANTITY | 2 |
| BEARING SEAL TYPE | CONTACT |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| INTERNAL CLEARANCE | 0.0000 INCHES MINIMUM RADIAL AND 0.0004 INCHES MAXIMUM RADIAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD | MS21151-9G |
Restrictions/Controls & Freight Information | NSN 3110-00-915-3278
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 3110-00-915-3278
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
