NSN 3110-01-059-8696 52217, 01-059-8696, 010598696
Product Details | THRUST BALL BEARING
3110-01-059-8696 An antifriction bearing having a ball rolling element, designed to resist axial thrust, or to support an axial load. Excludes BEARING, BALL, PIVOT.
Part Alternates: 52217, 3110-01-059-8696, 01-059-8696, 3110010598696, 010598696
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 03 MAY 1978 | 01-059-8696 | 00019 ( BEARING, BALL, THRUST ) |

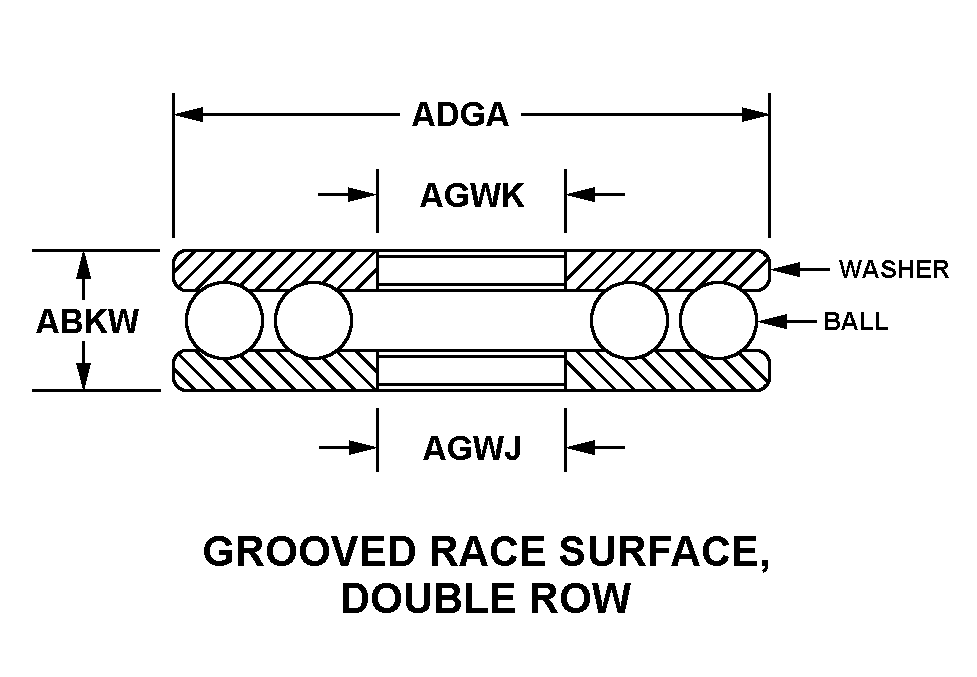

Drawings & Photos | NSN 3110-01-059-8696
Cross Reference | NSN 3110-01-059-8696
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 52217 | 43991 | FAG BEARINGS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-01-059-8696
Technical Data | NSN 3110-01-059-8696
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 168 GROOVED RACE SURFACE, DOUBLE ROW |
| OVERALL HEIGHT | 55.0000 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 125.0000 MILLIMETERS NOMINAL |
| BORE SMALLEST DIAMETER | 70.0 MILLIMETERS NOMINAL |
| LARGEST BORE DIAMETER | 70.0 MILLIMETERS NOMINAL |
Restrictions/Controls & Freight Information | NSN 3110-01-059-8696
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
