NSN 3110-01-528-1308 2026-0016-1, 01-528-1308, 202600161

3110-01-528-1308 An antifriction bearing having a roller rolling element, designed to resist axial thrust, or to support an axial load.

Part Alternates: 2026-0016-1, 3110-01-528-1308, 01-528-1308, 3110015281308, 202600161, 015281308

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
31	03 MAR 2005	01-528-1308	00020 ( BEARING, ROLLER, THRUST )

Part Number	Cage Code	Manufacturer
2026-0016-1	86831	ROCKWELL COLLINS ELECTROMECHANICAL SYSTEMS, INC

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 3110-01-528-1308

Compare

3110-01-528-2299, 3110-01-528-2300, 3110-01-528-2464, 3110-01-528-2466, 3110-01-528-2722

Characteristic	Specifications
MATERIAL	COPPER ALLOY 630 OVERALL

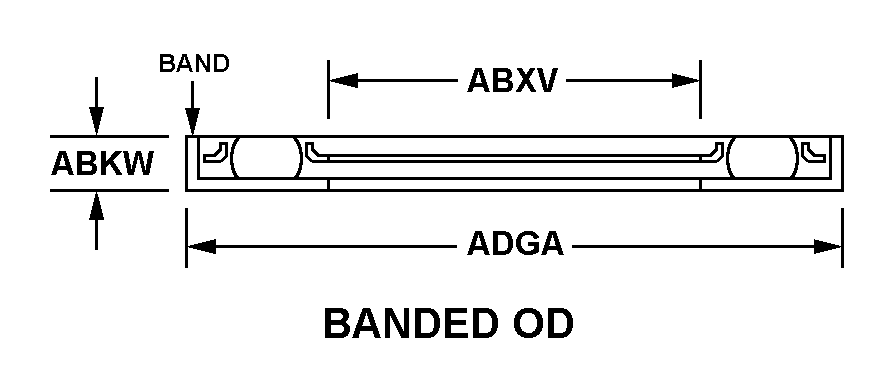

STYLE DESIGNATOR	343 BANDED OD
OVERALL HEIGHT	0.2650 INCHES MINIMUM AND 0.2750 INCHES MAXIMUM
BORE DIAMETER	3.3490 INCHES MINIMUM AND 3.5400 INCHES MAXIMUM
OVERALL OUTSIDE DIAMETER	5.7500 INCHES NOMINAL
SURFACE FINISH	GROUND
ALIGNMENT TYPE	RIGID
THRUST DIRECTIONAL CAPABILITY DESIGNATION	SIMPLIFIED DOUBLE ACTING
III END ITEM IDENTIFICATION	C-17A AIRCRAFT
III PART NAME ASSIGNED BY CONTROLLING AGENCY	CAGE-SKEWED ROLLER

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
No Freight Information

Category	Code	Description
Materiel Management Aggregation Code	BA	TB:C-17 PROGRAM
Price Validation	E	The current standard price is an estimated price. Estimated Price challenges are allowed, but follow procedures in para 60.b. (3) of section L of this manual. This code will be changed to a P code upon notification of a contract price or this code will be changed to an updated code upon determination of a valid price.
Budget Code	S	1557X3010:Aircraft Replenishment Spares
Source of Supply	F77	Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	M	RESTRICTED REQUISITIONS-MAJOR OVERHAUL (Service/Agency use only.) # Items (Assemblies and/or component parts) which for lack of specialized tools, test equipment, etc., can be used only by major overhaul activities. Base, post, camp or station activities will not requisition unless authorized to perform major overhaul function.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
