NSN 3110-01-543-3078 MS211535, MS21153-5, AS21153
Product Details | ROD END BALL BEARING
3110-01-543-3078 A special single or multiple-row ball bearing, rigid or self-aligning, and constructed with either a solid or hollow shank, internally or externally threaded.
Part Alternates: MS211535, MS21153-5, AS21153, AS211535, AS21153-5, 3110-01-543-3078, 01-543-3078, 3110015433078, 015433078
Bearings | Bearings, Antifriction, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 08 SEP 2006 | 01-543-3078 | 00049 ( BEARING, BALL, ROD END ) |

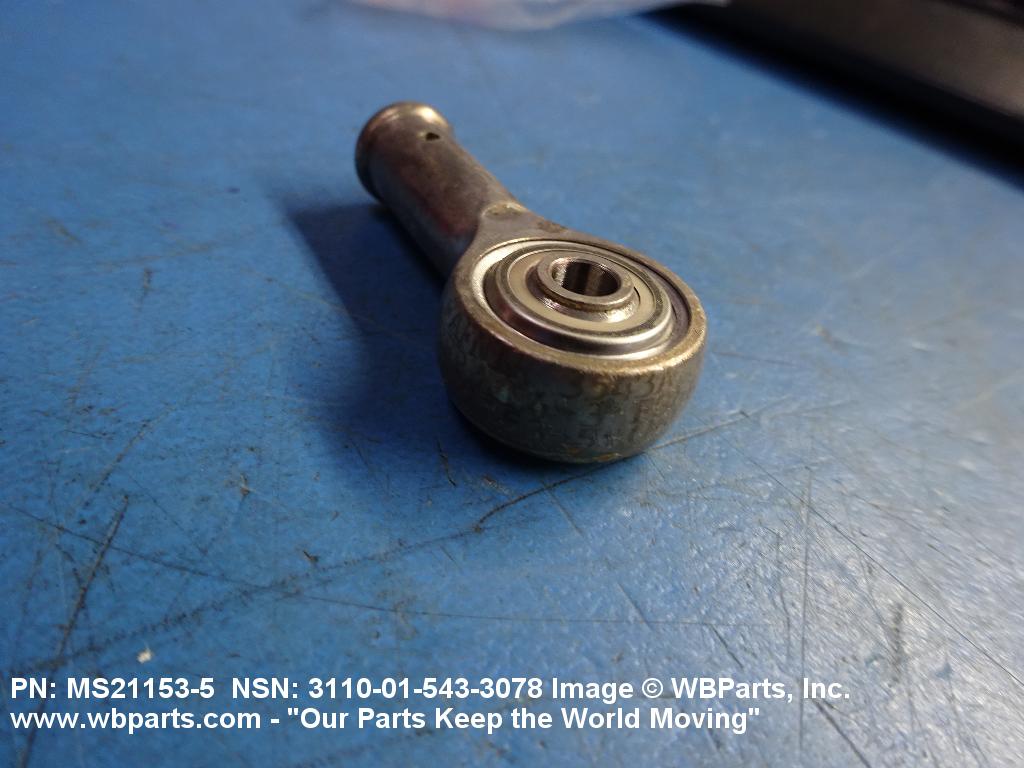

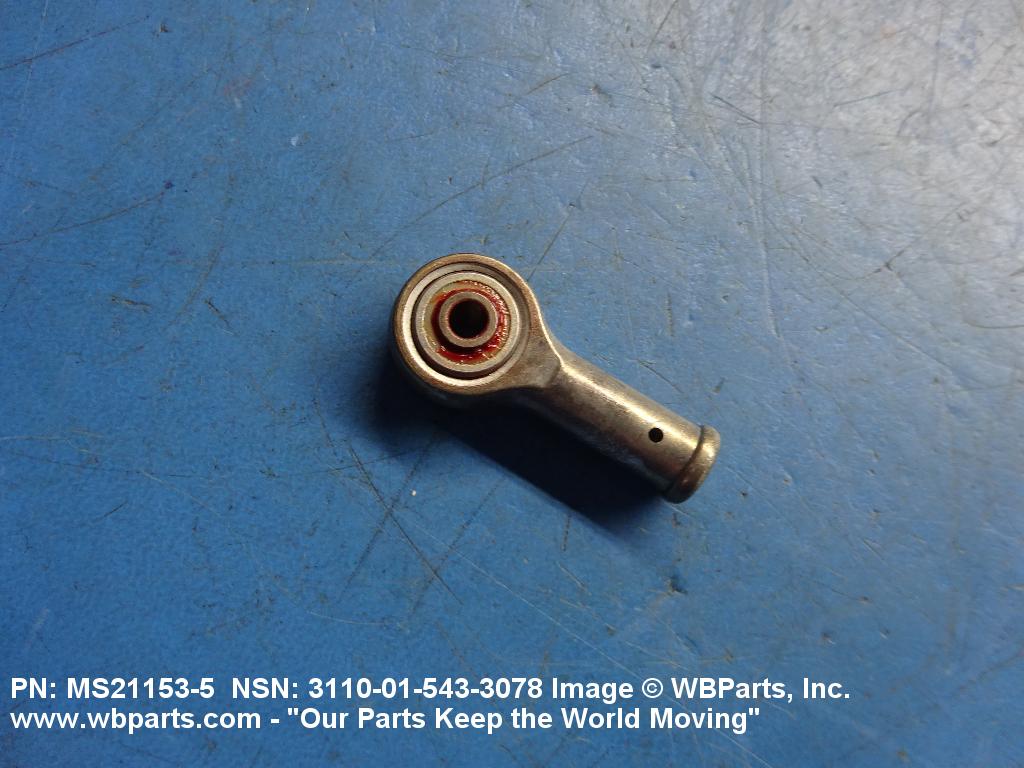

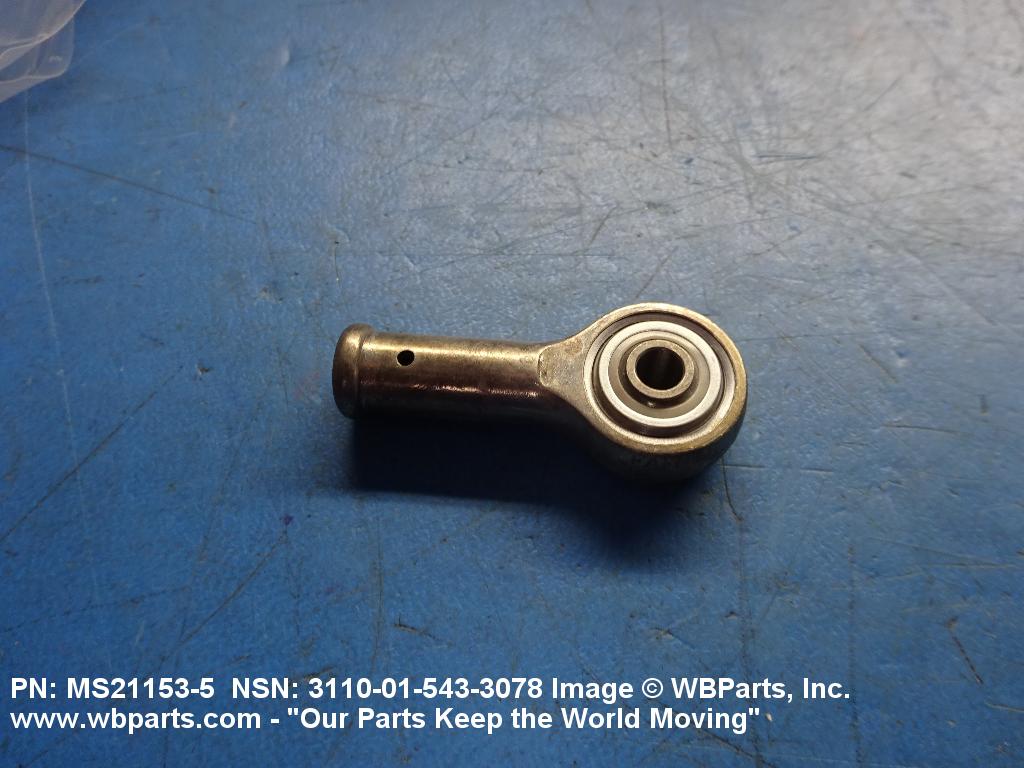

Drawings & Photos | NSN 3110-01-543-3078
Demand History | NSN 3110-01-543-3078
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3110-01-543-3078 | 2024-07-200 | 20 | United States |
| MS211535 | 2022-12-348 | 1 | United States |
| MS211535 | 2022-11-318 | 10 | United States |
| MS211535 | 2022-11-315 | 10 | United States |
| MS211535 | 2022-06-172 | 10 | US |
| MS211535 | 2011-12-355 | 4 | US |
| MS211535 | 2008-09-249 | 2 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 3110-01-543-3078
Technical Data | NSN 3110-01-543-3078
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E52100 BALL STEEL COMP E52100 INNER RACE STEEL COMP 4130 OUTER RACE STEEL COMP 4130 ROD END BODY |
| SURFACE TREATMENT | ZINC AND NICKEL OVERALL |
| STYLE DESIGNATOR | 466 DOUBLE ROW, STAGGERED, BALL |
| SELF-ALIGNMENT ANGLE | 10.00 DEGREES MINIMUM |

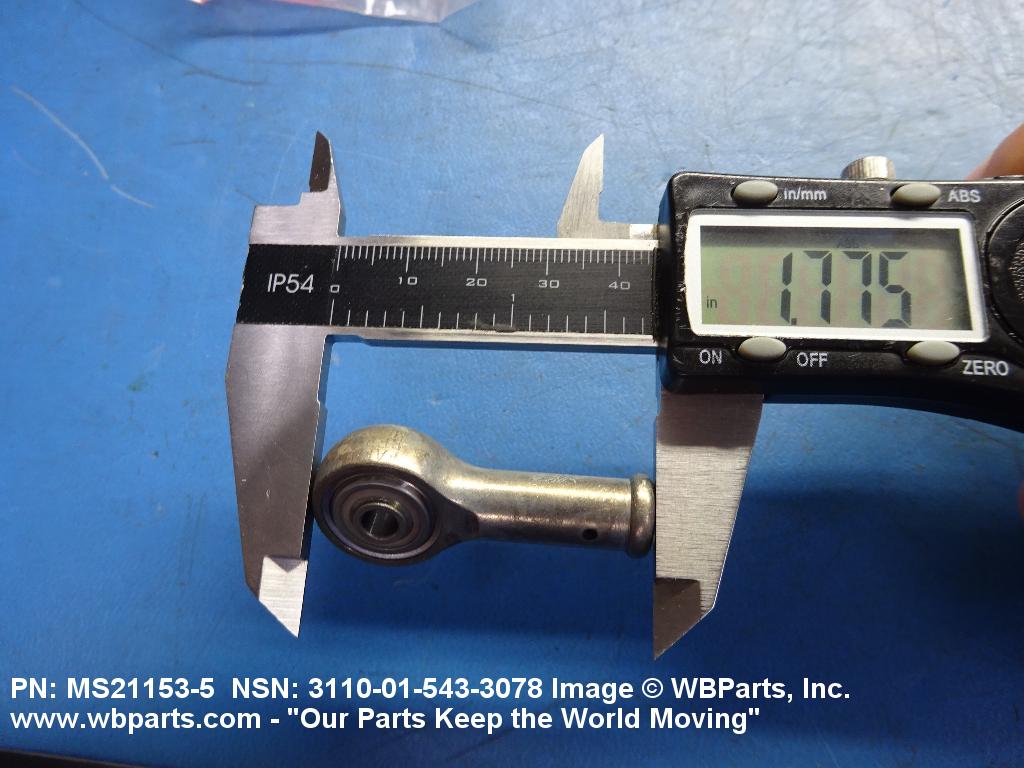

| OVERALL LENGTH | 1.7650 INCHES NOMINAL |
| BORE DIAMETER | 0.1875 INCHES NOMINAL |

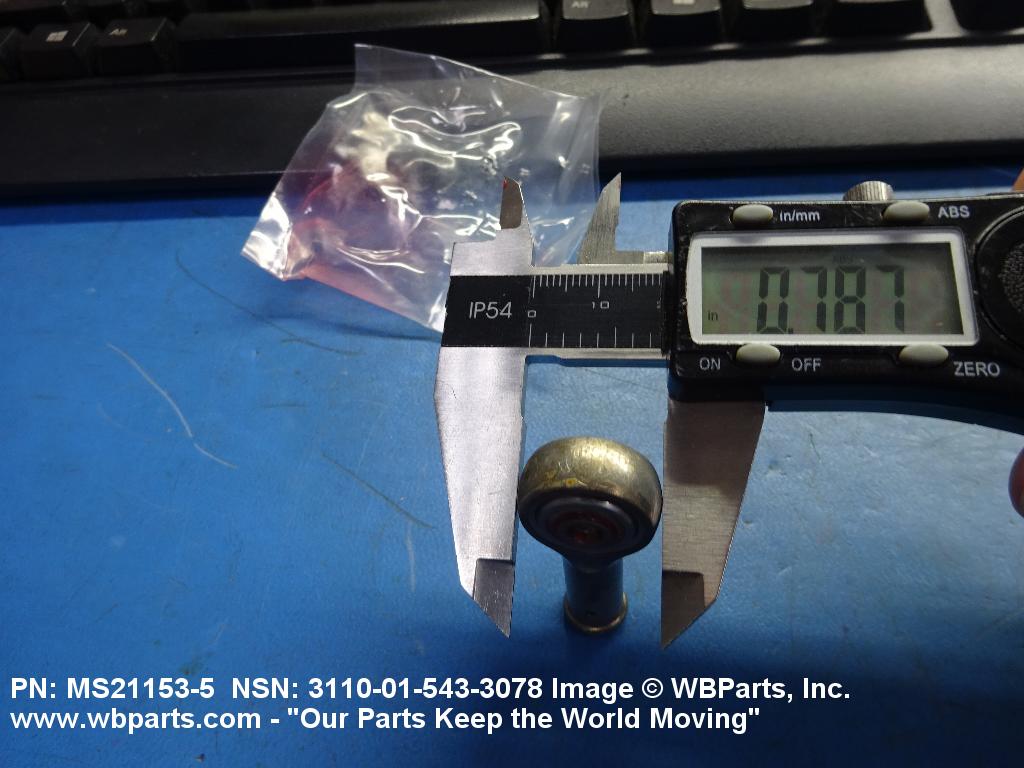

| OVERALL OUTSIDE DIAMETER | 0.7810 INCHES NOMINAL |
| OUTER RING WIDTH | 0.3280 INCHES NOMINAL |
| INNER RING WIDTH | 0.4370 INCHES NOMINAL |

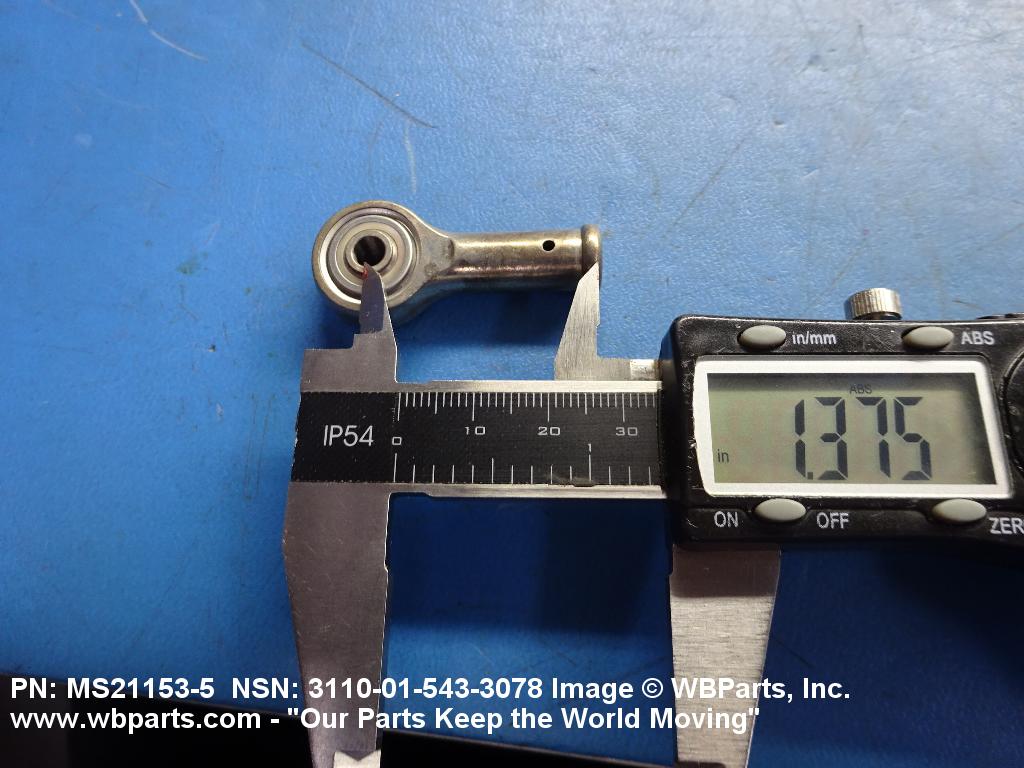

| LENGTH FROM BORE CENTER TO SHANK END | 1.3750 INCHES NOMINAL |

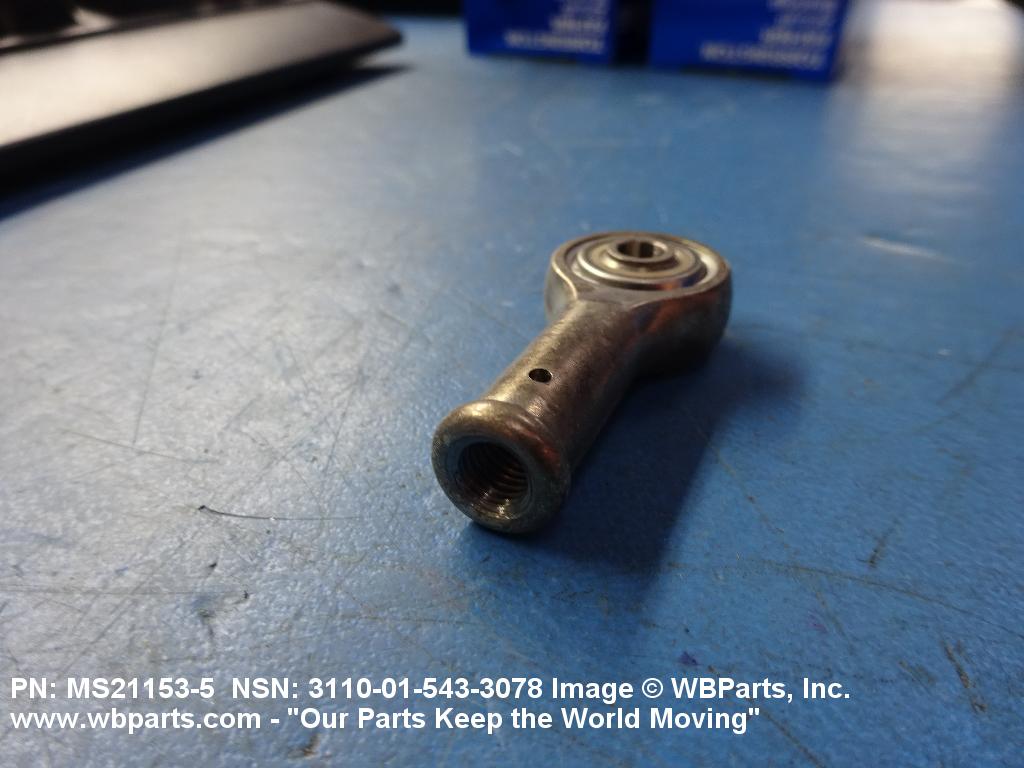

| SHANK STYLE | 657 INTERNALLY THREADED W/HEXAGON END |

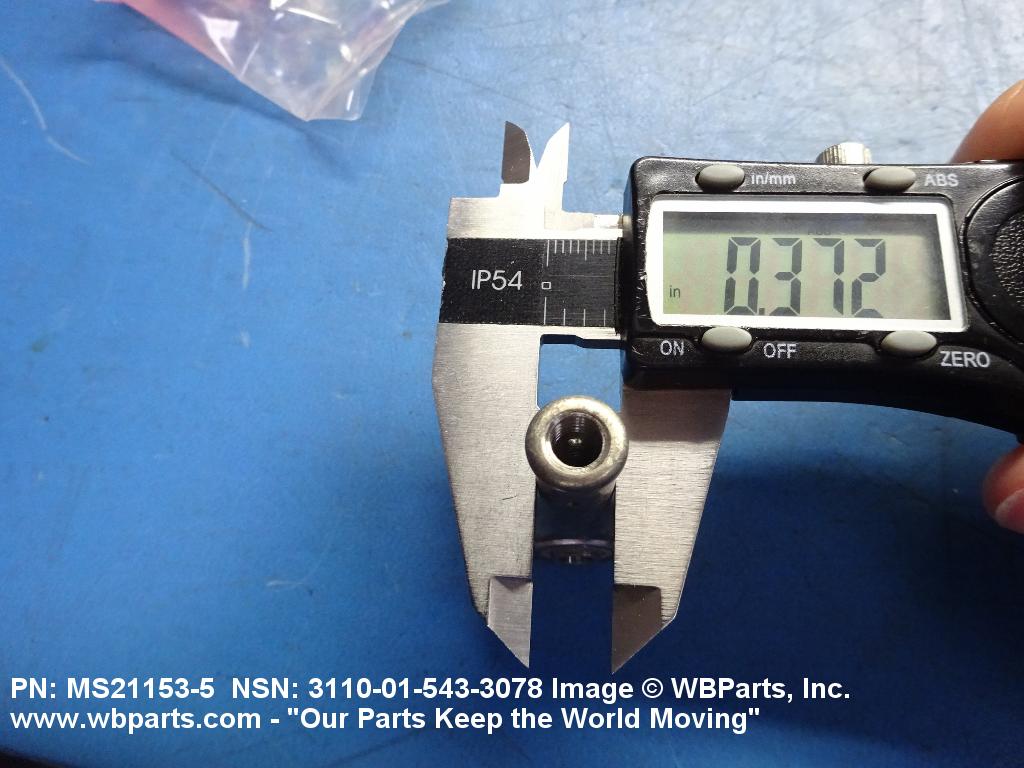

| SHANK DIAMETER | 0.3750 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.4380 INCHES NOMINAL |

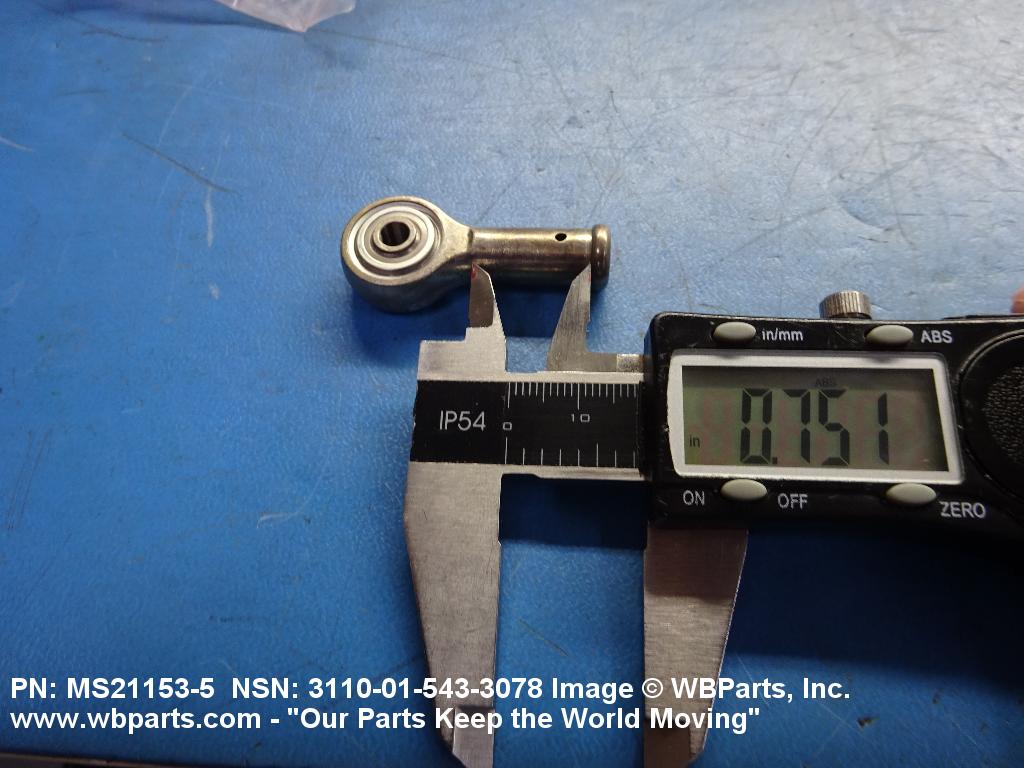

| SHANK THREAD LENGTH | 0.7500 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| LUBRICATION MATERIAL | GREASE |
| LUBRICATION MATERIAL DOCUMENT AND CLASSIFICATION | MIL-PRF-81322 MIL SPEC SINGLE MATERIAL RESPONSE |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| III END ITEM IDENTIFICATION | AIRCRAFT, FOKKER F-27 |
Restrictions/Controls & Freight Information | NSN 3110-01-543-3078
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
