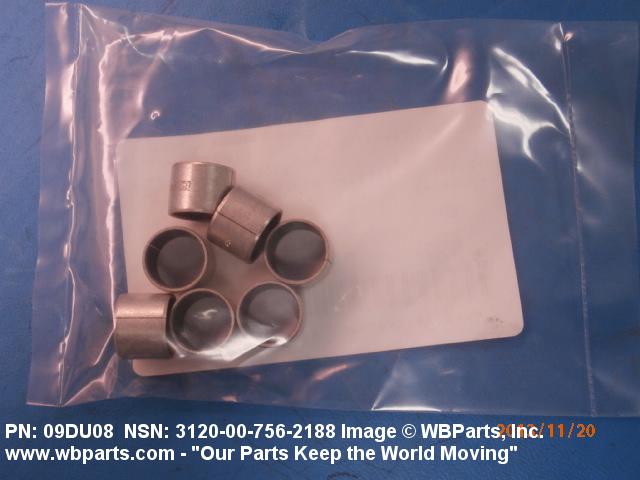

3120-00-756-2188 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.

Part Alternates: 09DU08, 09-DU-08, 10043874, 72752820, 727528-20, 75201A15, 3120-00-756-2188, 00-756-2188, 3120007562188, 007562188

Bearings | Bearings, Plain, Unmounted

Supply Group (FSG) NSN Assign. NIIN
31 01 JAN 1962 00-756-2188

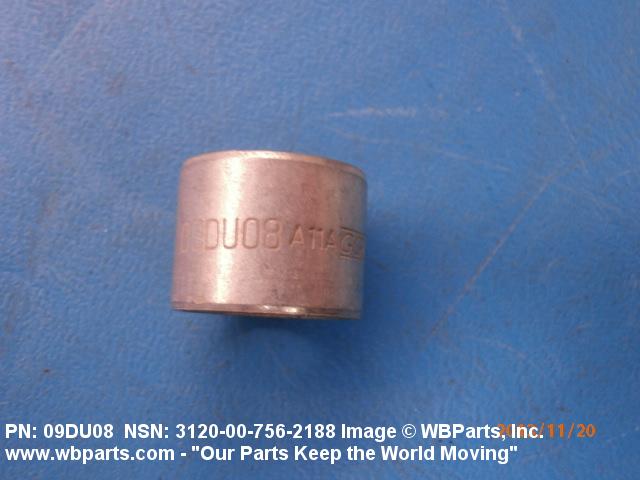

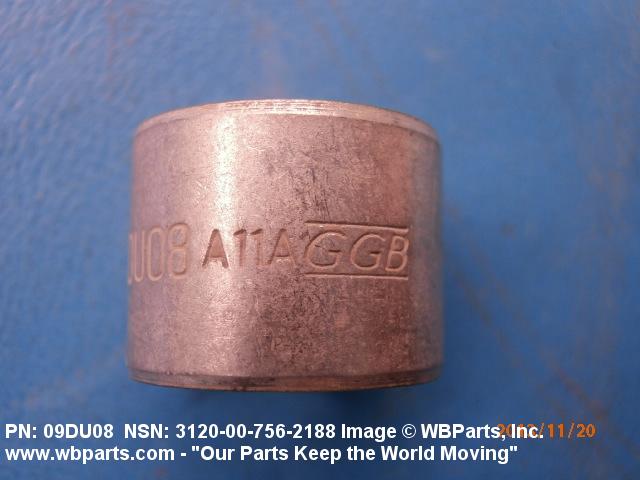

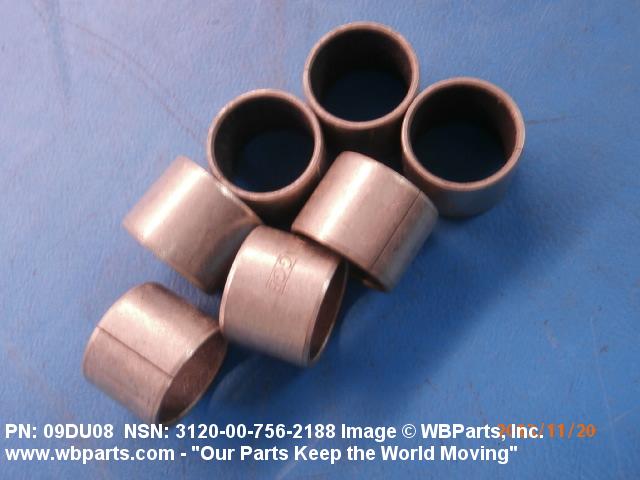

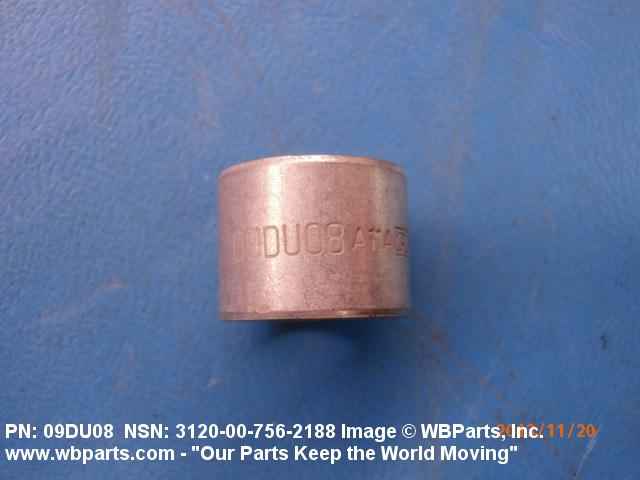

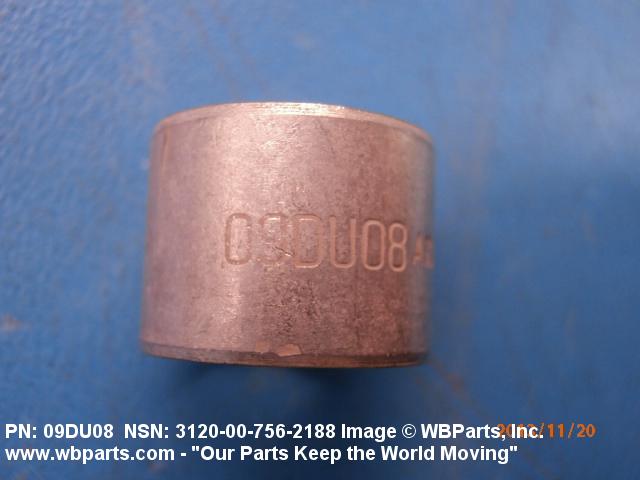

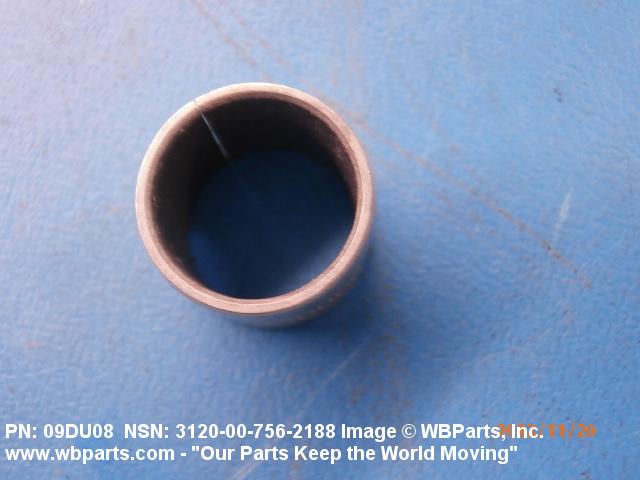

Drawings & Photos | NSN 3120-00-756-2188


Demand History | NSN 3120-00-756-2188

Part Number Request Date QTY Origin
3120-00-756-2188 2024-04-30 28 United States
10043874 2023-08-30 266 DIBBS
10043874 2020-10-07 266 DIBBS
3120-00-756-2188 2020-07-22 51 us
3120-00-756-2188 2020-07-14 51 us
10043874 2019-01-08 266 DIBBS
3120-00-756-2188 2016-05-30 241 DIBBS
09DU08 2014-12-10 42 United States
3120-00-756-2188 2013-08-19 7 United States
10043874 2013-08-19 7 US
3120-00-756-2188 2013-04-28 464 DIBBS
3120-00-756-2188 2011-07-30 75 DIBBS
3120-00-756-2188 2011-01-24 58 DIBBS

Cross Reference | NSN 3120-00-756-2188

Part Number Cage Code Manufacturer
09-DU-08 16124 DADANT AND SONS INC
09DU08 26124 GGB NORTH AMERICA LLC DBA GGB
09DU08 28499 CHEMLEC PRODUCTS INC
10043874 18876 U S ARMY AVIATION AND MISSILE COMMAND
727528-20 73030 HAMILTON SUNDSTRAND CORPORATION
75201A15 59560 TERRY CORP OF CONNECTICUT SUB OF INGERSOLL-RAND CO

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 3120-00-756-2188

Technical Data | NSN 3120-00-756-2188

Characteristic Specifications
MATERIAL COPPER ALLOY INNER LAYER STEEL OUTER LAYER
STYLE DESIGNATOR 17C SOLID

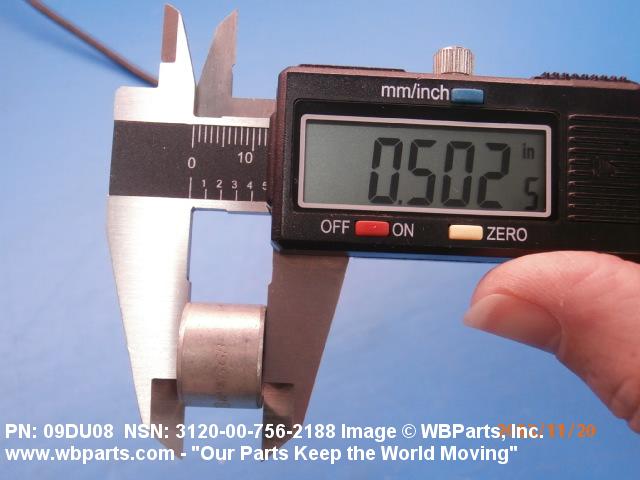

OVERALL LENGTH 0.4840 INCHES MINIMUM AND 0.5160 INCHES MAXIMUM

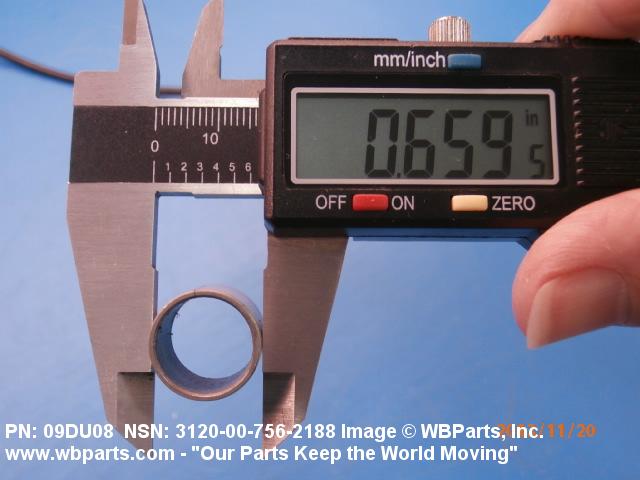

BODY OUTSIDE DIAMETER 0.6410 INCHES MINIMUM AND 0.6720 INCHES MAXIMUM
BODY INSIDE DIAMETER 0.5470 INCHES MINIMUM AND 0.5780 INCHES MAXIMUM
CORNER SHAPE SQUARE ALL CORNERS
LUBRICATION MATERIAL LUBRICANT, MANUFACTURERS STANDARD
