Product Details | SLEEVE BEARING
3120-01-121-5586 A tubular shaped item with or without flange(s) designed to reduce friction and carry a kinetic load on the surface(s) parallel to the axis of the bore. It must have a visible or detectable means of lubrication or be self-lubricated. The over all length must exceed 25 percent of the outside diameter or the shortest distance between peripheral flats of the body, except for straight tubular (without flange or shoulder) items having a bearing surface(s) parallel to the axis of the bore only. Includes items which are divided into two or more segments which include 180 degrees (3.141 radians) or less of the bearing periphery. See also BUSHING, SLEEVE; SPACER, SLEEVE; and WASHER (as modified). Excludes PIN, HOLLOW.
Part Alternates: 0101136, 01-01136, 10107780 , 3120-01-121-5586, 01-121-5586, 3120011215586, 011215586
Bearings | Bearings, Plain, Unmounted
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 06 NOV 1981 | 01-121-5586 | 13205 ( BEARING, SLEEVE ) |

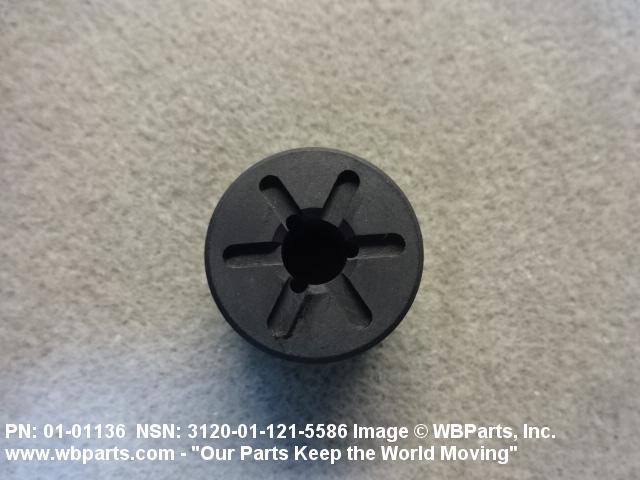

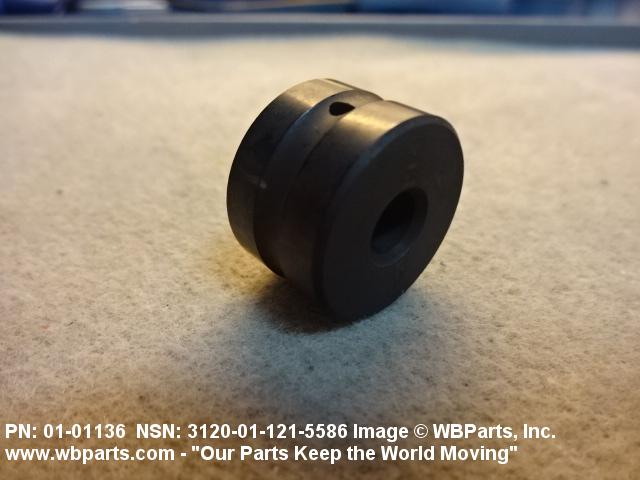

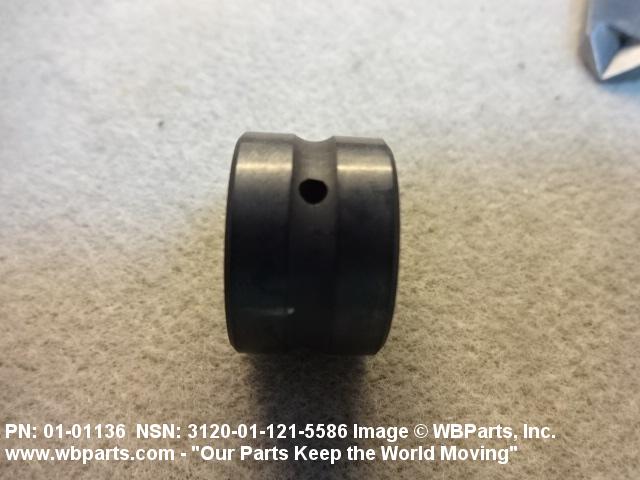

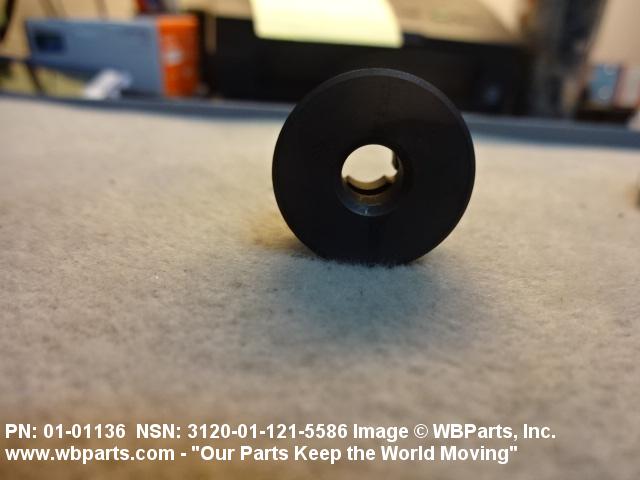

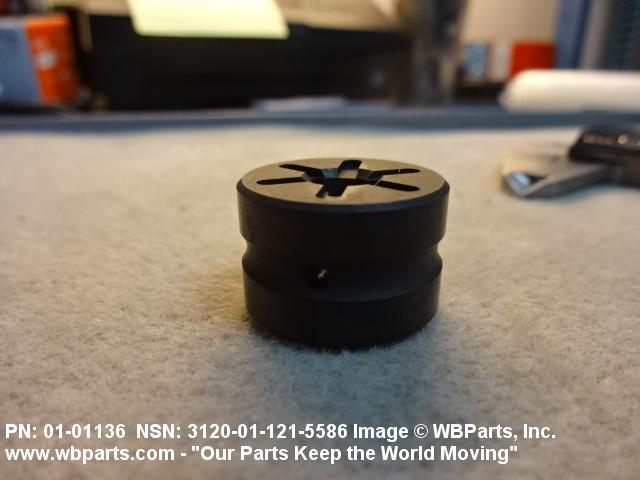

Drawings & Photos | NSN 3120-01-121-5586
Demand History | NSN 3120-01-121-5586
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 01-01136 | 2019-04-03 | 5 | DIBBS |
| 3120-01-121-5586 | 2019-03-29 | 1 | United States |
| 01-01136 | 2019-03-05 | 3 | DIBBS |
| 01-01136 | 2019-02-13 | 2 | DIBBS |
| 01-01136 | 2019-02-05 | 2 | DIBBS |
| 01-01136 | 2019-01-21 | 1 | DIBBS |
| 3120-01-121-5586 | 2015-10-22 | 2 | DIBBS |
| 3120-01-121-5586 | 2011-09-19 | 1 | DIBBS |
| 3120-01-121-5586 | 2011-08-26 | 1 | DIBBS |
Cross Reference | NSN 3120-01-121-5586
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 01-01136 | 81982 | HYDRO-AIRE, INC. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 3120-01-121-5586
3120-01-121-5587, 3120-01-121-5589, 3120-01-121-5590, 3120-01-121-5591, 3120-01-121-5594
Technical Data | NSN 3120-01-121-5586
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 17C SOLID |

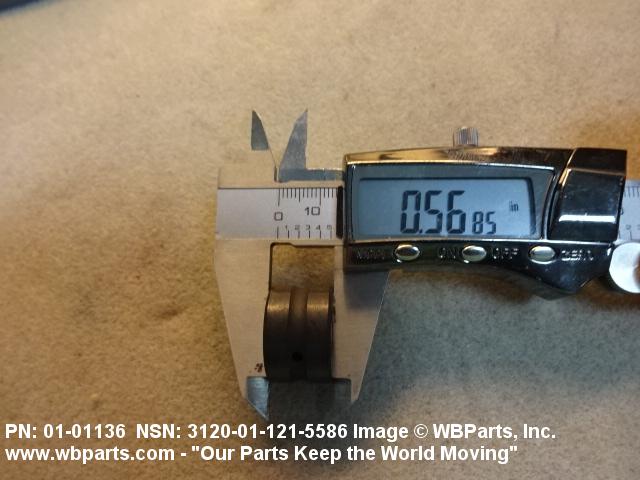

| OVERALL LENGTH | 0.5650 INCHES MINIMUM AND 0.5700 INCHES MAXIMUM |

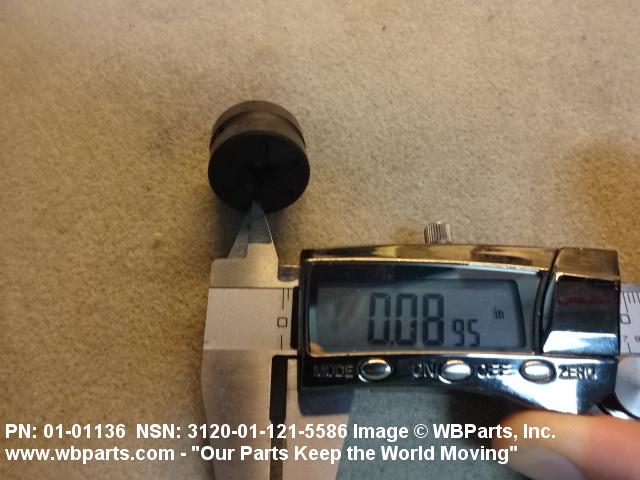

| BODY OUTSIDE DIAMETER | 0.8785 INCHES MINIMUM AND 0.8790 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.2680 INCHES MINIMUM AND 0.2730 INCHES MAXIMUM |
| CORNER SHAPE | SQUARE OUTSIDE LEFT CORNER SQUARE OUTSIDE RIGHT CORNER CHAMFERED INSIDE RIGHT CORNER CHAMFERED INSIDE LEFT CORNER |
| ANTIROTATION/LUBRICATION TYPE AND QUANTITY | 3 HOLE AND 6 SLOT |
| HOLE DIAMETER | 0.0900 INCHES MINIMUM AND 0.1000 INCHES MAXIMUM FIRST |

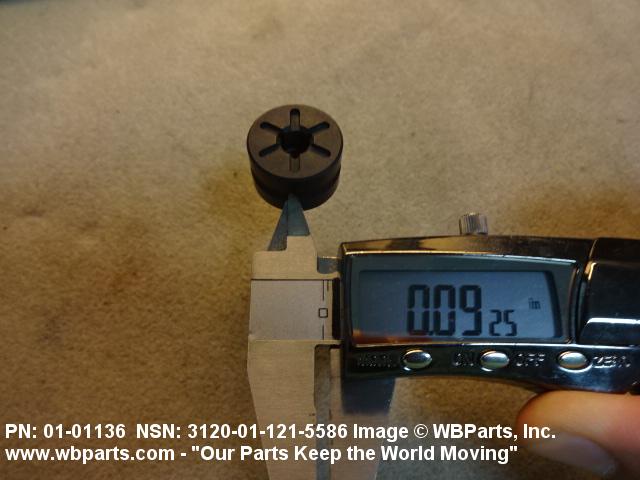

| SLOT WIDTH | 0.0900 INCHES MINIMUM AND 0.1000 INCHES MAXIMUM FIRST |
| SLOT LENGTH | ANY ACCEPTABLE FIRST |
| SURFACE FINISH | 125.0 MICROINCHES OVERALL |
| (NON-CORE DATA) CHAMFER LENGTH | 0.0370 INCHES NOMINAL 0.0375 INCHES NOMINAL |
| (NON-CORE DATA) CHAMFER ANGLE | 45.0 DEGREES NOMINAL 45.0 DEGREES NOMINAL |
| MANUFACTURERS CODE | 81982 |
| DESIGN CONTROL REFERENCE | 01-01136 |
