NSN 3130-00-055-1596 LP-16, 11026024-1, 20204
Product Details | BALL BEARING UNIT
3130-00-055-1596 An assembled unit, composed of a housing incorporating a single or multiple row ball bearing(s), designed to meet various or specific conditions of mounting.
Part Alternates: LP-16, 11026024-1, 20204, 31J57, LP16, 3130-00-055-1596, 00-055-1596, 3130000551596, 110260241, 000551596
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | 01 JAN 1963 | 00-055-1596 | 30556 ( BEARING UNIT, BALL ) |
Drawings & Photos | NSN 3130-00-055-1596
Demand History | NSN 3130-00-055-1596
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 20204 | 2018-07-201 | 3 | US |
Cross Reference | NSN 3130-00-055-1596
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11026024-1 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 20204 | 31849 | GREGORY ENGINEERING CORP |
| 31J57 | 05643 | BARBER-GREENE CO |
| 31J57 | 0MKW7 | MINNPAR, LLC DBA MINNPAR |
| 31J57 | 7T795 | PENGO-JETCO EQUIPMENT A DIV OF PENGO INDUSTRIES INC |
| LP-16 | 54686 | SEAL MASTER CORPORATION DBA SEALMASTER |
| LP-16 | 57448 | STEPHENS-ADAMSON INC A SUB OF ALLIS-CHALMERS CORP |
| LP16 | 02695 | MORSE INDUSTRIAL CORP SEALMASTER BEARING DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 3130-00-055-1596
Related Products | NSN 3130-00-055-1596
Technical Data | NSN 3130-00-055-1596
| Characteristic | Specifications |
|---|---|
| BORE DIAMETER | 1.0000 INCHES NOMINAL |
| MATERIAL | STEEL BEARING SURFACE IRON MALLEABLE HOUSING |

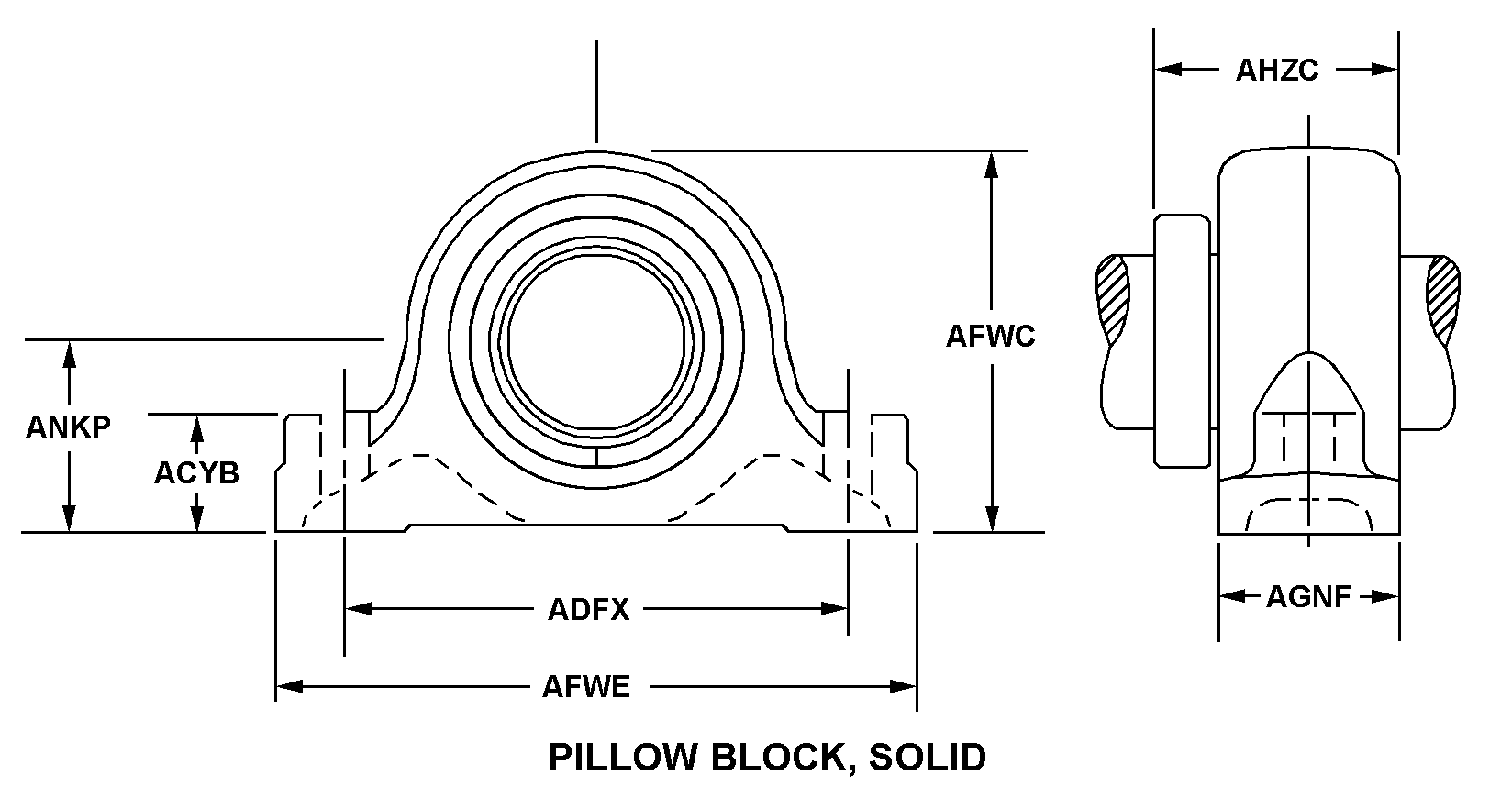

| STYLE DESIGNATOR | A16 PILLOW BLOCK, SOLID |
| BASE THICKNESS | 0.3750 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 4.0000 INCHES NOMINAL |
| HOUSING HEIGHT | 2.6562 INCHES NOMINAL |
| HOUSING WIDTH | 5.0000 INCHES NOMINAL |
| BASE LENGTH | 1.2500 INCHES NOMINAL |
| ASSEMBLY OVERALL LENGTH | 1.2188 INCHES NOMINAL |
| HEIGHT FROM BOTTOM OF BASE TO BORE CENTERLINE | 1.4375 INCHES NOMINAL |
| MOUNTING HOLE TYPE | SLOTTED |
| MOUNTING SLOT WIDTH | 0.4062 INCHES NOMINAL |
| MOUNTING SLOT LENGTH | 0.5625 INCHES NOMINAL |
| LUBRICATION MATERIAL | GREASE |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| ROLLING ELEMENT GROOVE QUANTITY | 1 |
| ALIGNMENT TYPE | SELF-ALIGNING |
| BLOCK TYPE | FIXED |
| SHAFT END TYPE | OPEN |
| SEAL TYPE | LABYRINTH |
| SEAL LOCATION | BOTH ENDS |
| ROTATING ELEMENT LOCKING METHOD | DIRECT |
| LOAD CAPABILITY TYPE | RADIAL AND THRUST |
| FEATURES PROVIDED | GROUND ROLLING ELEMENT GROOVE |
Restrictions/Controls & Freight Information | NSN 3130-00-055-1596
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114820 | BEARINGS/BUSHINGS NOI BALL/ROLLER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
