NSN 4030-00-273-3078 002733078
Product Details | SWAGING WIRE ROPE BALL END
4030-00-273-3078 An item designed for attaching to an item and is used with socket terminal. Its physical shape is that of a ball or modified cylinder. The ball type may have a shank on one end, or identical shanks on each end. For items specifically designed for aviation, see BALL END, WIRE ROPE, SWAGING, AVIATION.
Part Alternates: 002733078
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 00-273-3078 | 16284 ( BALL END, WIRE ROPE, SWAGING ) |

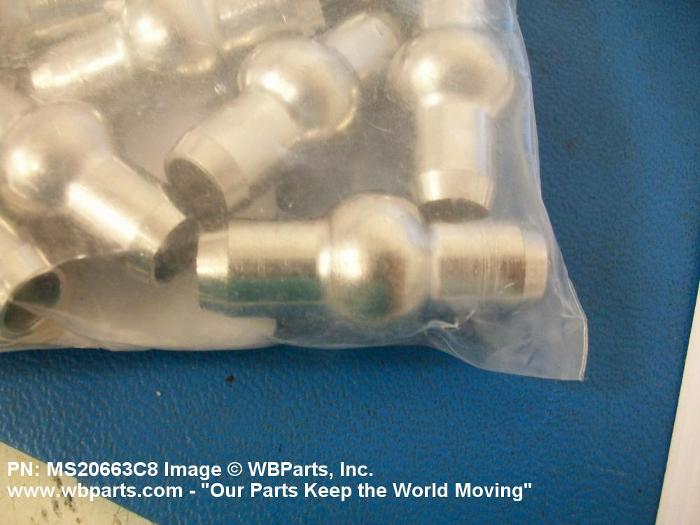

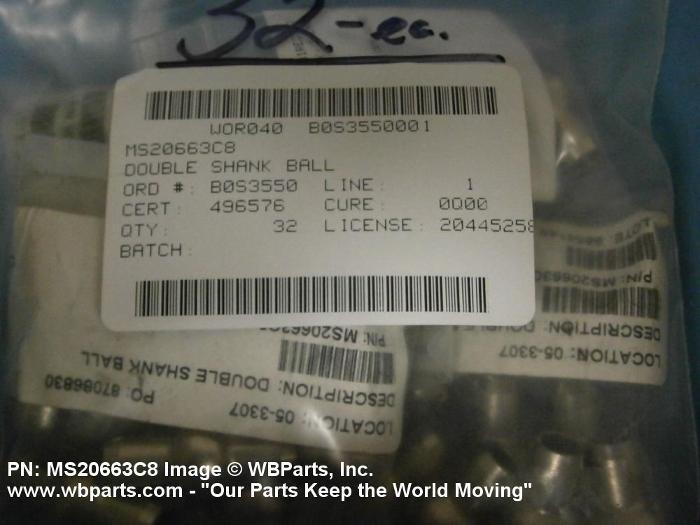

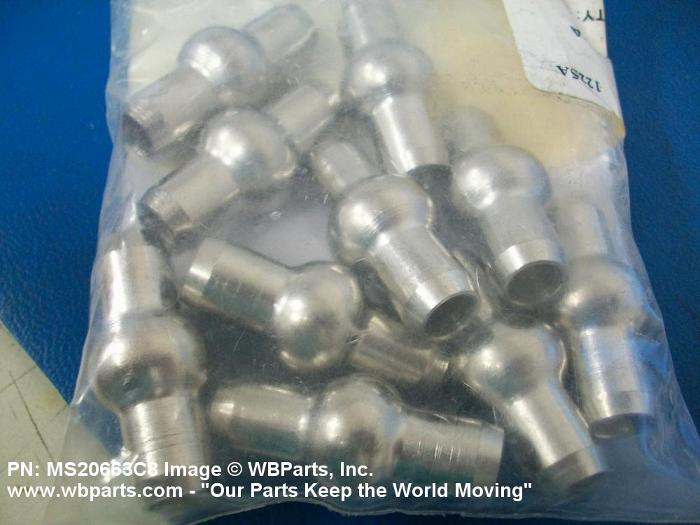

Drawings & Photos | NSN 1640-00-273-3078
Demand History | NSN 4030-00-273-3078
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1640-00-273-3078 | 2011-10-293 | 32 | United States |
| 1640-00-273-3078 | 2011-08-234 | 32 | United States |
| 1640-00-273-3078 | 2007-09-264 | 227 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4030-00-273-3078
Technical Data | NSN 4030-00-273-3078
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATE |

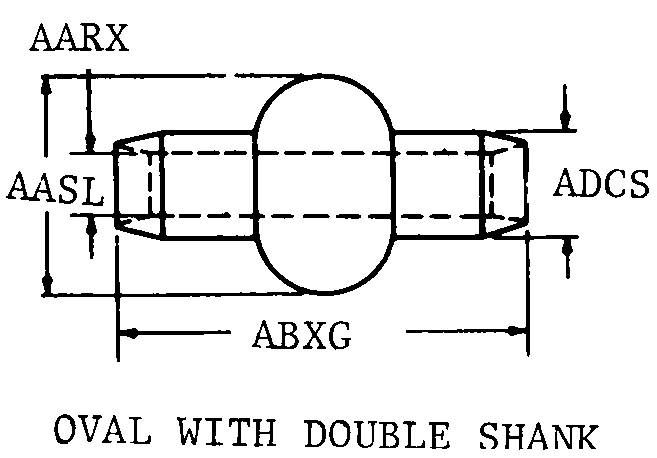

| STYLE DESIGNATOR | 166 OVAL WITH DOUBLE SHANK |
| INSIDE DIAMETER | 0.264 INCHES MINIMUM AND 0.269 INCHES MAXIMUM |
| HEAD DIAMETER | 0.619 INCHES MINIMUM AND 0.624 INCHES MAXIMUM |
| OVERALL LENGTH | 1.330 INCHES MINIMUM AND 1.345 INCHES MAXIMUM |
| PLAIN SHANK DIAMETER | 0.396 INCHES MINIMUM AND 0.401 INCHES MAXIMUM |
| ACCOMMODATED MATERIAL DIAMETER | 0.250 INCHES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20663C8 |
Restrictions/Controls & Freight Information | NSN 4030-00-273-3078
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
