NSN 4030-00-273-3084 002733084
Product Details | SWAGING ROPE TERMINAL
4030-00-273-3084 An item designed for swaging to a ROPE, FIBROUS or ROPE, WIRE as an end termination. One end is a cylindrical sleeve and the opposite end is formed in the shape of a fork, eye, slot, and the like, for attaching to another part. For items specifically designed for aviation, see TERMINAL, ROPE, SWAGING, AVIATION.
Part Alternates: 002733084
Aircraft Components and Accessories | Aircraft Control Cable Products
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | 00-273-3084 | 41823 ( TERMINAL, ROPE, SWAGING ) |

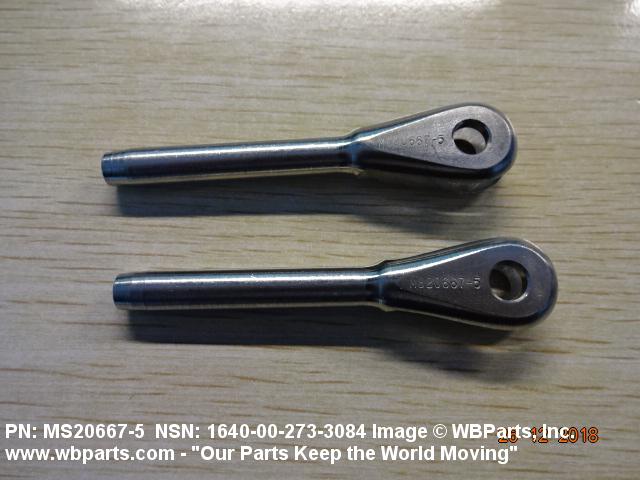

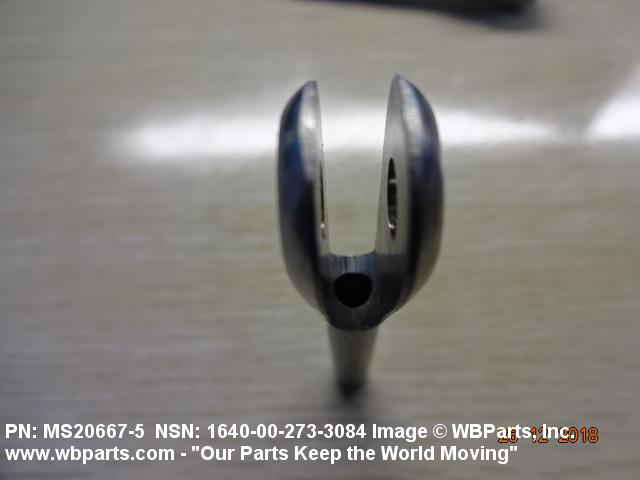

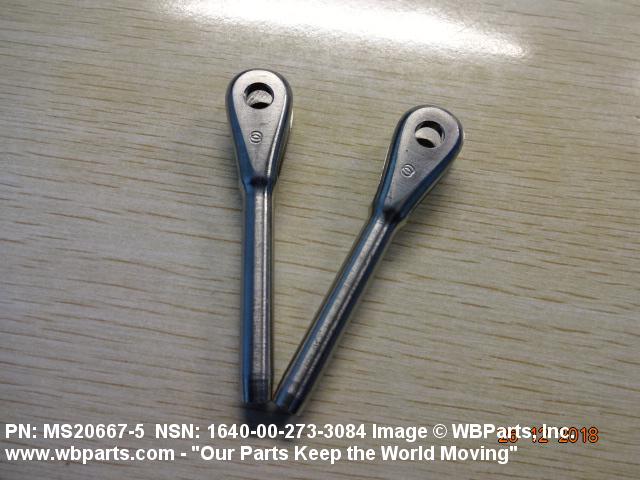

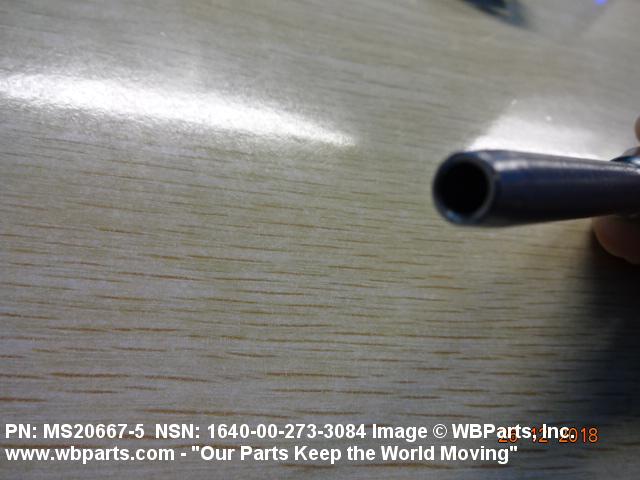

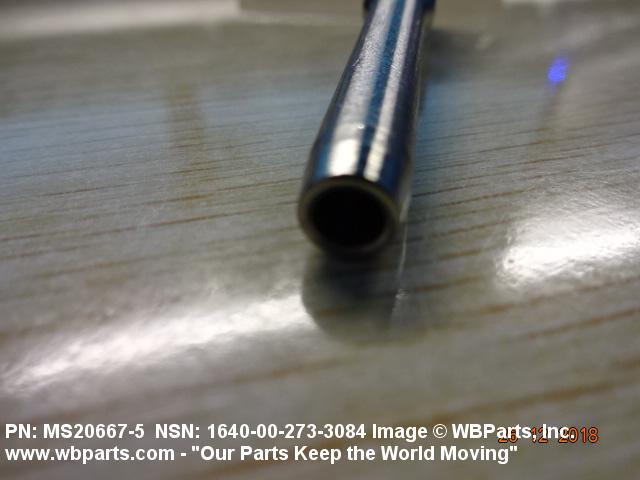

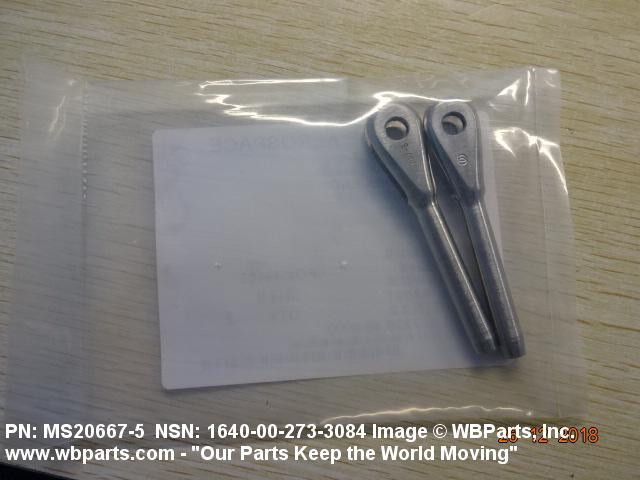

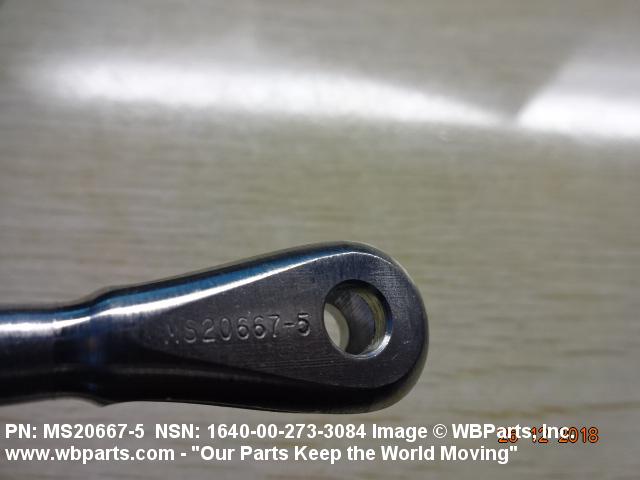

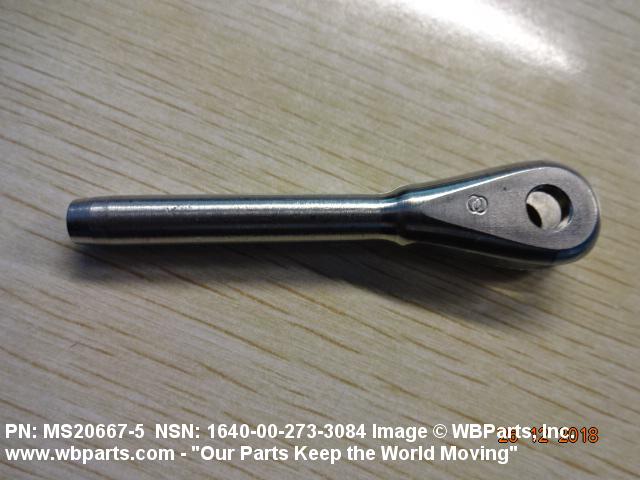

Drawings & Photos | NSN 1640-00-273-3084
Demand History | NSN 4030-00-273-3084
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS206675 | 2011-12-353 | 2 | BR |
| 1640-00-273-3084 | 2007-10-278 | 2426 | DIBBS |
| 1640-00-273-3084 | 2007-04-109 | 680 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4030-00-273-3084
Technical Data | NSN 4030-00-273-3084

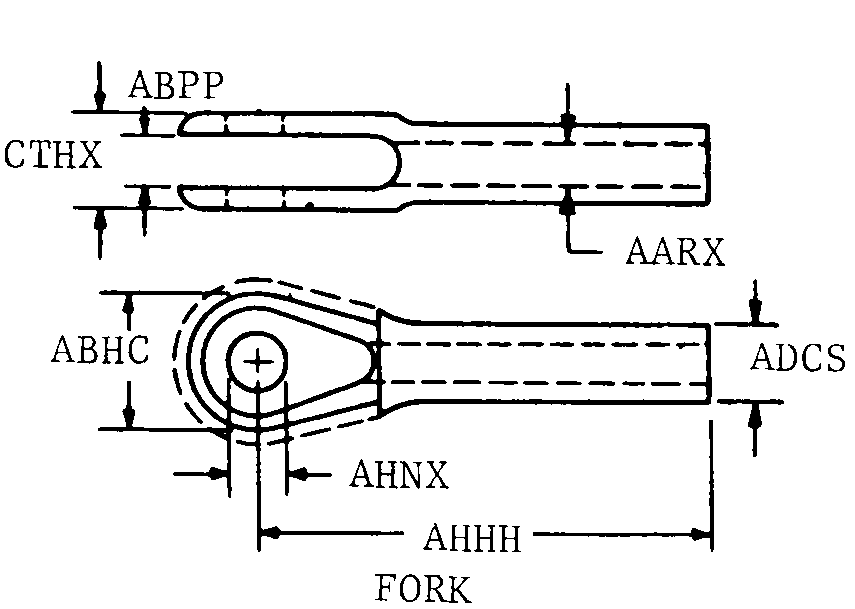

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-DTL-781 MIL STD SINGLE MATERIAL RESPONSE |

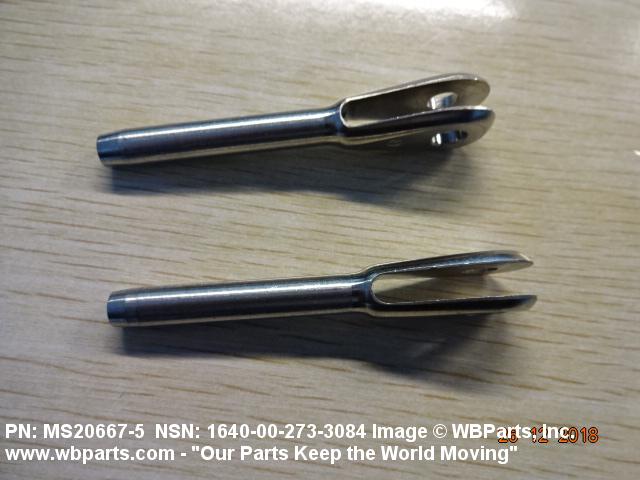

| STYLE DESIGNATOR | 173 FORK |
| INSIDE DIAMETER | 0.188 INCHES NOMINAL |

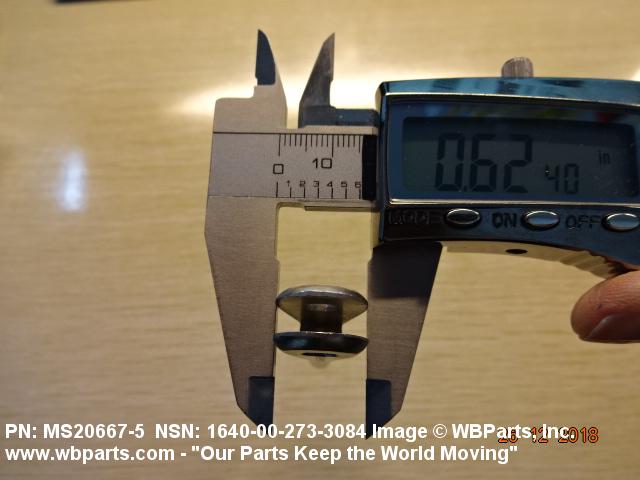

| OVERALL WIDTH | 0.688 INCHES NOMINAL |

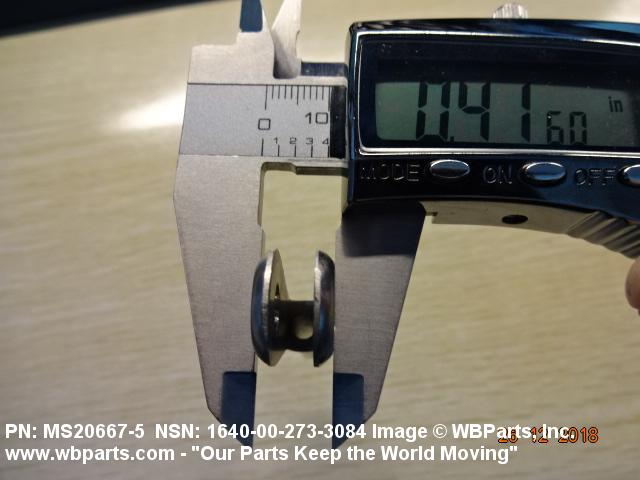

| OPENING WIDTH | 0.406 INCHES NOMINAL |
| LENGTH FROM PINHOLE CENTER TO END | 2.655 INCHES NOMINAL |

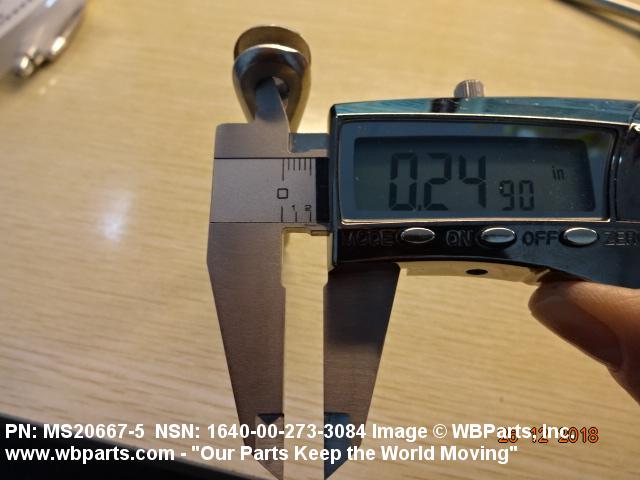

| BOLT HOLE DIAMETER | 0.250 INCHES NOMINAL |
| OVERALL HEIGHT | 0.202 INCHES NOMINAL |

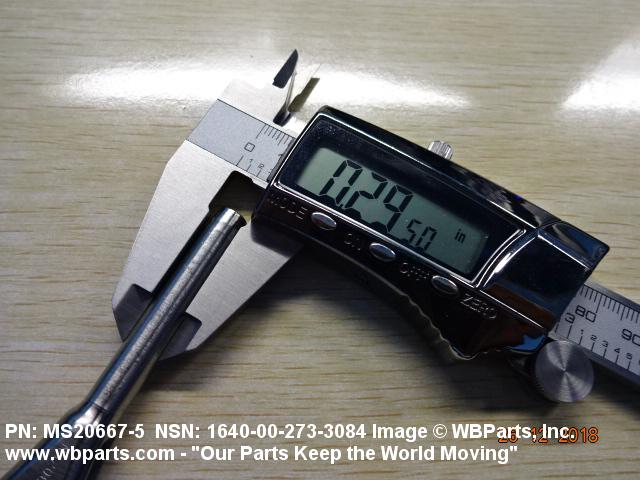

| PLAIN SHANK DIAMETER | 0.297 INCHES NOMINAL |
| ACCOMMODATED MATERIAL DIAMETER | 0.156 INCHES NOMINAL |
| BREAKING STRENGTH | 2800.0 POUNDS NOMINAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-781 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20667-5 |
Restrictions/Controls & Freight Information | NSN 4030-00-273-3084
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
