Product Details | COMPRESSOR PISTON
4130-00-953-9593 A cylindrical piece which moves or reciprocates in a cylinder to compress air or gas from an initial intake pressure to a higher discharge pressure. May include integral connecting rod.20241300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps
Part Alternates: 36518768K, 365-18768K, 6518768K, 65-18768K, 66518768, 665-18768, 4130-00-953-9593, 00-953-9593, 4130009539593, 009539593
Refrigeration, Air Conditioning, and Air Circulating Equipment | Refrigeration and Air Conditioning Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 01 JAN 1962 | 00-953-9593 | 22220 ( PISTON, COMPRESSOR ) |

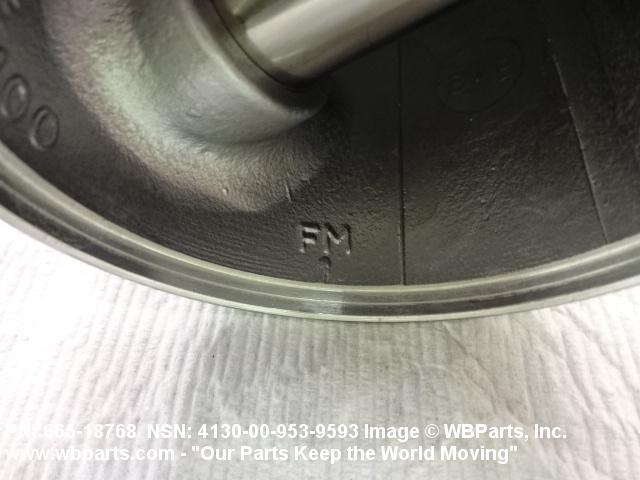

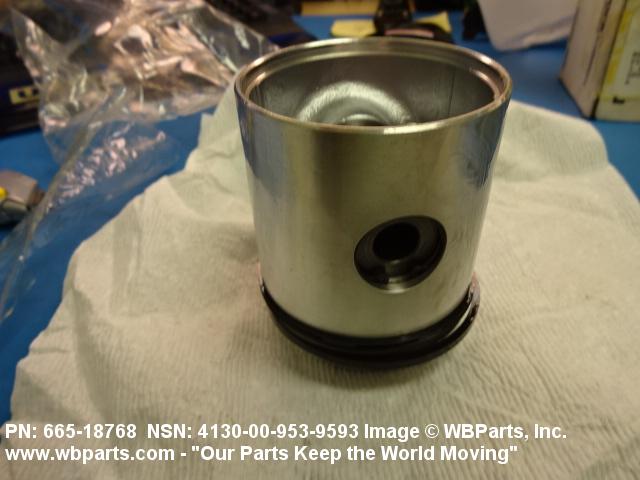

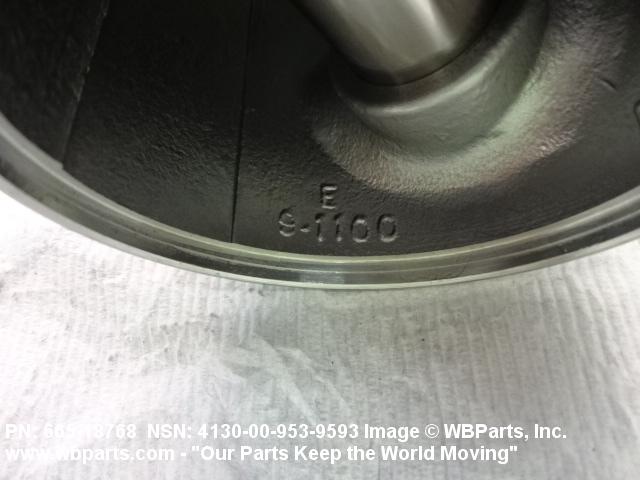

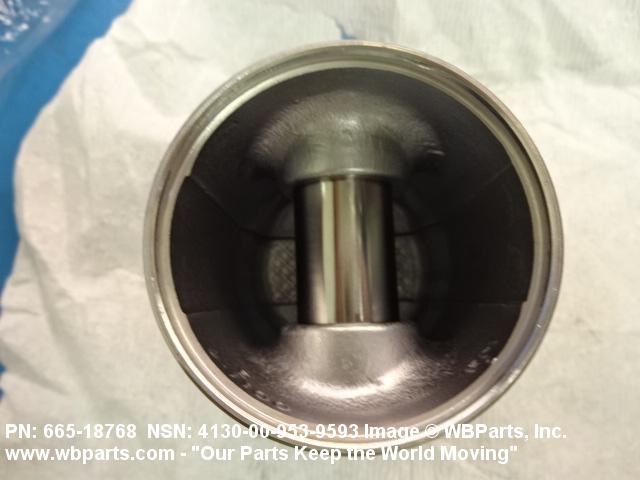

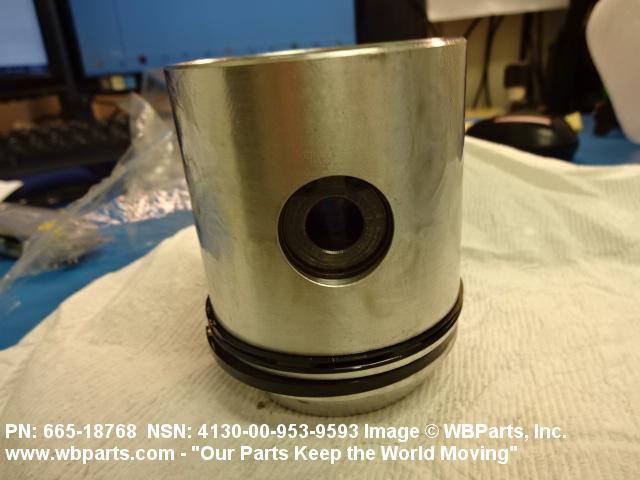

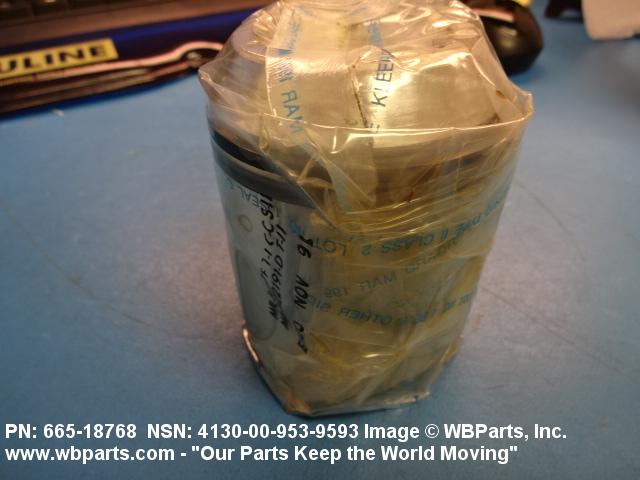

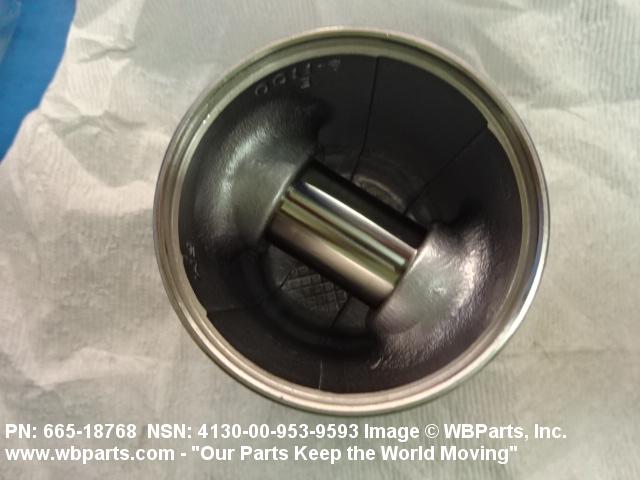

Drawings & Photos | NSN 4130-00-953-9593
Demand History | NSN 4130-00-953-9593
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 665-18768-000 | 2023-05-03 | 6 | DIBBS |
| 665-18768-000 | 2022-03-23 | 17 | DIBBS |
| 665-18768-000 | 2021-09-26 | 6 | DIBBS |
| 4130-00-953-9593 | 2021-07-01 | 10 | US |
| 665-18768-000 | 2021-06-30 | 10 | DIBBS |
| 665-18768-000 | 2021-06-01 | 6 | DIBBS |
| 665-18768-000 | 2021-05-19 | 6 | DIBBS |
| 665-18768-000 | 2021-04-26 | 10 | DIBBS |
| 4130-00-953-9593 | 2021-04-15 | 10 | US |
| 665-18768-000 | 2021-04-14 | 10 | DIBBS |
| 665-18768-000 | 2021-01-19 | 25 | DIBBS |
| 665-18768-000 | 2020-12-22 | 25 | DIBBS |
| 665-18768 | 2020-10-25 | 22 | DIBBS |
| 665-18768 | 2020-06-03 | 13 | DIBBS |
| 665-18768 | 2020-04-29 | 10 | DIBBS |
| 665-18768 | 2020-01-23 | 5 | DIBBS |
| 665-18768 | 2020-01-12 | 5 | DIBBS |
| 665-18768 | 2019-11-14 | 9 | DIBBS |
| 665-18768 | 2019-11-03 | 9 | DIBBS |
| 4130-00-953-9593 | 2019-10-22 | 6 | United States |
| 665-18768 | 2019-08-22 | 6 | DIBBS |
| 665-18768 | 2019-06-19 | 7 | DIBBS |
| 36518768K | 2019-04-30 | 7 | United States |
| 4130-00-953-9593 | 2019-04-30 | 7 | United States |
| 4130-00-953-9593 | 2019-04-24 | 1 | US |
| 665-18768 | 2019-04-03 | 13 | DIBBS |
| 4130-00-953-9593 | 2019-01-29 | 3 | TR |
| 4130-00-953-9593 | 2019-01-29 | 3 | TR |
| 4130-00-953-9593 | 2018-03-04 | 14 | DIBBS |
| 4130-00-953-9593 | 2017-11-13 | 15 | DIBBS |
| 4130-00-953-9593 | 2017-10-19 | 14 | DIBBS |
| 4130-00-953-9593 | 2017-03-07 | 17 | DIBBS |
| 36518768K | 2016-08-22 | 6 | United States |
| 4130-00-953-9593 | 2016-07-14 | 8 | DIBBS |
| 4130-00-953-9593 | 2016-02-05 | 3 | United States |
| 4130-00-953-9593 | 2016-01-26 | 4 | DIBBS |
| 4130-00-953-9593 | 2015-11-15 | 11 | DIBBS |
| 4130-00-953-9593 | 2015-10-18 | 13 | DIBBS |
| 4130-00-953-9593 | 2015-04-12 | 17 | DIBBS |
| 4130-00-953-9593 | 2015-03-16 | 38 | DIBBS |
| 4130-00-953-9593 | 2015-03-04 | 38 | DIBBS |
| 4130-00-953-9593 | 2015-01-14 | 1 | MANUAL |
| 4130-00-953-9593 | 2014-11-06 | 40 | DIBBS |
| 4130-00-953-9593 | 2014-10-26 | 40 | DIBBS |
| 4130-00-953-9593 | 2014-05-15 | 28 | DIBBS |
| 4130-00-953-9593 | 2013-12-08 | 29 | DIBBS |
| 4130-00-953-9593 | 2013-11-17 | 29 | DIBBS |
| 4130-00-953-9593 | 2013-07-18 | 9 | DIBBS |
| 4130-00-953-9593 | 2013-01-14 | 5 | DIBBS |
Cross Reference | NSN 4130-00-953-9593
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 365-18768K | 03824 | BAILEY REFRIGERATION CO., INC. |
| 365-18768K | 66935 | YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS |
| 65-18768K | 66935 | YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS |
| 665-18768 | 66935 | YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4130-00-953-9593
Related Products | NSN 4130-00-953-9593
4130-00-953-9831, 4130-00-954-4213, 4130-00-954-6766, 4130-00-954-8577, 4130-00-954-8680
Technical Data | NSN 4130-00-953-9593
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY,ALCOA D132-T5 |
| DIAMETER | 2.620 INCHES MINIMUM AND 2.621 INCHES MAXIMUM |
| OVERALL HEIGHT | 3.250 INCHES MINIMUM AND 3.256 INCHES MAXIMUM |
| SURFACE FINISH | FINISHED |
| SKIRT TYPE | SOLID |
| SKIRT BOTTOM CUTAWAY FEATURE | NOT INCLUDED |
| RING GROOVE QUANTITY | 2 |
| RING GROOVE POSITION | NO. 1 AND NO. 2 POSITIONS |
| RING GROOVE WIDTH | 0.125 INCHES NOMINAL |
| RING GROOVE DIAMETER | 2.395 INCHES MINIMUM AND 2.400 INCHES MAXIMUM |
| OIL GROOVE | NOT INCLUDED |
| DISTANCE FROM PIN HOLE CENTER TO EXTREME TOP | 2.003 INCHES MINIMUM AND 2.006 INCHES MAXIMUM |
| PIN HOLE BUSHING | NOT INCLUDED |
| PINHOLE DIAMETER | 0.875 INCHES NOMINAL |
| RETAINING RING GROOVE | NOT INCLUDED |
| PIN | INCLUDED |
| PIN TYPE FOR WHICH DESIGNED | FLOATING |
| RING | INCLUDED |
| INTEGRAL CONNECTING ROD | NOT INCLUDED |
| MANUFACTURERS CODE | 66935 |
| DESIGN CONTROL REFERENCE | 665-18768 |
Restrictions/Controls & Freight Information | NSN 4130-00-953-9593
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 119140 | CYLINDER HEAD/PISTON SHOCK AB |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4130-00-953-9593
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 AY : Assembly |
