Product Details | COMPRESSOR PISTON
4310-00-841-9902 A cylindrical piece which moves or reciprocates in a cylinder to compress air or gas from an initial intake pressure to a higher discharge pressure. May include integral connecting rod.20241300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps

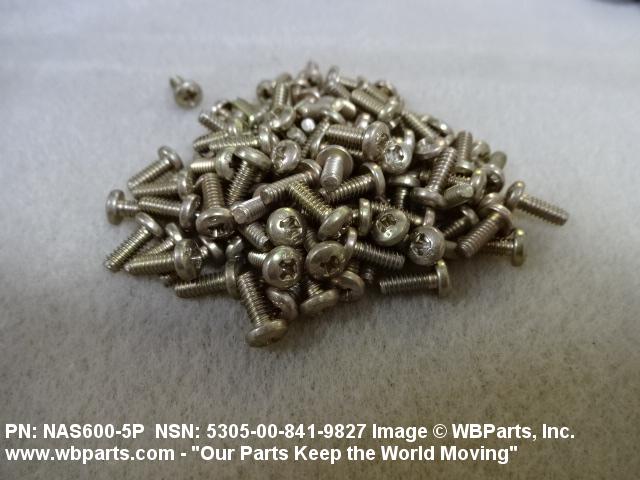

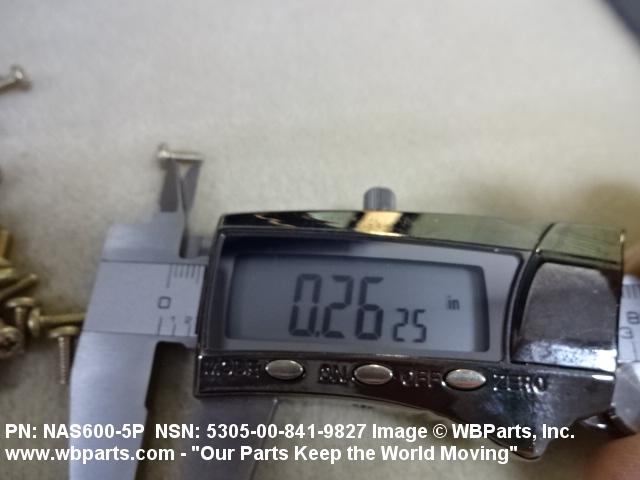

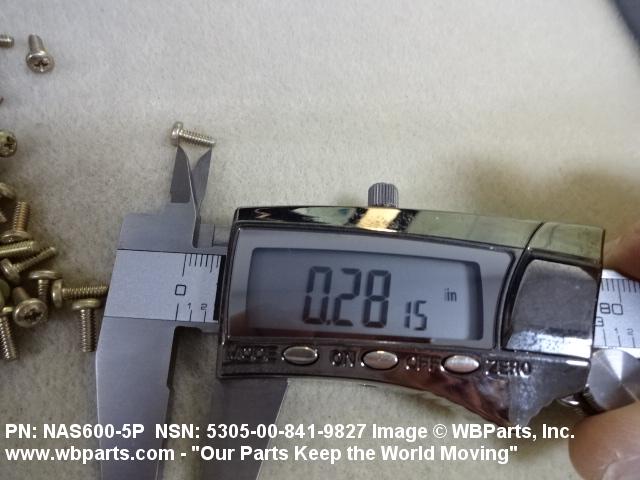

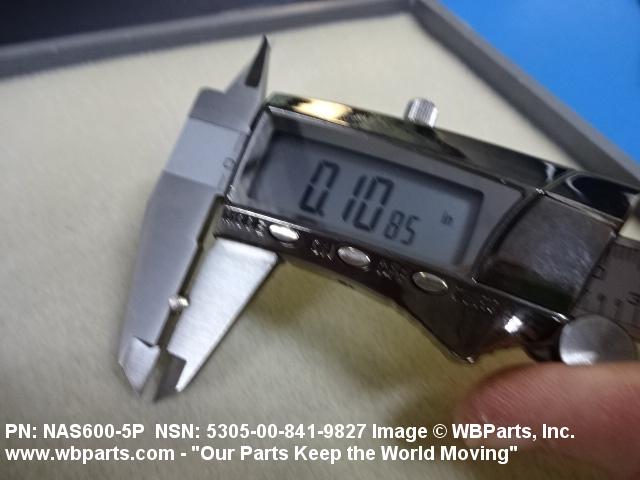

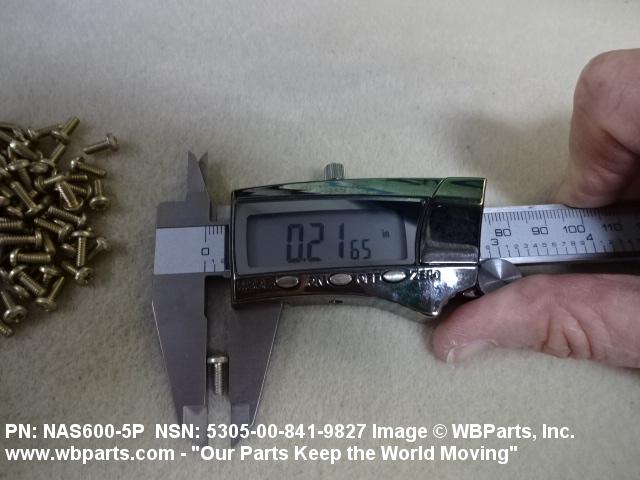

Part Alternates: NAS6004R5, NAS600-4R5 , NAS6005, NAS600-5 , NAS6005P, NAS600-5P , NAS80005, NAS8000-5 , HL17832PC3638, HL17832PC36-38, PST00446A, PST446A, PST-446A, 04050452045513 , 10114616, 1759N, 4310-00-841-9902, 00-841-9902, 5305008419827, 4310008419902, 008419902
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 01 JAN 1962 | 00-841-9902 | 22220 ( PISTON, COMPRESSOR ) |
Drawings & Photos | NSN 4310-00-841-9902
Demand History | NSN 4310-00-841-9902
Cross Reference | NSN 4310-00-841-9902
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1759N | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| HL17832PC36-38 | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
| PST-446A | 59379 | ATLAS COPCO HOLYOKE INC |
| PST00446A | 59379 | ATLAS COPCO HOLYOKE INC |
| PST446A | 93236 | DRESSER-RAND CO WORTHINGTON COMPRESSOR OPN |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4310-00-841-9902
Related Products | NSN 4310-00-841-9902
4310-00-841-9903, 4310-00-842-0716, 4310-00-842-2737, 4310-00-842-5117, 4310-00-842-6506
Technical Data | NSN 4310-00-841-9902
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON, CAST |
| DIAMETER | 4.4977 INCHES NOMINAL |
| OVERALL HEIGHT | 4.123 INCHES MINIMUM AND 4.127 INCHES MAXIMUM |
| SURFACE FINISH | FINISHED |
| FINISHED SIZE DESIGNATION | STANDARD |

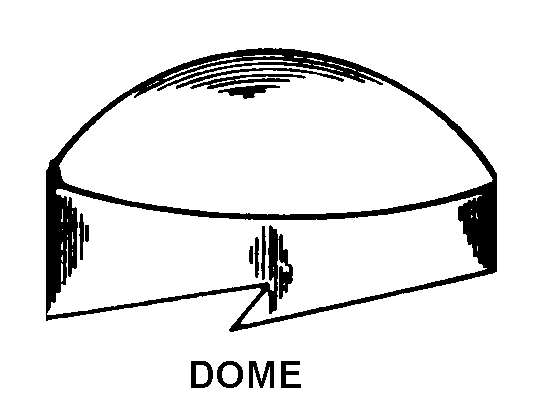

| HEAD STYLE | 5 DOME |
| SKIRT TYPE | SOLID |
| SKIRT BOTTOM CUTAWAY FEATURE | NOT INCLUDED |
| RING GROOVE QUANTITY | 2 AND 2 |
| RING GROOVE POSITION | NO. 1,NO. 2,NO. 3 AND NO. 4 POSITIONS |
| RING GROOVE WIDTH | 0.1875 INCHES MINIMUM AND 0.1885 INCHES MAXIMUM AND 0.026 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| RING GROOVE DIAMETER | 4.016 INCHES NOMINAL AND 4.056 INCHES NOMINAL |
| OIL PASSAGE TYPE | HOLE |
| OIL GROOVE | NOT INCLUDED |
| DISTANCE FROM PIN HOLE CENTER TO EXTREME TOP | 2.123 INCHES MINIMUM AND 2.127 INCHES MAXIMUM |
| PIN HOLE BUSHING | NOT INCLUDED |
| PINHOLE DIAMETER | 1.250 INCHES NOMINAL |
| DISTANCE BETWEEN PIN BOSSES | 2.375 INCHES NOMINAL |
| RETAINING RING GROOVE | INCLUDED |
| PIN | INCLUDED |
| PIN TYPE FOR WHICH DESIGNED | FLOATING |
| RING | NOT INCLUDED |
| INTEGRAL CONNECTING ROD | NOT INCLUDED |
| III FSC APPLICATION DATA | AIR COMPRESSOR |
| MANUFACTURERS CODE | 59379 |
| DESIGN CONTROL REFERENCE | PST-446A |
Restrictions/Controls & Freight Information | NSN 4310-00-841-9902
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4310-00-841-9902
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BK | CH-47 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 HD : Each |
