NSN 4140-00-926-9570 MILF16081, 00-926-9570, 009269570
Product Details | VENTILATING FAN
4140-00-926-9570 A nonpositive displacement mechanical device having either an axial or centrifugal fan impeller. It is designed to move free air or gas from indoors to outdoors or vice versa over a wide range of volumes at low pressures. It is supported by a ring, plate, or shroud or may be inclosed in a housing. It is designed for installation in a window, roof or wall opening, or the like.
Part Alternates: MILF16081, 4140-00-926-9570, 00-926-9570, 4140009269570, 009269570
Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 04 JAN 1967 | 00-926-9570 | 04262 ( FAN, VENTILATING ) |

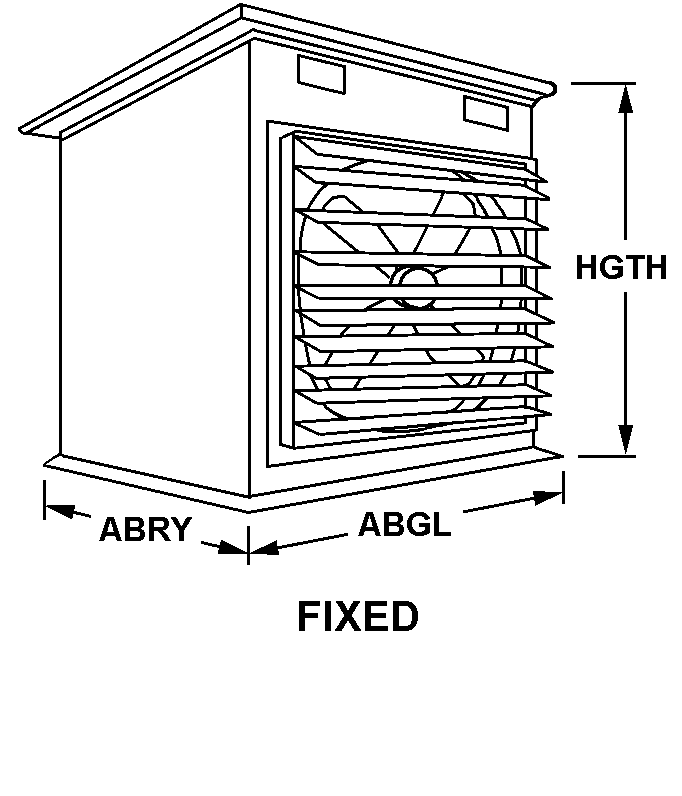

Drawings & Photos | NSN 4140-00-926-9570
Cross Reference | NSN 4140-00-926-9570
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MILF16081 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4140-00-926-9570
Technical Data | NSN 4140-00-926-9570
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 47 FIXED |
| WIDTH | 30.500 INCHES NOMINAL |
| LENGTH | 30.500 INCHES NOMINAL |
| HEIGHT | 21.375 INCHES NOMINAL |
| MATERIAL | STEEL BLADE |
| DRIVE TYPE | BELT |
| ROTATION DIRECTION FOR WHICH DESIGNED | CLOCKWISE OR COUNTERCLOCKWISE |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| ELECTRICAL CONNECTION TYPE | CORD W/ATTACHED PLUG |
| PRIME MOVER POWER RATING | 1.000 HORSEPOWER |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 220.0 AC OR 440.0 AC |
| PHASE | THREE |
| FREQUENCY IN HERTZ | 50.0 AND 60.0 |
| AIR FLOW RATE | 6800.0 CUBIC FEET PER MINUTE MAXIMUM |
| SPECIAL FEATURES | ADDITIONAL EQUIPMENT FOR REMOTE SURFACE MTG INCLUDES 1 COMBINATION MAGNETIC STARTER AND DISCONNECT SWITCH W/AUTOMATIC RESET,1 CONTACTOR,1 THERMOSTAT,AND 1 TRANSFORMER |
| (NON-CORE DATA) DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY BLADE MATERIAL,BLADE MATERIAL,PRIME MOVER HORSE POWER RATING,FAN LENGTH,FAN WIDTH,FAN HEIGHT,MAXIMUM AIR FLOW RATE,AND SPECIAL FEATURES REQUIREMENTS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILF16081 |
Restrictions/Controls & Freight Information | NSN 4140-00-926-9570
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061900 | FANS ELEC EXHAUST/VENTILATING |
| Less than car load rating | ||
| Less than truck load rating | K | 92.5 |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | AJ | U.S. Army Soldier's Biological and Chemical Command Natick, MA 01760 |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
