NSN 4140-01-296-1830 DX10R, XR82, 3C401
Product Details | VENTILATING FAN
4140-01-296-1830 A nonpositive displacement mechanical device having either an axial or centrifugal fan impeller. It is designed to move free air or gas from indoors to outdoors or vice versa over a wide range of volumes at low pressures. It is supported by a ring, plate, or shroud or may be inclosed in a housing. It is designed for installation in a window, roof or wall opening, or the like.
Part Alternates: DX10R, XR82, 3C401, 4140-01-296-1830, 01-296-1830, 4140012961830, 012961830
Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 16-MAR-89 | 01-296-1830 | 04262 ( FAN, VENTILATING ) |

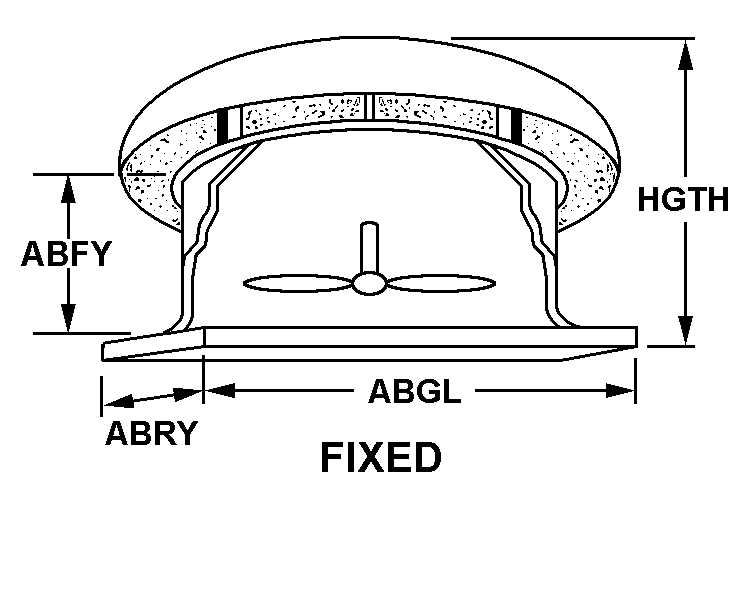

Drawings & Photos | NSN 4140-01-296-1830
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4140-01-296-1830
Technical Data | NSN 4140-01-296-1830
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 46 FIXED |
| WIDTH | 18.500 INCHES NOMINAL |
| LENGTH | 18.500 INCHES NOMINAL |
| MATERIAL | ALUMINUM OVERALL |
| DRIVE TYPE | DIRECT |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| SPEED ADJUSTMENTS | SINGLE SPEED |
| PRIME MOVER DRIVE SHAFT BEARING TYPE | BALL |
| INCLOSURE TYPE | FULLY INCLOSED |
| OPERATING SPEED AT RATED CAPACITY IN RPM | 1550.0 |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC |
| PHASE | SINGLE |
| FREQUENCY IN HERTZ | 60.0 |
| AIR FLOW RATE | 460.0 CUBIC FEET PER MINUTE NOMINAL |
| STATIC PRESSURE AT SPECIFIED AIR FLOW RATE | 0.0 INCHES OF WATER |
| MANUFACTURERS CODE | 8F091 |
| DESIGN CONTROL REFERENCE | DX10R |
Restrictions/Controls & Freight Information | NSN 4140-01-296-1830
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
