NSN 4140-01-625-6853 AX3L2653SF, 01-625-6853, 011179000
Product Details | VANEAXIAL FAN
4140-01-625-6853 A nonpositive displacement mechanical device with guide vanes and having an axial fan impeller(s) inclosed within a tubular housing. It is designed primarily for duct installation to move air or gas axially over a wide range of volumes and pressures.
Part Alternates: AX3L2653SF, 4140-01-625-6853, 01-625-6853, 4140016256853, 011179000 , 016256853
Refrigeration, Air Conditioning, and Air Circulating Equipment | Fans, Air Circulators, and Blower Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 41 | 2014042 | 01-625-6853 | 04245 ( FAN, VANEAXIAL ) |

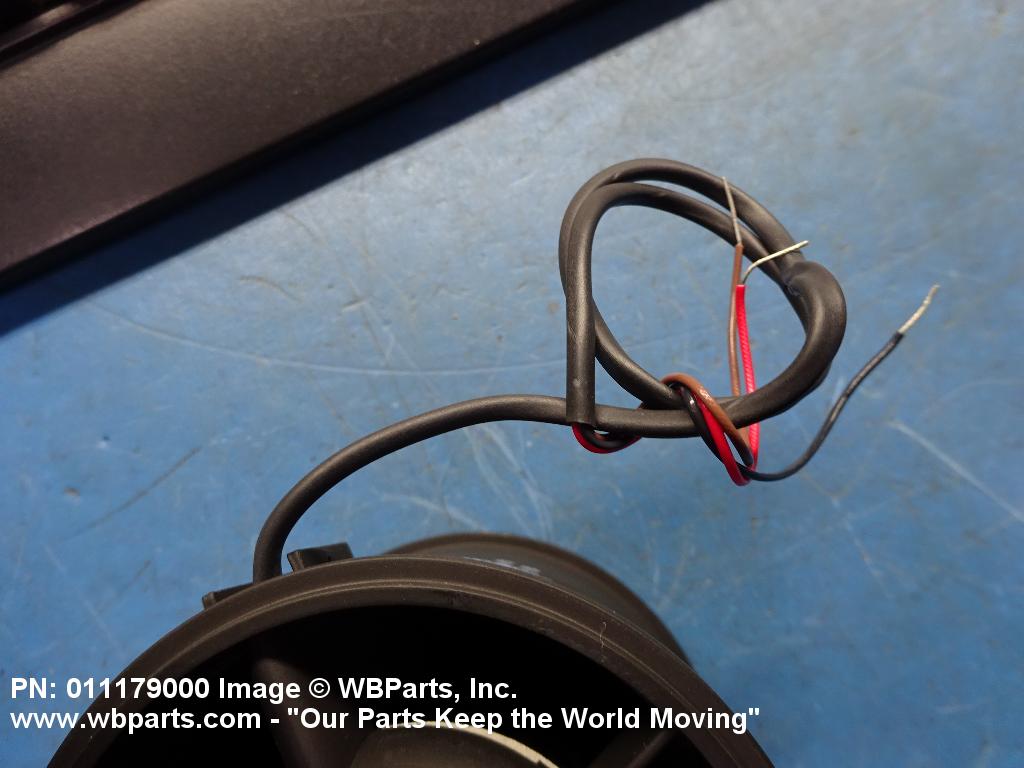

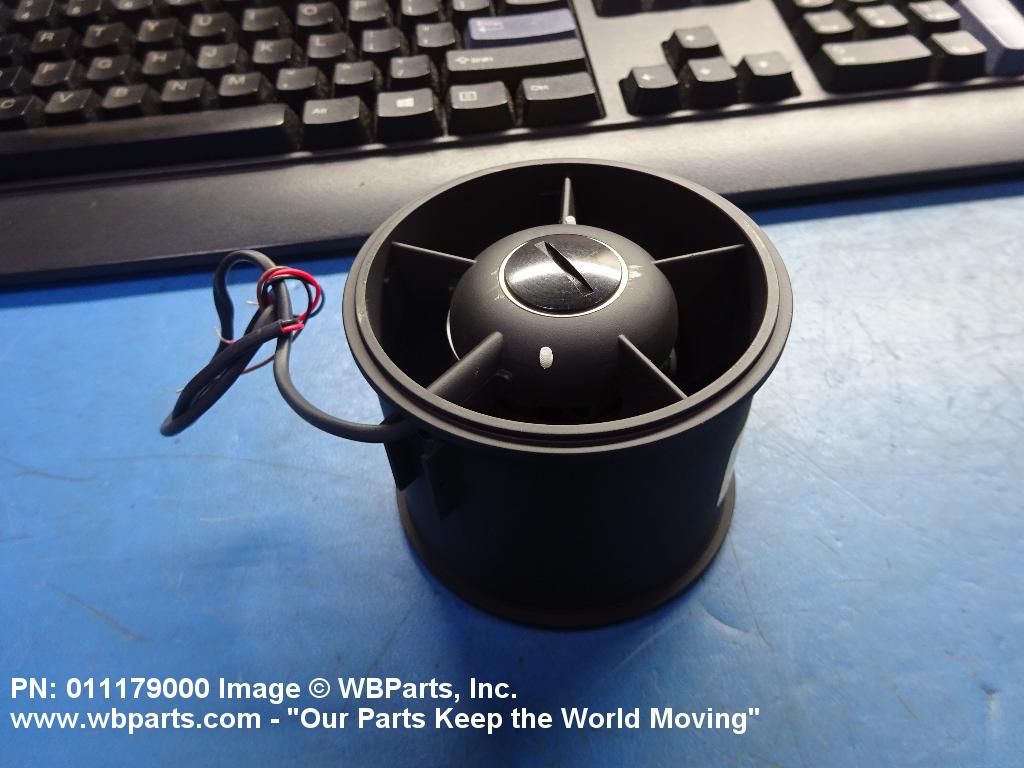

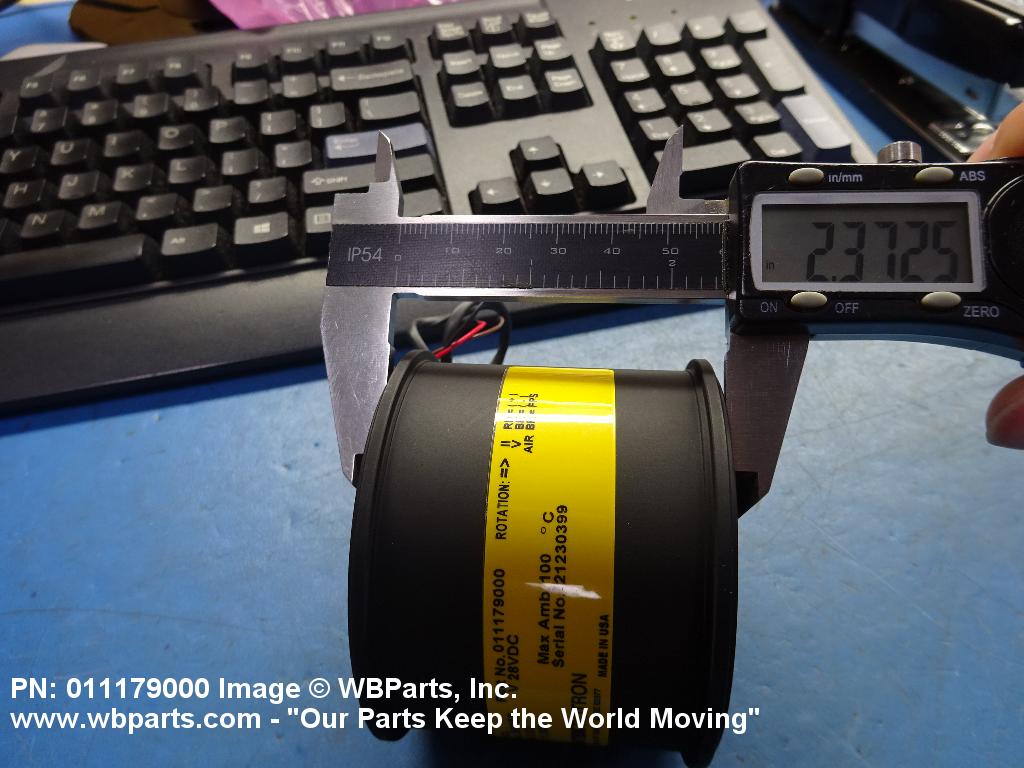

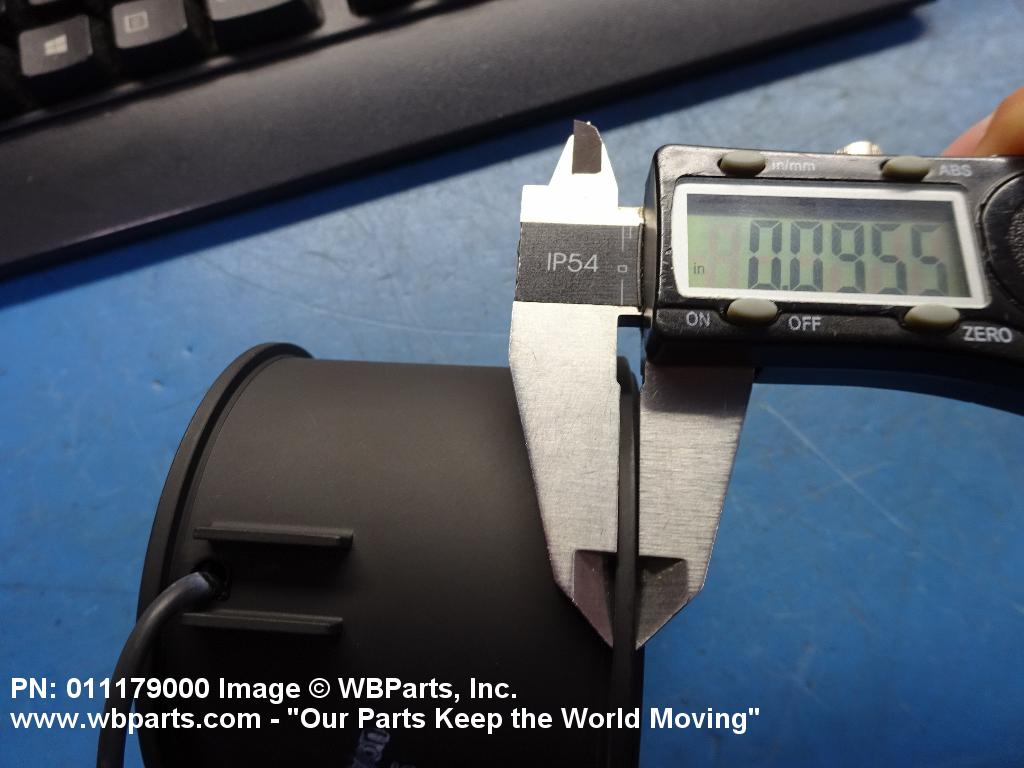

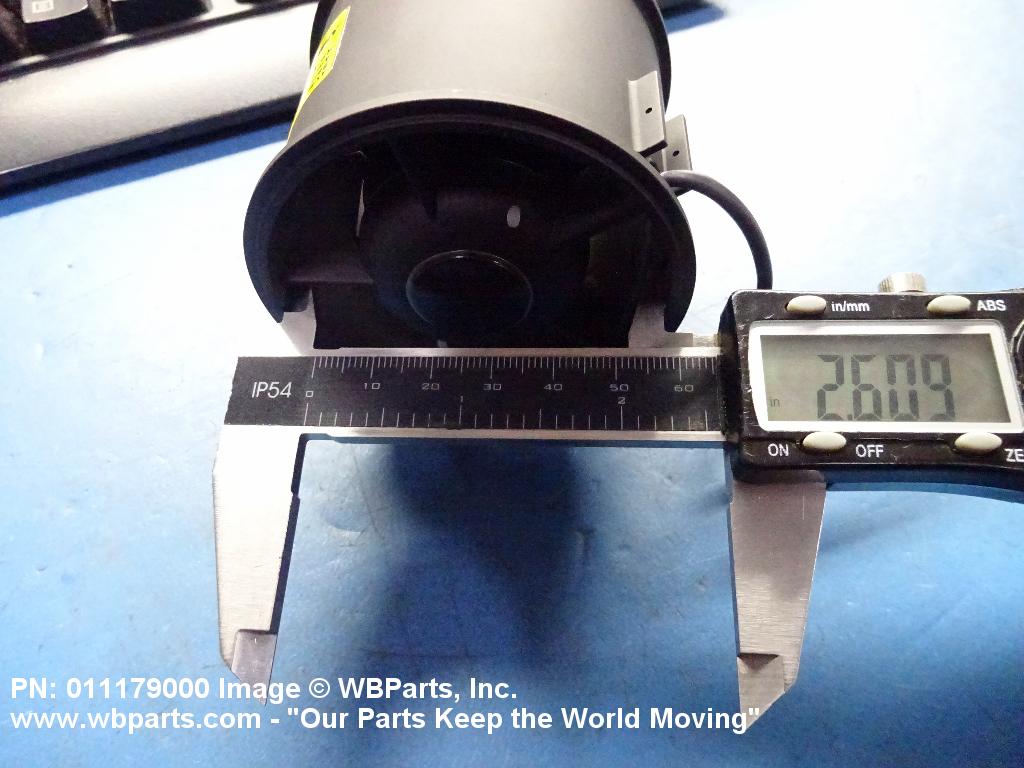

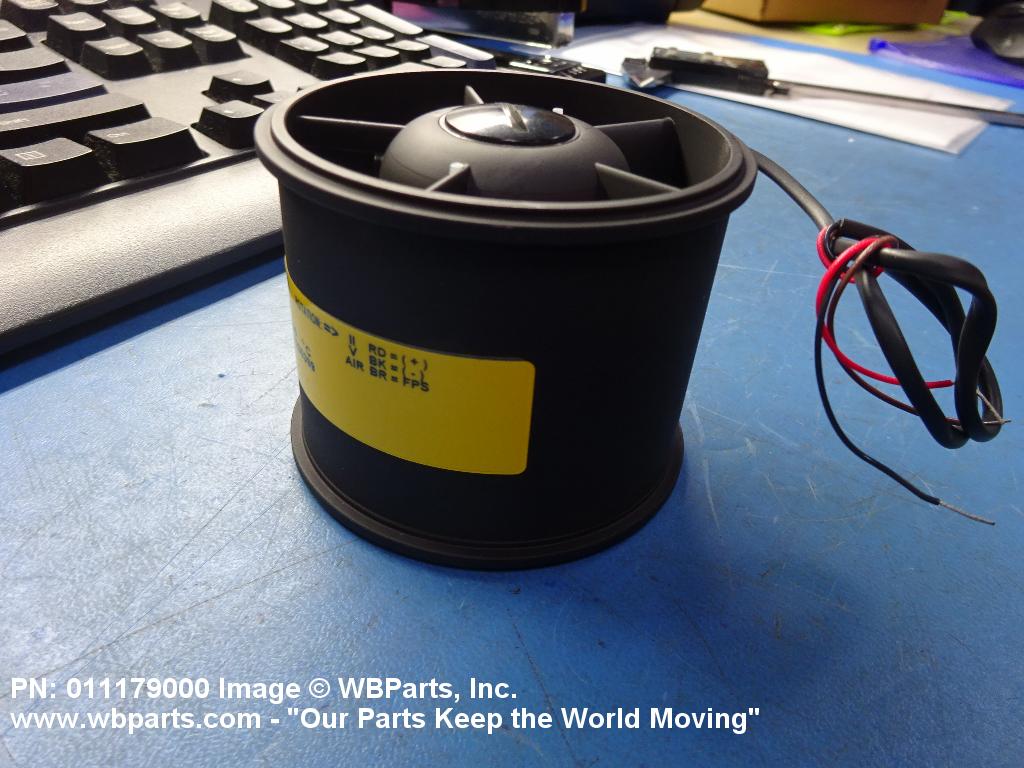

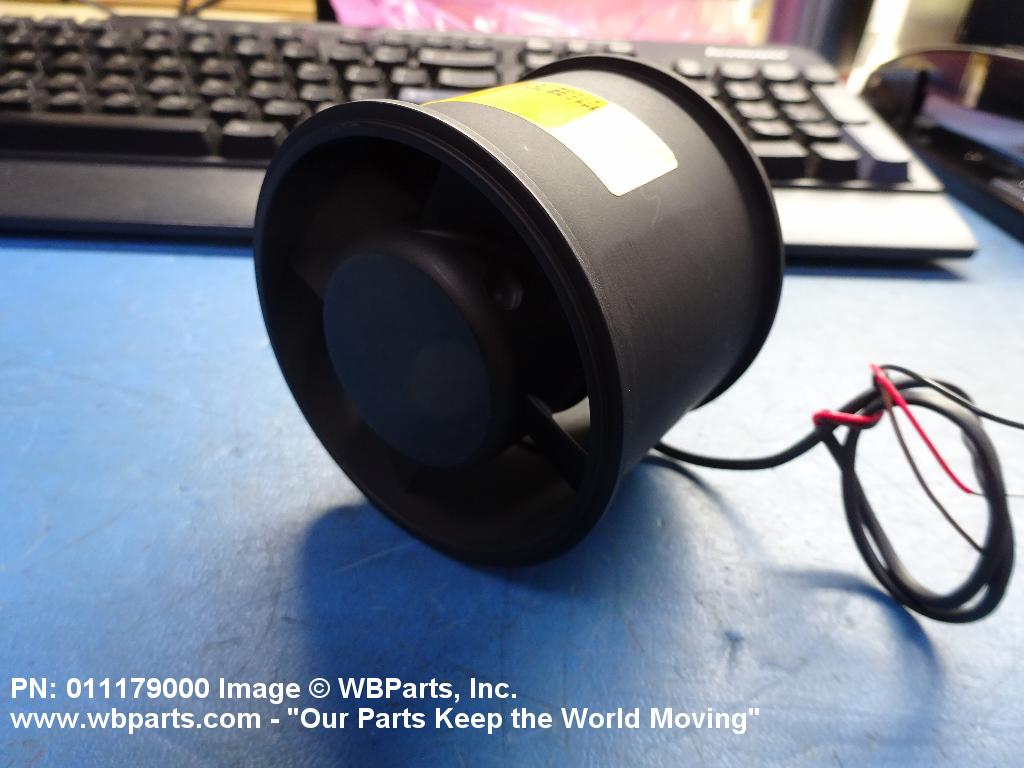

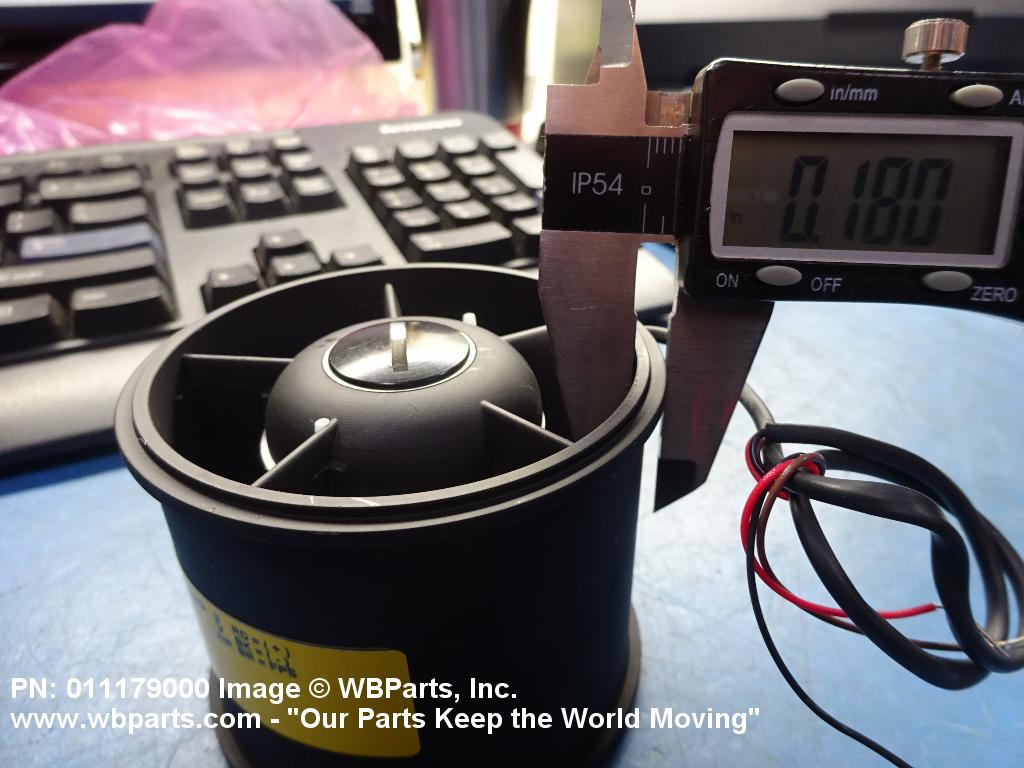

Drawings & Photos | NSN 4140-01-625-6853
Demand History | NSN 4140-01-625-6853
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 011179000 | 2024-10-305 | 2 | United States |
| 011179000 | 2022-08-235 | 1 | United States |
| 011179000 | 2021-06-172 | 1 | SG |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4140-01-625-6853
Technical Data | NSN 4140-01-625-6853
| Characteristic | Specifications |
|---|---|

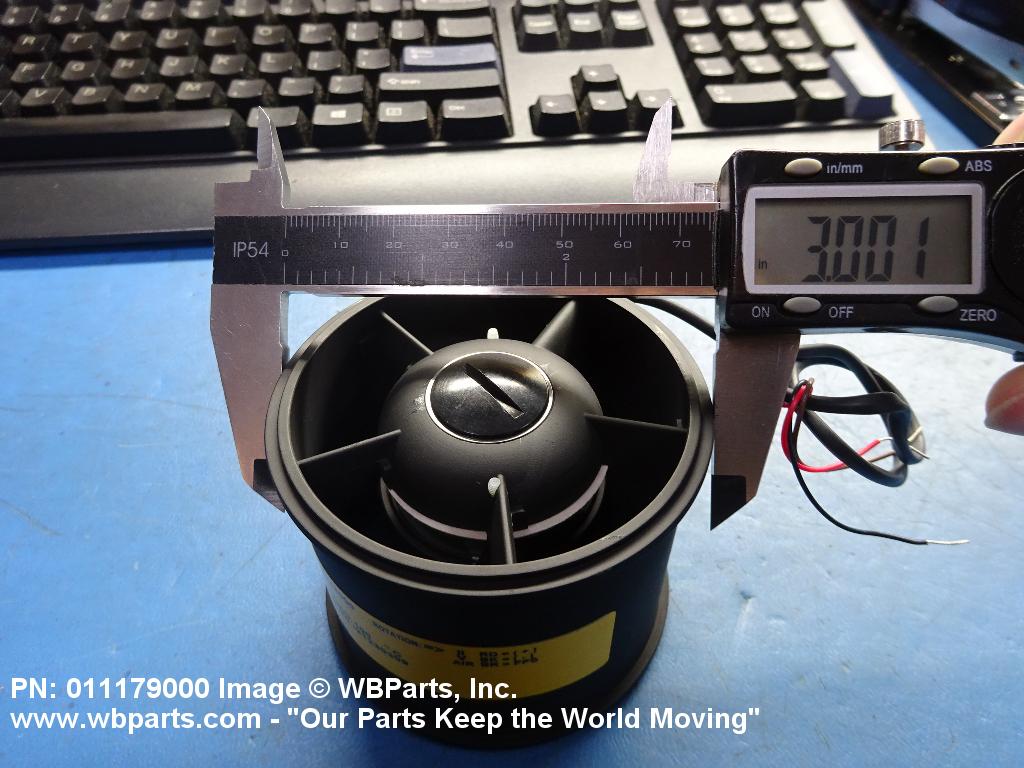

| DIAMETER | 3.0 INCHES NOMINAL |
| LENGTH | 2.52 INCHES NOMINAL |
| MATERIAL | ALUMINUM OVERALL |
| DRIVE TYPE | DIRECT |
| ROTATION DIRECTION FOR WHICH DESIGNED | CLOCKWISE |
| AIR FLOW RATE | 104.0 CUBIC FEET PER MINUTE NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 FLANGE |
| SPECIAL FEATURES | ALUMINUM: MIL-C-5541, BLACK ENAMEL COLOR: 37038: FEDERAL STANDARD 595 CONFORMING TO TT-3-F89 TYPE B, STATOR WOUND IN ACCORDANCE WITH THE SPECIFICATIONS FOR CLASS F INSULATION. |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SMALL VANEAXIAL FAN |
Restrictions/Controls & Freight Information | NSN 4140-01-625-6853
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
