NSN 4310-00-555-1667 AA530, 5081765471, 508-1765471
Product Details | ROTARY VACUUM PUMP UNIT
4310-00-555-1667 An assembled unit consisting of a commonly mounted rotary vacuum pump(s), prime mover(s), and the necessary components to provide for a complete operation. It may include vacuum storage tank(s).
Part Alternates: AA530, 5081765471, 508-1765471, 508H1765471REVB, 4310-00-555-1667, 00-555-1667, 4310005551667, 005551667
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 00-555-1667 | 29904 ( VACUUM PUMP UNIT, ROTARY ) |
Drawings & Photos | NSN 4310-00-555-1667
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4310-00-555-1667
Technical Data | NSN 4310-00-555-1667
| Characteristic | Specifications |
|---|---|
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| VACUUM RATING | 381.0 TORR |
| SYSTEM DESIGN | CORROSIVE |
| SPECIFIC GAS FOR WHICH DESIGNED | AIR |
| PUMPING ELEMENT TYPE | LIQUID PISTON |
| STAGE QUANTITY | 1 |
| COOLING MEDIUM | AIR |
| INTAKE CONNECTION QUANTITY | 1 |
| INTAKE CONNECTION TYPE | FLANGED |

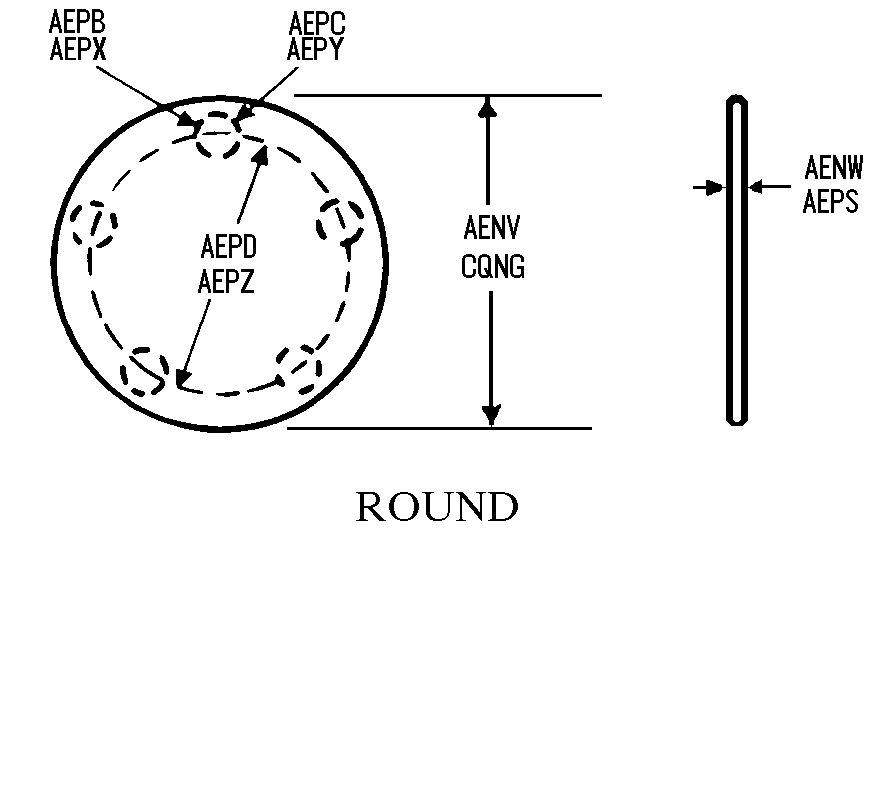

| INTAKE CONNECTION FLANGE SHAPE STYLE | 1 ROUND |
| INTAKE CONNECTION FLANGE OUTSIDE DIAMETER | 4.500 INCHES NOMINAL |
| INTAKE CONNECTION FLANGE THICKNESS | 0.500 INCHES NOMINAL |
| INTAKE CONNECTION BOLT HOLE DIAMETER | 0.562 INCHES NOMINAL |
| INTAKE CONNECTION BOLT CIRCLE DIAMETER | 3.375 INCHES NOMINAL |
| INTAKE CONNECTION BOLT HOLE QUANTITY | 4 |
| DISCHARGE CONNECTION QUANTITY | 1 |
| DISCHARGE CONNECTION TYPE | FLANGED |
| DISCHARGE CONNECTION FLANGE SHAPE STYLE | 1 ROUND |
| DISCHARGE CONNECTION FLANGE OUTSIDE DIAMETER | 4.500 INCHES NOMINAL |
| DISCHARGE CONNECTION FLANGE THICKNESS | 0.500 INCHES NOMINAL |
| DISCHARGE CONNECTION BOLT HOLE DIAMETER | 0.562 INCHES NOMINAL |
| DISCHARGE CONNECTION BOLT CIRCLE DIAMETER | 3.375 INCHES NOMINAL |
| DISCHARGE CONNECTION BOLT HOLE QUANTITY | 4 |
| CURRENT TYPE | DC |
| VOLTAGE IN VOLTS | 230.0 |
| BRAKE HORSEPOWER REQUIRED | 2.000 |
| OPERATING SPEED AT RATED CAPACITY IN RPM | 1750.0 |
| AIR DISPLACEMENT RATE | 30.0 CUBIC FEET PER MINUTE IN FREE AIR |
| MOUNTING TYPE | BASE |
| DRIVE CONNECTION TYPE | CLOSE COUPLED |
| FURNISHED ITEMS | VACUUM PRIMING VALVE |
| OVERALL HEIGHT | 11.000 INCHES NOMINAL |
| OVERALL LENGTH | 26.750 INCHES NOMINAL |
| OVERALL WIDTH | 14.875 INCHES NOMINAL |
| SPECIAL FEATURES | FLANGE BOLT HOLES TAPPED FOR 1/2 INC. BOLT,THREAD SIZE 1/2-13 UNC |
| MANUFACTURERS CODE | 42280 |
| DESIGN CONTROL REFERENCE | AA530 |
Restrictions/Controls & Freight Information | NSN 4310-00-555-1667
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
