Product Details | RECIPROCATING COMPRESSOR UNIT
4310-01-266-2066 An assembled unit consisting of a commonly mounted reciprocating compressor(s) and a prime mover(s). For items with additional equipment which extends the function of the unit beyond the delivery of compressed air or gas, see PNEUMATIC TOOL AND COMPRESSOR OUTFIT, or more specific names, as applicable. Excludes AUXILIARY SET, ENGINE DRIVEN.
Part Alternates: 107CA18897, 107CA18-897, 107CAB18, 1975017, 4310-01-266-2066, 01-266-2066, 4310012662066, 012662066
Pumps and Compressors | Compressors and Vacuum Pumps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 22 OCT 1987 | 01-266-2066 | 29301 ( COMPRESSOR UNIT, RECIPROCATING ) |
Drawings & Photos | NSN 4310-01-266-2066
Demand History | NSN 4310-01-266-2066
Cross Reference | NSN 4310-01-266-2066
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 107CA18-897 | 20024 | THOMAS INDUSTRIES INC POWER AIR DIV |
| 107CA18-897 | 9F798 | ACTIVATION INC OF GEORGIA |
| 107CAB18 | 20024 | THOMAS INDUSTRIES INC POWER AIR DIV |
| 1975017 | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4310-01-266-2066
Related Products | NSN 4310-01-266-2066
4310-01-266-4798, 4310-01-266-5273, 4310-01-266-6224, 4310-01-266-6236, 4310-01-266-7396
Technical Data | NSN 4310-01-266-2066
| Characteristic | Specifications |
|---|---|
| COMPRESSOR QUANTITY | 1 |
| DUTY CYCLE IN PERCENT | 100 |
| GAS FOR WHICH DESIGNED | AIR |
| DISCHARGE FLOW RATE | 0.300 CUBIC FEET PER MINUTE |
| DISCHARGE PRESSURE | 20.000 POUNDS PER SQUARE INCH GAGE |
| COMPRESSOR SPEED AT RATED CAPACITY IN RPM | 1500.0 |
| COOLING SYSTEM DESIGN | SINGLE |
| COMPRESSOR COOLING MEDIUM | AIR |
| PRIME MOVER COOLING MEDIUM | AIR |
| MOUNTING TYPE | BASE |
| RECIPROCATING COMPRESSOR DESIGN | SINGLE ACTING |
| CYLINDER QUANTITY | 1 |

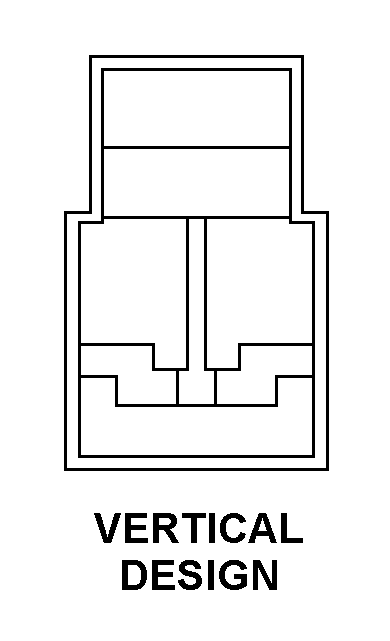

| CYLINDER ARRANGEMENT STYLE | 1 VERTICAL DESIGN |
| STAGE QUANTITY | 1 |
| PRIME MOVER TYPE | ELECTRIC MOTOR |
| VOLTAGE IN VOLTS AND CURRENT TYPE | 115.0 AC |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | SINGLE |
| CURRENT TYPE AND RATING IN AMPS | 1.8 AC |
| DISCHARGE CONNECTION QUANTITY | 1 |
| DISCHARGE CONNECTION TYPE | THREADED FEMALE |
| SAFETY DEVICE TYPE | HIGH TEMPERATURE SHUTDOWN SWITCH |
| TEMP RATING PER FUNCTION | 10.0 DEG CELSIUS MINIMUM OPERATING |
| SPECIAL FEATURES | W/ INLET FILTER; 9.0 DEG RAMPED INLET VALVE PLATE ACTS AS UNLOADER |
Restrictions/Controls & Freight Information | NSN 4310-01-266-2066
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 118100 | COMPRESSORS, AIR, NOI, OR AIR ENDS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4310-01-266-2066
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
