NSN 4330-00-203-3593 AN62353A, AN6235-3A, HF6388

Product Details | FLUID FILTER ELEMENT

4330-00-203-3593 A replaceable device designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous material (metallic or non-metallic), stacked disks, wound wire, or the like, constructed so the fluid can flow through the device while the solid particles are retained. It may be designed to fit into a FILTER, FLUID (or similar cavity), or it may have an integral outer casing and mounting facilities and be designed to connect directly to an engine, compressor, or the like. The degree of removal of particles must be nominally rated at less than 50 microns or absolutely rated at less than 75 microns. Excludes FILTER ELEMENT, AIR CONDITIONING. See also STRAINER ELEMENT, SEDIMENT.20916500058Aircraft Hydraulic, Vacuum, and De-icing System Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters5999000065300053Hospital Furniture, Equipment, Utensils, and Supplies66300029Chemical Analysis Instruments

Part Alternates: AN62353A, AN6235-3A, HF6388, MILF5504, MIL-F-5504, Z00.N7284510005TBM, Z00N7284510005TBM, GHN102493, GHN10249-3 , 4891, 615 447 C1, 615447C1, 6655567, 8105511, 810551-1, 81122, 8112-2, 0380720040, 038072-00-40, 03807240, 038072-40, 03807244, 038072-44, 10338603 , 265584, 2664651, 2-664-651, 28025, 28025A, 28025G, 28025-G, 3033355, 4330-00-203-3593, 00-203-3593, 4330002033593, 002033593

Pumps and Compressors | Centrifugals, Separators, and Pressure and Vacuum Filters

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
43	01 JAN 1963	00-203-3593	32624 ( FILTER ELEMENT, FLUID )

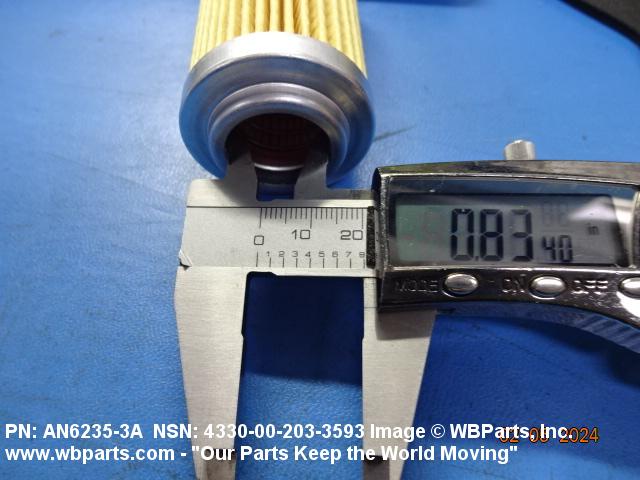

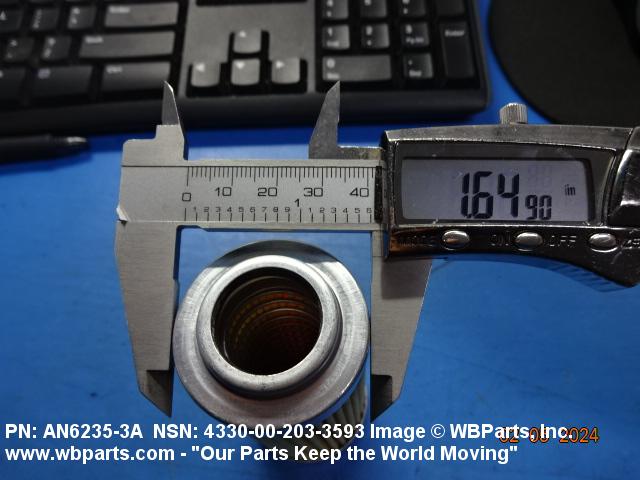

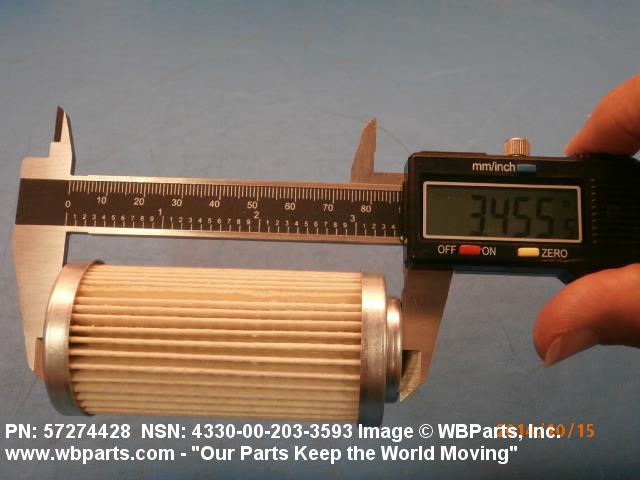

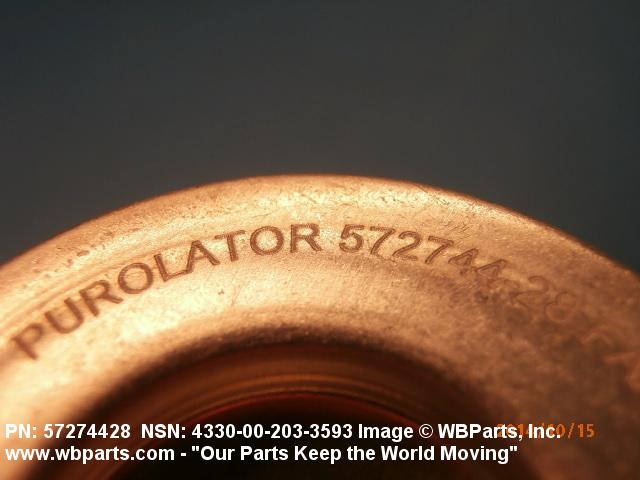

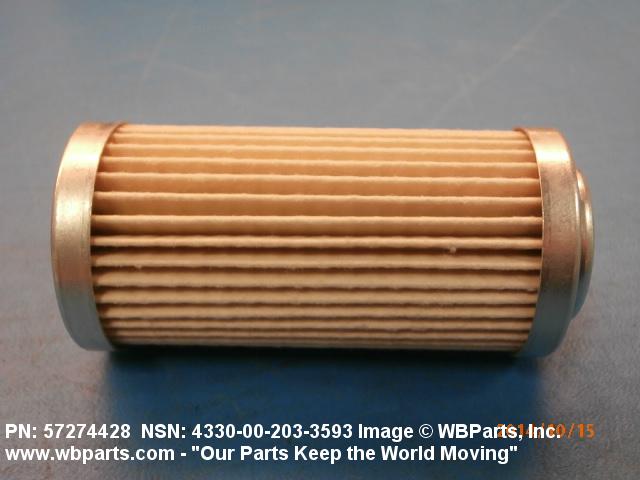

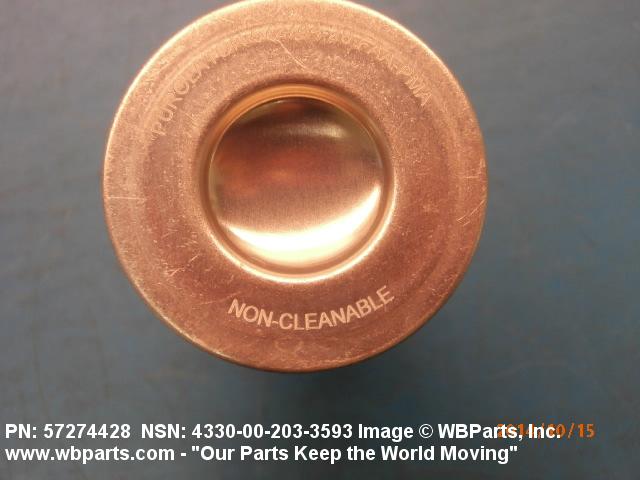

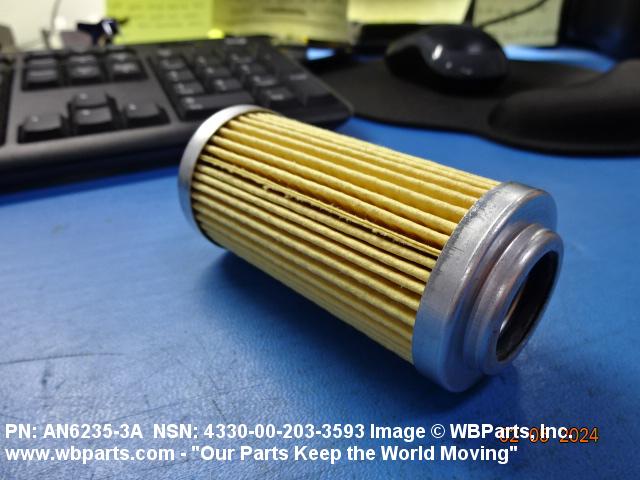

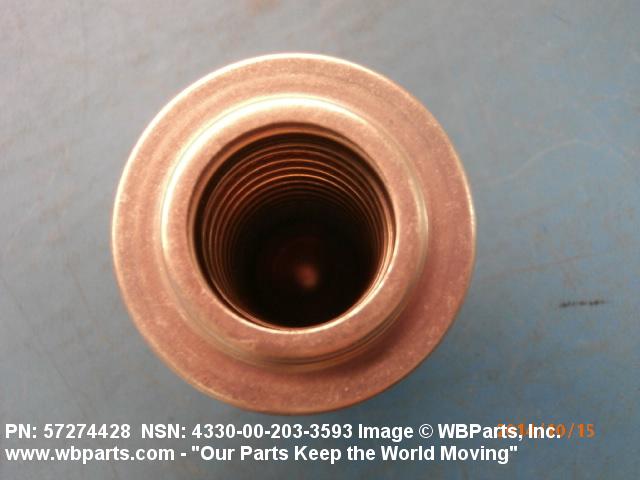

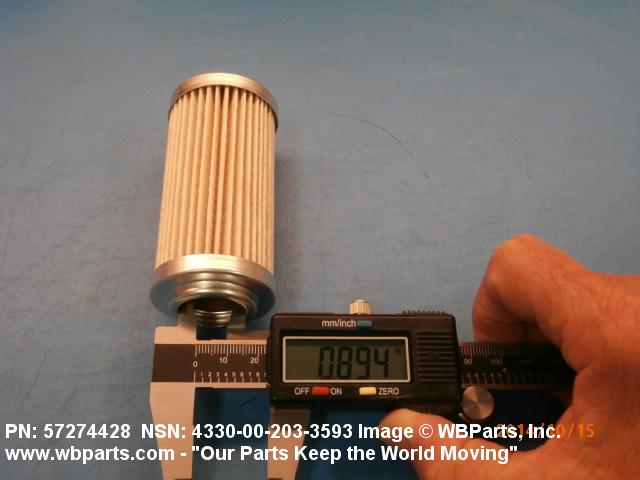

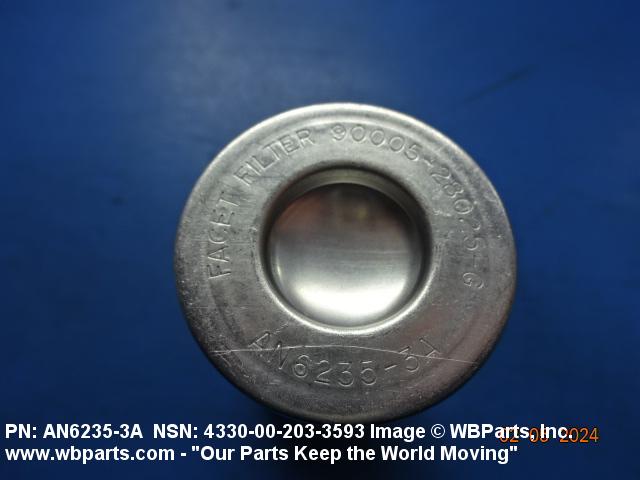

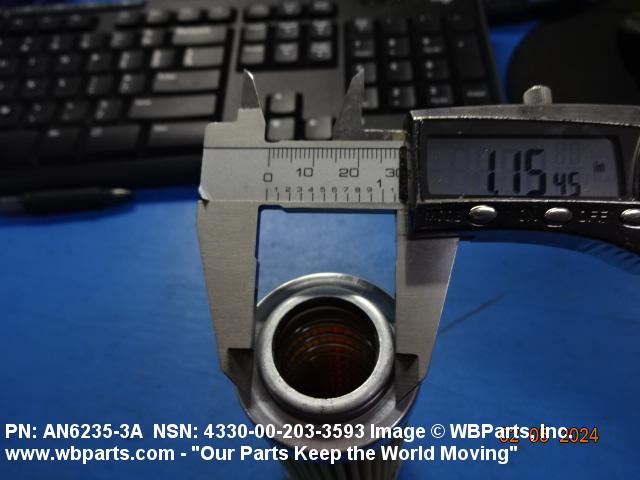

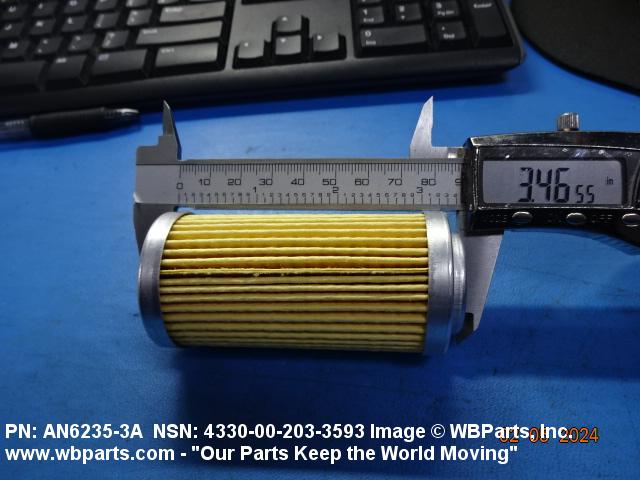

Drawings & Photos | NSN 4330-00-203-3593

Part Number	Request Date	QTY	Origin
4330-00-203-3593	2024-09-267	6	United States
4330-00-203-3593	2024-07-199	4	United States
4330-00-203-3593	2024-07-184	12	us
3033355	2024-04-116	6	Singapore
3033355	2024-04-116	6	Singapore
AN62353A	2024-03-71	100	United Kingdom
4330-00-203-3593	2024-01-30	12	United States
4330-00-203-3593	2024-01-25	6	United States
4330-00-203-3593	2023-06-177	10	United States
038072-00-40	2023-05-125	2	Saudi Arabia
4330-00-203-3593	2023-05-125	2	MANUAL
AN62353A	2023-04-111	1	us
AN62353A	2023-01-04	1	us
4330-00-203-3593	2020-12-349	20	Taiwan
AN62353A	2020-12-342	12	VN
4330-00-203-3593	2020-03-73	1	United States
4330-00-203-3593	2020-03-72	1	TW
AN62353A	2020-01-02	1	US
4330-00-203-3593	2019-10-276	10	AR
4330-00-203-3593	2019-10-274	25	United States
4330-00-203-3593	2018-12-337	6453	DIBBS
4330-00-203-3593	2018-08-214	6	United States
3033355	2018-06-156	2	BO
4330-00-203-3593	2017-07-200	1197	DIBBS
4330-00-203-3593	2017-07-190	1885	DIBBS
4330-00-203-3593	2017-05-145	5608	DIBBS
3033355	2017-05-138	2	CL
3033355	2017-05-131	2	CL
4330-00-203-3593	2017-04-101	265	DIBBS
4330-00-203-3593	2017-03-86	7095	DIBBS
4330002033593	2016-11-335	10	France
4330-00-203-3593	2016-11-331	50	United States
4330-00-203-3593	2016-10-292	3712	DIBBS
4330-00-203-3593	2016-10-286	10	France
4330-00-203-3593	2016-09-256	424	DIBBS
4330-00-203-3593	2016-08-215	1160	DIBBS
4330-00-203-3593	2016-07-192	4613	DIBBS
4330-00-203-3593	2016-03-78	970	DIBBS
4330-00-203-3593	2016-03-67	970	DIBBS
4330-00-203-3593	2015-06-176	2615	DIBBS
4330-00-203-3593	2015-05-132	5	United States
4330-00-203-3593	2015-04-104	1694	DIBBS
4330-00-203-3593	2015-04-103	89	Malaysia
3033355	2015-02-34	30	US
3033355	2014-09-268	30	Ecuador
AN62353A	2014-06-167	20	United States
3033355	2014-04-120	2	Indonesia
3033355	2014-03-83	8	US
AN62353A	2014-02-58	30	CO
AN6235-3A	2014-02-52	6	US
3033355	2013-11-322	30	Belgium
6655567	2013-11-322	20	Belgium
4330-00-203-3593	2013-08-219	1507	DIBBS
4330-00-203-3593	2013-07-212	1	DIBBS-RFPs
4330-00-203-3593	2013-07-202	2164	DIBBS
AN62353A	2012-07-206	1	US
3033355	2012-05-145	10	MM
3033355	2012-05-145	10	MM
3033355	2012-05-143	10	MM
3033355	2012-05-143	10	MM
4330-00-203-3593	2012-04-102	4	United States
AN6235-3A	2012-02-41	4	CN
3033355	2011-11-322	6	United States
4330-00-203-3593	2011-10-304	3	Poland
AN62353A	2011-09-250	12	US
AN62353A	2011-06-179	10	Spain
3033355	2011-06-175	12	US
4330-00-203-3593	2011-05-125	30	UK
3033355	2011-05-125	30	ZA
AN62353A	2011-04-119	3	Poland
AN62353A	2011-04-104	60	AR
4330-00-203-3593	2011-04-92	3	Poland
AN62353A	2011-03-87	10	CN
4330-00-203-3593	2011-01-28	1	US
AN62353A	2011-01-07	10	US
AN62353A	2010-12-363	10	us
AN62353A	2010-07-193	1	Australia
3033355	2010-01-20	1	China
AN62353A	2009-10-299	2	India
AN62353A	2009-09-264	1	Thailand
4330-00-203-3593	2009-08-239	30	Canada
4330-00-203-3593	2009-06-166	1172	DIBBS
3033355	2009-05-148	8	Seychelles
4330-00-203-3593	2009-05-124	31	Hong Kong
4330-00-203-3593	2009-04-113	748	DIBBS
4330-00-203-3593	2009-02-48	7	Malaysia
4330-00-203-3593	2009-02-35	6	Indonesia
AN62353A	2009-01-23	39	Malaysia
AN62353A	2009-01-08	34	Malaysia
3033355	2008-12-351	20	us
28025G	2008-11-333	1	us
AN62353A	2008-08-239	6	Brazil
4330-00-203-3593	2008-07-213	1	US
4330-00-203-3593	2008-07-190	2	Taiwan
4330-00-203-3593	2008-06-155	2	Indonesia
4330-00-203-3593	2008-06-154	36	US
4330-00-203-3593	2008-04-113	3708	DIBBS
4330-00-203-3593	2008-02-58	3170	DIBBS
4330-00-203-3593	2008-02-51	3529	DIBBS
8105511	2007-11-305	4	us
28025G	2007-01-25	10	Australia
AN62353A	2006-10-295	2	Turkey
AN62353A	2006-10-294	2	Turkey
AN62353A	2006-10-294	2	Turkey

Cross Reference | NSN 4330-00-203-3593

Part Number	Cage Code	Manufacturer
038072-00-40	90005	PUROLATOR FACET, INC.
038072-40	90005	PUROLATOR FACET, INC.
038072-44	90005	PUROLATOR FACET, INC.
2-664-651	92003	PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS
265584	62983	EATON AEROSPACE LLC
28025	90005	PUROLATOR FACET, INC.
28025-G	90005	PUROLATOR FACET, INC.
28025A	90005	PUROLATOR FACET, INC.
3033355	00198	PRATT & WHITNEY CANADA CIE DIVPRATT & WHITNEY CANADA CORP.
3033355	R1120	SATAIR A/S
4891	74868	AMPHENOL CORPORATION
615 447 C1	31007	NAVISTAR INTL CORP
6655567	05228	PTI TECHNOLOGIES INC.
810551-1	16058	TELECTRO-MEK INC
8112-2	13520	WESTERN FILTER, A DIVISION OF DONALDSON COMPANY, INC.
AN6235-3A	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
HF6388	ZH590	CUMMINS FILTRATION
MIL-F-5504	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
Z00.N7284510005TBM	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4330-00-203-3593

Compare

Related Products | NSN 4330-00-203-3593

4330-00-203-6127, 4330-00-203-6878, 4330-00-203-9653, 4330-00-204-3383, 4330-00-204-3422

Technical Data | NSN 4330-00-203-3593

Characteristic	Specifications
STYLE DESIGNATOR	A10 CYLINDRICAL W/CONTAINER
BODY DIAMETER	1.625 INCHES NOMINAL
BODY INSIDE DIAMETER	0.891 INCHES NOMINAL
BODY OVERALL LENGTH	3.438 INCHES NOMINAL
MATERIAL	METAL CONTAINER/CARTRIDGE PAPER FILTERING MEDIUM
FILTERING MEDIA DESIGN	PLEATED SINGLE FILTERING MEDIA RESPONSE
DESIGN TYPE	NONREUSABLE
FILTRATION RATING IN MICRONS	10.0 NOMINAL
FLOW DIRECTION	INSIDE OUT
MEDIA FOR WHICH DESIGNED	FUEL/OIL, HYDROCARBON
TEMP RATING	NOT RATED
DROP PRESSURE	NOT RATED
DIFFERENTIAL PRESSURE	NOT RATED
FILTERING SYSTEM FOR WHICH DESIGNED	FULL FLOW
SPECIAL FEATURES	USED ON GRUMMAN AIRCRAFT,MODEL A10;WITH UNTHREADED MOUNTIN HOLE,0.2656 IN. DIA
MANUFACTURERS CODE	88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN6235-3A
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-F-5504

Restrictions/Controls & Freight Information | NSN 4330-00-203-3593

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	069100	FILTERS:CARTRIDGES/ELEMENTS
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	594	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4330-00-203-3593

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
