NSN 4330-01-643-7382 936718Q , 01-643-7382, 016437382
Product Details | FLUID FILTER ELEMENT
4330-01-643-7382 A replaceable device designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous material (metallic or non-metallic), stacked disks, wound wire, or the like, constructed so the fluid can flow through the device while the solid particles are retained. It may be designed to fit into a FILTER, FLUID (or similar cavity), or it may have an integral outer casing and mounting facilities and be designed to connect directly to an engine, compressor, or the like. The degree of removal of particles must be nominally rated at less than 50 microns or absolutely rated at less than 75 microns. Excludes FILTER ELEMENT, AIR CONDITIONING. See also STRAINER ELEMENT, SEDIMENT.20916500058Aircraft Hydraulic, Vacuum, and De-icing System Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters5999000065300053Hospital Furniture, Equipment, Utensils, and Supplies66300029Chemical Analysis Instruments
Part Alternates: 936718Q , 4330-01-643-7382, 01-643-7382, 4330016437382, 016437382
Pumps and Compressors | Centrifugals, Separators, and Pressure and Vacuum Filters
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 43 | 2015100 | 01-643-7382 | 32624 ( FILTER ELEMENT, FLUID ) |

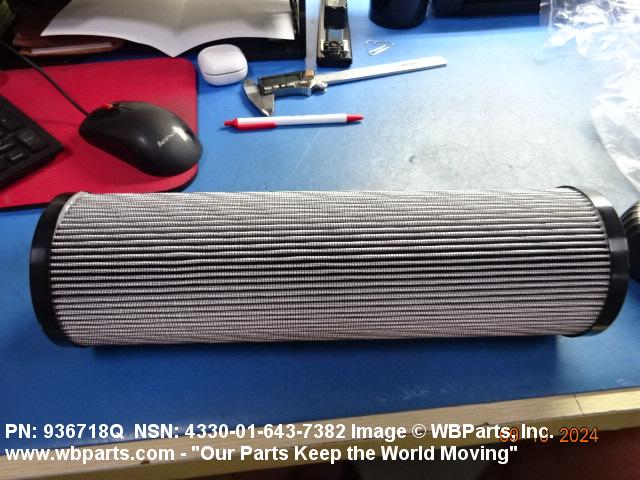

Drawings & Photos | NSN 4330-01-643-7382
Demand History | NSN 4330-01-643-7382
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4330-01-643-7382 | 2024-09-267 | 4 | United States |
| 936718Q | 2024-09-249 | 128 | DIBBS |
| 4330-01-643-7382 | 2024-09-247 | 4 | United States |
| 4330-01-643-7382 | 2024-08-218 | 4 | United States |
| 4330-01-643-7382 | 2024-08-215 | 4 | United States |
| 4330-01-643-7382 | 2024-07-207 | 4 | US |
| 936718Q | 2023-08-215 | 69 | DIBBS |
| 936718Q | 2023-06-173 | 50 | DIBBS |
| 936718Q | 2023-05-124 | 57 | DIBBS |
| 936718Q | 2023-04-96 | 49 | DIBBS |
| 936718Q | 2022-06-160 | 35 | DIBBS |
| 936718Q | 2022-03-90 | 41 | DIBBS |
| 936718Q | 2022-01-09 | 7 | DIBBS |
| 936718Q | 2021-10-284 | 7 | DIBBS |
| 936718Q | 2021-05-143 | 7 | DIBBS |
| 936718Q | 2019-06-171 | 94 | DIBBS |
| 4330-01-643-7382 | 2018-05-144 | 28 | DIBBS |
| 4330-01-643-7382 | 2018-05-134 | 30 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4330-01-643-7382
Technical Data | NSN 4330-01-643-7382
| Characteristic | Specifications |
|---|---|
| III STYLE DESIGNATOR | CYLINDRICAL W/OUT CONTAINER |
| BODY DIAMETER | 3.8 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 2.18 INCHES NOMINAL |
| BODY OVERALL LENGTH | 13.15 INCHES NOMINAL |
| MATERIAL | GLASS FIBER FILTERING MEDIUM |
| FILTRATION RATING IN MICRONS | 10.0 NOMINAL |
| FLOW DIRECTION | OUTSIDE IN |
| TEMP RATING | -40.0 DEG FAHRENHEIT MINIMUM AND |
| DROP PRESSURE | 5.0 POUNDS PER SQUARE INCH |
| DIFFERENTIAL PRESSURE | 150.0 POUNDS PER SQUARE INCH |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | FILTER ELEMENT, FLUID |
Restrictions/Controls & Freight Information | NSN 4330-01-643-7382
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4330-01-643-7382
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
