NSN 4720-00-105-5035 MS24548624, MS24548-6-24, M26626624
Product Details | AIR BREATHING HOSE ASSEMBLY
4720-00-105-5035 A length of HOSE, AIR BREATHING with couplings on one or both ends and/or a communication cable. Excludes items which include a branch hose or fork hoses; wiring for face mask heater; vent and pressure ducts for an anti-G-suit; HOSE ASSEMBLY, NONMETALLIC.20342400027Safety and Rescue Equipment47200024Hose and Flexible Tubing65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: MS24548624, MS24548-6-24, M26626624, M26626-6-24, AE1010010G24, AE1010010G-24, MILH26626, MIL-H-26626, MILPRF26626, MIL-PRF-26626, 1243926CR0240, 124392-6CR-0240, 1243926CR24, 124392-6CR-24, 1300000624, 13000006-24, 8148650, 4720-00-105-5035, 00-105-5035, 4720001055035, 001055035
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 12 JUL 1968 | 00-105-5035 | 39227 ( HOSE ASSEMBLY, AIR BREATHING ) |

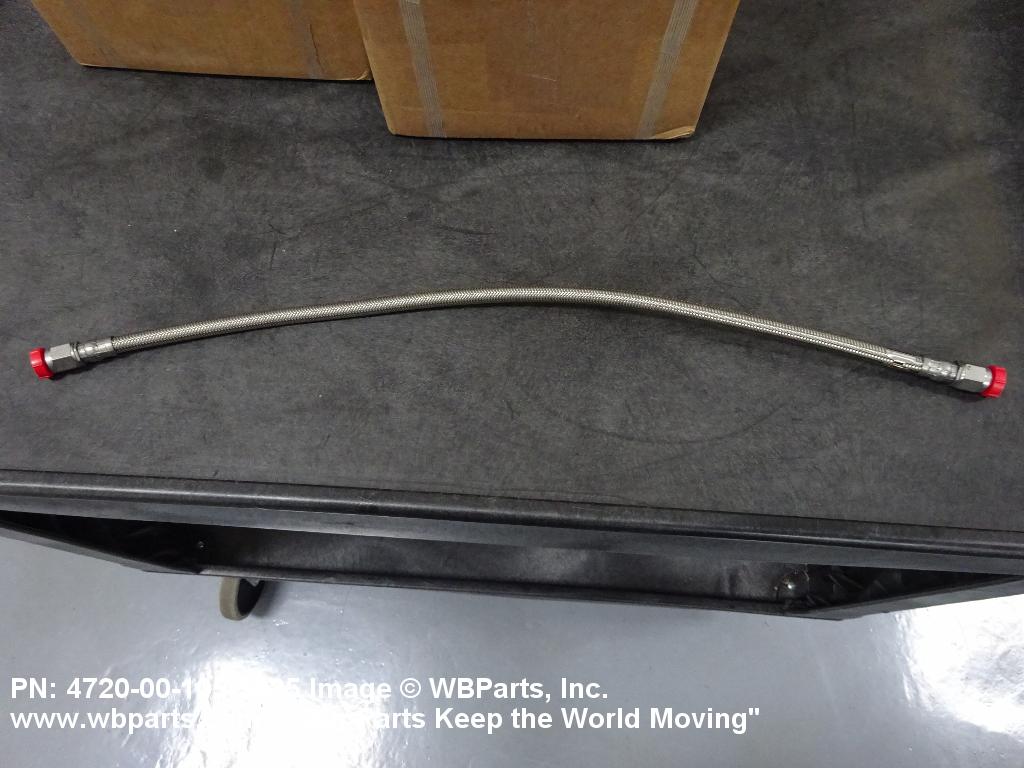

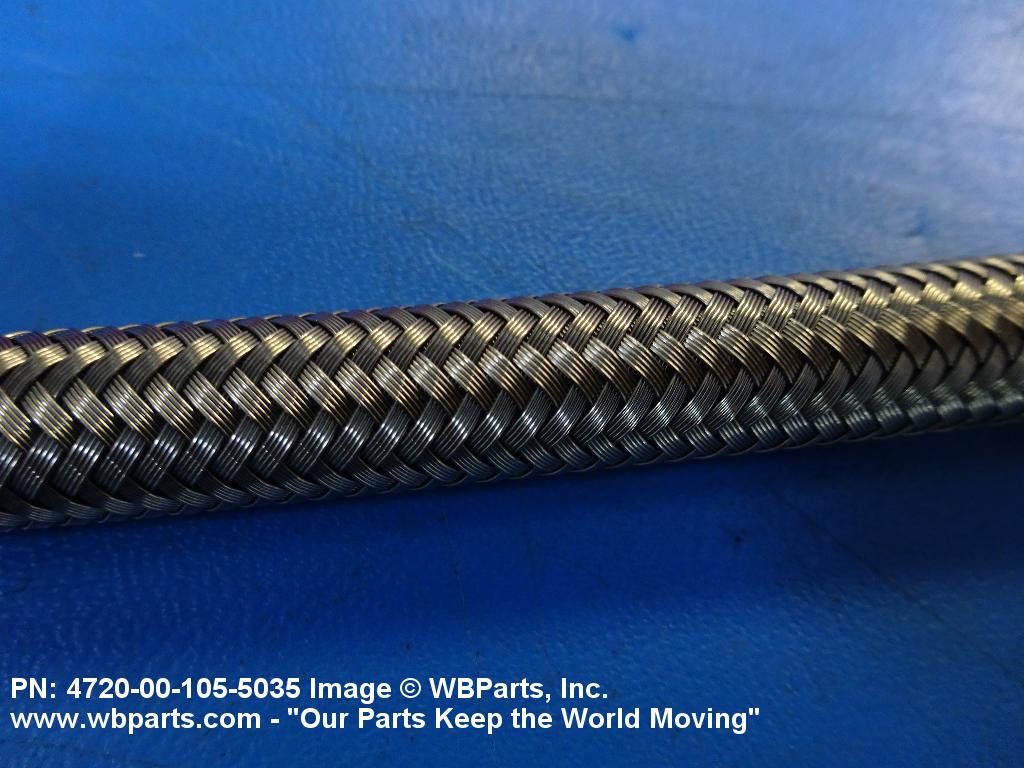

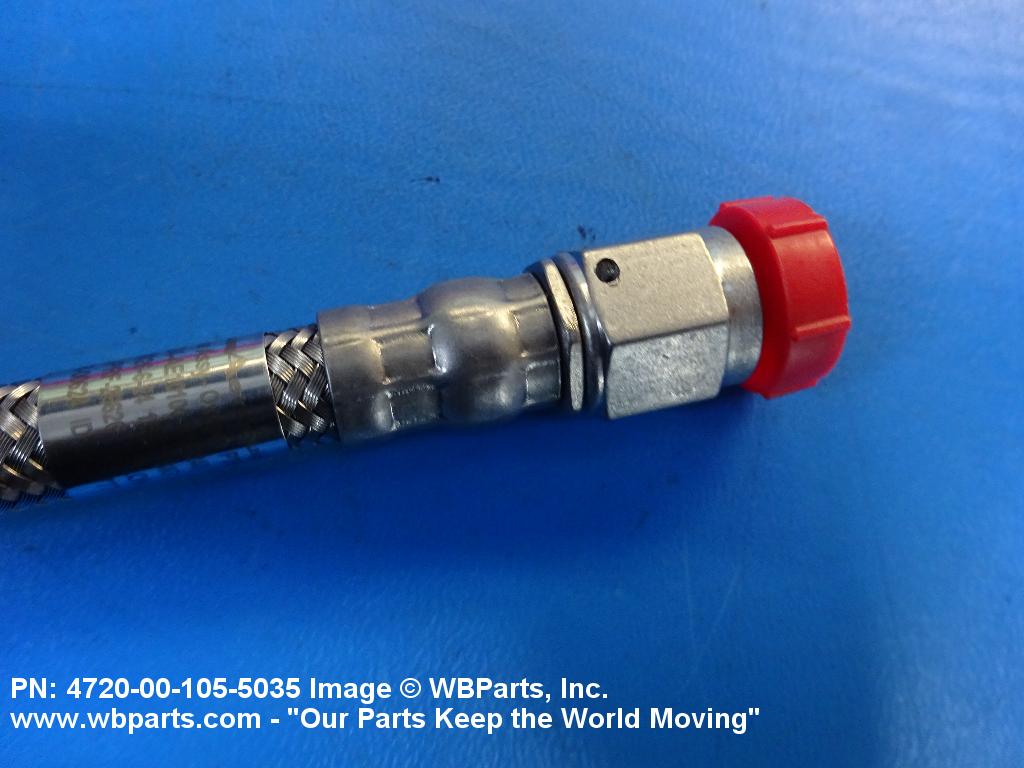

Drawings & Photos | NSN 4720-00-105-5035
Demand History | NSN 4720-00-105-5035
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-00-105-5035 | 2022-01-27 | 1 | United States |
| 4720-00-105-5035 | 2022-01-27 | 1 | United States |
| 4720-00-105-5035 | 2019-09-249 | 2 | United States |
| 4720-00-105-5035 | 2019-08-235 | 1 | United States |
| 4720-00-105-5035 | 2019-01-22 | 2 | United States |
| 4720-00-105-5035 | 2017-06-170 | 1 | DIBBS-RFPs |
| 8148650 | 2006-04-117 | 10 | US |
Cross Reference | NSN 4720-00-105-5035
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 124392-6CR-0240 | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 124392-6CR-24 | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 13000006-24 | 78570 | SMITHS TUBULAR SYSTEMS-LACONIA, INC. |
| 8148650 | 98748 | AIR FORCE UNITED STATES DEPARTMENT OF THE |
| AE1010010G-24 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| M26626-6-24 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-H-26626 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-26626 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS24548-6-24 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-105-5035
Related Products | NSN 4720-00-105-5035
Technical Data | NSN 4720-00-105-5035
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC TETRAFLUOROETHYLENE SINGLE PLY ALUMINUM AND STEEL AND STEEL CORROSION RESISTING 1ST END COUPLING STEEL REINFORCING WIRE |
| STYLE DESIGNATOR | A5 SLEEVE SECTION |
| CROSS-SECTIONAL SHAPE STYLE | B3 ROUND |
| INSIDE DIAMETER | 0.313 INCHES NOMINAL FIRST END |
| WALL THICKNESS | 0.047 INCHES MINIMUM AND 0.085 INCHES MAXIMUM |
| MEASURING METHOD AND LENGTH | 24.240 INCHES NOMINAL OVERALL |
| COUPLING STYLE | D9 THREADED INTERNAL FIRST END |
| THREAD SERIES DESIGNATOR | UNF BOTH ENDS |
| NOMINAL THREAD SIZE | 0.562 INCHES BOTH ENDS |
| HOSE WEIGHT | 1.800 OUNCES PER LINEAR FOOT |
| (NON-CORE DATA) TEMP RANGE | -297.0 TO 260.0 DEG FAHRENHEIT |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-26626 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M26626-6-24 |
Restrictions/Controls & Freight Information | NSN 4720-00-105-5035
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051590 | PIPE/DUCT(AIR/SMOKE)D/ELBOWS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | E | Engineer supplies, other than those listed under code B. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-105-5035
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | BO | SX:BREATHING OXYGEN SYSTEMS AND COMPONENT |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
