Product Details | AIR BREATHING HOSE ASSEMBLY
4720-01-417-4873 A length of HOSE, AIR BREATHING with couplings on one or both ends and/or a communication cable. Excludes items which include a branch hose or fork hoses; wiring for face mask heater; vent and pressure ducts for an anti-G-suit; HOSE ASSEMBLY, NONMETALLIC.20342400027Safety and Rescue Equipment47200024Hose and Flexible Tubing65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: MS22055, MS22055A132, HC200A132, REDARA1006116, REDAR-A10061-16, 4720-01-417-4873, 01-417-4873, 4720014174873, 014174873
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 08 AUG 1995 | 01-417-4873 | 39227 ( HOSE ASSEMBLY, AIR BREATHING ) |

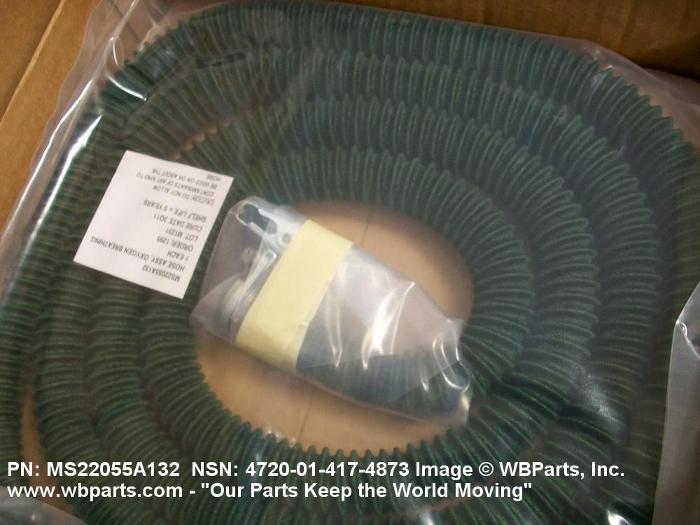

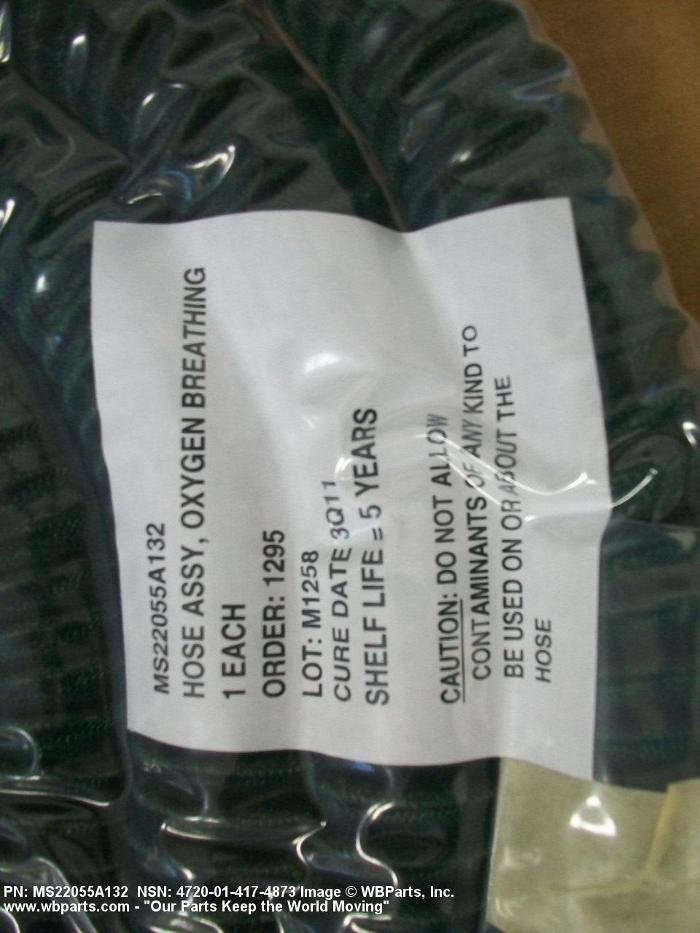

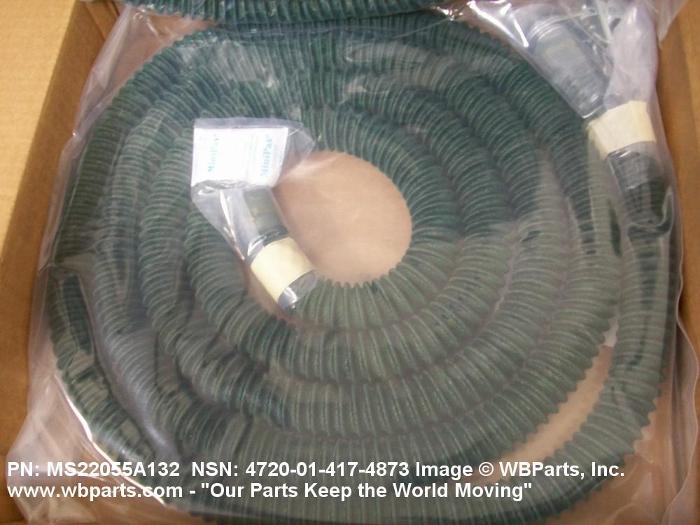

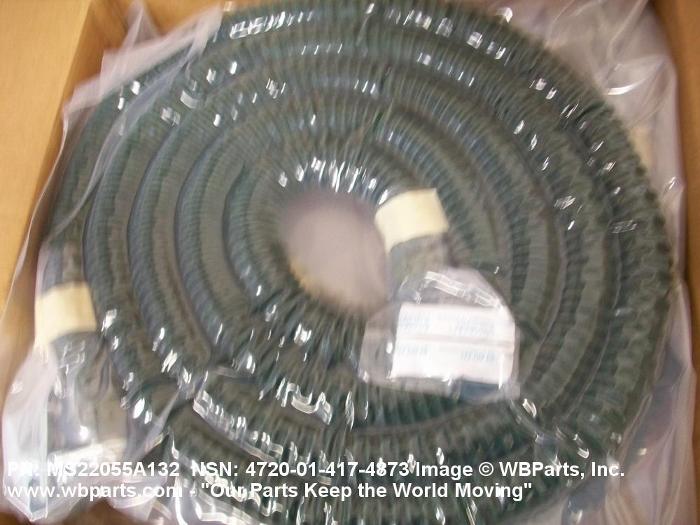

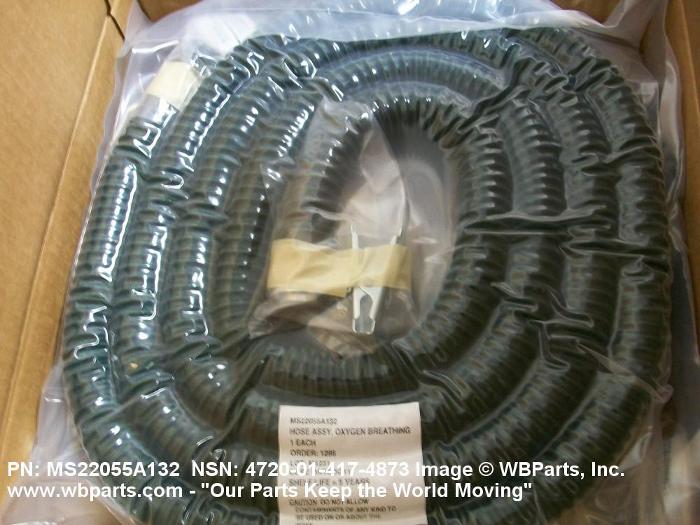

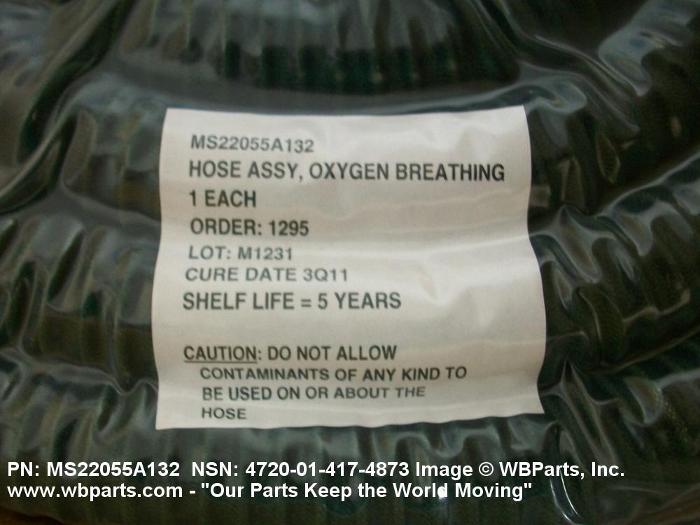

Drawings & Photos | NSN 4720-01-417-4873
Demand History | NSN 4720-01-417-4873
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-01-417-4873 | 2023-08-22 | 25 | DIBBS |
| MS22055 | 2022-11-28 | 10 | UK |
| 4720-01-417-4873 | 2020-10-20 | 24 | DIBBS |
| 4720-01-417-4873 | 2020-06-04 | 17 | DIBBS |
| 4720-01-417-4873 | 2018-11-13 | 1 | US |
| 4720-01-417-4873 | 2016-04-20 | 24 | DIBBS |
| 4720-01-417-4873 | 2016-04-14 | 23 | DIBBS |
| 4720-01-417-4873 | 2011-08-16 | 4 | United States |
| 4720-01-417-4873 | 2011-06-06 | 4 | United States |
| 4720-01-417-4873 | 2011-05-13 | 8 | United States |
| MS22055A132 | 2010-10-13 | 1 | US |
Cross Reference | NSN 4720-01-417-4873
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HC200A132 | 13560 | HERBERT COOPER COMPANY INC |
| MS22055 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS22055A132 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| REDAR-A10061-16 | 28445 | R. E. DARLING CO., INC. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4720-01-417-4873
Related Products | NSN 4720-01-417-4873
4720-01-417-4874, 4720-01-417-4884, 4720-01-417-4886, 4720-01-417-4901, 4720-01-417-4915
Technical Data | NSN 4720-01-417-4873
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC 1ST PLY COTTON 2ND PLY STEEL REINFORCING WIRE PLASTIC POLYAMIDE COVER |
| STYLE DESIGNATOR | A4 HELICALLY WOUND CONTINUOUS WIRE SUPPORTED |
| CROSS-SECTIONAL SHAPE STYLE | B3 ROUND |
| INSIDE DIAMETER | 0.750 INCHES NOMINAL FIRST END |
| WALL THICKNESS | 0.250 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 132.000 INCHES NOMINAL OVERALL |
| CONNECTION STYLE | C3 ROUND SECOND END |
| END INSIDE DIAMETER | 0.750 INCHES NOMINAL SECOND END |
| END OVERALL LENGTH | 1.000 INCHES NOMINAL SECOND END |

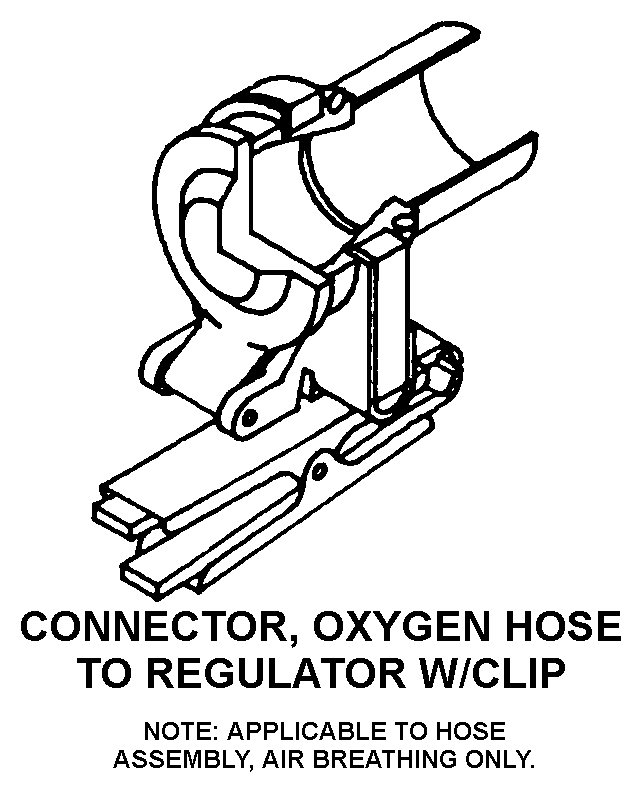

| COUPLING STYLE | D15 CONNECTOR, OXYGEN HOSE TO REGULATOR W/CLIP FIRST END |
| FEATURES PROVIDED | OZONE RESISTANT |
| SPECIAL FEATURES | INCLUDES 2 HOSE CLAMPS |
| SPECIFICATION/STANDARD DATA | 96906-MS22055 GOVERNMENT STANDARD |
| NONDEFINITIVE SPEC/STD DATA | A STYLE |
| III END ITEM IDENTIFICATION | AIRCRAFT (AC-130A, AC-130H, MC-130H, EC-13) |
| MANUFACTURERS CODE | 96906 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS22055 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS22055A132 |
Restrictions/Controls & Freight Information | NSN 4720-01-417-4873
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | S | 60 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 796 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-01-417-4873
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | S | 60 months | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | S | 60 months | Purchasing | QTY UOM |
1 EA : Each |
