Product Details | AIR BREATHING HOSE ASSEMBLY
4720-01-417-4901 A length of HOSE, AIR BREATHING with couplings on one or both ends and/or a communication cable. Excludes items which include a branch hose or fork hoses; wiring for face mask heater; vent and pressure ducts for an anti-G-suit; HOSE ASSEMBLY, NONMETALLIC.20342400027Safety and Rescue Equipment47200024Hose and Flexible Tubing65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: MS22055, MS22055H132, HC200132, HC200-132, REDARA1005938, REDAR-A10059-38, 4720-01-417-4901, 01-417-4901, 4720014174901, 014174901
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 08 AUG 1995 | 01-417-4901 | 39227 ( HOSE ASSEMBLY, AIR BREATHING ) |

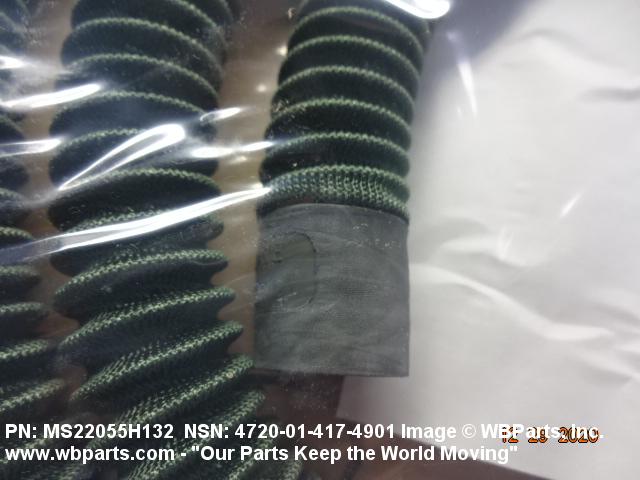

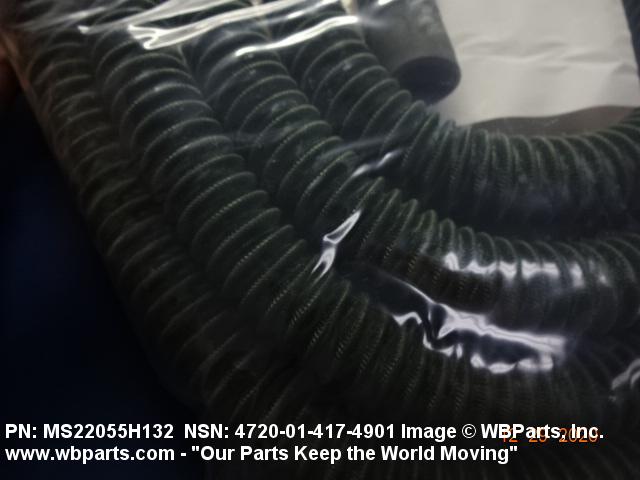

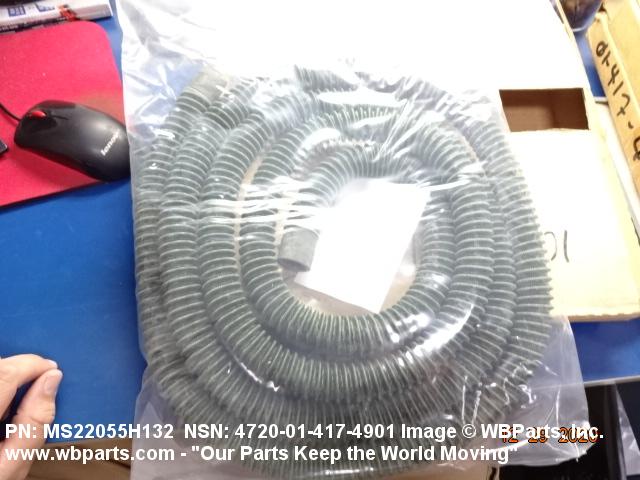

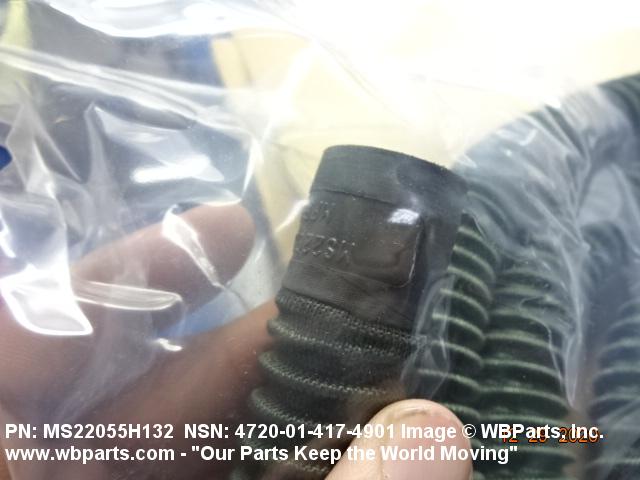

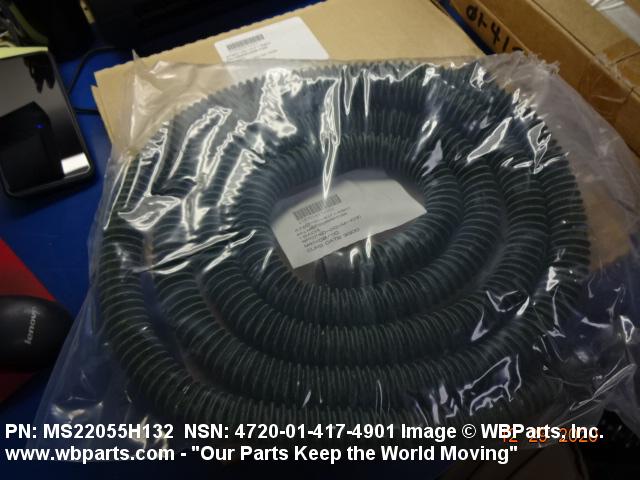

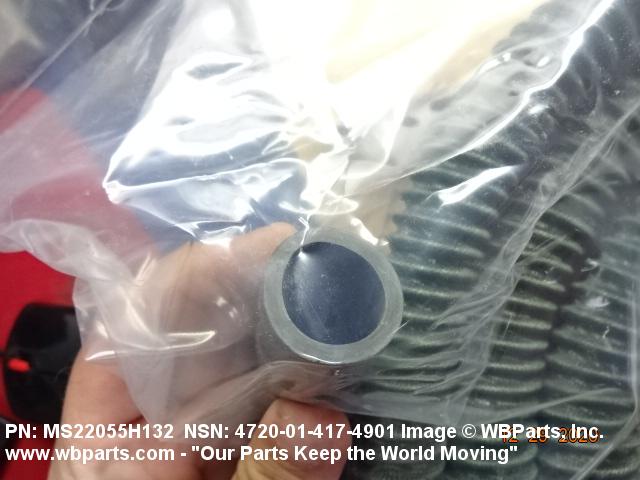

Drawings & Photos | NSN 4720-01-417-4901
Demand History | NSN 4720-01-417-4901
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS22055 | 2022-11-28 | 10 | UK |
| 4720-01-417-4901 | 2022-04-11 | 29 | DIBBS |
| 4720-01-417-4901 | 2022-03-31 | 29 | DIBBS |
| 4720-01-417-4901 | 2022-01-02 | 23 | DIBBS |
| 4720-01-417-4901 | 2021-12-13 | 23 | DIBBS |
| 4720-01-417-4901 | 2021-12-02 | 23 | DIBBS |
| MS22055H132 | 2020-10-20 | 12 | United States |
| MS22055H132 | 2020-10-15 | 12 | United States |
| 4720-01-417-4901 | 2018-08-02 | 81 | DIBBS |
| 4720-01-417-4901 | 2018-04-19 | 4 | DIBBS |
| 4720-01-417-4901 | 2017-12-28 | 11 | DIBBS |
| 4720-01-417-4901 | 2017-12-07 | 13 | DIBBS |
| 4720-01-417-4901 | 2017-11-21 | 1 | United States |
| 4720-01-417-4901 | 2014-02-07 | 2 | US |
| 4720-01-417-4901 | 2008-10-09 | 145 | DIBBS |
| 4720-01-417-4901 | 2008-09-02 | 314 | DIBBS |
Cross Reference | NSN 4720-01-417-4901
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HC200-132 | 13560 | HERBERT COOPER COMPANY INC |
| MS22055 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS22055H132 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| REDAR-A10059-38 | 28445 | R. E. DARLING CO., INC. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4720-01-417-4901
Related Products | NSN 4720-01-417-4901
4720-01-417-4915, 4720-01-417-4917, 4720-01-417-4918, 4720-01-417-4919, 4720-01-417-4920
Technical Data | NSN 4720-01-417-4901
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC 1ST PLY COTTON 2ND PLY STEEL REINFORCING WIRE PLASTIC POLYAMIDE COVER |
| STYLE DESIGNATOR | A4 HELICALLY WOUND CONTINUOUS WIRE SUPPORTED |
| CROSS-SECTIONAL SHAPE STYLE | B3 ROUND |
| INSIDE DIAMETER | 0.750 INCHES NOMINAL FIRST END |
| WALL THICKNESS | 0.250 INCHES NOMINAL |
| MEASURING METHOD AND LENGTH | 132.000 INCHES NOMINAL OVERALL |
| CONNECTION STYLE | C3 ROUND BOTH ENDS |
| END INSIDE DIAMETER | 0.750 INCHES NOMINAL BOTH ENDS |
| END OVERALL LENGTH | 1.000 INCHES NOMINAL BOTH ENDS |
| FEATURES PROVIDED | OZONE RESISTANT |
| SPECIFICATION/STANDARD DATA | 96906-MS22055 GOVERNMENT STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE |
| III END ITEM IDENTIFICATION | AIRCRAFT, (AC-130A, AC-130H, MC-130H, EC-13) |
| MANUFACTURERS CODE | 96906 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS22055 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS22055H132 |
Restrictions/Controls & Freight Information | NSN 4720-01-417-4901
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051035 | DUCTS:AIR SYSTEM |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-01-417-4901
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
