NSN 4720-00-829-2760 C519916, C5-19-916, C5199161
Product Details | AIR BREATHING HOSE
4720-00-829-2760 A flexible, tubular item of odorless light wall construction. It must have single or multiple layers of nonmetallic material, but may contain metal wire reinforcement, foil type liner, and/or woven or braided cover. It is designed to convey under low pressure air or oxygen for breathing purposes. For items with couplings and/or a communication cable, see HOSE ASSEBMLY, AIR BREATHING. Excludes HOSE, NONMETALLIC.20342400027Safety and Rescue Equipment47200024Hose and Flexible Tubing65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: C519916, C5-19-916, C5199161, C5-19-916-1, 10503439, 10503468, 4720-00-829-2760, 00-829-2760, 4720008292760 , 008292760
Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1960 | 00-829-2760 | 39226 ( HOSE, AIR BREATHING ) |

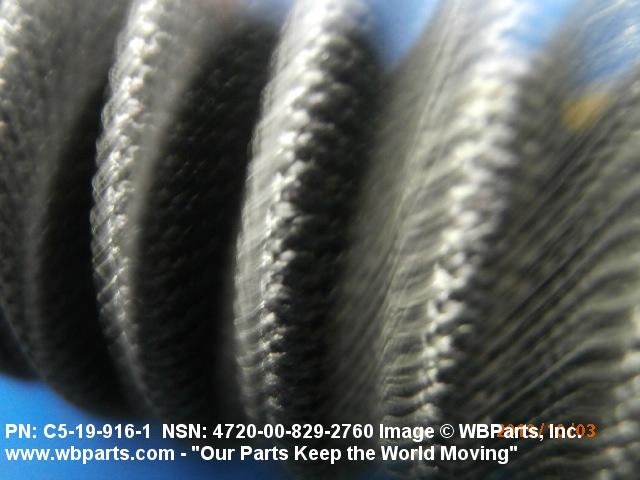

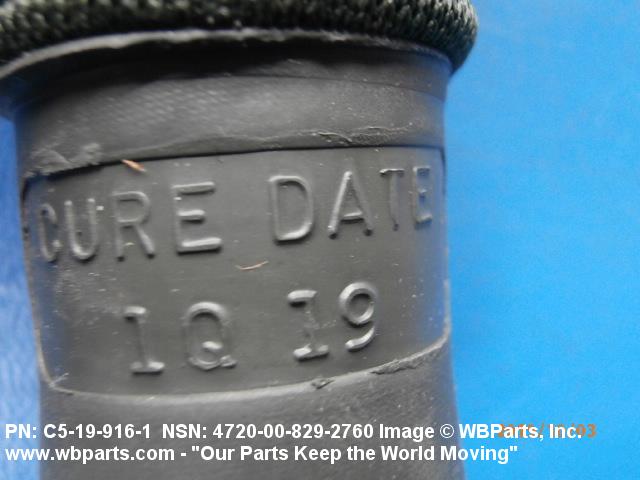

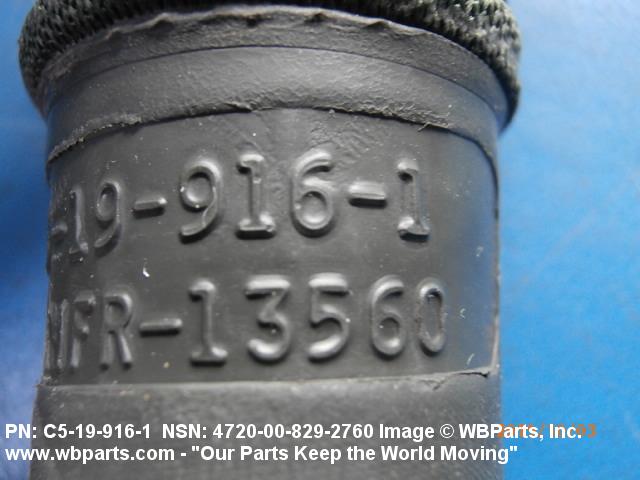

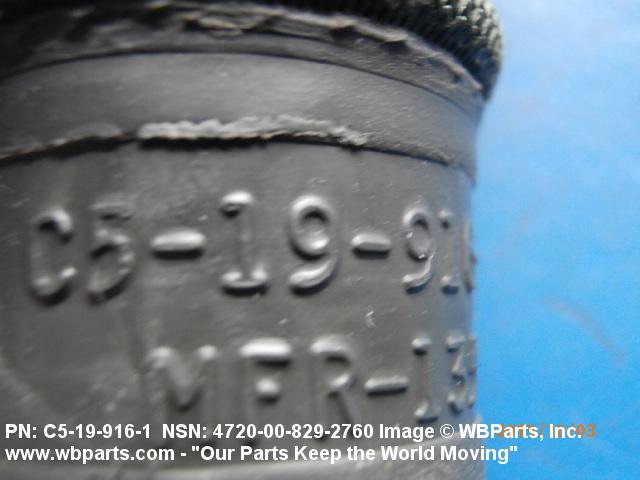

Drawings & Photos | NSN 4720-00-829-2760
Demand History | NSN 4720-00-829-2760
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4720-00-829-2760 | 2023-10-304 | 100 | United States |
| 4720-00-829-2760 | 2023-04-102 | 3458 | DIBBS |
| 4720-00-829-2760 | 2019-09-269 | 5 | United States |
| 4720-00-829-2760 | 2019-07-197 | 400 | TW |
| 4720-00-829-2760 | 2019-07-189 | 400 | US |
| 4720-00-829-2760 | 2019-02-44 | 778 | DIBBS |
| 4720-00-829-2760 | 2018-08-224 | 2135 | DIBBS |
| 4720-00-829-2760 | 2016-03-62 | 1533 | DIBBS |
| 4720-00-829-2760 | 2016-01-22 | 100 | MANUAL |
| C5-19-916-1 | 2016-01-22 | 100 | TR |
| 4720-00-829-2760 | 2015-09-267 | 44 | United States |
| 4720-00-829-2760 | 2015-02-41 | 2603 | DIBBS |
| 4720-00-829-2760 | 2013-12-364 | 5 | United States |
| 4720-00-829-2760 | 2013-04-115 | 2 | US |
| 4720-00-829-2760 | 2013-04-114 | 2 | US |
| 4720-00-829-2760 | 2013-04-108 | 2 | United States |
| 4720-00-829-2760 | 2013-04-108 | 50 | MANUAL |
| C5199161 | 2009-09-258 | 50 | US |
| C5199161 | 2009-09-252 | 45 | US |
| 4720-00-829-2760 | 2009-06-161 | 1500 | DIBBS |
| C5199161 | 2009-04-111 | 1 | United States |
Cross Reference | NSN 4720-00-829-2760
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10503439 | 56161 | GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION |
| 10503468 | 56161 | GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION |
| 4720008292760 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| C5-19-916 | 81361 | EDGEWOOD CHEMICAL BIOLOGICAL CENTER ECBC |
| C5-19-916-1 | 13560 | HERBERT COOPER COMPANY INC |
| C5-19-916-1 | 81361 | EDGEWOOD CHEMICAL BIOLOGICAL CENTER ECBC |
| C5-19-916-1 | 84987 | INDUSTRIAL DESIGN LABORATORIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4720-00-829-2760
Related Products | NSN 4720-00-829-2760
Technical Data | NSN 4720-00-829-2760
| Characteristic | Specifications |
|---|---|
| MATERIAL | COTTON AND COTTON 1ST PLY COTTON AND RUBBER 2ND PLY STEEL REINFORCING WIRE RUBBER SYNTHETIC LINER PLASTIC COVER |
| STYLE DESIGNATOR | A4 HELICALLY WOUND CONTINUOUS WIRE SUPPORTED |
| CROSS-SECTIONAL SHAPE STYLE | B3 ROUND |
| INSIDE DIAMETER | 0.875 INCHES NOMINAL FIRST END |
| WALL THICKNESS | 0.250 INCHES NOMINAL |

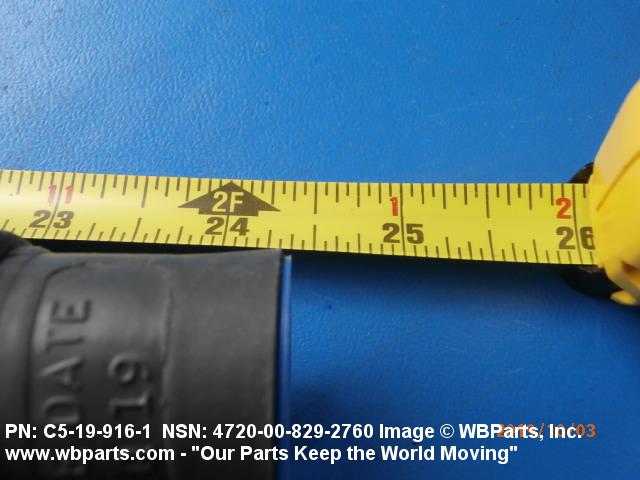

| MEASURING METHOD AND LENGTH | 24.000 INCHES NOMINAL OVERALL |
| CONNECTION STYLE | C3 ROUND BOTH ENDS |

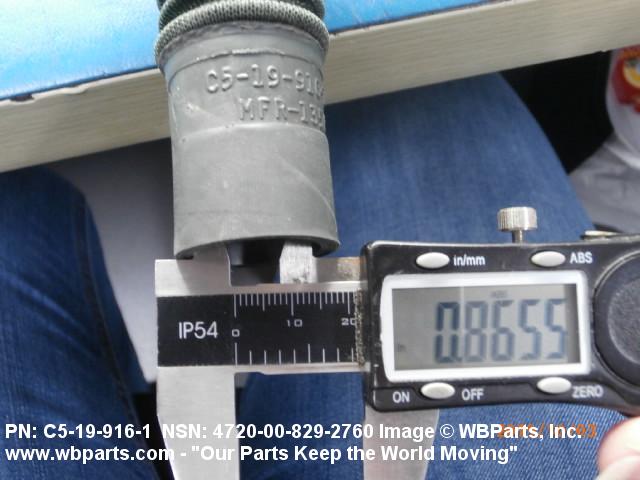

| END INSIDE DIAMETER | 0.875 INCHES NOMINAL BOTH ENDS |

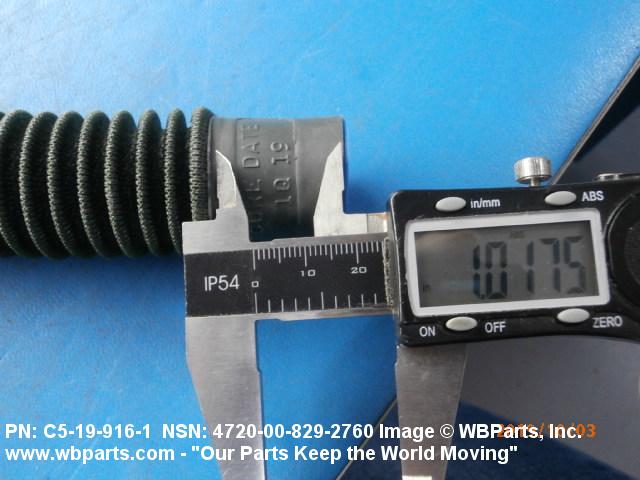

| END OVERALL LENGTH | 1.438 INCHES NOMINAL FIRST END 1.000 INCHES NOMINAL SECOND END |
| MINIMUM INSIDE BENDING RADIUS | 0.750 INCHES |
| HOSE WEIGHT | 5.000 OUNCES PER LINEAR FOOT |
| FEATURES PROVIDED | OZONE RESISTANT |
| SPECIAL FEATURES | RUBBER AND SYNTHETIC RUBBER BUSHING INSERT AT EACH END |
| TEST DATA DOCUMENT | MIL-H-0014506G SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE |
| III END ITEM IDENTIFICATION | POLYKEN DIV. OF KENDALL CO; FILTER UNIET |
Restrictions/Controls & Freight Information | NSN 4720-00-829-2760
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | S | 60 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051035 | DUCTS:AIR SYSTEM |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4720-00-829-2760
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | S | 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | S | 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | S | 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | S | 60 months |
| Purchasing | QTY UOM |
1 EA : Each |
