NSN 4720-01-450-1736

Product Details | AIR BREATHING HOSE ASSEMBLY


4720-01-450-1736 A length of HOSE, AIR BREATHING with couplings on one or both ends and/or a communication cable. Excludes items which include a branch hose or fork hoses; wiring for face mask heater; vent and pressure ducts for an anti-G-suit; HOSE ASSEMBLY, NONMETALLIC.20342400027Safety and Rescue Equipment47200024Hose and Flexible Tubing65150057Medical and Surgical Instruments, Equipment, and Supplies

Part Alternates: MS22055A240, 4720-01-450-1736, 01-450-1736, 4720014501736, 014501736

Pipe, Tubing, Hose, and Fittings | Hose and Flexible Tubing

Supply Group (FSG) NSN Assign. NIIN
47 29 OCT 1997 01-450-1736

Drawings & Photos | NSN 4720-01-450-1736




Cross Reference | NSN 4720-01-450-1736


Part Number Cage Code Manufacturer
MS22055A240 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.



Technical Data | NSN 4720-01-450-1736


Characteristic Specifications
MATERIAL RUBBER SYNTHETIC 1ST PLY COTTON 2ND PLY STEEL COVER
STYLE DESIGNATOR A4 HELICALLY WOUND CONTINUOUS WIRE SUPPORTED
CROSS-SECTIONAL SHAPE STYLE B3 ROUND
INSIDE DIAMETER 0.750 INCHES NOMINAL FIRST END
WALL THICKNESS 0.250 INCHES NOMINAL
MEASURING METHOD AND LENGTH 240.000 INCHES NOMINAL OVERALL

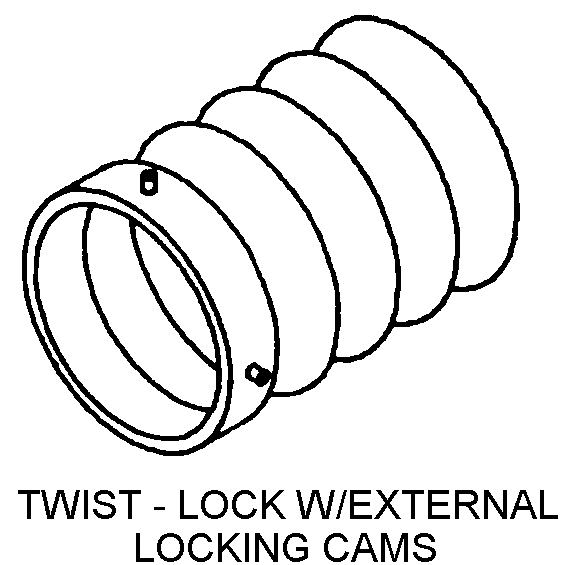

COUPLING STYLE D7 TWIST-LOCK W/EXTERNAL LOCKING CAMS FIRST END D15 CONNECTOR, OXYGEN HOSE TO REGULATOR W/CLIP SECOND END
COUPLING LOCKING DEVICE QUANTITY 2 FIRST END
SPECIAL FEATURES NEXT HIGHER ASSEMBLY NSN 4720-01-314-6063
SPECIFICATION/STANDARD DATA 96906-MS22055 GOVERNMENT STANDARD
NONDEFINITIVE SPEC/STD DATA 1 TYPE AND A STYLE
III END ITEM IDENTIFICATION SUPPORT EQUIPMENT,C-17A AIRCRAFT
MANUFACTURERS CODE 96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS22055A240

Restrictions/Controls & Freight Information | NSN 4720-01-450-1736


Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information

Management | NSN 4720-01-450-1736


Category Code Description
Materiel Management Aggregation CodeBATB:C-17 PROGRAM
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Budget CodeS 1557X3010:Aircraft Replenishment Spares
Source of SupplyF77Boeing Military Transportation Aircraft
Los Angeles, CA 90307-3044
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
