NSN 4730-00-182-9086 FD4512411212, FD45-1241-12-12, LL6K31S3
Product Details | QUICK DISCONNECT COUPLING HALF
4730-00-182-9086 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: FD4512411212, FD45-1241-12-12, LL6K31S3, LL-6-K31S3 , LL6KP31S3, 13211E3212, 4730-00-182-9086, 00-182-9086, 4730001829086, 001829086
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 09 JAN 1970 | 00-182-9086 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |

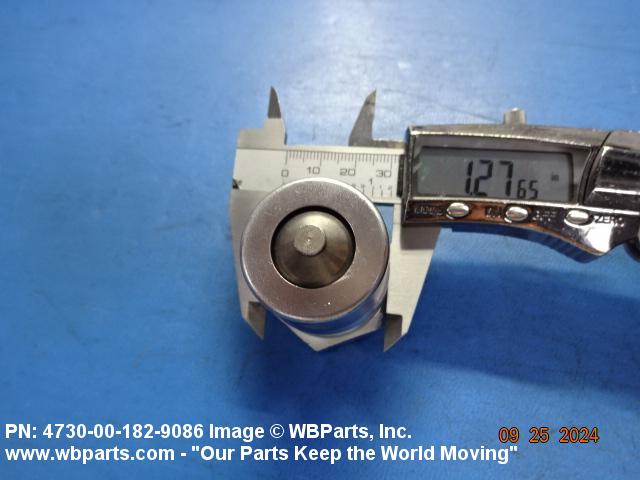

Drawings & Photos | NSN 4730-00-182-9086
Demand History | NSN 4730-00-182-9086
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-182-9086 | 2024-05-135 | 26 | United States |
| 4730-00-182-9086 | 2024-04-94 | 1086 | United States |
| LL-6-K31S3 | 2024-02-57 | 1068 | DIBBS |
| LL6KP31S3 | 2024-02-57 | 1068 | DIBBS |
| LL-6-K31S3 | 2024-02-45 | 1068 | DIBBS |
| LL6KP31S3 | 2024-02-45 | 1068 | DIBBS |
| 4730-00-182-9086 | 2024-02-37 | 200 | United States |
| LL-6-K31S3 | 2020-10-289 | 528 | DIBBS |
| LL6KP31S3 | 2020-10-289 | 528 | DIBBS |
| 4730-00-182-9086 | 2018-10-302 | 461 | DIBBS |
| 4730-00-182-9086 | 2016-10-297 | 318 | DIBBS |
| 4730-00-182-9086 | 2016-03-87 | 145 | DIBBS |
| 4730-00-182-9086 | 2015-07-210 | 105 | DIBBS |
| 4730-00-182-9086 | 2015-07-193 | 46 | DIBBS |
| 4730-00-182-9086 | 2015-05-147 | 136 | DIBBS |
| 4730-00-182-9086 | 2014-08-239 | 390 | DIBBS |
| 4730-00-182-9086 | 2013-04-114 | 272 | DIBBS |
| 4730-00-182-9086 | 2013-04-99 | 272 | DIBBS |
| 4730-00-182-9086 | 2013-03-88 | 258 | DIBBS |
| 4730-00-182-9086 | 2012-06-182 | 0 | DIBBS |
| 4730-00-182-9086 | 2010-07-204 | 151 | DIBBS |
| 4730-00-182-9086 | 2010-02-42 | 118 | DIBBS |
| 4730-00-182-9086 | 2009-11-328 | 67 | DIBBS |
| 4730-00-182-9086 | 2009-10-302 | 201 | DIBBS |
Cross Reference | NSN 4730-00-182-9086
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13211E3212 | 97403 | CECOM LR CENTER |
| FD45-1241-12-12 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| LL-6-K31S3 | 45X75 | EATON HYDRAULICS LLC DIV HYDRAULIC OPERATIONS |
| LL6K31S3 | 73992 | TUTHILL CORP HANSEN COUPLING DIV |
| LL6K31S3 | 7K418 | ANCHOR RUBBER CO |
| LL6KP31S3 | 73992 | TUTHILL CORP HANSEN COUPLING DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-182-9086
Related Products | NSN 4730-00-182-9086
Technical Data | NSN 4730-00-182-9086
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | STEEL CORROSION RESISTING |
| BODY STYLE | 1 COUPLING HALF |
| FIRST LEG LENGTH | ANY ACCEPTABLE |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 3500.0 POUNDS PER SQUARE INCH ANY ACCEPTABLE |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | NOT RATED |
| OVERALL LENGTH | 2.359 INCHES NOMINAL |
| FIRST FLUID END CONNECTION TYPE | THREADED INTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | B14 PLAIN |
| FIRST END NOMINAL PIPE SIZE ACCOMMODATED | 0.750 INCHES |
| FIRST END THREAD SERIES DESIGNATOR | NPTF |
| FIRST END NOMINAL THREAD SIZE | 0.750 INCHES |
| QUICK DISCONNECT METHOD | PUSH-PULL ALL ENDS |
| QUICK DISCONNECT END CONNECTION TYPE | EXTERNAL ALL ENDS |
| FEATURES PROVIDED | SELF-SEALING |
| MANUFACTURERS CODE | 97403 |
| MFR SOURCE CONTROLLING REFERENCE | 13211E3212 |
Restrictions/Controls & Freight Information | NSN 4730-00-182-9086
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126880 | POWER TRANS SHAFTING PULLEYS |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AJ | U.S. Army Soldier's Biological and Chemical Command Natick, MA 01760 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-182-9086
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 0 | Non-combat Essential End Item. End items that do not fit the definition of Code 1 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
