NSN 4730-00-186-9968 MS208226D, MS20822-6D, A42A01

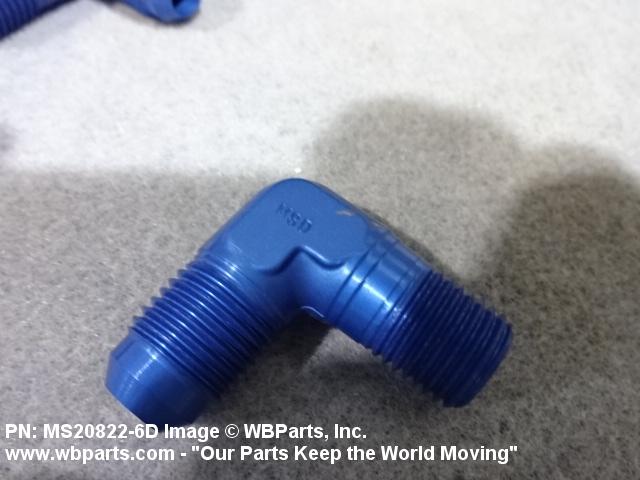

Product Details | PIPE TO TUBE ELBOW
4730-00-186-9968 A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. One connecting end has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE; ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS208226D, MS20822-6D, A42A01, AN8226D, AN822-6D, AS195W0604 , AS4841/1, AS48411, AS4842/1, AS48421, AS5195D0604, AS5195W0604, F21822, F21822D6, K500CPLTAC1, K-500-CPLTAC-1, MILF5509, 104D4, 212082, 2136956D, 213695-6D, 326139PC7, 458895, 74006, 7400-6, 7400X6, 4730-00-186-9968, 00-186-9968, 4730001869968, 001869968
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-186-9968 | 03770 ( ELBOW, PIPE TO TUBE ) |

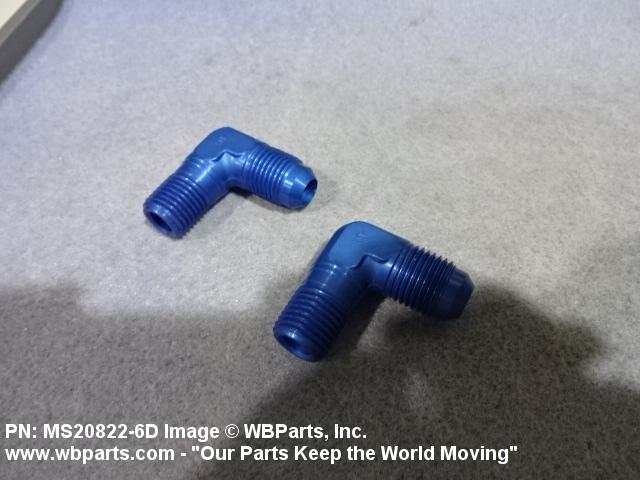

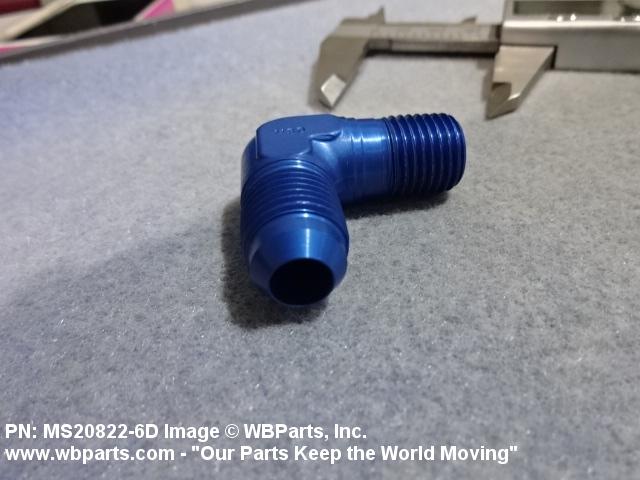

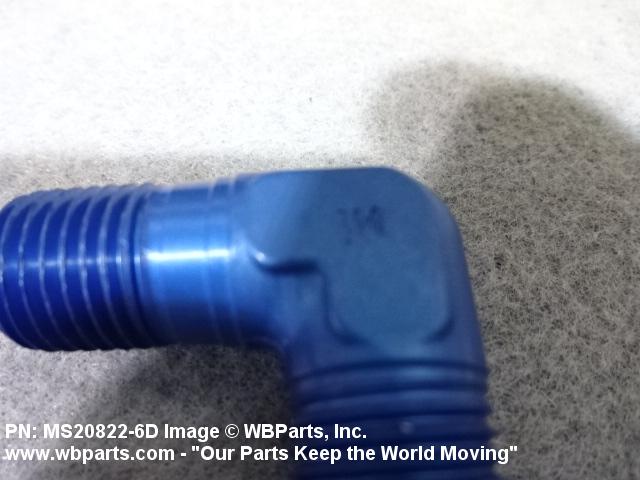

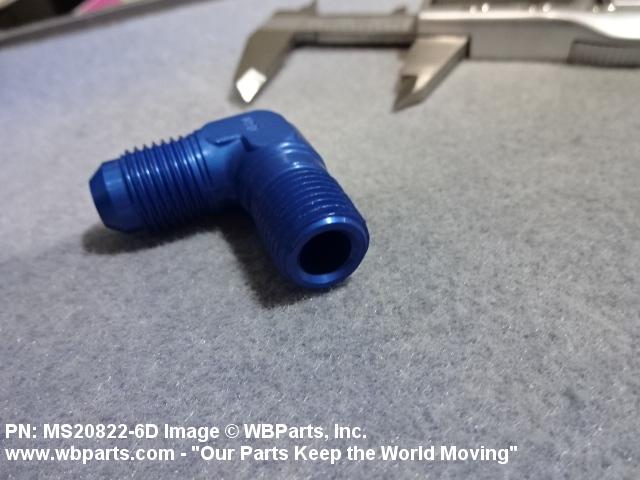

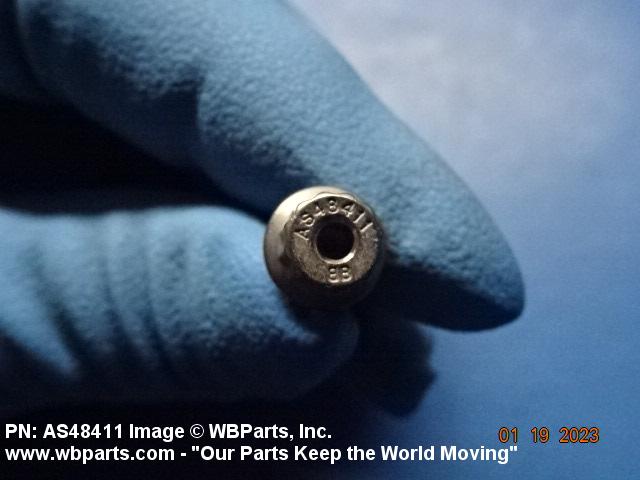

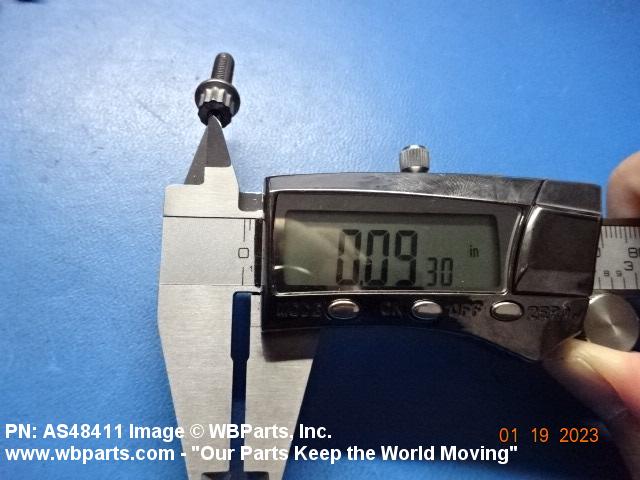

Drawings & Photos | NSN 4730-00-186-9968
Demand History | NSN 4730-00-186-9968
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AS48421 | 2025-04-106 | 1 | France |
| AS48411 | 2025-04-92 | 390 | US |
| AS48411 | 2022-11-318 | 236 | United States |
| AS48411 | 2020-08-232 | 5 | RU |
| MS208226D | 2019-03-63 | 22 | China |
| AS48411 | 2019-02-38 | 24 | United States |
| 74006 | 2018-11-333 | 3 | United States |
| MILF5509 | 2018-07-201 | 6 | United States |
| 4730-00-186-9968 | 2018-01-22 | 1 | DIBBS-RFPs |
| MS208226D | 2017-09-244 | 20 | United States |
| MS208226D | 2017-09-244 | 30 | United States |
| MS208226D | 2017-02-40 | 20 | United States |
| AS48421 | 2015-05-132 | 1 | CA |
| MS20822-6D | 2012-06-178 | 3 | PK |
| MS208226D | 2012-03-73 | 30 | US |
| AN8226D | 2012-02-38 | 24 | AR |
| 4730-00-186-9968 | 2012-02-38 | 24 | MANUAL |
| AN822-6D | 2012-02-38 | 24 | US |
| 4730-00-186-9968 | 2012-02-34 | 24 | AR |
| 4730-00-186-9968 | 2012-01-03 | 482 | DIBBS |
| 4730-00-186-9968 | 2011-12-362 | 482 | DIBBS |
| 4730-00-186-9968 | 2011-09-256 | 333 | DIBBS |
| 4730-00-186-9968 | 2011-08-213 | 878 | DIBBS |
| 4730-00-186-9968 | 2011-06-160 | 431 | DIBBS |
| 4730-00-186-9968 | 2011-04-104 | 425 | DIBBS |
| 4730-00-186-9968 | 2011-03-67 | 593 | DIBBS |
| MS208226D | 2010-07-197 | 3 | Sri Lanka |
| MILF5509 | 2009-10-301 | 1 | PK |
| AS5195W0604 | 2009-10-286 | 12 | US |
| MILF5509 | 2009-02-55 | 100 | US |
| 4730-00-186-9968 | 2008-11-316 | 529 | DIBBS |
| 4730-00-186-9968 | 2008-08-220 | 114 | us |
Cross Reference | NSN 4730-00-186-9968
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 104D4 | 0AHP5 | CURTISS-WRIGHT CONTROLS, INC DIV FLIGHT SYSTEMS |
| 212082 | 0KDP7 | KIDDE-FENWAL INC DBA CHEMTRON KIDDE FIRE SYSTEMS |
| 212082 | 16004 | DAVEY COMPRESSOR CO DIV OF KECO INDUSTRIES INC |
| 213695-6D | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| 326139PC7 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 458895 | 77294 | PIPER AIRCRAFT INC. |
| 7400-6 | 79470 | DANA CORP WEATHERHEAD DIV |
| 7400X6 | 79470 | DANA CORP WEATHERHEAD DIV |
| A42A01 | 58588 | SURFACE COMBUSTION, INC. |
| AN822-6D | 86768 | TELEDYNE INDUSTRIES INC TELEDYNE FLUID SYSTEMS REPUBLIC |
| AN822-6D | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AS195W0604 | 59680 | B. & E. MANUFACTURING CO., INC. |
| AS4841/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS4842/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5195D0604 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5195W0604 | 59680 | B. & E. MANUFACTURING CO., INC. |
| AS5195W0604 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| F21822 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| F21822D6 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| F21822D6 | R1120 | SATAIR A/S |
| K-500-CPLTAC-1 | 59556 | KOVATCH CORP. |
| MILF5509 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS20822-6D | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-186-9968
Related Products | NSN 4730-00-186-9968
Technical Data | NSN 4730-00-186-9968
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 2,CL 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL PIPE 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END B67B PLAIN 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNJF 1ST END ANPT 2ND END |
| NOMINAL THREAD SIZE | 0.562 INCHES 1ST END 0.250 INCHES 2ND END |
| THREAD CLASS | 3A 1ST END |

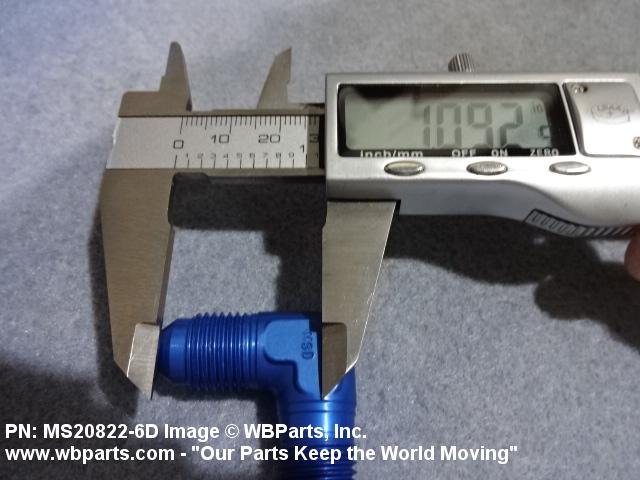

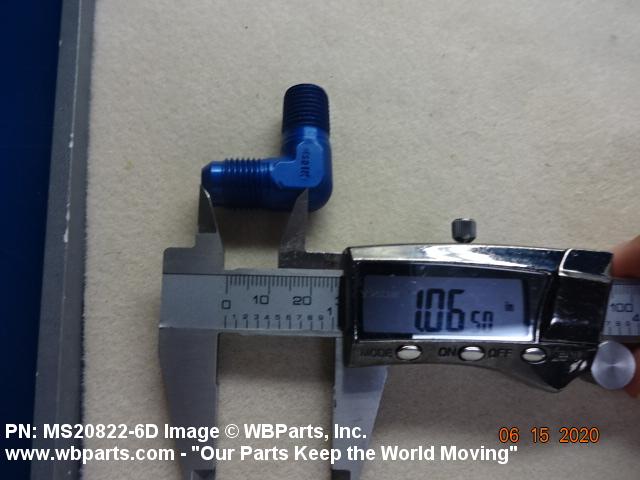

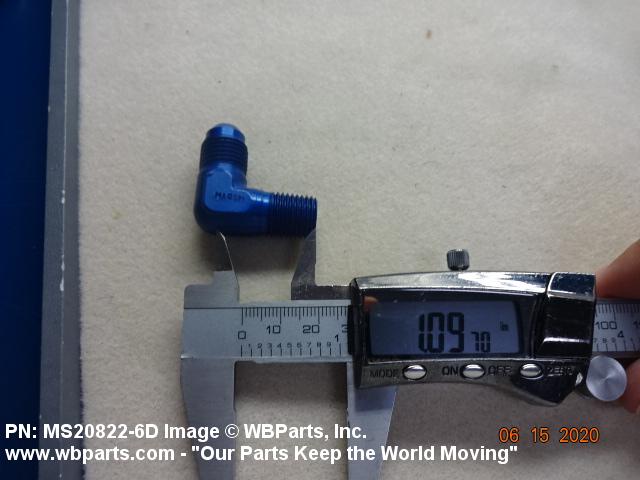

| LEG LENGTH | 1.062 INCHES NOMINAL 1ST END 1.094 INCHES NOMINAL 2ND END |
