Product Details | TUBE FITTING BRAZING FERRULE
4730-00-204-1961 A flanged cylindrical metallic item designed to be slipped over tubing and brazed in place. The rear face of the flange forms a bearing surface for the coupling nut, and the front face is of a contour designed to seat against a mating contour on a fitting. When assembled the joint seals at the seat in a manner similar to a seat type union.
Part Alternates: 259345, 4730-00-204-1961, 00-204-1961, 4730002041961, 002041961
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-204-1961 | 18024 ( FERRULE, BRAZING, TUBE FITTING ) |

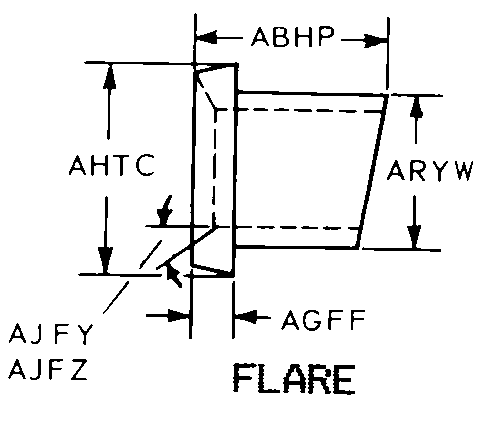

Drawings & Photos | NSN 4730-00-204-1961
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4730-00-204-1961
4730-00-204-1969, 4730-00-204-1970, 4730-00-204-1971, 4730-00-204-1972, 4730-00-204-1985
Technical Data | NSN 4730-00-204-1961
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, AMS 5649 |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 1.000 INCHES NOMINAL |
| STYLE DESIGNATOR | J4 FLARE |
| OVERALL LENGTH | 1.406 INCHES NOMINAL |
| FLANGE WIDTH | 0.332 INCHES MINIMUM AND 0.352 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 1.219 INCHES MINIMUM AND 1.222 INCHES MAXIMUM |
| SEAT ANGLE IN DEG | 37.0 |
| SLEEVE OUTSIDE DIAMETER | 1.078 INCHES MINIMUM AND 1.081 INCHES MAXIMUM |
