NSN 4730-00-309-2777 ST037032, TS037032, TS-037032
Product Details | TUBE FITTING BRAZING FERRULE
4730-00-309-2777 A flanged cylindrical metallic item designed to be slipped over tubing and brazed in place. The rear face of the flange forms a bearing surface for the coupling nut, and the front face is of a contour designed to seat against a mating contour on a fitting. When assembled the joint seals at the seat in a manner similar to a seat type union.
Part Alternates: ST037032, TS037032, TS-037032, 037032, 4730-00-309-2777, 00-309-2777, 4730003092777, 003092777
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 24 OCT 1973 | 00-309-2777 | 18024 ( FERRULE, BRAZING, TUBE FITTING ) |
Drawings & Photos | NSN 4730-00-309-2777
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-309-2777
Technical Data | NSN 4730-00-309-2777
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| METALLIC HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.438 INCHES NOMINAL |

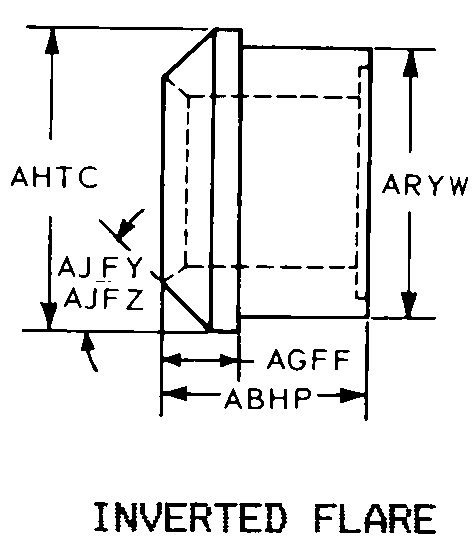

| STYLE DESIGNATOR | J6 INVERTED FLARE |
| OVERALL LENGTH | 0.406 INCHES NOMINAL |
| FLANGE WIDTH | 0.125 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 0.438 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 45.0 |
| SLEEVE OUTSIDE DIAMETER | 0.406 INCHES NOMINAL |
