NSN 4730-00-378-7300 AN9298K, AN929-8K, 00-378-7300
Product Details | TUBE CAP
4730-00-378-7300 A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.
Part Alternates: AN9298K, AN929-8K, 4730-00-378-7300, 00-378-7300, 4730003787300, 003787300
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 16 MAR 1974 | 00-378-7300 | 06074 ( CAP, TUBE ) |

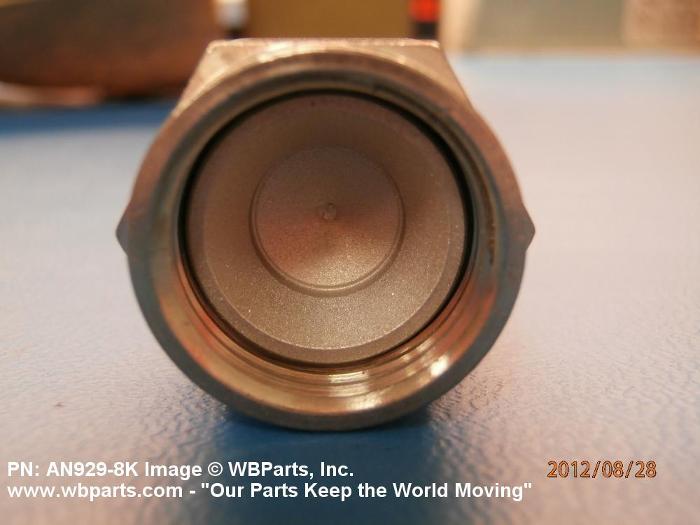

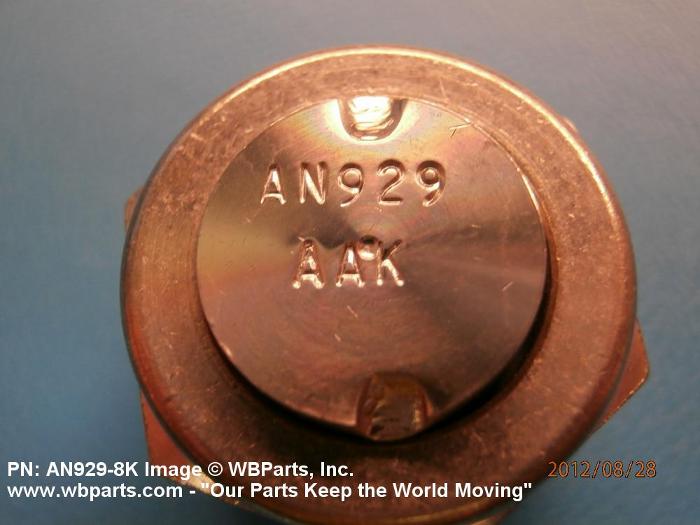

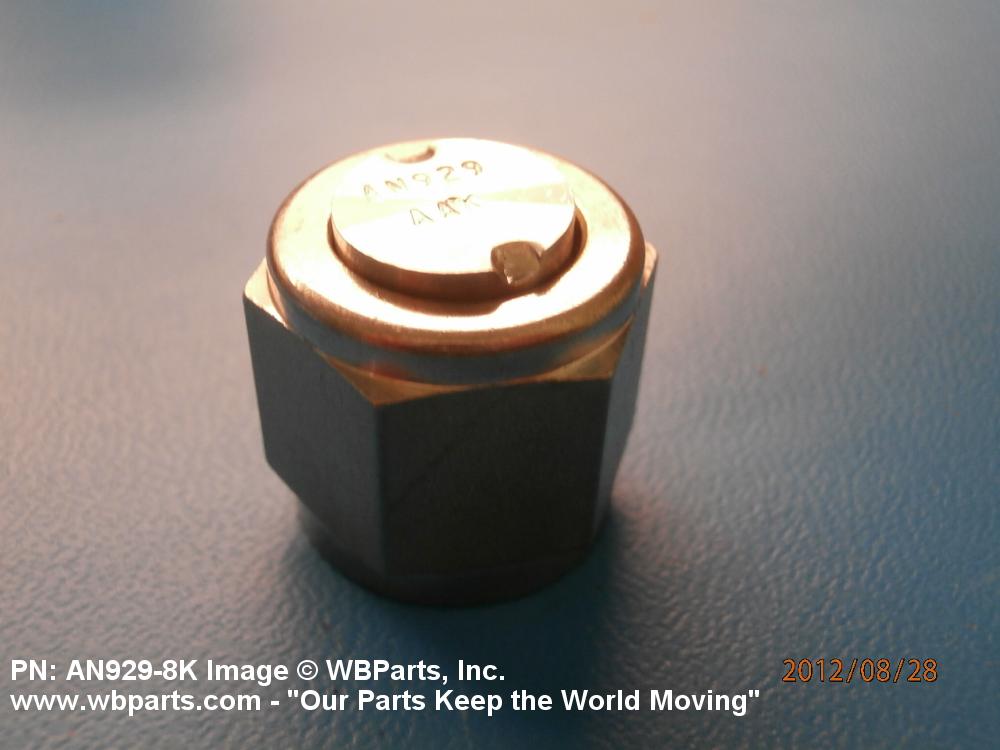

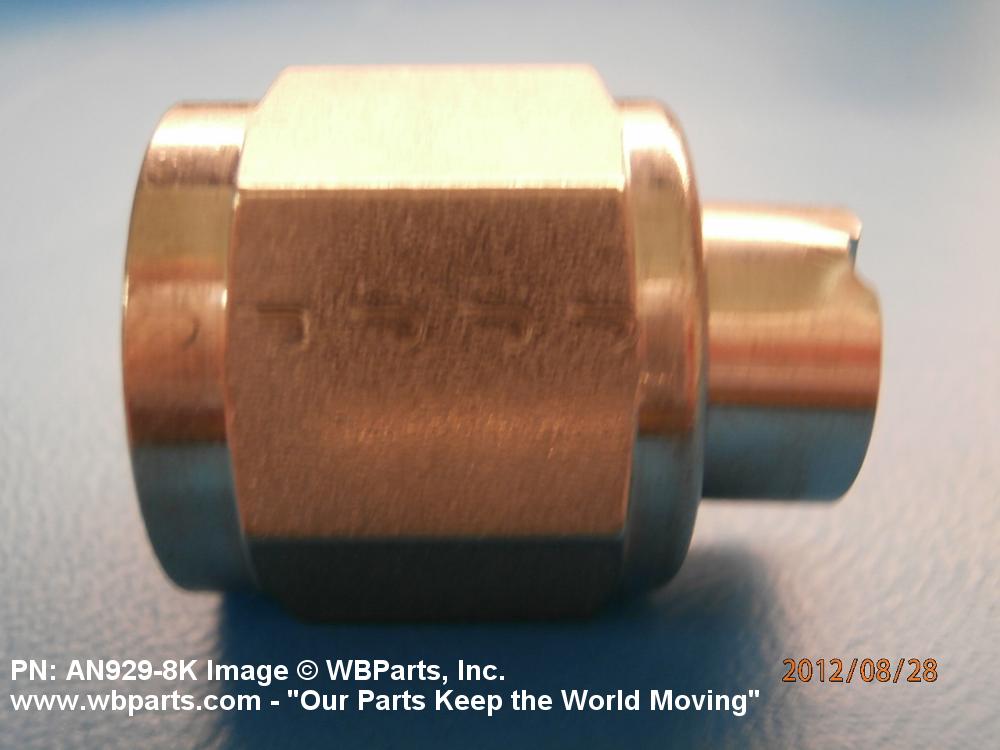

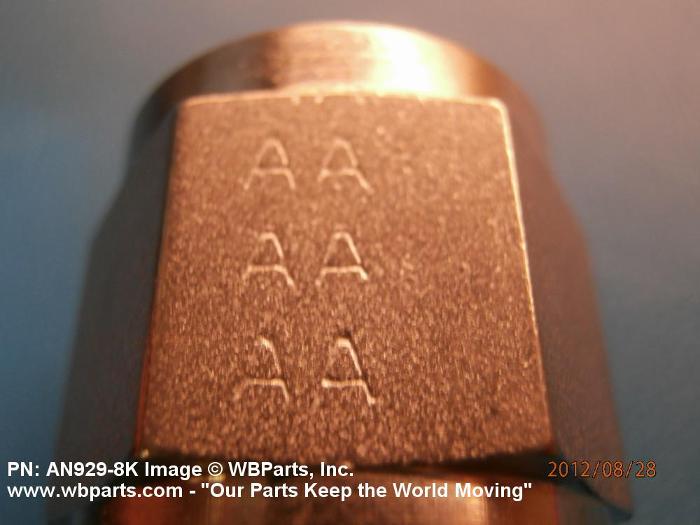

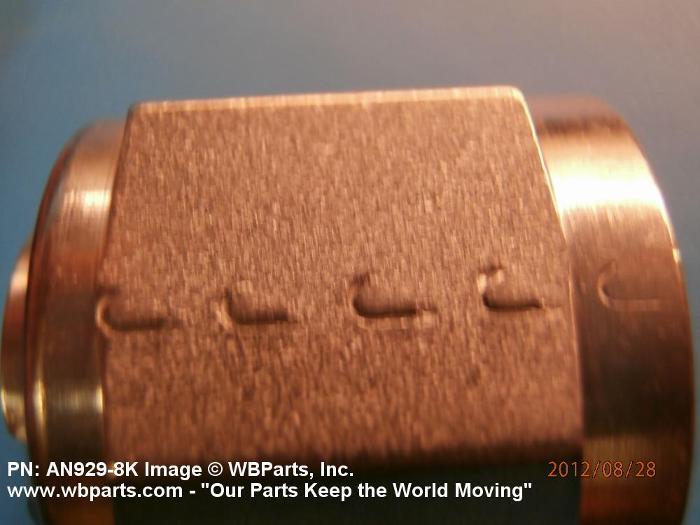

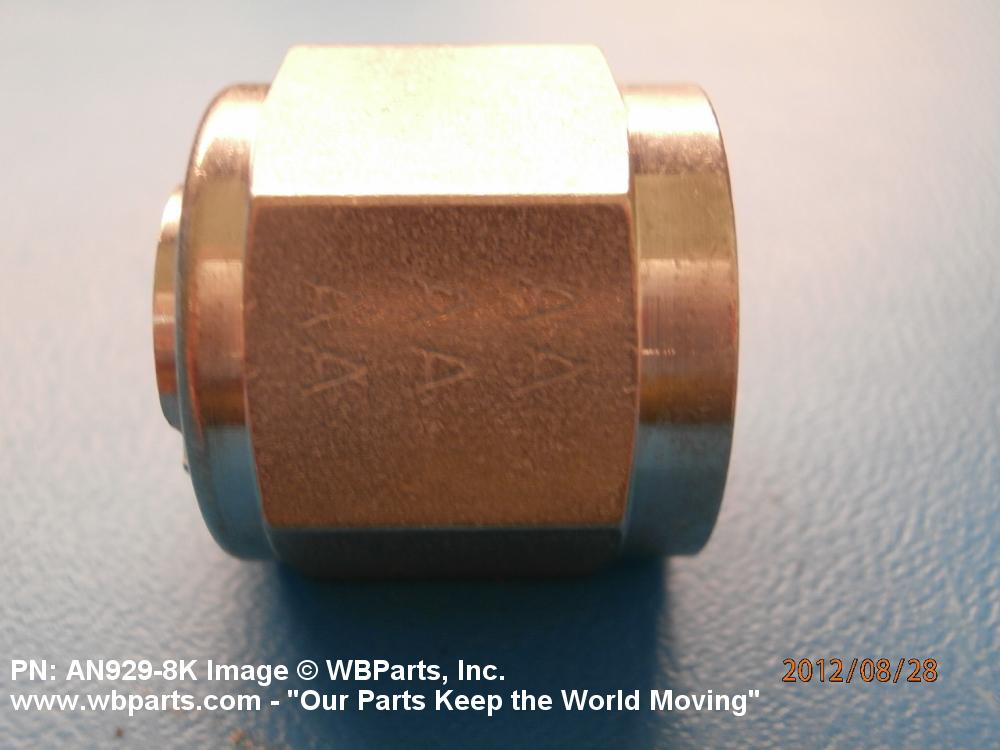

Drawings & Photos | NSN 4730-00-378-7300
Demand History | NSN 4730-00-378-7300
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN9298K | 2021-04-106 | 16 | US |
| AN9298K | 2012-08-215 | 1 | United States |
Cross Reference | NSN 4730-00-378-7300
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN929-8K | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-378-7300
Technical Data | NSN 4730-00-378-7300
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | A12 CAP, TUBE, FLARED |
| CONNECTION STYLE | G5 PRESSURE SEAL FLARED |
| THREAD SERIES DESIGNATOR | UNJF INTERNAL |
| NOMINAL THREAD SIZE | 0.750 INCHES INTERNAL |
| THREAD QUANTITY PER INCH | 18 INTERNAL |
| THREAD CLASS | 3B INTERNAL |
| THREAD DIRECTION | RIGHT-HAND INTERNAL |
| SEAT ANGLE | 37.0 DEGREES |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.500 INCHES NOMINAL |
| SPECIAL FEATURES | PART MODIFIED BY LEWIS SPEC 103 |
| (NON-CORE DATA) SAFETY WIRE HOLE QUANTITY | 1 |
| MANUFACTURERS CODE | 88044 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN929-8K |
Restrictions/Controls & Freight Information | NSN 4730-00-378-7300
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
