NSN 4730-00-790-2495 M24136/3E8, M241363E8, MILF24787
Product Details | HOSE ELBOW
4730-00-790-2495 A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. Each connecting end must have either standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed to accommodate a hose. It may have side or heel inlet(s). See also ELBOW, PIPE TO HOSE; ELBOW, TUBE TO HOSE; and ELBOW, HOSE TO BOSS.
Part Alternates: M24136/3E8, M241363E8, MILF24787, MIL-F-24787, MIL-F-24787/5 GRVIII TYD, MILF247875GRVIIITYD, MIL-H-24136/3, MILH241363, 2620225X1PC422, 2620-225X1PC422, 41913028, 4-191302-8, 4730-00-790-2495, 00-790-2495, 4730007902495, 007902495
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1960 | 00-790-2495 | 03332 ( ELBOW, HOSE ) |

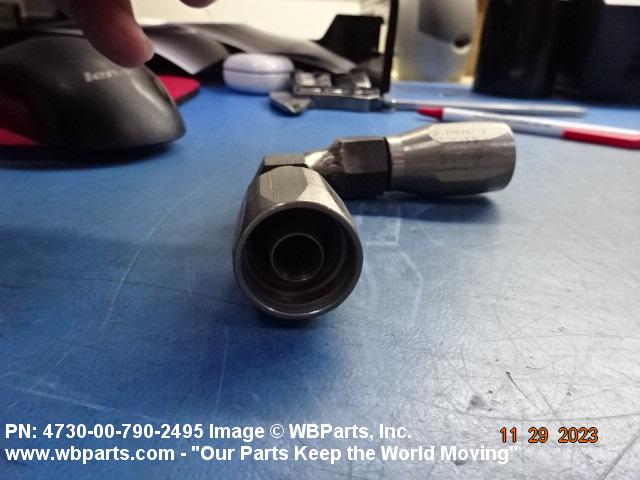

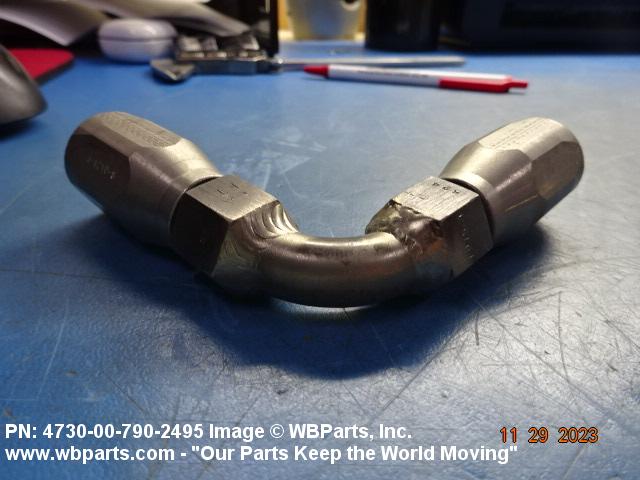

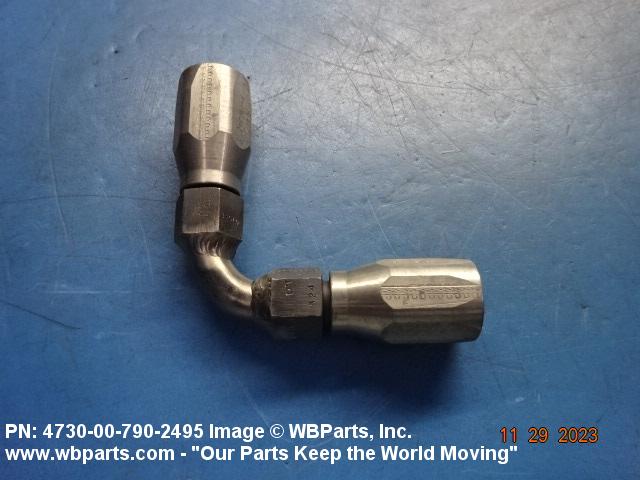

Drawings & Photos | NSN 4730-00-790-2495
Demand History | NSN 4730-00-790-2495
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-790-2495 | 2025-06-167 | 1 | US |
| 4730-00-790-2495 | 2024-01-02 | 45 | DIBBS |
| 4730-00-790-2495 | 2023-12-355 | 45 | DIBBS |
| 4730-00-790-2495 | 2023-11-324 | 1 | United States |
| 4730-00-790-2495 | 2023-05-136 | 24 | DIBBS |
| 4730-00-790-2495 | 2023-05-124 | 24 | DIBBS |
| 4730-00-790-2495 | 2022-10-293 | 21 | DIBBS |
| 4730-00-790-2495 | 2020-12-363 | 24 | DIBBS |
| 4730-00-790-2495 | 2020-12-352 | 24 | DIBBS |
| MILH241363 | 2018-07-207 | 2 | United States |
| MILH241363 | 2014-06-162 | 3 | AU |
Cross Reference | NSN 4730-00-790-2495
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2620-225X1PC422 | 96169 | ELECTRIC BOAT CORPORATION |
| 4-191302-8 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| M24136/3E8 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-F-24787 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-F-24787/5 GRVIII TYD | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-H-24136/3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-00-790-2495
Technical Data | NSN 4730-00-790-2495
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-281,CLASS A OR B FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| MAXIMUM OPERATING PRESSURE | 2000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 200.0 DEG FAHRENHEIT SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL HOSE GRIPPING ALL ENDS |
| CONNECTION STYLE | B61 GRIPPING NIPPLE ALL ENDS |

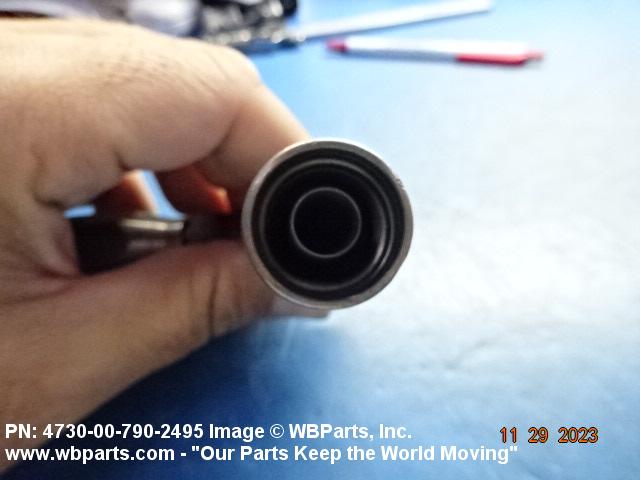

| NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED | 0.410 INCHES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER HOSE ACCOMMODATED | 0.770 INCHES ALL ENDS |

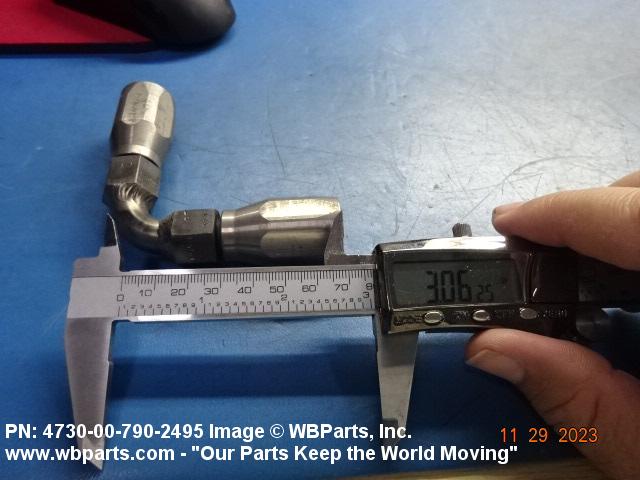

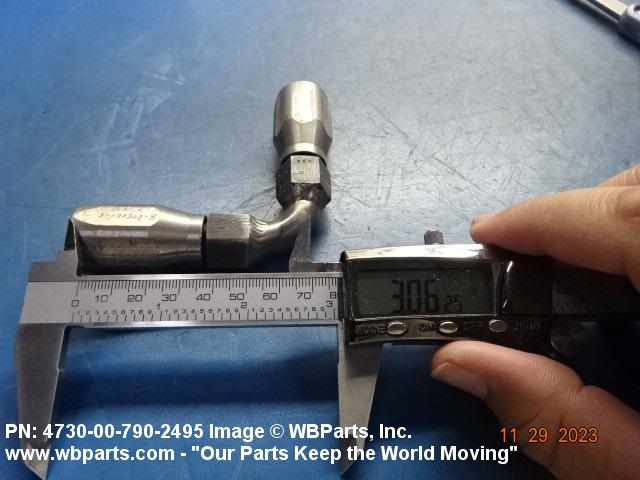

| LEG LENGTH | 3.050 INCHES NOMINAL ALL ENDS |
| FLOW ANGLE | 90.0 DEGREES |
| FURNISHED ITEMS AND QUANTITY | 2 SOCKET |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-24787 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-24787/5 GRVIII TYD |
Restrictions/Controls & Freight Information | NSN 4730-00-790-2495
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051450 | PIPE FITTINGS CUPRO NICKEL/COPPER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-790-2495
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
