NSN 4730-00-803-5765 MS51504A62, MS51504A6-2, AC1348
Product Details | PIPE TO TUBE ELBOW
4730-00-803-5765 A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. One connecting end has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE; ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: MS51504A62, MS51504A6-2, AC1348, AC-1-348, T28860, J514, 202426S, 2024-2-6S, 35301126, 6-2 070202CA, 62070202CA, 62CBTX5, 6-2CBTX-5, 65007AX , 4730-00-803-5765, 00-803-5765, 4730008035765, 008035765
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 APR 1968 | 00-803-5765 | 03770 ( ELBOW, PIPE TO TUBE ) |

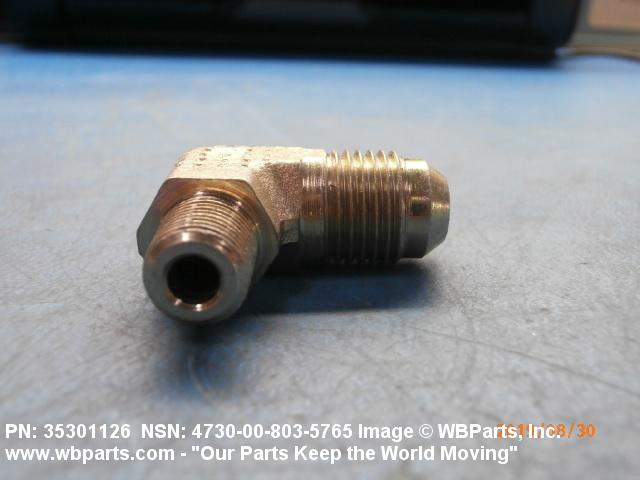

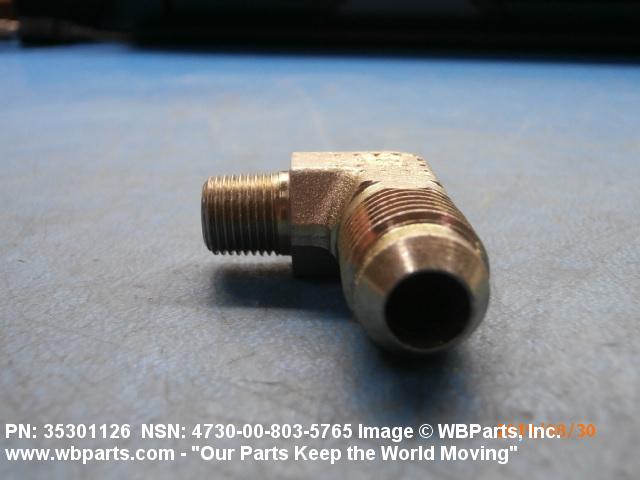

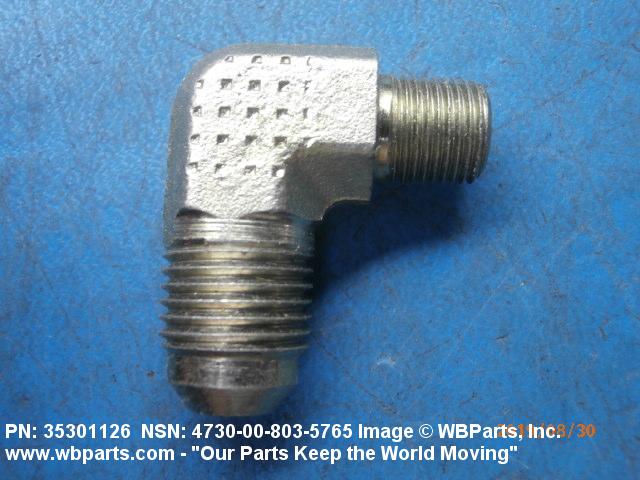

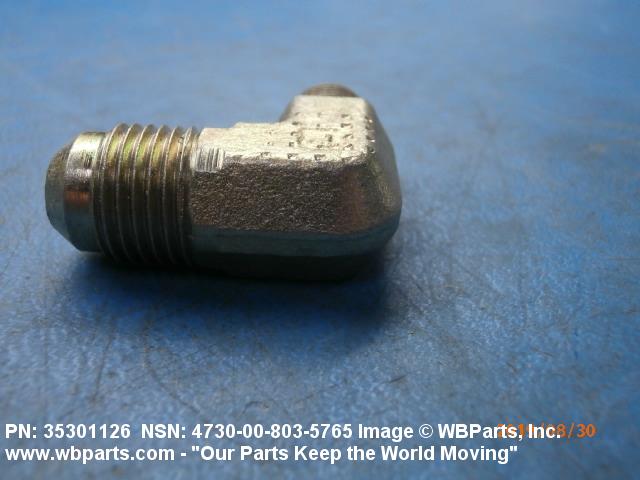

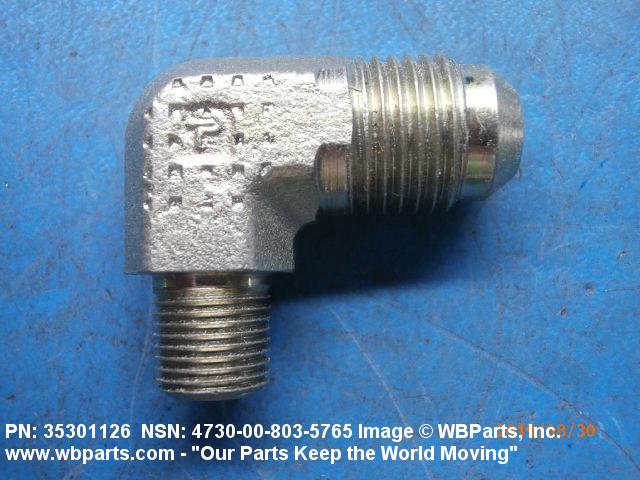

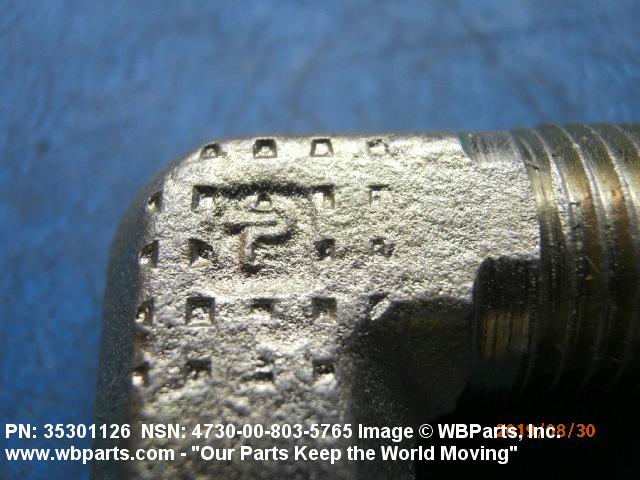

Drawings & Photos | NSN 4730-00-803-5765
Demand History | NSN 4730-00-803-5765
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-803-5765 | 2019-08-238 | 10 | United States |
| 4730-00-803-5765 | 2018-11-306 | 2 | United States |
| 4730-00-803-5765 | 2018-08-240 | 2 | United States |
| J514 | 2015-02-48 | 1 | us |
| J514 | 2010-02-47 | 20 | us |
Cross Reference | NSN 4730-00-803-5765
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2024-2-6S | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| 35301126 | 33968 | CLARK EQUIPMENT COMPANY DBA DOOSAN INFRACORE PORTABLE POWER |
| 6-2 070202CA | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| 6-2CBTX-5 | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| 6-2CBTX-5 | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 65007AX | 45152 | OSHKOSH CORPORATION |
| 65007AX | 75Q65 | OSHKOSH DEFENSE, LLC |
| AC-1-348 | 46717 | PETTIBONE LLC |
| J514 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MS51504A6-2 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| MS51504A6-2 | 30327 | IMPERIAL |
| MS51504A6-2 | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| MS51504A6-2 | 93188 | L AND L MFG CO |
| MS51504A6-2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS51504A6-2 | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| MS51504A6-2 | 98660 | LUBE DEVICES INC FLODAR FLUID POWER FITTINGS DIV |
| T28860 | 75755 | DEERE & COMPANY DBA JOHN DEERE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-803-5765
Related Products | NSN 4730-00-803-5765
Technical Data | NSN 4730-00-803-5765
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66,AISI 12L14 FED STD 1ST MATERIAL RESPONSE OR QQ-S-637,12L14F FED SPEC 2ND MATERIAL RESPONSE ELBOW |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | J514 ASSN STD SINGLE TREATMENT RESPONSE AND QQ-P-416, TY 1, CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 250.0 DEG FAHRENHEIT SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL PIPE 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END B67B PLAIN 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |

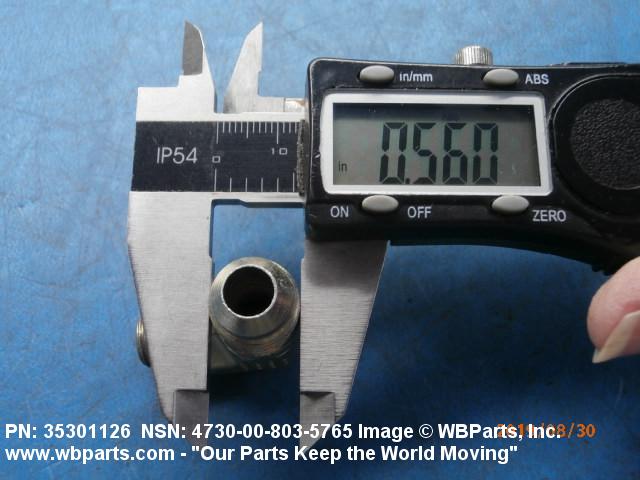

| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNF 1ST END NPTF 2ND END |
| NOMINAL THREAD SIZE | 0.562 INCHES 1ST END 0.125 INCHES 2ND END |
| THREAD CLASS | 2A 1ST END |

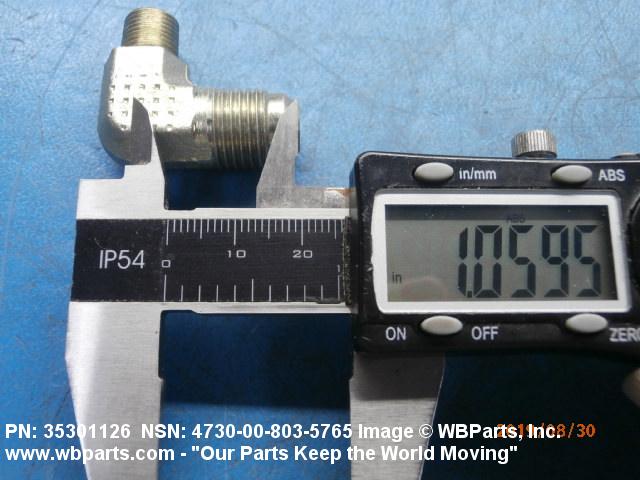

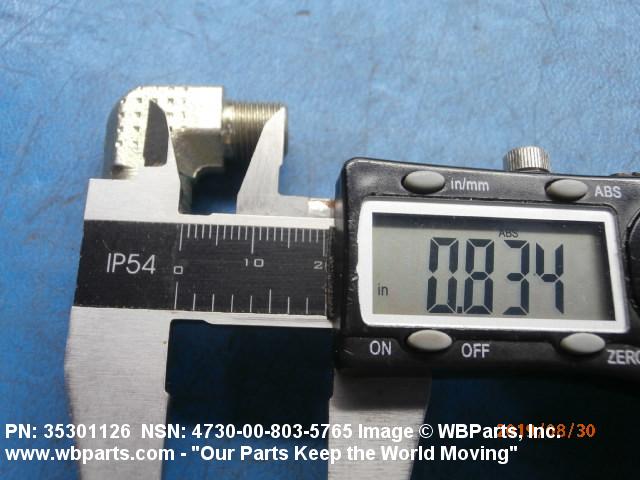

| LEG LENGTH | 1.060 INCHES NOMINAL 1ST END 0.900 INCHES NOMINAL 2ND END |
